WX 1850 & HD SI Transducer

  • crave2fish
    NULL
    Posts: 13
    #1596407

    Trying to determine the best location on my WX1850 transom for my Humminbird SI transducer(XHS 9 HDSI 180 T). If anyone has pictures they would share on their placement, that would be great. I will be using the in hull transducer for 2D so I don’t need it for onplane readings.

    Eric Rehberg
    Eau Claire, WI
    Posts: 3071
    #1596479

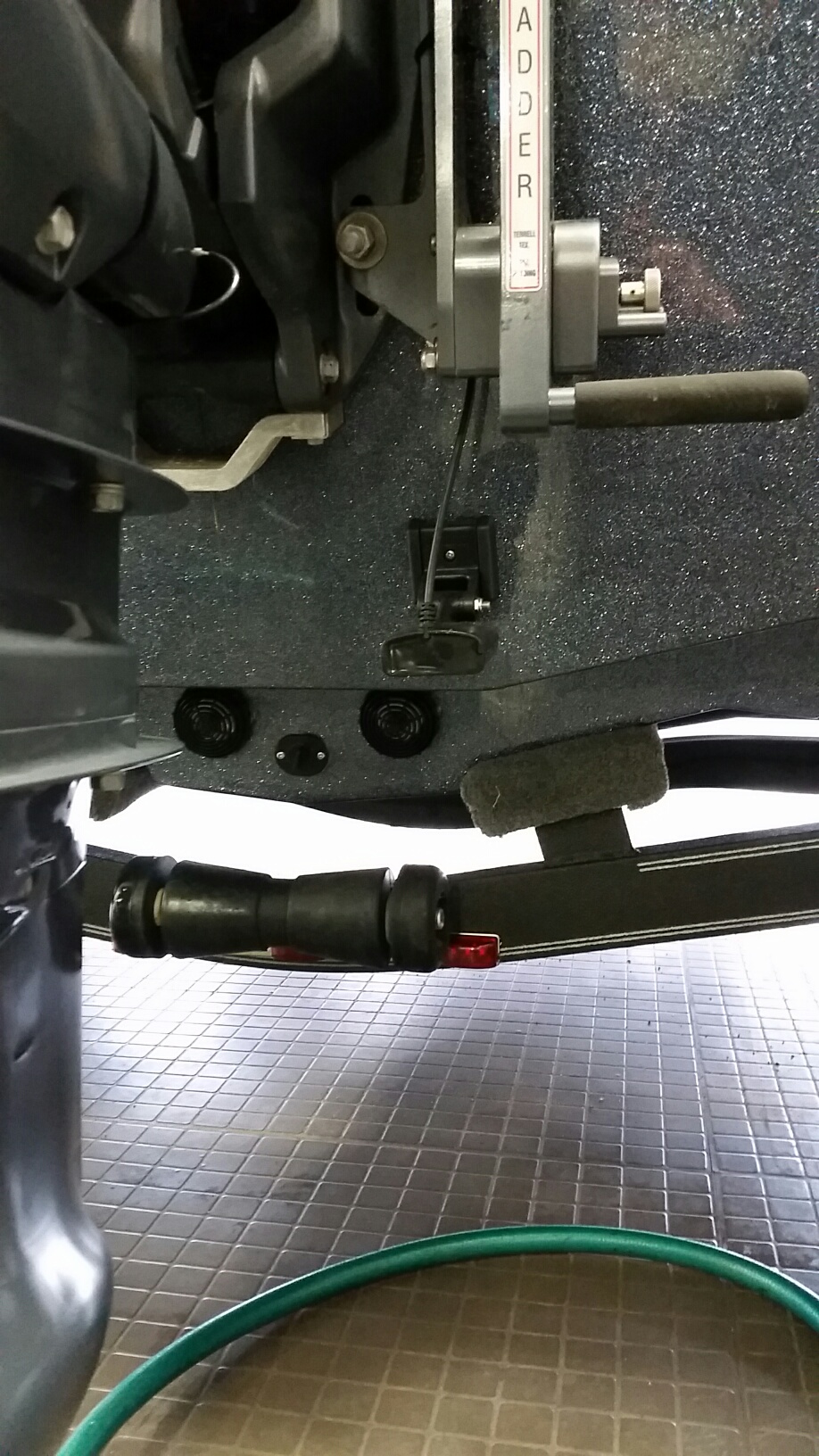

    Here is an 1850 we just rigged. It has the smaller compact SI ducer on it but would still be mounted in the same place as the HDSI ducer.

    Attachments:
    1. 20160129_100826_resized.jpg

    pale ryder
    NULL
    Posts: 161
    #1596614

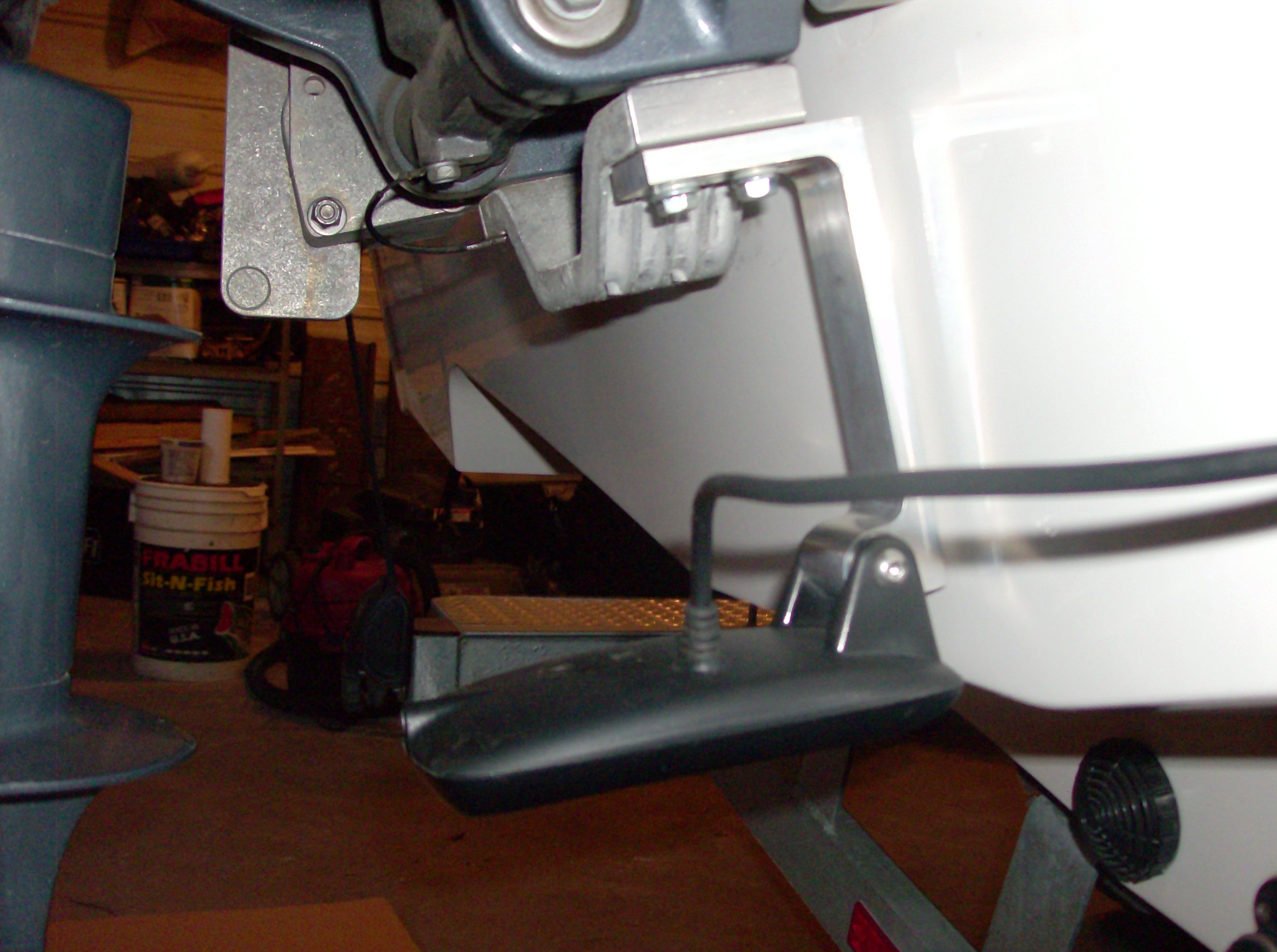

    This is how I mounted mine on a MX1825. I didn’t need to drill any holes in the hull. Works great.

    Attachments:
    1. HPIM0656.jpg

    crave2fish
    NULL
    Posts: 13
    #1596630

    Did you purchse the bracket or did you make it? I like the idea of not drilling holes!

    Thanks for the picture!

    crave2fish
    NULL
    Posts: 13
    #1596631

    Shouldn’t the transducer run just below the step line. In this photo the transducer looks like it is 1/4″ above the step.

    Thanks for posting the picture!

    pale ryder
    NULL
    Posts: 161
    #1596654

    I make them.
    It is mounted high enough to protect the transducer from impacts. It only works up to about 6 MPH. when the boat starts to plane the transducer comes up out of the water. This isn’t a problem because SI and DI are only really useful at lower speeds and I get 2-D info from a glasses in transducer using a AS SIDB Y cable that splits SI and 2d, to run both transducers to one unit.

    If you want your HDSI transducer to work at on plane speeds it must be located with it’s face slightly below the lowest step of the hull.

    pale ryder
    NULL
    Posts: 161
    #1596657

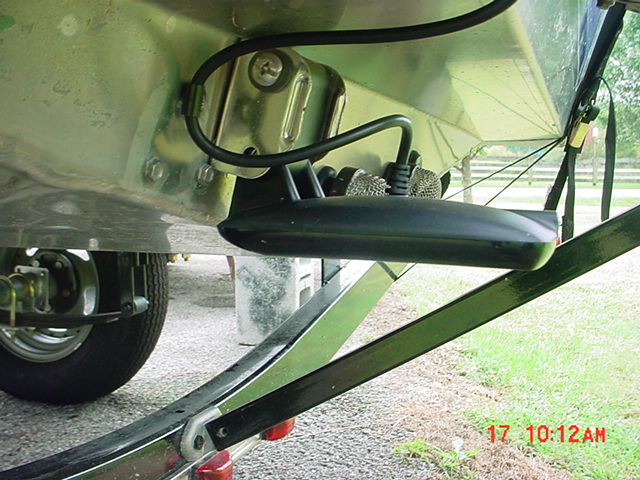

    Here is a picture of a HDSI mounted to read at on plane speeds.

    Attachments:
    1. hdsi.jpg

    crave2fish
    NULL
    Posts: 13
    #1596702

    I make them.
    It is mounted high enough to protect the transducer from impacts. It only works up to about 6 MPH. when the boat starts to plane the transducer comes up out of the water. This isn’t a problem because SI and DI are only really useful at lower speeds and I get 2-D info from a glasses in transducer using a AS SIDB Y cable that splits SI and 2d, to run both transducers to one unit.

    If you want your HDSI transducer to work at on plane speeds it must be located with it’s face slightly below the lowest step of the hull.

    I make them.
    It is mounted high enough to protect the transducer from impacts. It only works up to about 6 MPH. when the boat starts to plane the transducer comes up out of the water. This isn’t a problem because SI and DI are only really useful at lower speeds and I get 2-D info from a glasses in transducer using a AS SIDB Y cable that splits SI and 2d, to run both transducers to one unit.

    If you want your HDSI transducer to work at on plane speeds it must be located with it’s face slightly below the lowest step of the hull.

    Thank you! Good information. My project today is setting up my Helix 9 SI & 10SI. Fish don’t stand a chance now! lol
