wire color code question on 2020 year lund alaskan 1600 tiller

  • jim spielvogel
    Posts: 15
    #1932397

    I Purchased a new 2020 year 16 ft Lund Alaskan tiller and ordered with a 24 volt set up just the wired part. ordered late feb 2020 and boat was at dealer in under 4 weeks.Because of the covid 19 virus.the dealer was only allowing pre ordered boats to be picked up. I was only able to go up and pick up boat in and out. was no time to ask questions. I did not receive a owners Manuel. on the 24 volt system there are two wires that run to second battery box. One is solid black the other is black with a blue stripe.DOES IT MAKE A DIFFERENCE WHICH WIRE IS CONNECTED POS TO NEG ON BATTERY THE STRIPE IS JUST SO CONNECTIONS DON’T GET MIXED UP RIGHT? this may make me sound like a idiot but this is my first 24 volt rodeo LOL

    Hot Runr Guy
    West Chicago, IL
    Posts: 1933
    #1932400

    Does the receptacle that the TM plugs into have 2 pins, or 4?

    What color wires, and how many of each, are in the “primary” battery compartment? Does one have a breaker attached?

    HRG

    jim spielvogel
    Posts: 15
    #1932422

    yes in primary battery compartment there is a breaker two wires one red and one black run to the trolling motor plug outlet the plug has only 3 prongs ‘im going to run out and look at the other wires

    jim spielvogel
    Posts: 15
    #1932433

    ok in my main battery compartment one red wire to a breaker the other goes to ground plate its black in same compartment one solid black and one black wire with a blue stripe these two wires black and black with blue stripe run under floor to second battery box although the trolling motor has 3 prongs it only has a black and red wire connected to it one of the prongs is not used (no wire to it)

    Hot Runr Guy
    West Chicago, IL
    Posts: 1933
    #1932447

    Can you tell if the red and black that are in the primary battery compartment are running directly to/from the socket? Just confirming what you posted.

    HRG

    jim spielvogel
    Posts: 15
    #1932451

    yes red and black run directly to troll motor plug outlet the other two the solid black and the black with blue stripe go from primary battery compartment to second battery compartment

    Hot Runr Guy
    West Chicago, IL
    Posts: 1933
    #1932455

    yes red and black run directly to troll motor plug outlet the other two the solid black and the black with blue stripe go from primary battery compartment to second battery compartment

    OK, give me a minute and I’ll make & post a drawing.

    HRG

    Dusty Gesinger
    Minnetrista, Minnesota
    Posts: 2417
    #1932456

    Which of the black wires comes out of the breaker or its probably the jumper wire.

    jim spielvogel
    Posts: 15
    #1932458

    From what I can see a red wire comes from troll motor plug outlet into main battery compartment and connects directly to breaker on bottom side.Then at the of top of breaker the red wire (shorter one) would just i think connect to pos on battery

    Hot Runr Guy
    West Chicago, IL
    Posts: 1933
    #1932459

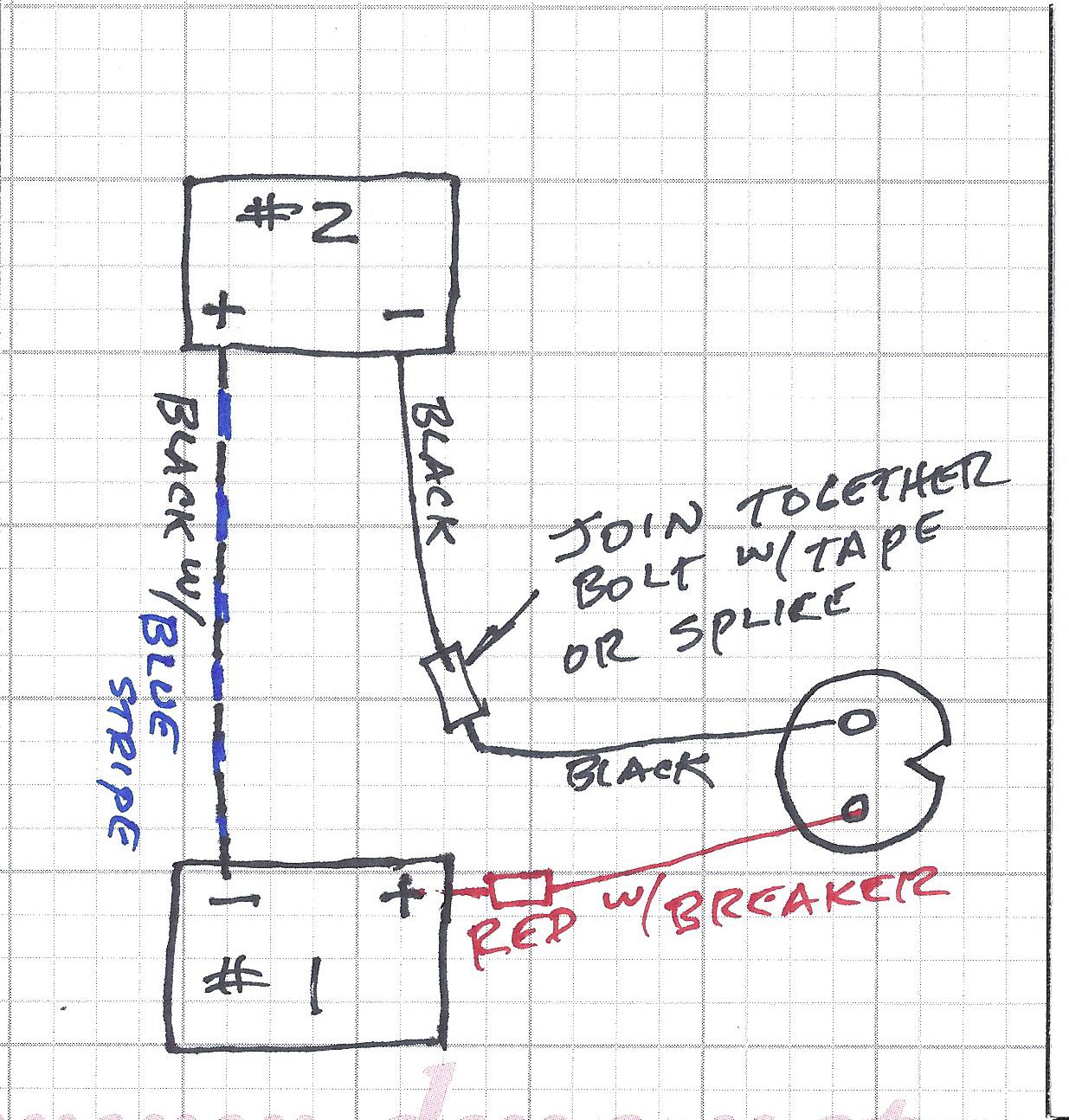

    Red w/breaker goes to battery #1 positive. Black w/blue stripe goes from #1 negative to #2 positive. Black from plug gets connected to black that runs to battery #2 negative. It does NOT connect to battery #1. If there are ring terminals at both ends, bolt together and tape over, or use a butt-splice with waterproof heat shrink to seal. Probably #8 AWG wire.

    HRG

    Attachments:
    1. 24V-series.jpg

    Dusty Gesinger
    Minnetrista, Minnesota
    Posts: 2417
    #1932463

    Solid black in second compartment goes to?

    jim spielvogel
    Posts: 15
    #1932468

    Thank you so much made a copy for ref,, thank you for you’re time

    jim spielvogel
    Posts: 15
    #1932478

    Sorry I had missed you’re question but the black wire runs out of second battery compartment to primary battery compartment #1.. Thank you Dusty for you’re time also ..Think I have it solved JIM

    Hot Runr Guy
    West Chicago, IL
    Posts: 1933
    #1932479

    Thank you so much made a copy for ref,, thank you for you’re time

    You’re welcome. Enjoy the new rig.

    HRG

    Dusty Gesinger
    Minnetrista, Minnesota
    Posts: 2417
    #1932526

    Do the black wires reach to splice on the ground plate? Or do you have to splice like in the diagram?
