Wheel house heater exhaust

  • Gary M
    Posts: 81
    #2016726

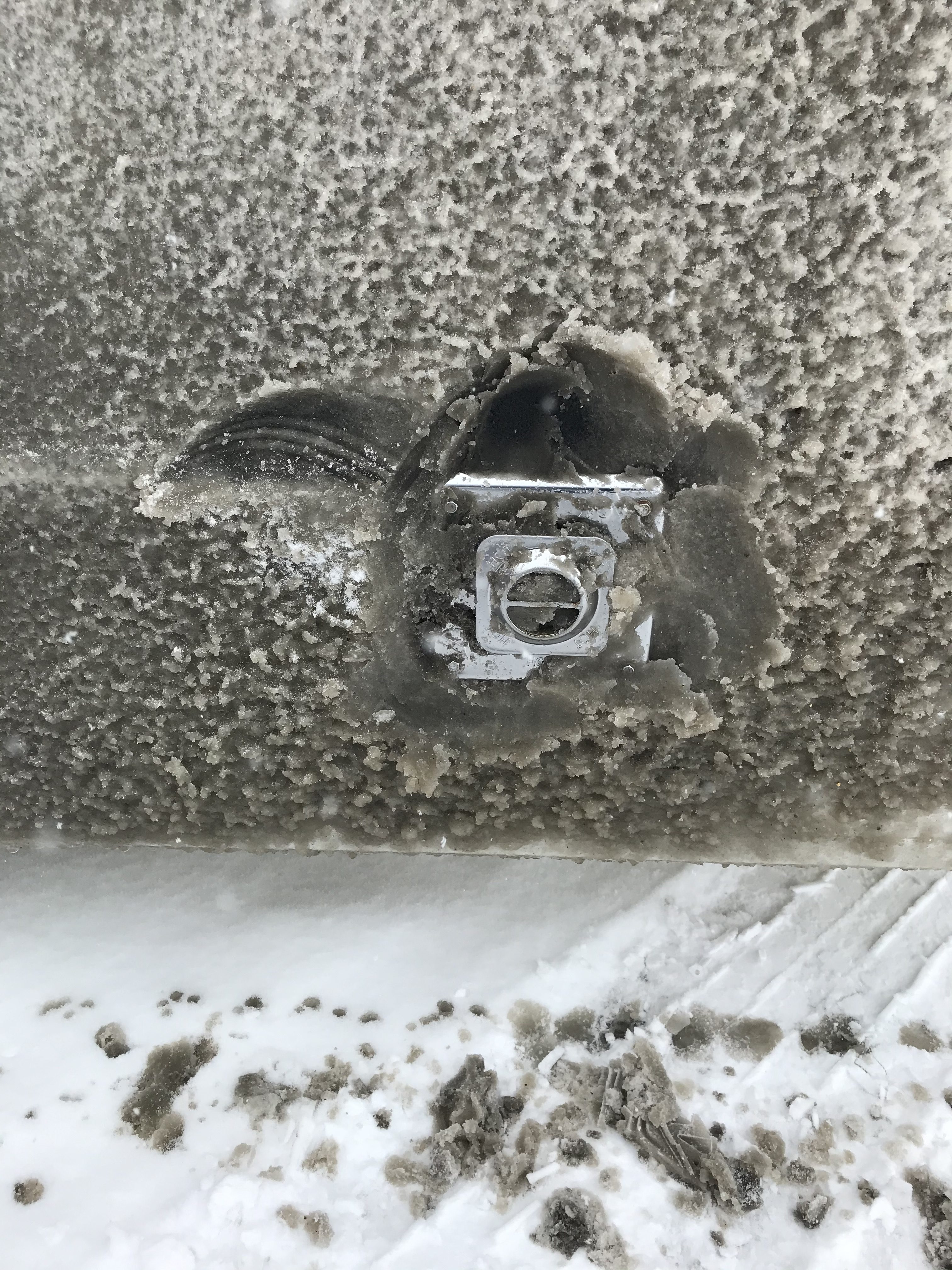

    My exhaust for my wheel house is in the V front.
    When traveling snow ,slush ,road salt and sand gets packed in the exhaust.
    I am concerned later on exhaust pipe could rust out or plug up freeze.
    Is there some sort of cover for this.

    Attachments:
    1. IMG_4977.jpg

    Jensen
    Posts: 461
    #2016733

    I use heavy duty duct tape. Also use it when storing to prevent bees wasps and other insects from setting up shop in there. Just dont forget to remove it when using though.

    B-man
    Posts: 5817
    #2016748

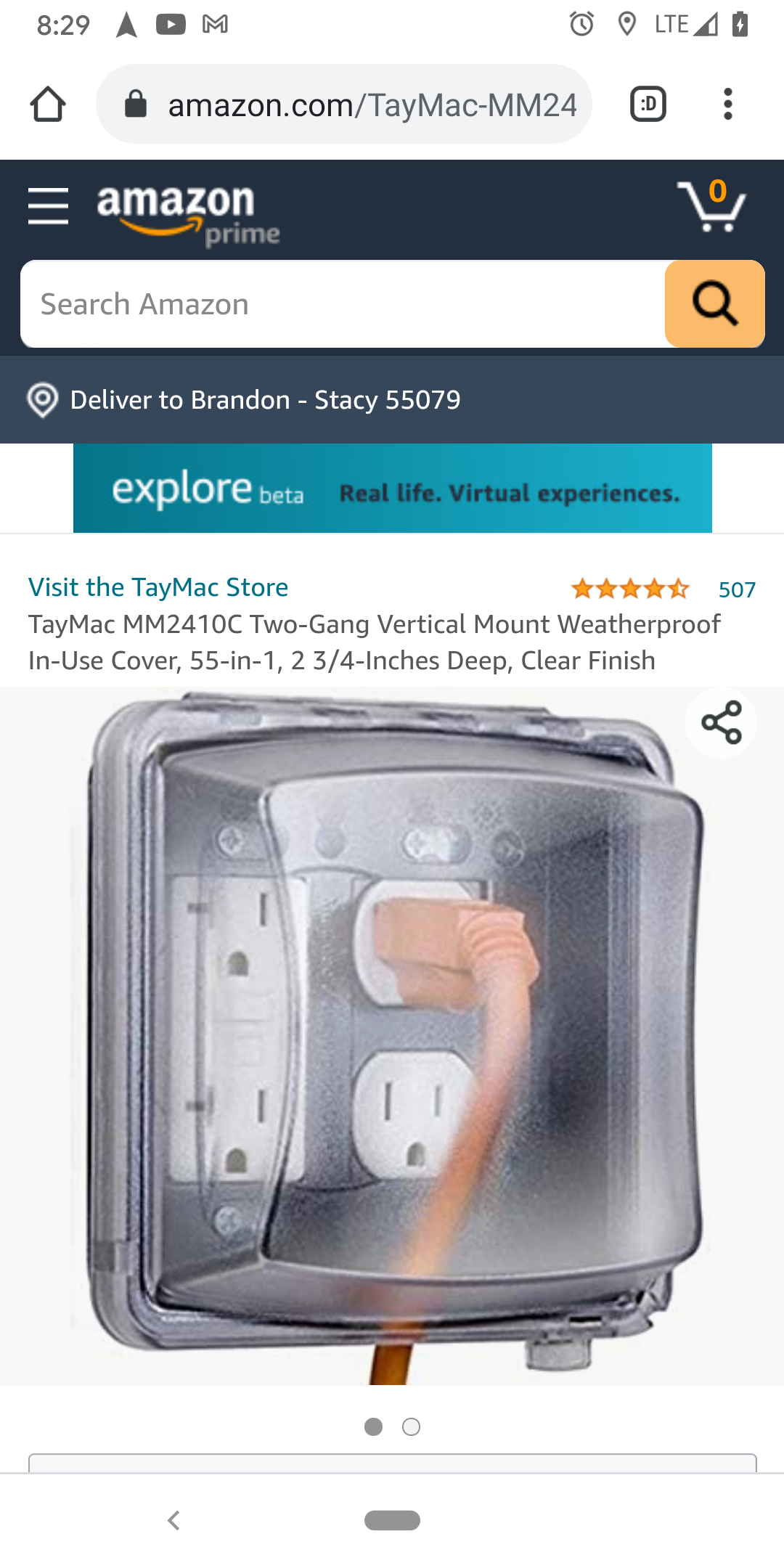

    Would something like this work?

    You’d have to see how hot it gets obviously, and how far the cover flips away.

    You could look around and see if they make these in metal as well.

    Attachments:
    1. Screenshot_20210222-082940.png

    Gary M
    Posts: 81
    #2016773

    Thanks

    I will try the duct tape

    The cover would be nice idea also if I could engineer a hinge pin to the cover making it removable

    BigWerm
    SW Metro
    Posts: 11650
    #2016777

    How hot does it get? Could you use the same thing as your dryer vent on your home?

    Huntindave
    Shell Rock Iowa
    Posts: 3088
    #2016782

    Possibly a custom made aluminum or stainless steel deflector/shield? Made open at the top and bottom and deep enough not to block the furnace vent outlet. I would think 2.5 – 3 inches beyond the end of the vent maybe??? Extending a few inches above and below the vent to provide adequate coverage.

    Slush would hit outside of the shield keeping the vent clear. The vent should still function due to the open air flow from bottom to top of the shield.
    crude drawing below wave

    Attachments:
    1. sheild.jpg

    Coletrain27
    Posts: 4789
    #2016790

    I could see that shield deflecting the heat up and burning the paint off the side of your shack

    JEREMY
    BP
    Posts: 3910
    #2016795

    Mine is in the V as well. If its sloppy i try to remember to put duct tape over it. Ive had mine plug up like that as well and had regulator pack full of slush cause its in same spot.

    mark-bruzek
    Two Harbors, MN
    Posts: 3867
    #2016807

    If it were me, I would custom make an Alum or SS hinged deflector.
    With the amount of heat that comes out I would not want it blowing up against my shack, thus being able to flip up/open and latch into open position.
    Also I know Attwood has their combustion air pick up beside the exhaust, I would assume Suburban would be similar.

    Might be worth a call up to Smokey Hills to see if they have any suggestions.
    http://www.smokeyhills.com

    Gary M
    Posts: 81
    #2016823

    I defiantly want it to be removable concern about CO coming back into house

    You are right about combustion air.

    I imagine after thinking about it no one would manufacture this because of liability of CO poisoning if you did not remove the COVER.

    B-man
    Posts: 5817
    #2016830

    I defiantly want it to be removable concern about CO coming back into house

    You are right about combustion air.

    I imagine after thinking about it no one would manufacture this because of liability of CO poisoning if you did not remove the COVER.

    You won’t get any CO in the shack regardless, just less oxygen for the burner to burn.

    The vent pulls air from the outside and pushes exhaust from the inside of the furnace to the outside.

    None of that air/exhaust is exchanged in anyway with air inside the shack.

    The only way to get CO in the house would be an open window, range hood, or up through your holes if not banked/sleeved.

    Anonymous
    Inactive
    Posts: 0
    #2016833

    That is a stupid design, sorry, but it is. Something removable is the only way to go. If its just a shield like shown above, it will still plug up with ice, slush and road grime.

    Make you wonder who designs the heater location in these things.

    Coletrain27
    Posts: 4789
    #2016860

    Depending on what grade the stainless is but maybe a strong magnet would stick to it and block the hole

    usmarine0352
    Posts: 440
    #2016870

    My exhaust for my wheel house is in the V front.
    When traveling snow ,slush ,road salt and sand gets packed in the exhaust.
    I am concerned later on exhaust pipe could rust out or plug up freeze.
    Is there some sort of cover for this.

    What shack brand is this?

    Gary M
    Posts: 81
    #2016887

    <div class=”d4p-bbt-quote-title”>Gary M wrote:</div>
    My exhaust for my wheel house is in the V front.
    When traveling snow ,slush ,road salt and sand gets packed in the exhaust.
    I am concerned later on exhaust pipe could rust out or plug up freeze.
    Is there some sort of cover for this.

    What shack brand is this?

    Yetti

    Troy Hoernemann
    Nevis mn
    Posts: 163
    #2018346

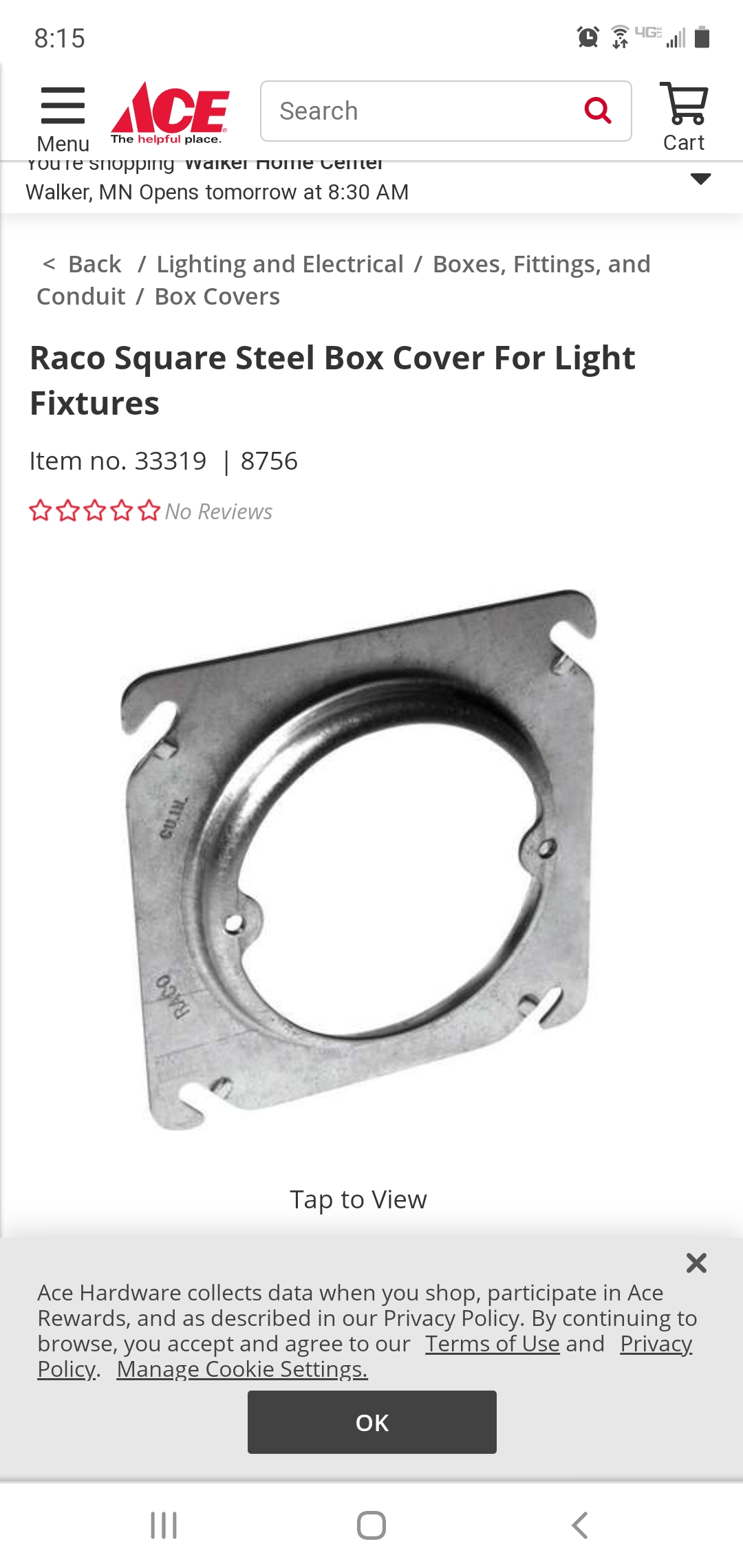

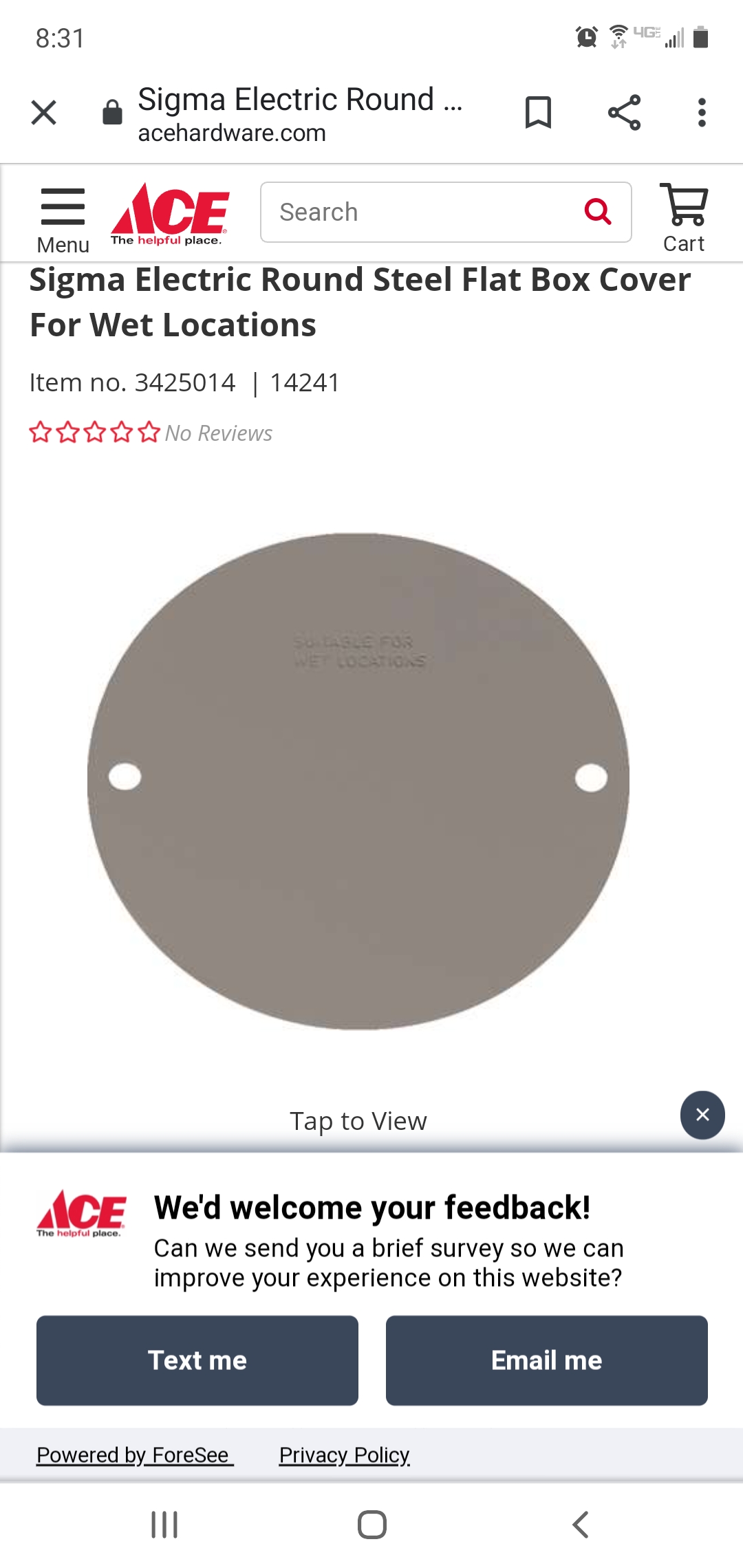

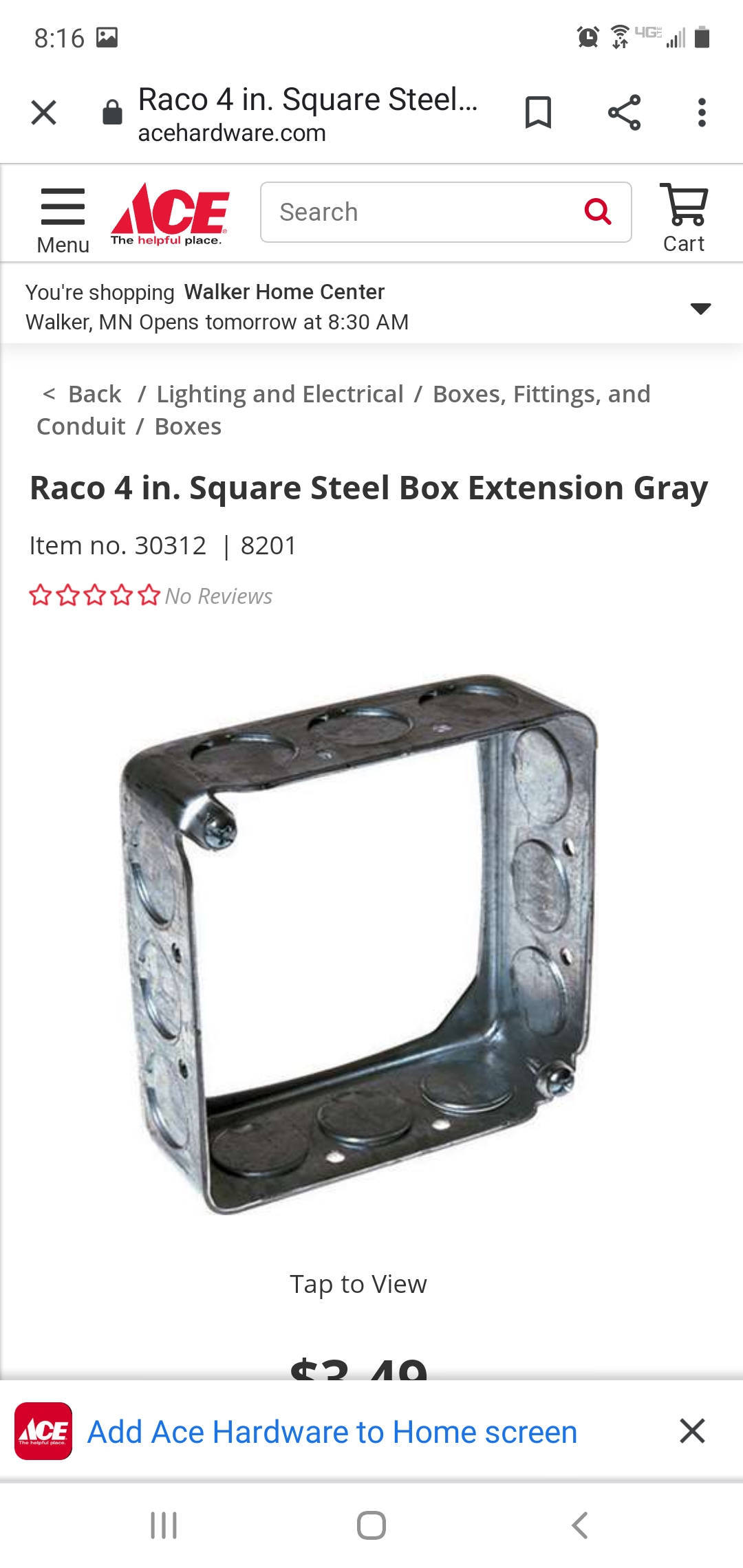

    This is what I did and add a cover would have taken pic of it put still on lake
    This is just the Idea of what I did pics are not the exact parts

    Attachments:
    1. Screenshot_20210228-083129_Chrome-1.jpg

    2. Screenshot_20210228-083129_Chrome.jpg

    3. Screenshot_20210228-081633_Chrome.jpg

    4. Screenshot_20210228-081512_Chrome.jpg

    Eelpoutguy
    Farmington, Outing
    Posts: 10440
    #2018348

    Engineers roll

    usmarine0352
    Posts: 440
    #2018548

    <div class=”d4p-bbt-quote-title”>usmarine0352 wrote:</div>

    <div class=”d4p-bbt-quote-title”>Gary M wrote:</div>
    My exhaust for my wheel house is in the V front.
    When traveling snow ,slush ,road salt and sand gets packed in the exhaust.
    I am concerned later on exhaust pipe could rust out or plug up freeze.
    Is there some sort of cover for this.

    What shack brand is this?

    Yetti

    Damn, what year?

    I wonder if the newer 2021’s and after are still like this.

    What a poor design.

    3rdtryguy
    Central Mn
    Posts: 1499
    #2018672

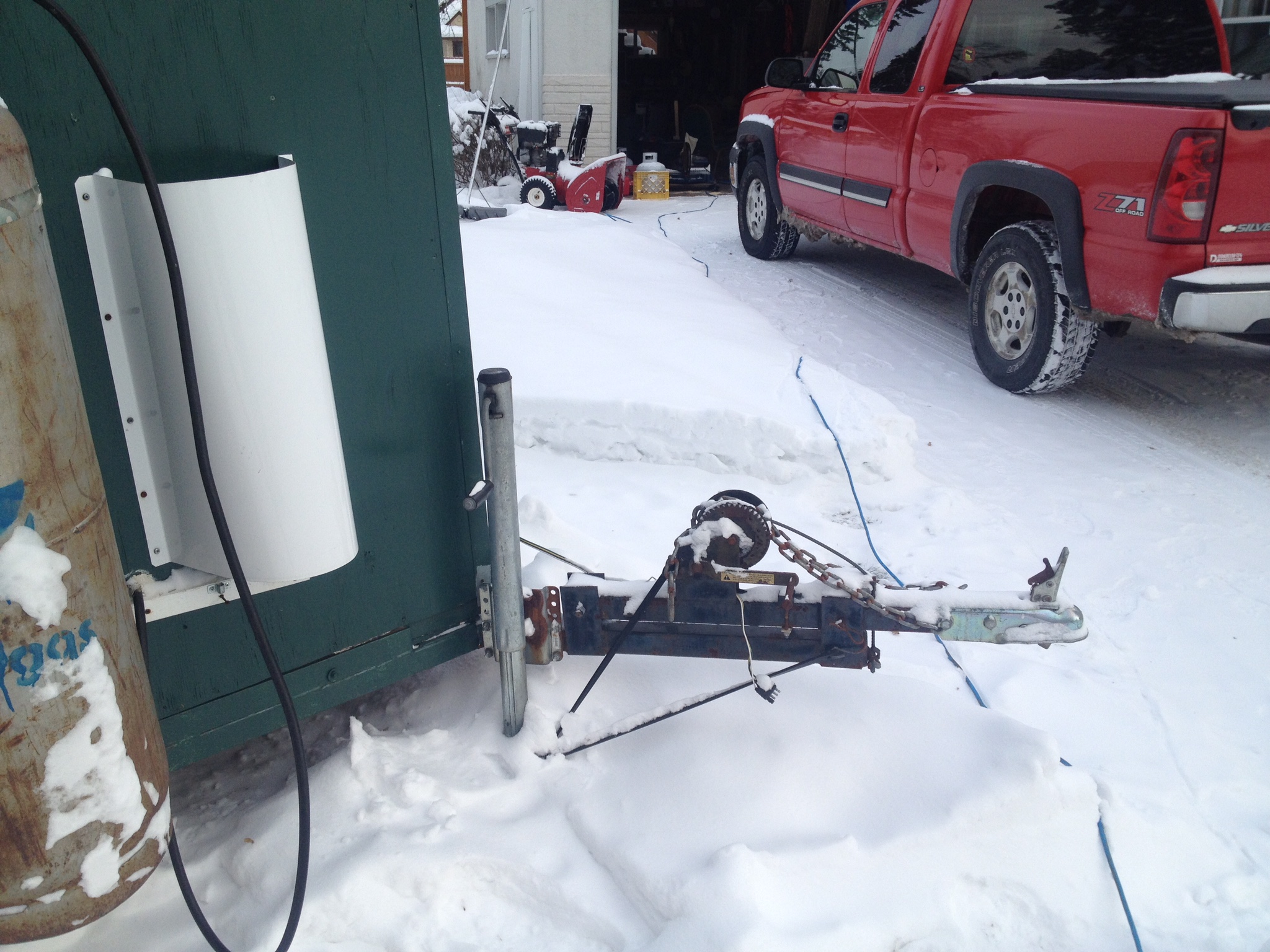

    This is from 2 houses ago but worked great. Just a flat piece of aluminum bent on each side. No heat on the house and vented perfectly. Could have been shorter but cheap and effective.

    Attachments:
    1. 007498D4-1DC3-4561-ABD7-4D70A3870F76.jpeg

    Gary M
    Posts: 81
    #2022186

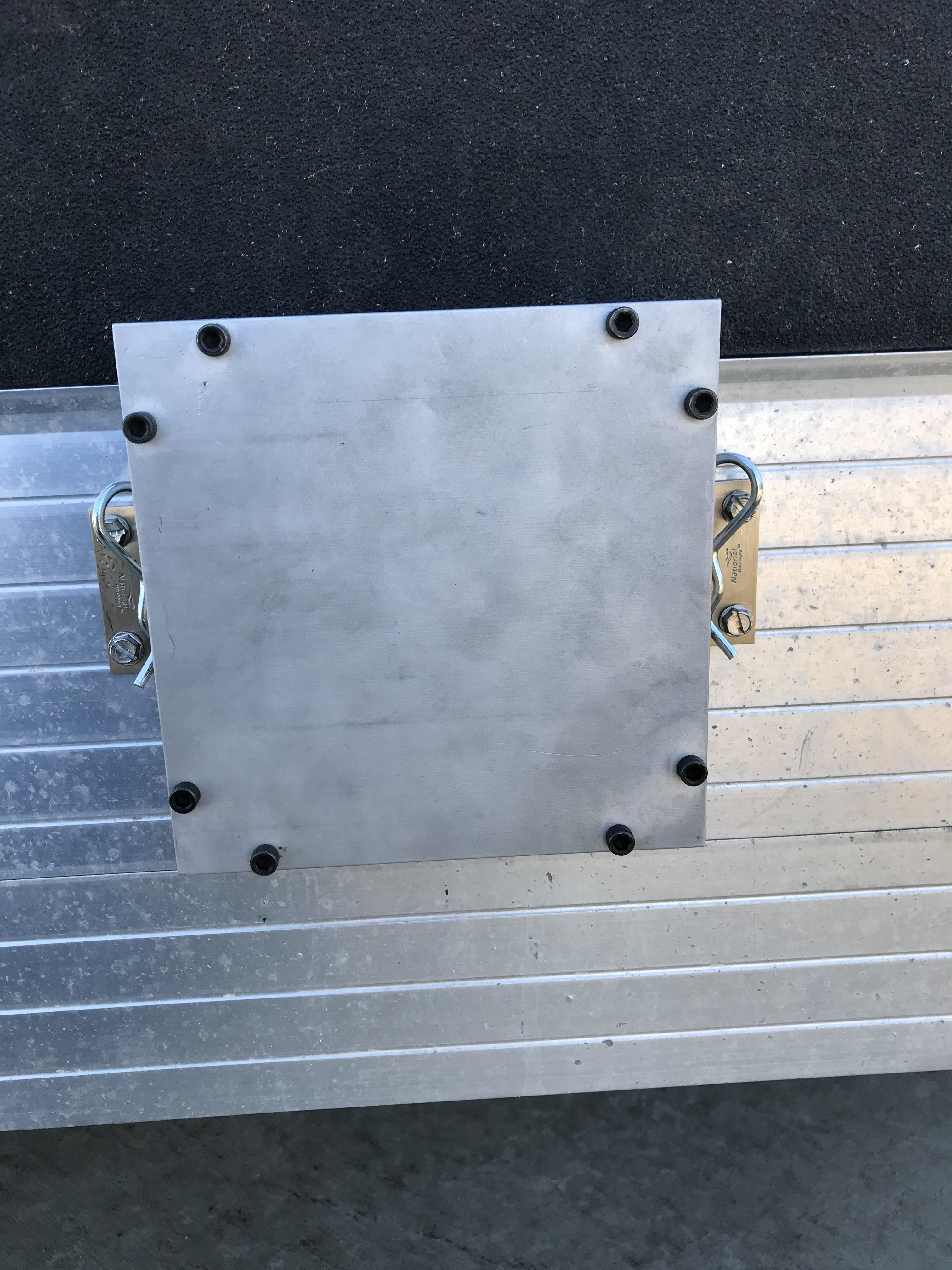

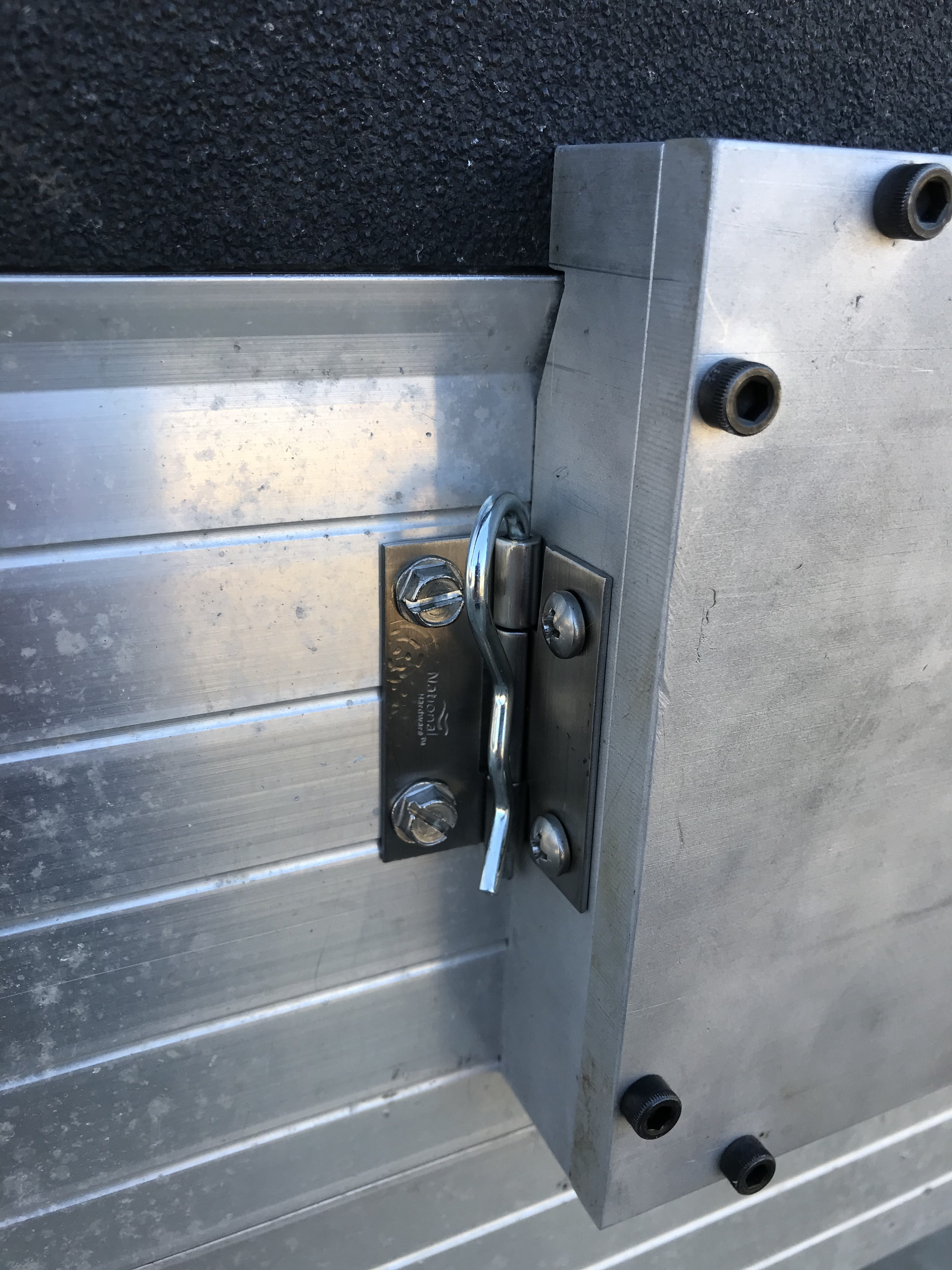

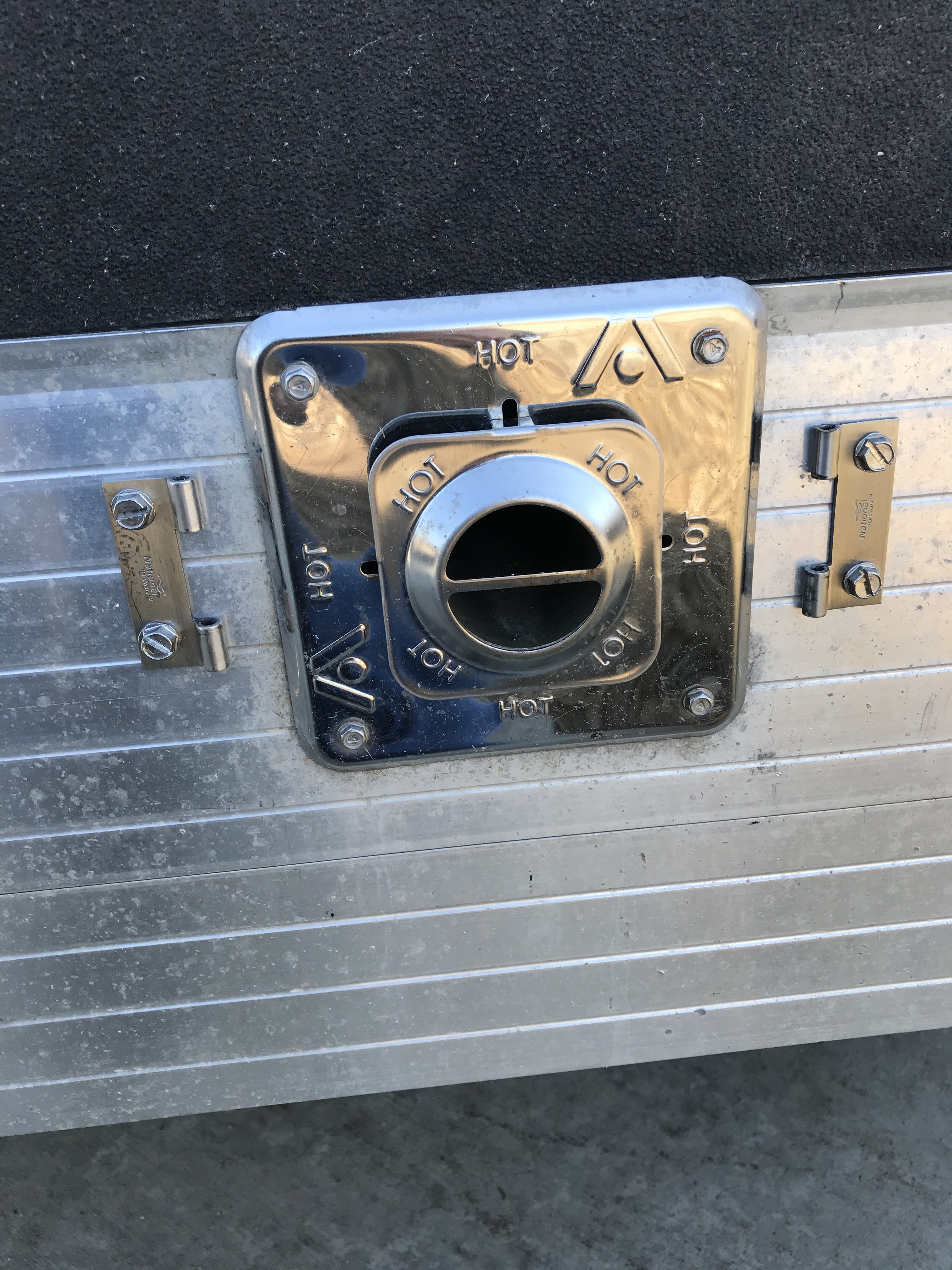

    Well I made this cover for the exhaust

    Attachments:
    1. 9AC0CB74-CD2C-447C-B28E-137DC4AF0038.jpeg

    2. CACAAFF7-7767-43AD-B8D6-A58D4913A721.jpeg

    3. 842B1A0B-4DC2-403D-A629-8610B6BE2129.jpeg

    mark-bruzek
    Two Harbors, MN
    Posts: 3867
    #2022217

    Good innovation with the hinge pins.

    3rdtryguy
    Central Mn
    Posts: 1499
    #2022350

    Just be sure it’s not too close to cause back pressure or inadequate ventilation. Looks very close to me

    Gary M
    Posts: 81
    #2022353

    Just be sure it’s not too close to cause back pressure or inadequate ventilation. Looks very close to me

    It’s only for traveling and storage
    I will remove it when I run furnace

    3rdtryguy
    Central Mn
    Posts: 1499
    #2022392

    That makes sense. Strong winds caused me problems-two different problems.

    John Rasmussen
    Blaine
    Posts: 6376
    #2022483

    Nice work, now maybe you can market it and sell it to Yeti since they designed the flaw to begin with. waytogo

    Thomas Smith
    Posts: 10
    #2022513

    I just got a towtector for my F250. I haven’t got to test it yet, but the idea is to keep as much of the slush, mud (gravel roads), and rocks away from my cargo trailer and boat / trailer.

    Thomas Smith
    Posts: 10
    #2022514

    I don’t have that type of furnace, but I have a diesel forced air heater with an exhaust only exhaust and planned on putting some stainless steel wire wool in it to help keep insects out.
