What do I need

  • fishspike
    Posts: 202
    #2190348

    This May or may not be able to answer till I get home but here goes. I purchased a Lund Rebel with a Helix 9 SI in back. It has a TM Terrova that “talks to the 9. I want to add an older 7 upfront and really only want to share waypoints between units. What to I need? I fish mostly small lakes. Will be home in a week to add pictures but was thinking of picking everything up befor I get there. Thanks

    blank
    Posts: 1776
    #2190356

    What does “talks to the 9” mean? Does that mean the Terrova has ipilot Link? Or just using the built in transducer?

    The “older 7” needs to be network capable to connect to the 9, which is noted with a “N” in the model number like Helix 7 G3N.

    fishspike
    Posts: 202
    #2190427

    The nine does have i-Pilot. The 7 is networkable. Thanks folks

    Sorry to ask basic questions.

    blank
    Posts: 1776
    #2190443

    They may seem like basic questions, but it’s kind of mess to sort it all out. No need to apologize for the questions.

    You mean the Terrova has i-pilot. But does it have i-pilot LINK? Meaning you have the bigger screen remote and can do follow the contour? Or just basic i-pilot with the smaller remote?

    Assuming that it is LINK, then you will need a Humminbird ethernet switch to connect both Helix units and the Terrova. That’s the only way that you can share waypoints while also using the i-pilot Link features since each unit only has just 1 ethernet port and there aren’t splitter cables.

    fishspike
    Posts: 202
    #2190871

    Here are some pics

    Attachments:
    1. E8D79A9B-2077-4065-A1EA-E9F190B58D7B-scaled.jpeg

    2. 588ABD3A-4F04-431C-BD81-77EDD2B3D8E4-scaled.jpeg

    fishspike
    Posts: 202
    #2190875

    If you expand the first pic you can see the connection of the 9. Ethernet switch is a must. Thanks

    blank
    Posts: 1776
    #2190931

    Yup, you’ll need the ethernet switch and another ethernet cable to connect the other helix unit if you want to share waypoints and utilize the ipilot link for either helix.

    Additionally, you need map cards with each helix as they don’t share maps. They can only share waypoints.

    fishspike
    Posts: 202
    #2190952

    Thanks Blank I have the map cards so I’m good there. I was getting confused (easily done) on networking them together.

    Thanks again

    fishspike
    Posts: 202
    #2193149

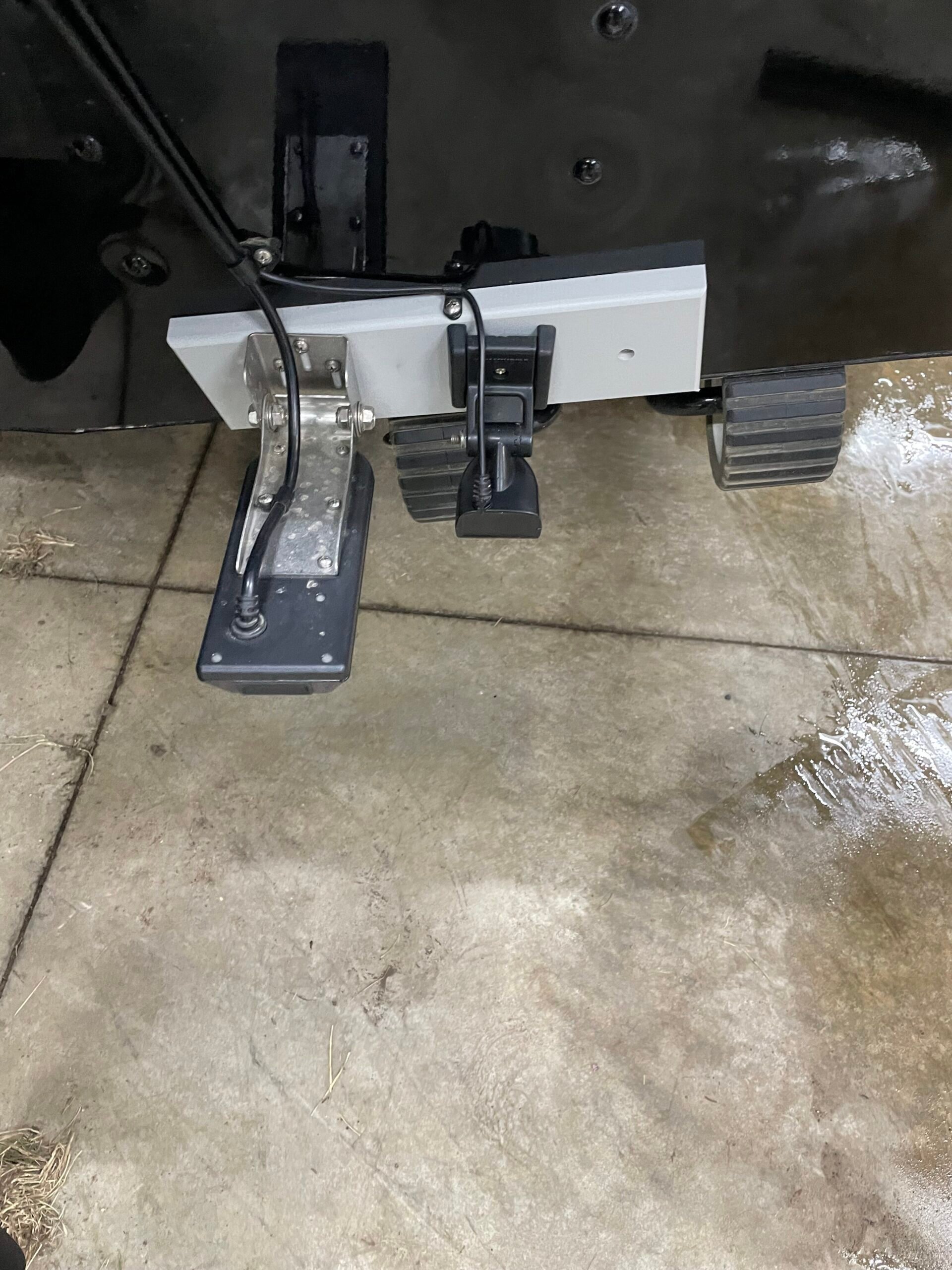

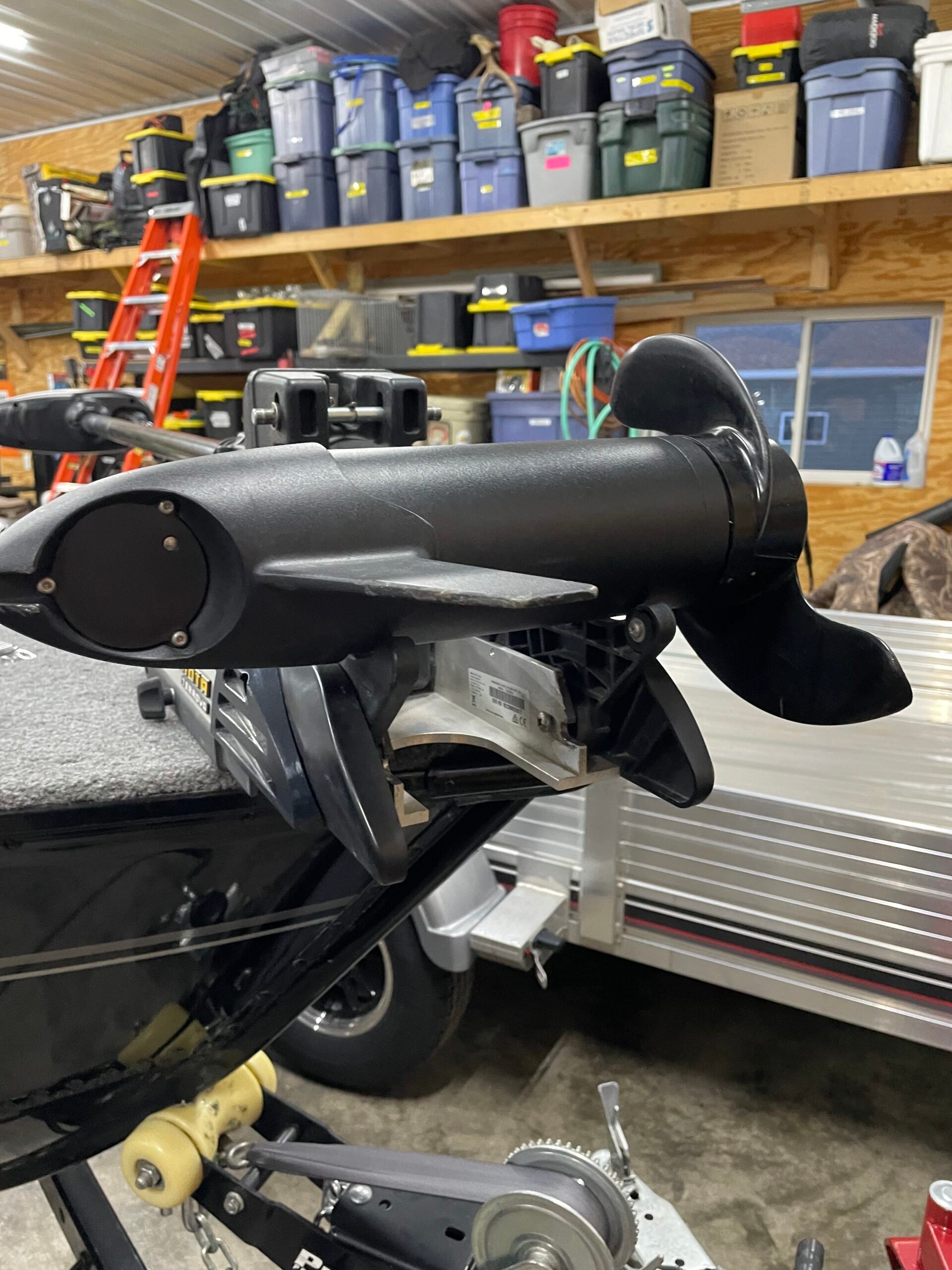

    So does this connector go to the front fish finder. I’m not sure my Helix seven is networkable. So in that case will just use it up front as down image. Will attach some pics. The back story is I bought this boat in the fall and first time on water is coming.

    Attachments:
    1. A62E05AD-6C1E-4D67-B888-A32ECA4FE1C0-scaled.jpeg

    2. 17C3444E-0529-4927-BD50-58841191549B-scaled.jpeg

    3. D36E49B1-BE19-4C96-8155-6CAC63085496-scaled.jpeg

    blank
    Posts: 1776
    #2193159

    Yes, that is the transducer cable for the built in universal sonar transducer. You will need an adapter cable to connect to the Helix.

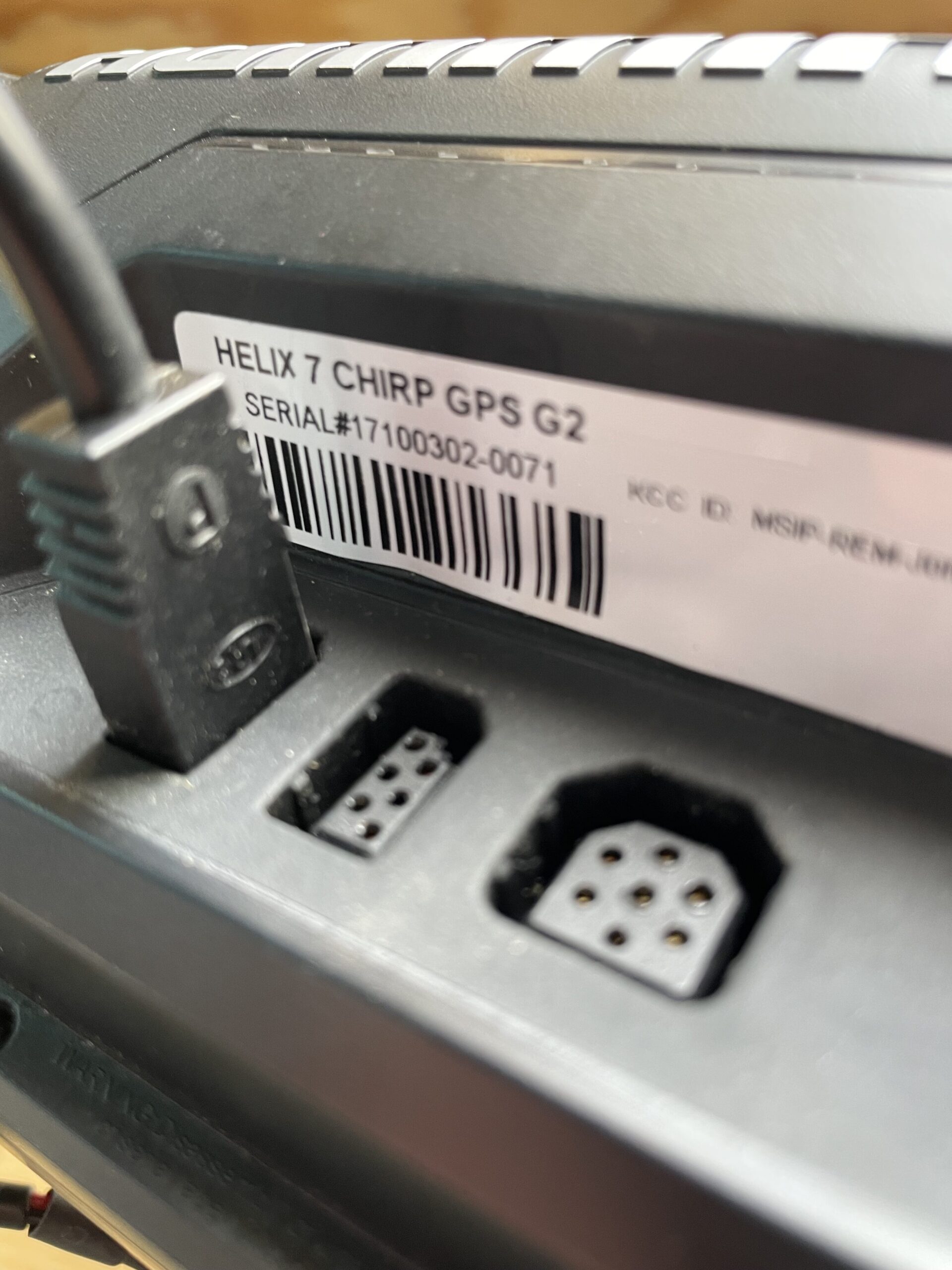

    On the back side of the Helix there should be a sticker by the connections that will say what model it is. That will identify if it’s a network unit “N”.

    The transducer on the Terrova is the universal sonar transducer “US2”. You will not be able to see down imaging with that transducer, just 2D. You could however run the cable from the transom to the front to see the DI from the back if you really wanted to.

    fishspike
    Posts: 202
    #2193189

    Thanks will just use 2d

    Attachments:
    1. E3856F64-4216-408F-8E9B-9B1823630951-scaled.jpeg

    blank
    Posts: 1776
    #2193227

    Unfortunately that helix is NOT able to be networked to another unit or use iPilot LINK. You will be able to use the US2 transducer on the Terrova just fine, with this adapter cable. US2 Adapter Cable / MKR-US2-8 – HB 7-Pin

    In order to utilize the LINK features like follow the contour you will need to use the Helix 9 that you have in back by connecting the ethernet cable from the Terrova back to the Helix 9. You will need this ethernet adapter cable. AS EC QDE – ETHERNET ADAPTER CABLE

    barc
    SE MN
    Posts: 192
    #2193336

    Not to highjack this thread but a similar question.
    I have a Helix 10 SI Gen1 and adding a Helix 10 MSI G4N. I plan to use the old Helix for mapping only. If I want to connect the units together (sitting 10 inches apart) do I really need to get adapter cables and a 5 ft ethernet cable to connect them or is there another solution?
    Thanks!

    blank
    Posts: 1776
    #2193338

    I think that’s the only solution, sadly.

    fishspike
    Posts: 202
    #2194705

    Okay have everything mounted. The dongle cable hooks up to the unit but it’s too big for the transducer cable. Anyone know the right part number?

    blank
    Posts: 1776
    #2194711

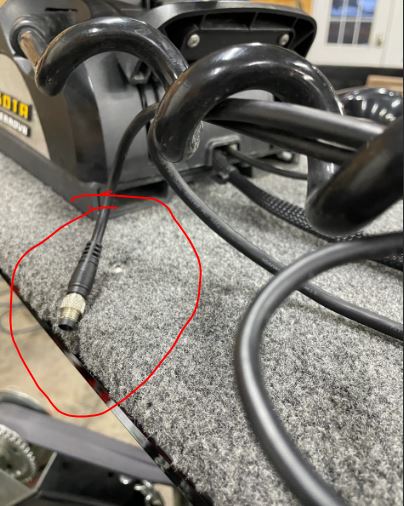

    I assume you’re talking about the Helix 7 up front. The correct transducer dongle is MKR-US2-8 – HB 7-Pin

    It connects to this cable end. It’s the smallest diameter of the 3 cables from the Terrova (transducer, ethernet, foot pedal).

    Attachments:
    1. US2.jpg

    fishspike
    Posts: 202
    #2195521

    The correct one came today. Blank your a Wizard

    Thanks
