Ulterra Stuck Stowed

  • walinutz
    Cologne, MN
    Posts: 370
    May 28, 2020 at 8:43 am #1945352

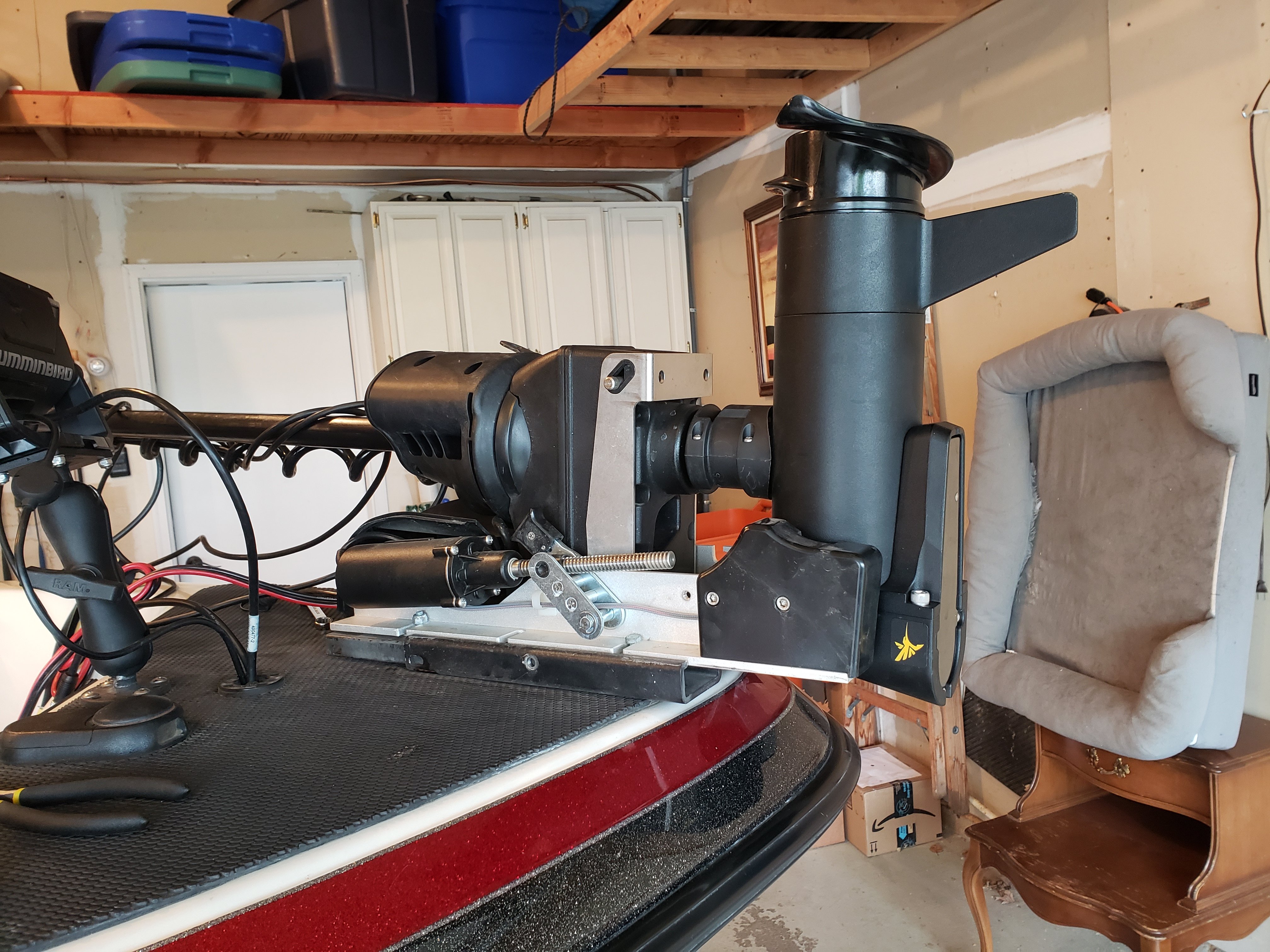

    Last night my Ulterra stowed like this and I cannot deploy it to fix it

    Options??

    motor is less then a year old

    Attachments:

    1. 20200528_074035.jpg

    haleysgold
    SE MN
    Posts: 1449
    May 28, 2020 at 9:23 am #1945364

    I would check the batteries first. If they aren’t putting out enough volts, it probably isn’t going to work.

    walinutz
    Cologne, MN
    Posts: 370
    June 1, 2020 at 3:04 pm #1946442

    thanks Guys!!!

    all fixed up

    fishinfreaks
    Rogers, MN
    Posts: 1154
    June 1, 2020 at 4:51 pm #1946470

    So what did you have to do to fix it?

    walinutz
    Cologne, MN
    Posts: 370
    June 3, 2020 at 8:45 am #1946930

    I held down the stow switch located on the cradle, which made it think that it was stowed…. then deployed part of the way. powered off in that position. adjusted the TM to the correct orientation. powered it up and stowed it.

    all good

    there is a short youtube video on this procedure

    Jacob moss
    Posts: 1
    September 26, 2020 at 10:36 am #1975462
    walinutz wrote:

    I held down the stow switch located on the cradle, which made it think that it was stowed…. then deployed part of the way. powered off in that position. adjusted the TM to the correct orientation. powered it up and stowed it.

    all good

    there is a short youtube video on this procedure

    <div class=”ido-oembed-wrap”><iframe title=”How to do a Stow Reset on Minn Kota Ulterra” width=”850″ height=”478″ src=”https://www.youtube.com/embed/A5oOrZgerIg?feature=oembed&#8221; frameborder=”0″ allow=”accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture” allowfullscreen=””></iframe></div>

    walinutz wrote:

    I held down the stow switch located on the cradle, which made it think that it was stowed…. then deployed part of the way. powered off in that position. adjusted the TM to the correct orientation. powered it up and stowed it.

    all good

    there is a short youtube video on this procedure

    <div class=”ido-oembed-wrap”><iframe title=”How to do a Stow Reset on Minn Kota Ulterra” width=”850″ height=”478″ src=”https://www.youtube.com/embed/A5oOrZgerIg?feature=oembed&#8221; frameborder=”0″ allow=”accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture” allowfullscreen=””></iframe></div>

    Where exactly is the switch you are talking about? I can’t seem to find it and my trolling motor is jammed like yours

    SuperDave1959
    Harrisville, UT
    Posts: 2816
    September 26, 2020 at 10:56 am #1975470

    I believe that he is talking about the power switch per the little video he posted.

    walinutz
    Cologne, MN
    Posts: 370
    September 28, 2020 at 8:57 am #1975739

    yes….the power button
