Trim tabs on WX2100?

  • Ifishwalleye
    Posts: 2
    April 9, 2021 at 2:15 pm #2028750

    I have a 2008 WX2100. I want to add trim tabs. I was told that it’s not possible due to the hull design. Is this true?

    Dean Marshall
    Chippewa Falls WI /Ramsey MN
    Posts: 5854
    April 9, 2021 at 2:16 pm #2028752

    They can be added.

    gizmoguy
    Crystal,MN
    Posts: 756
    June 24, 2021 at 12:44 pm #2044492

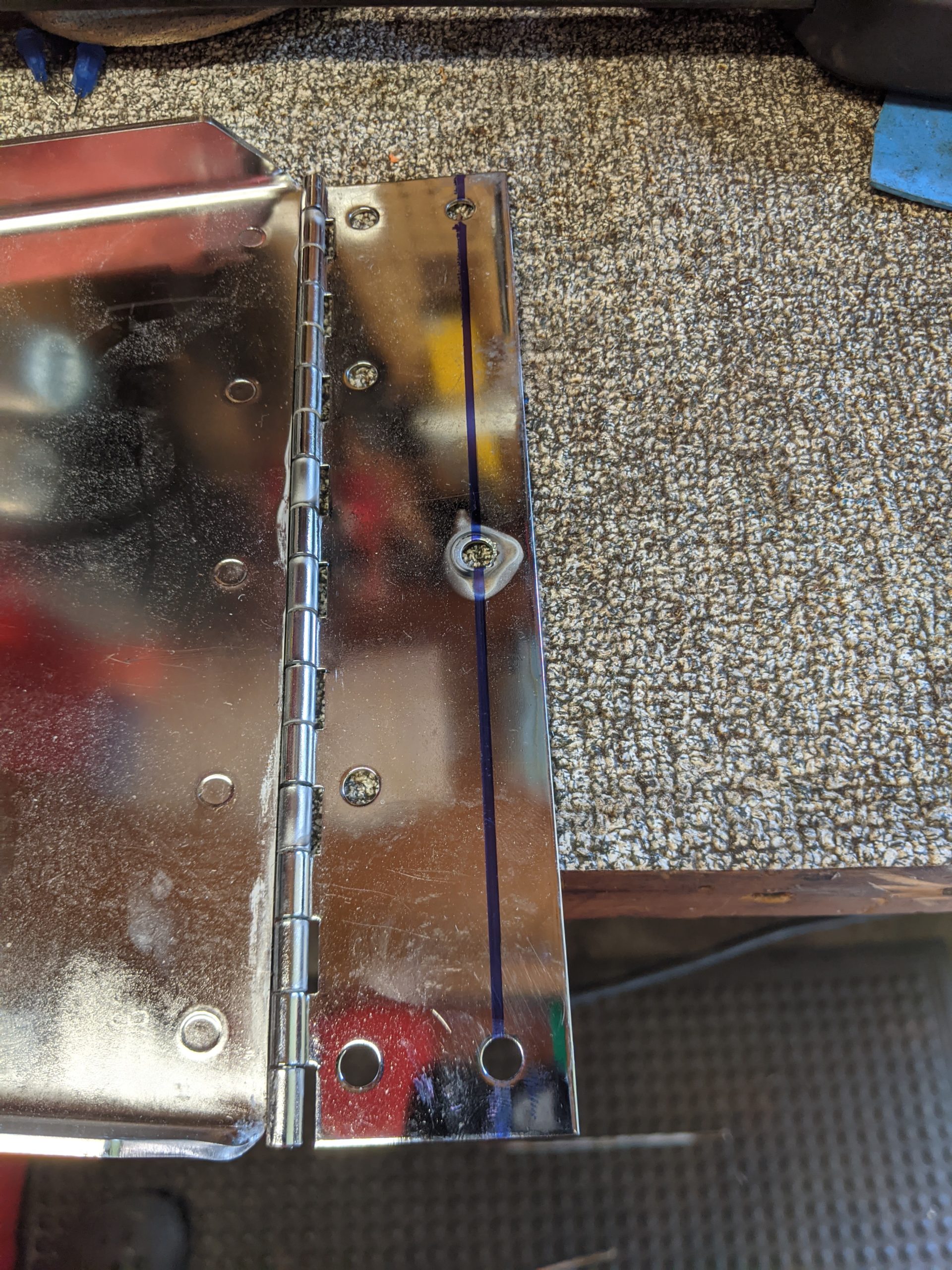

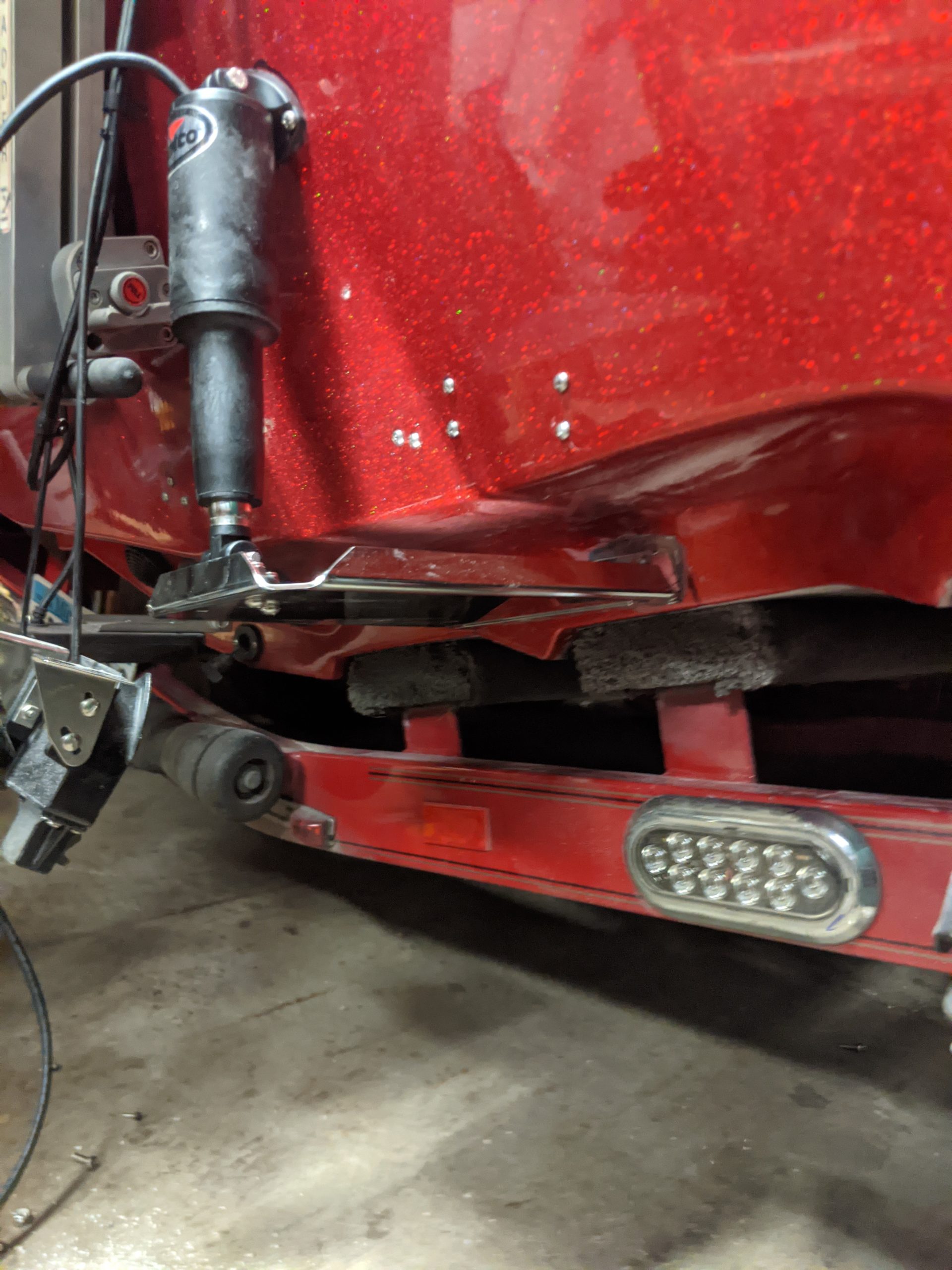

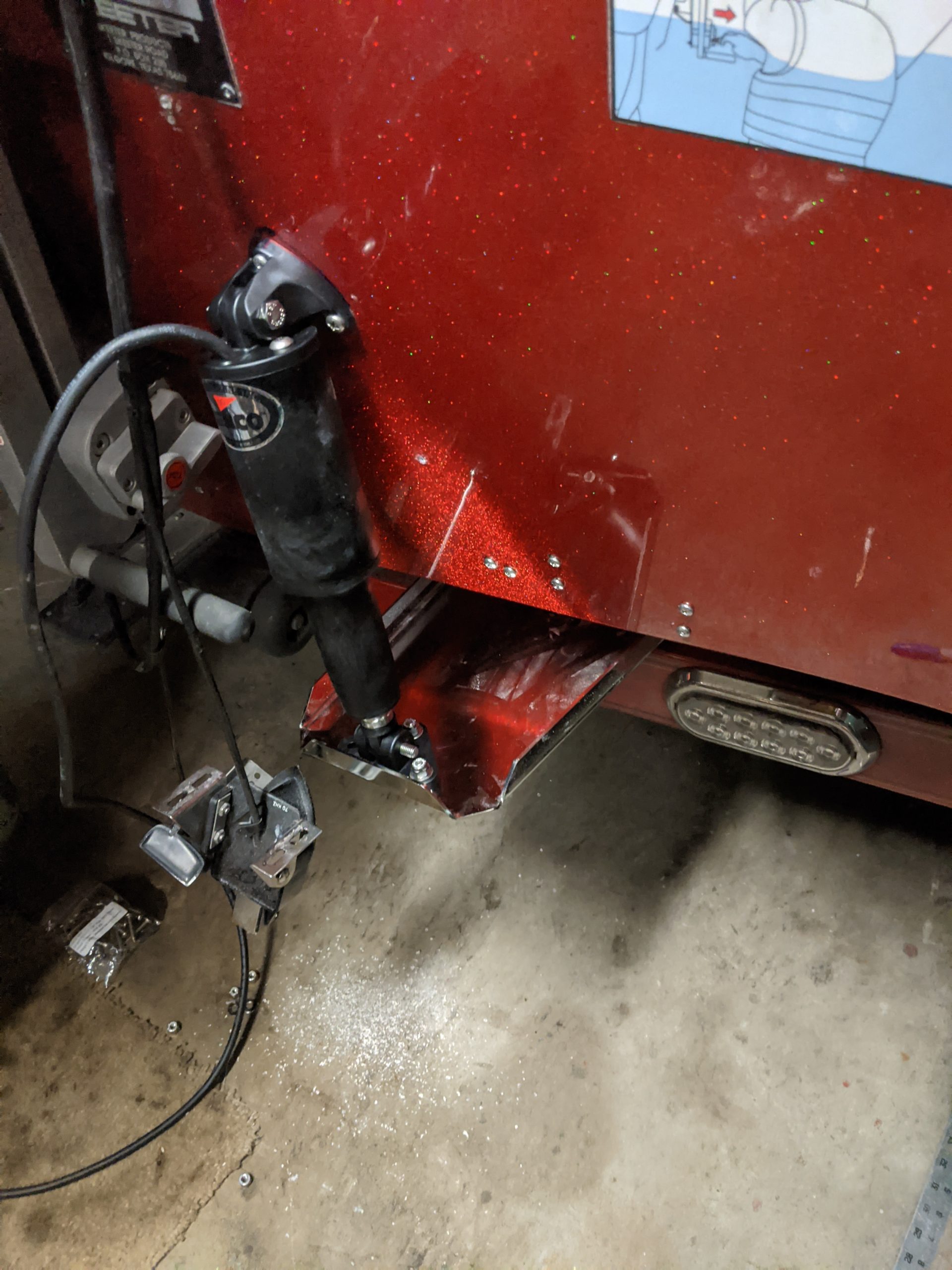

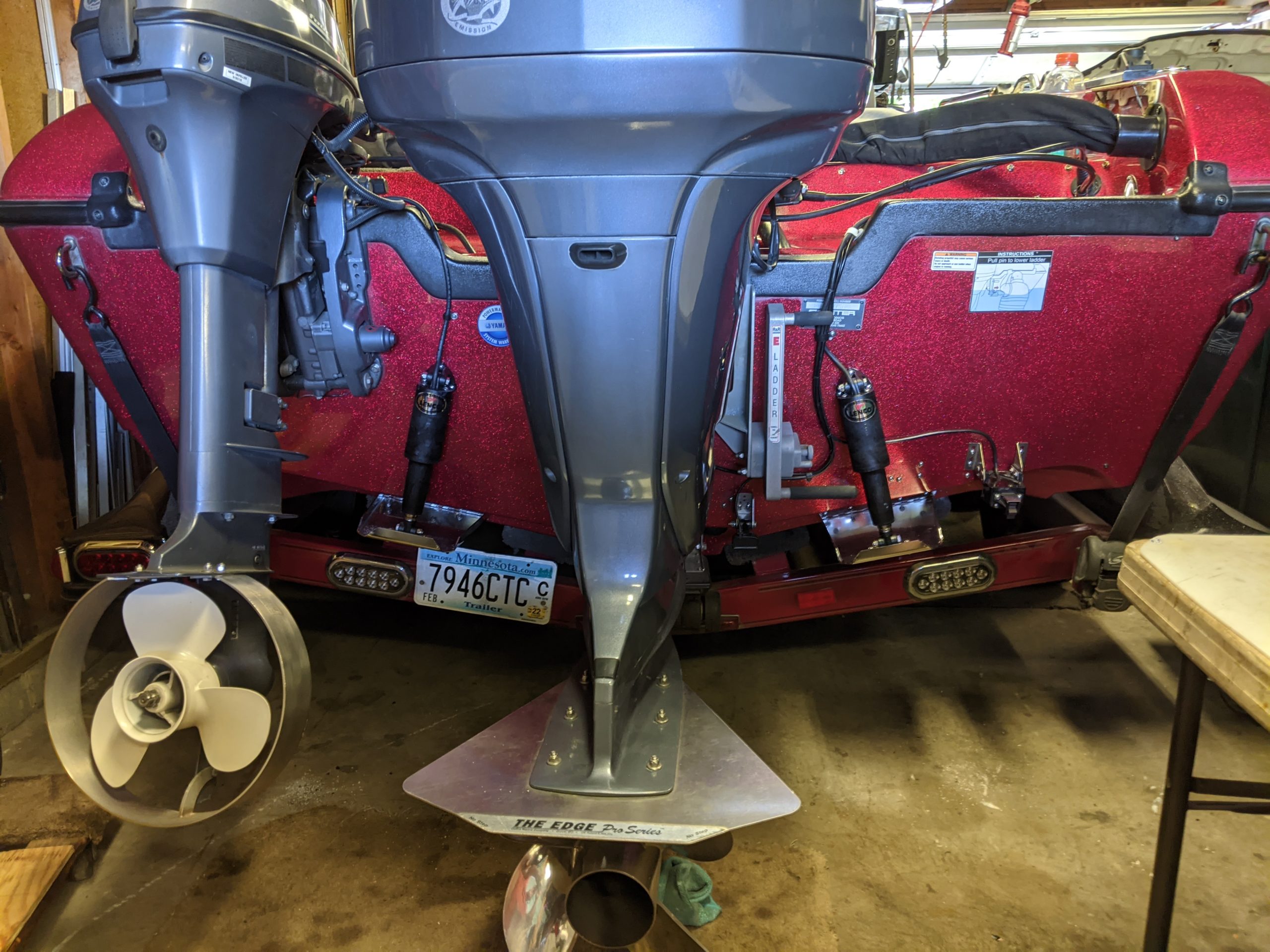

    I just added them to my WX2100. I was in communication with Pauleye as he has a set in his 2100. He sent my photos of his install. He put them on the step out on the corners just inward enough as not to interfere with the rear straps. I ordered the same tabs. Lenco 9″w x 12″l: PN #15014-101. I got a little more adventurous and modified my tabs so I could mount them below the step and run them as intended. Just above the water flow. I just had to trim off 1/2″ of the mounting tab and there is enough room to mount to the bottom edge.

    Attachments:

    1. PXL_20210611_022749141.NIGHT_-scaled.jpg

    2. PXL_20210611_022817251-scaled.jpg

    3. PXL_20210612_200615871-scaled.jpg

    4. PXL_20210611_224149455-scaled.jpg

    Jeff McGrath
    Posts: 2
    August 31, 2021 at 11:38 am #2057830

    I have an 08 2100 that i am trying to put trim tabs on. How are yours performing? any install tips would be greatly apprecited

    gizmoguy
    Crystal,MN
    Posts: 756
    August 31, 2021 at 12:14 pm #2057840

    Still learning them but they work as intended. Nice to pin the bow down in moderate waves.
