I have a new to me trailer that has a grease fitting on the spindle . My question is what is it servicing ? The inside bearing , just filling the void between bearings with grease to prevent water accumulating , both bearings, or something else ?
Thanks for your input
I have the Vortex hubs with grease fittings and dust caps that are threaded. Remove the cap and let the new grease push out the old grease.
You have a Karavan trailer like me, The grease comes from the back and pushes through the rear bearing then the void then the front bearing. When filling the extra comes out the front around the bearing. I did not grease for a year or 2 or 5 and found out the hard way how there system works on my way up north on a week long trip burned up one wheel.
My trailers have had this for years. Seems like a decent system. Better than bearing buddies because like stated above old grease gets pushed to the front and just wipe it out. I put a couple squirts of grease in each one roughly twice a year.
The grease comes from the back and pushes through the rear bearing then the void then the front bearing.
So the entire void between the inner and outer bearing gets filled with grease? That seems like a ton of excess grease to me.
So the entire void between the inner and outer bearing gets filled with grease? That seems like a ton of excess grease to me.
It’s a lot of grease but it’s easy and you don’t have to take anything apart. I just pump it in until it’s coming out clean and new looking and catch what’s pushed out in a solo cup. Put the dust shield back on and you’re done. I switched to the big tubes (14oz?) instead of the mini ones for doing this.
The one thing you want to be careful of is not blowing out the rear/inner seal. Go slow adding the grease. Warm / hot days are best IMO.
p.s. you will know pretty quick if your rear seal is blown. This inner tire rim will be coated with grease then covered in dust. Not a fun mess to deal with.
-J.
It’s a lot of grease but it’s easy and you don’t have to take anything apart.
I hear you–it sounds easier and cleaner. I’ve always torn apart and hand-packed my bearings, and I have never filled that void with grease. Not saying either way is wrong or right, I was just curious (as I am getting ready to tackle that job soon).
I have a Bear trailer same system I like it but it can be hard to get the amount just right just a little over you blow a seal not enough replacing rusted bearings fast, however I’m changing to Lucas red and tacky I believe the grease I was using was not very water resistant. I do like you can pump all the old out and put new in fresh.
You have a Karavan trailer like me, The grease comes from the back and pushes through the rear bearing then the void then the front bearing. When filling the extra comes out the front around the bearing. I did not grease for a year or 2 or 5 and found out the hard way how there system works on my way up north on a week long trip burned up one wheel.
Lol, I did the same thing! Luckily it happened right near the launch and I noticed it as I was putting in.
The one thing you want to be careful of is not blowing out the rear/inner seal.

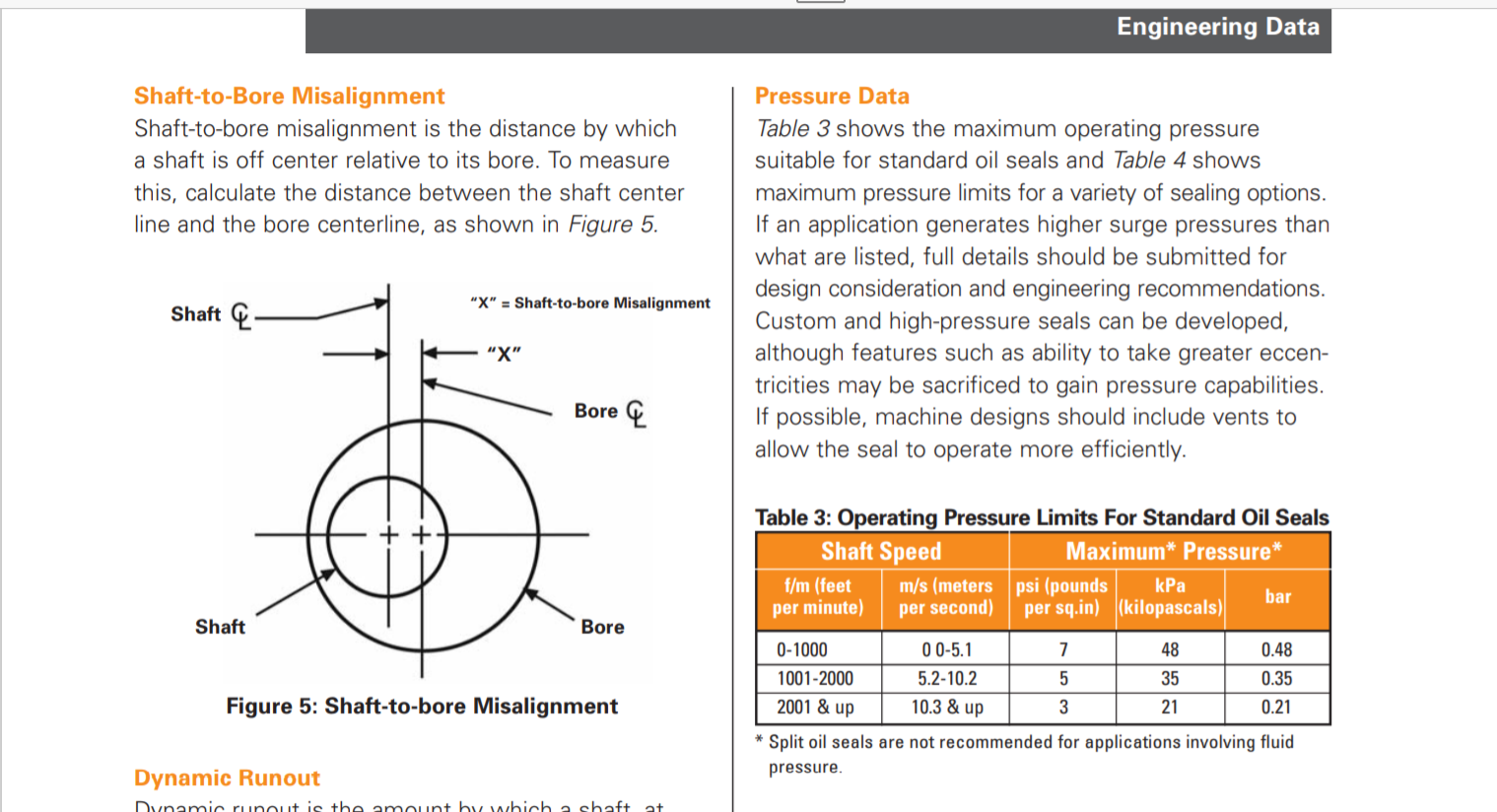

Timken specs say a seal of the type used for this application is good for 3 to 5 PSI.
A hand operated grease gun can generate 7000PSI. On-line guides indicate grease gun pressure should not exceed 500PSI. Control of this pressure is done with slow lever strokes in conjunction with a pressure gage on the grease gun output.
Not many homeowner grease guns come equipped with a gage.
Wow. Good info.
I never knew that Huntin Dave thank You. Hope I can find one.
Its a good system. Triton has been using it for years. Had it on my last two sled trailers. My new Aluma utility trailer is the same. Here’s a pic showing how it works.
I have a flow snowmobile trailer, I love this system. There really isn’t any way to over pressurize the seal, the grease comes thru the bearing toward the front. I do rotate the wheel when I am greasing it to evacuate as much of the old grease as possible. Yes is does use more grease, but grease is cheap and its a lot easier to do so I find myself greasing my bearings more often. Nothing wrong with pumping slow on the gun though, blowing the seal would defeat the whole idea. It always amazes me how funky the grease looks in a short time when it comes out of the hub.
Grease often, avoid problems.
Amen Jeff, Grease is cheap
