TM Mount

  • slough
    Posts: 593
    March 7, 2021 at 7:54 pm #2020418

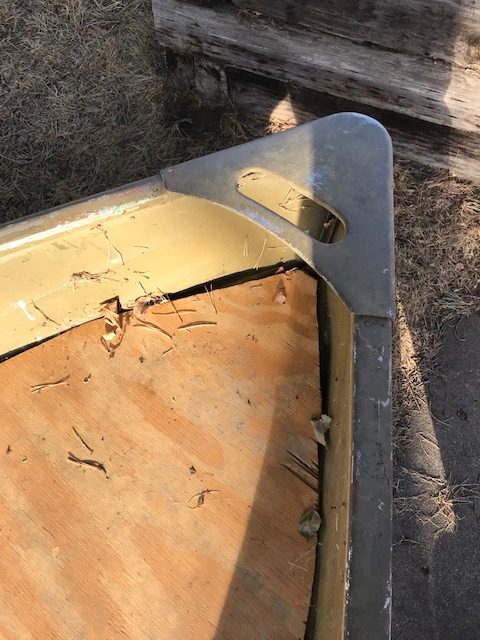

    Picked up a used bow mount minnkota powerdrive to put on my 12′ puddle jumper. I’m going to have to figure out how to get it mounted, probably on a quick-release plate (it came with MKA-16-03). Just wanted to see if anyone has suggestions; I have a couple ideas but others are usually better grin

    Attachments:

    1. bow.jpg

    Steve Hix
    Dysart, Iowa
    Posts: 1135
    March 7, 2021 at 8:23 pm #2020422

    I had a 1/4inch aluminum plate welded on behind the nose piece.
    Used a couple spacers when mounting the quick release to get it just right.

    CBMN
    North Metro
    Posts: 970
    March 7, 2021 at 10:11 pm #2020437

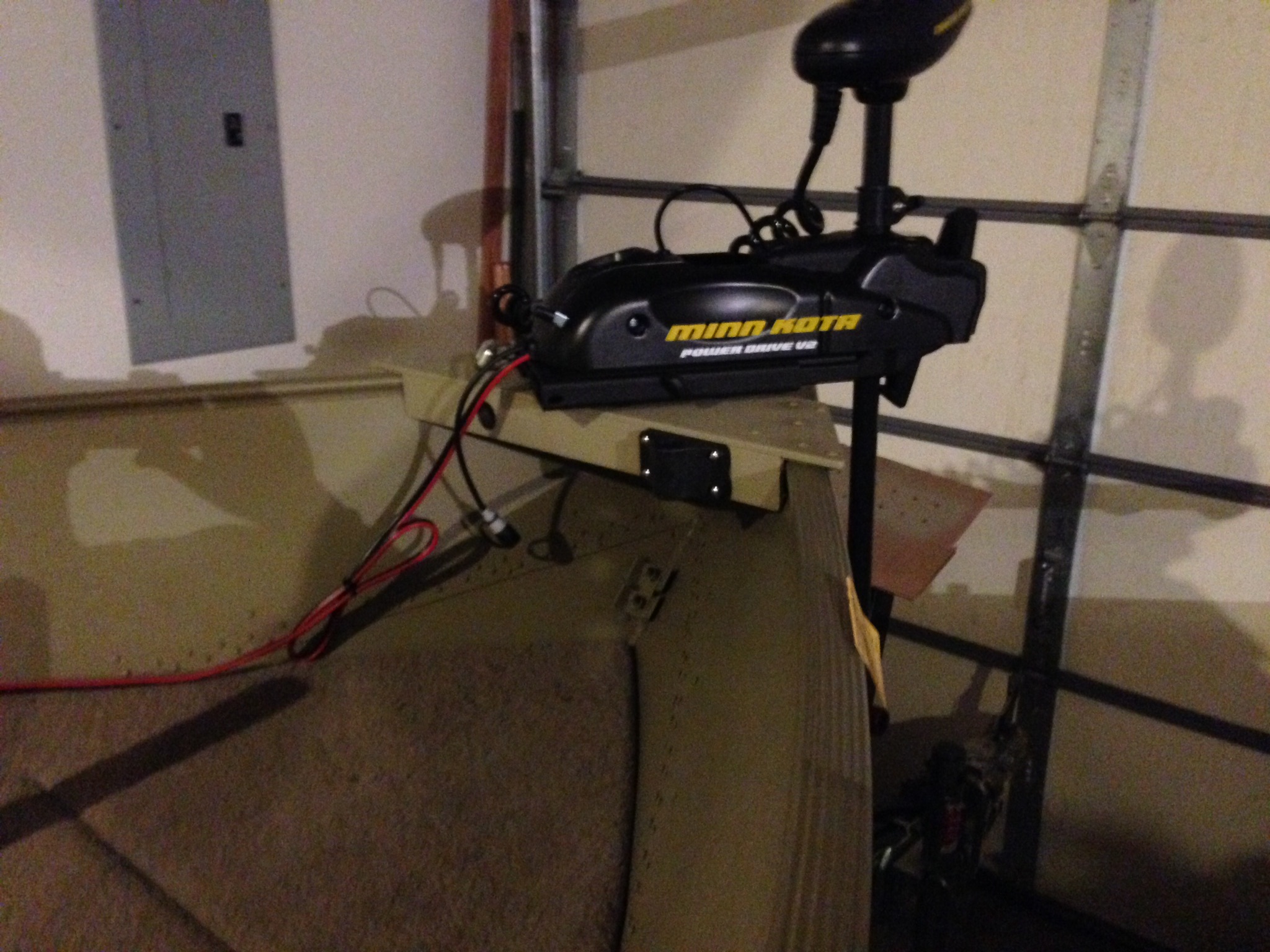

    I riveted on a piece of 1/4” aluminum plate behind the bow casting on my little 16’ Lund. I used 1/8” angle under it to just better match up with the casting height and it has worked fine for the past 4 years and 2 different bow mounts.

    Attachments:

    1. 5D7B46AD-00DA-4752-8395-960BBE62ABAB.jpeg

    2. 0BFCADBF-A470-4BF2-B4FE-A884CC97F958.jpeg

    CBMN
    North Metro
    Posts: 970
    March 15, 2021 at 10:10 pm #2022430

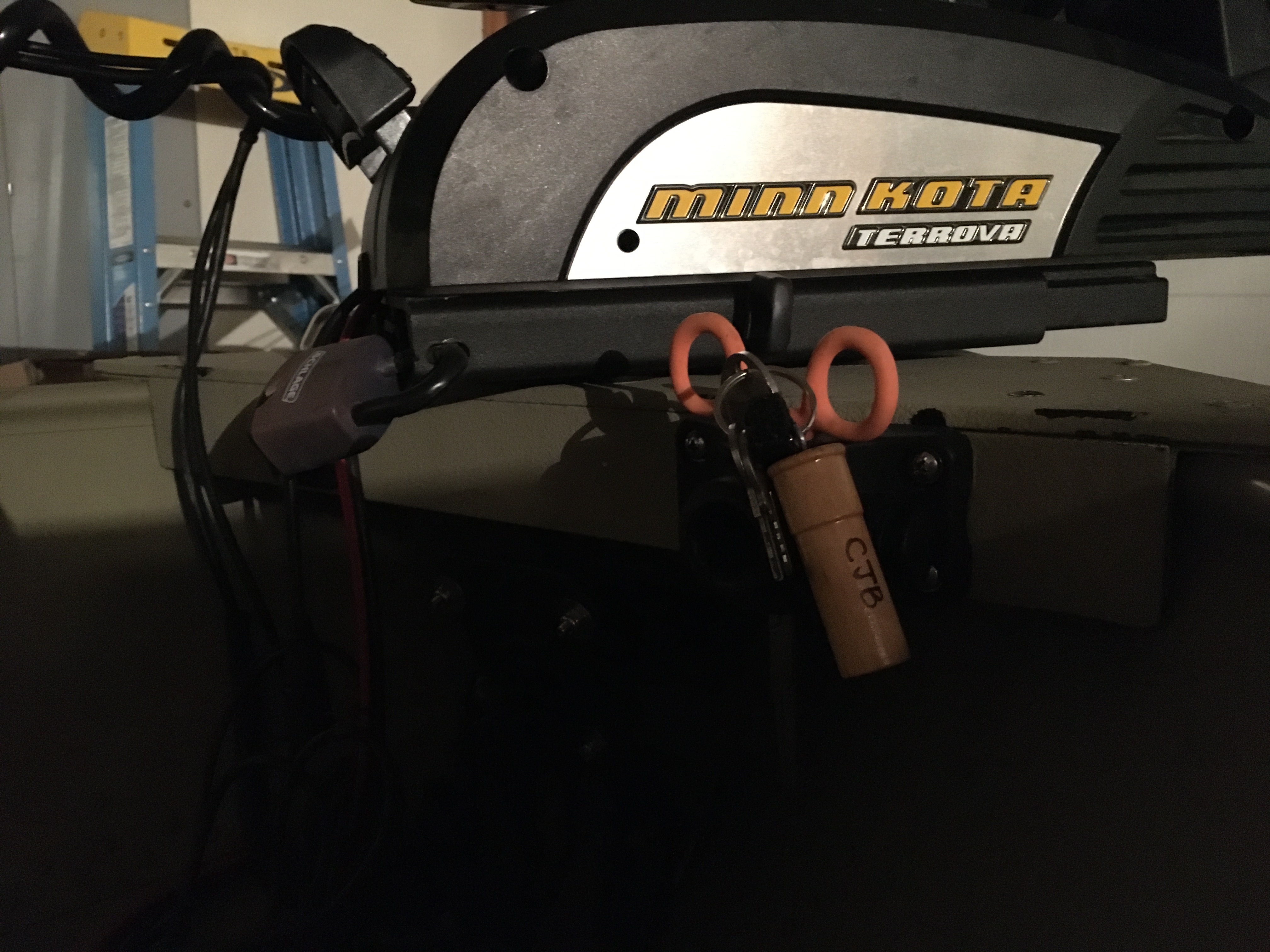

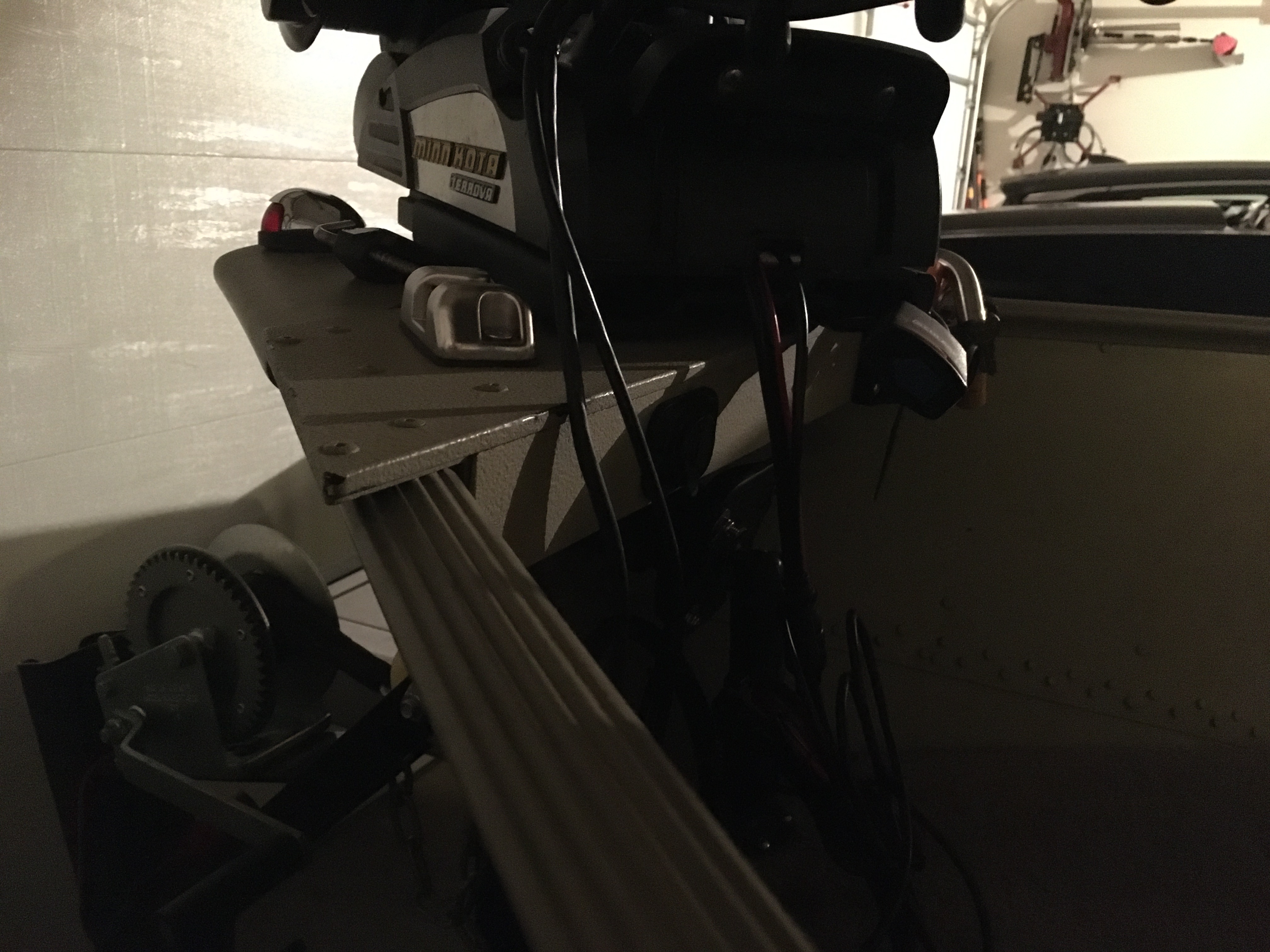

    Some more photos for you Slough:

    Attachments:

    1. 5BCC0986-E5A6-405D-8AD2-6344CEE92D8B.jpeg

    2. DAC808FF-C091-4283-B60C-585384EBDEC6.jpeg

    3. 6BB8D3A0-C13A-42AB-A346-6B80B8948A4B.jpeg

    4. 2C9463F1-D5DF-4EC0-9B66-28607DA9AC46.jpeg

    5. D08A2945-3C32-4339-8709-250BA25565DE.jpeg
