StrikeMaster Mag 2000 Won’t Stop Spinning

I have a older but in good condition Mag 2000. It starts and runs but I will not stop spinning any help on what I should fix?

Attachments:

1.



2.



3.



Does the carb have a idle screw you can adjust?

If the idle is correct the clutch spring is probably broke. They are a pretty simple fix if your handy.

Yes it does

Allen Huggins wrote:

Yes it does

Try turning it counter clockwise to see if it slows down the idle

Dave maze wrote:

If the idle is correct the clutch spring is probably broke. They are a pretty simple fix if your handy.

This. Happened to mine.

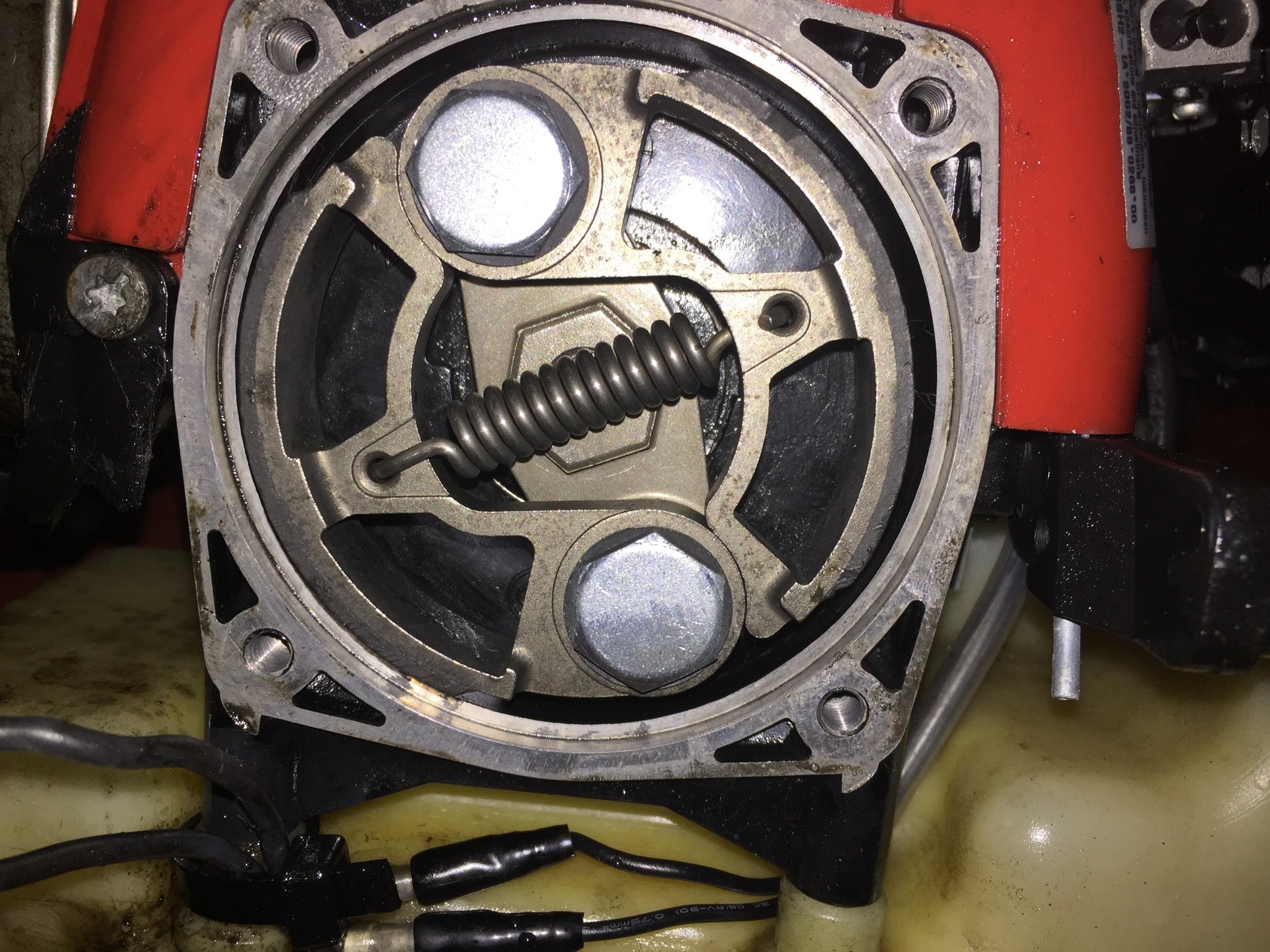

A couple bolts will get it apart to check the spring or for ice build up. I took mine apart for a stuck condition, turned out to be ice inside.

Attachments:

1.



2.



Had the same issue. It was the clutch spring.

Where is that located on the auger

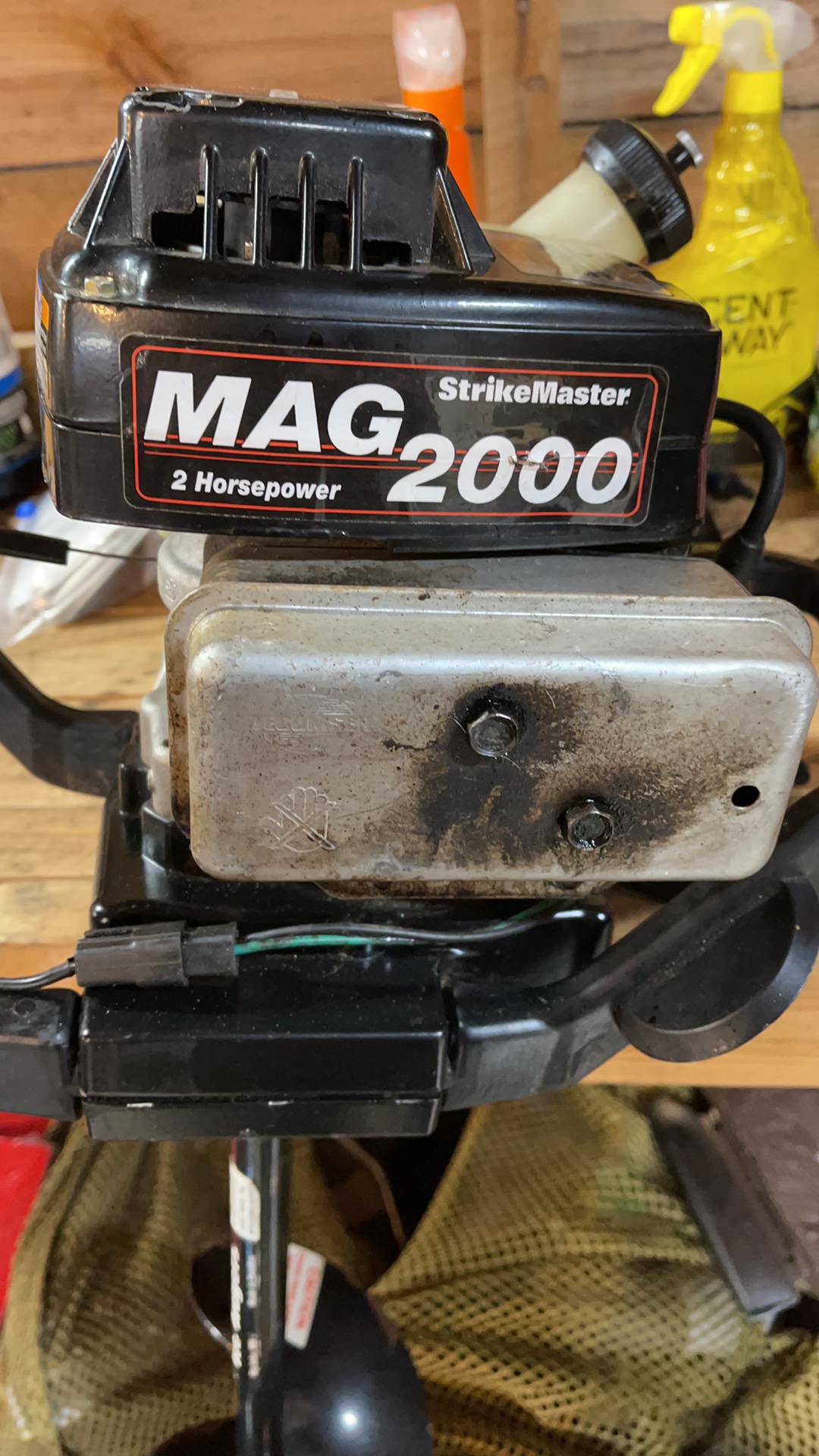

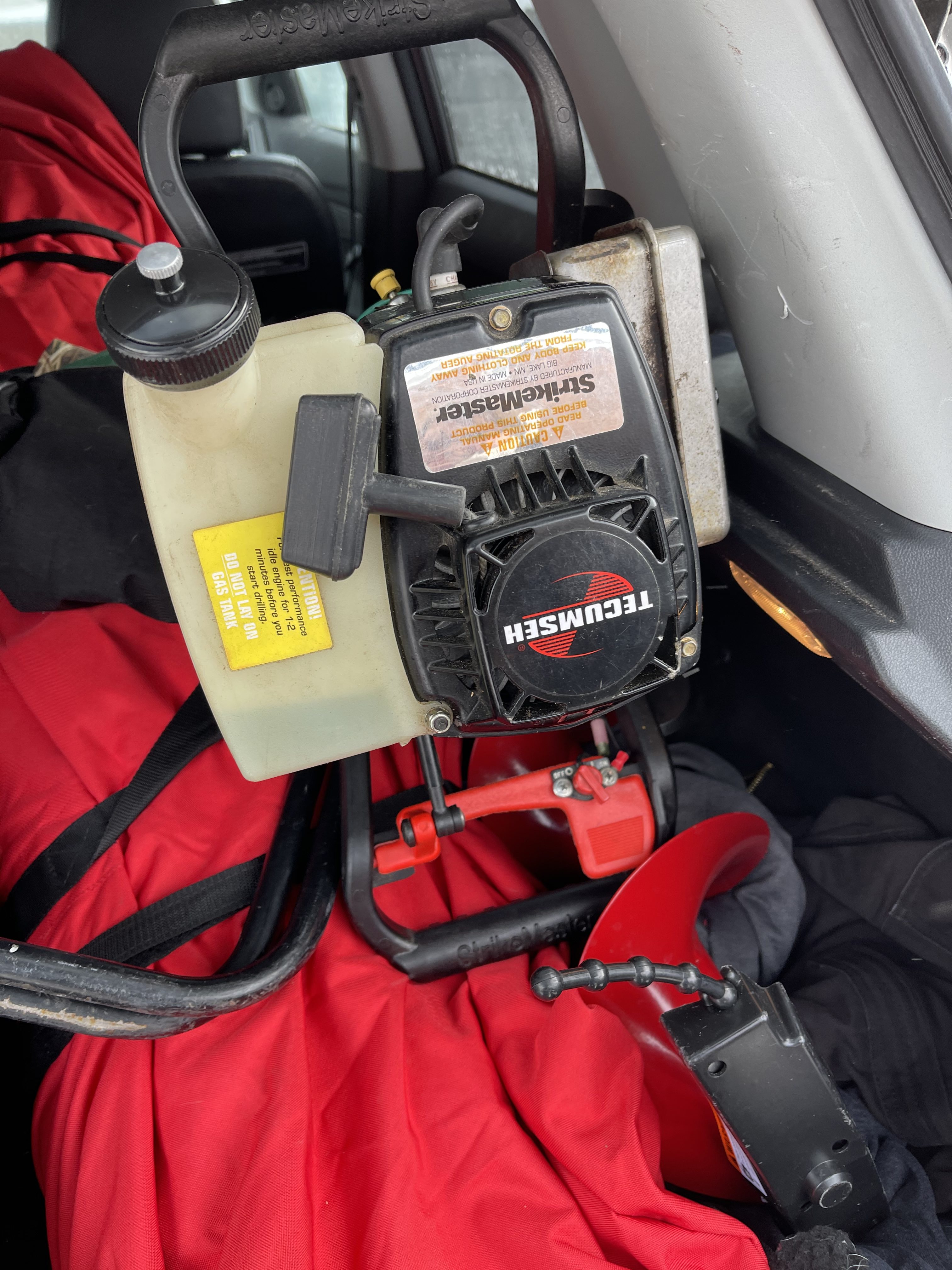

More Pictures Of The Auger

Attachments:

1.



2.



3.

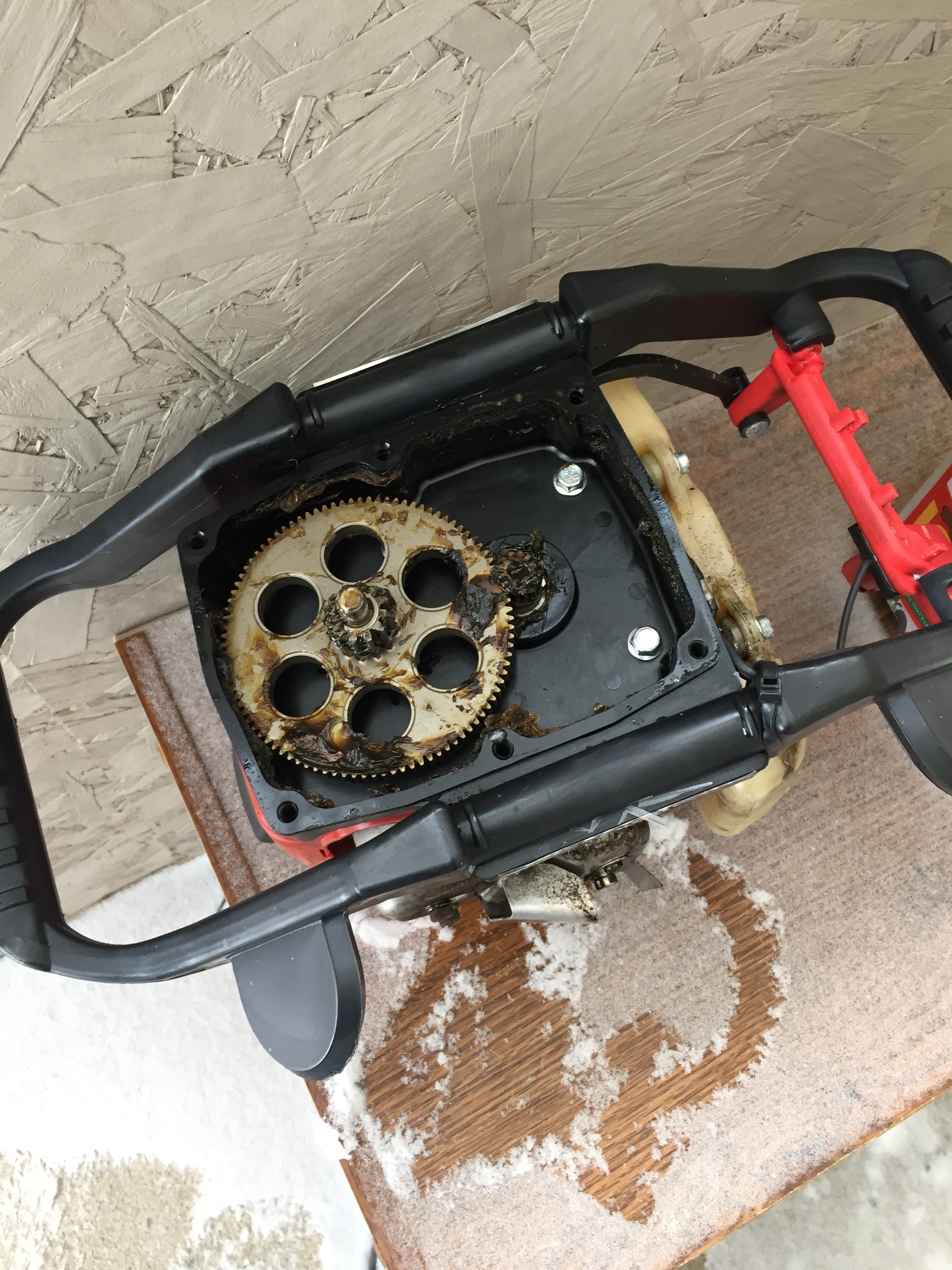

You need to split the case like in the pictures. Should be some bolts on the bottom. Take the bit off. Dump the gas out so it doesn’t make a mess and turn it over, there should be 4 bolts to take out.

I TRIED BACKING THE SCREW BACK BUT ITS STILL SPINNING ITS ALMOST TO THE FURTHEST I THINK IT COULD GO

You have a spring broke in the gear box, like talked about above you will need to crack the gear case no way around it.

This one

Attachments:

1.



as said above broken clutch spring. it is located in the silver part just above the gear box.

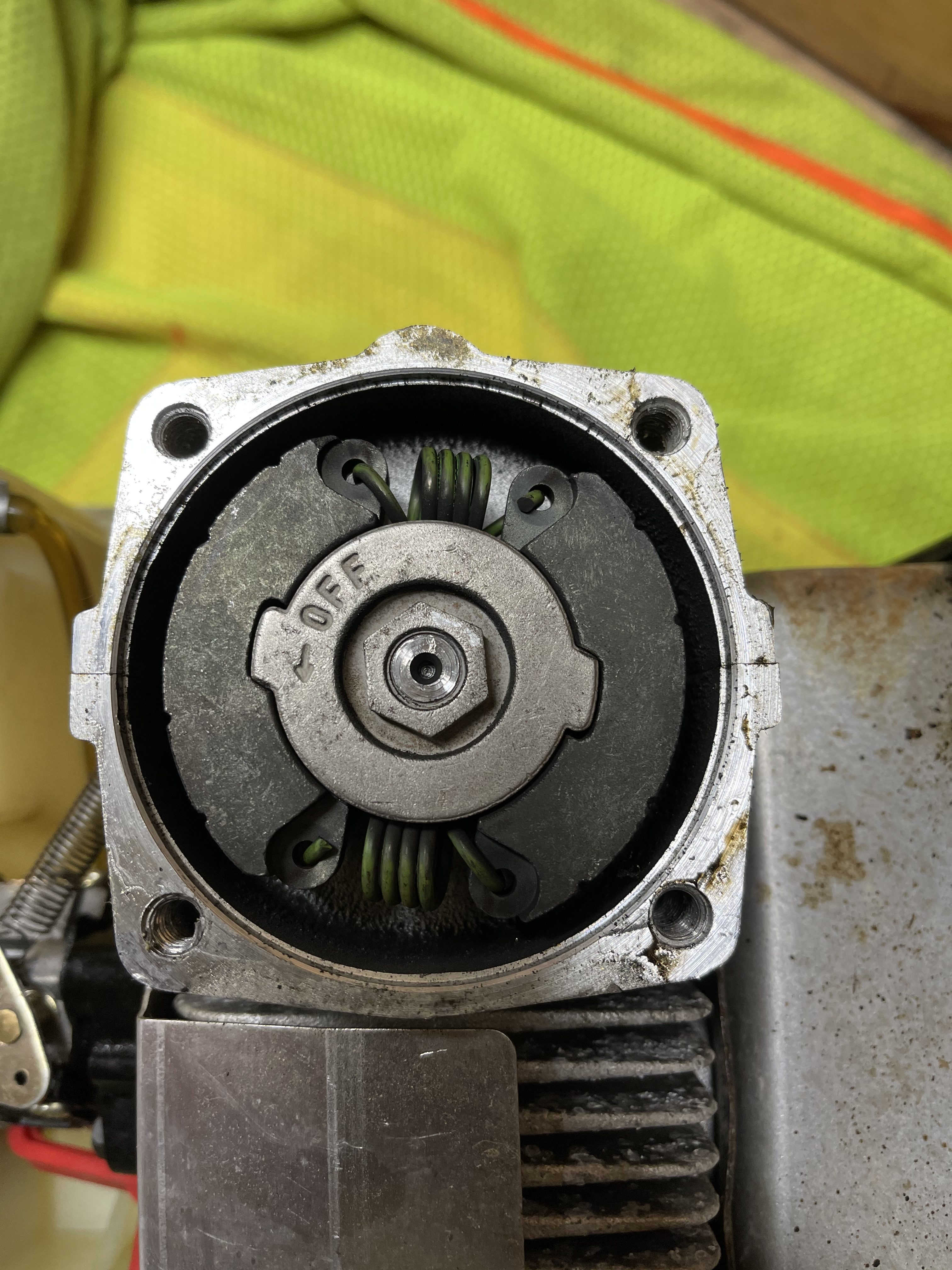

Springs are fine unfortunately now what

Attachments:

1.



Put it back together and see if it still spins all the time. If it does, bring it to a repair place.

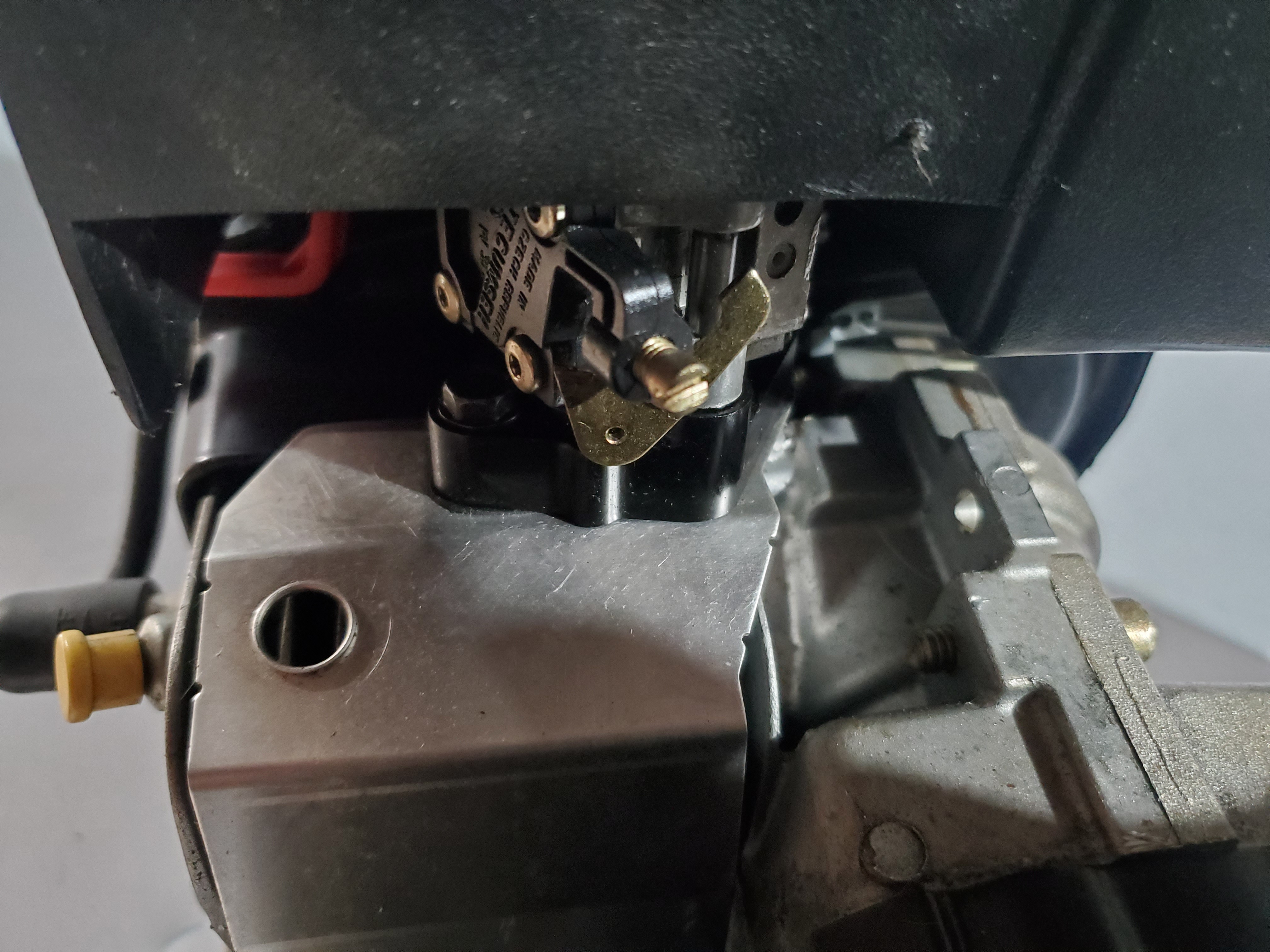

That screw you adjusted before wasn’t the idle screw, it looks like the high limit throttle stop. The idle screw should be right on the carb itself. Also check to see that the throttle are is returning to the idle stop. I just sold my Mag2000 a few weeks ago or I could take a better picture to show you.

At least you know now that the clutch looks good and the grease is in good shape.

Can anyone show me where the idle screw is please

Allen Huggins wrote:

Can anyone show me where the idle screw is please

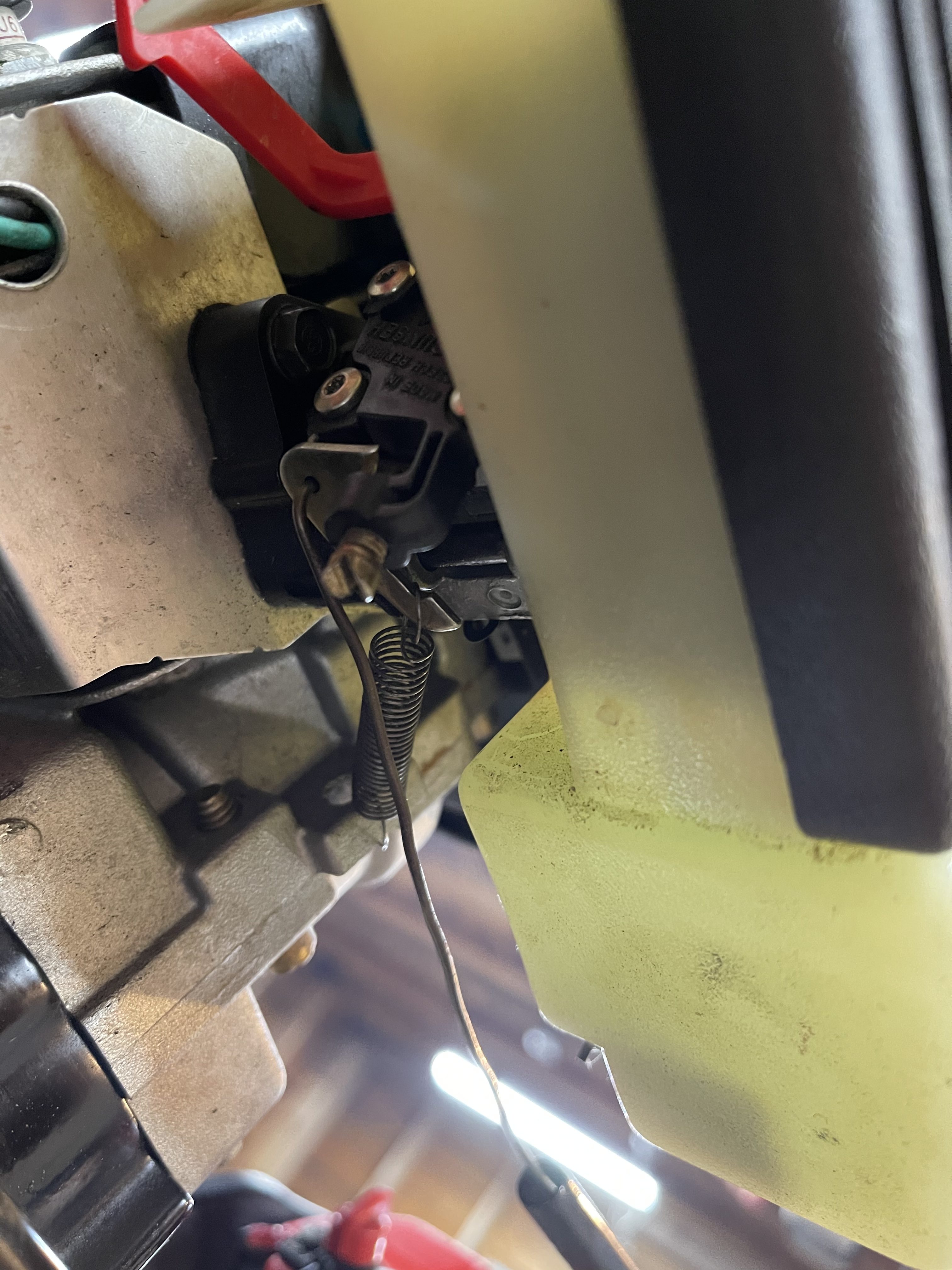

Allen, although I don’t have this model of auger, here’s my assessment. If you look at the last of the 3 pic post you posted above, that is the idle speed adjustment screw. If you look closely, that screw tapers to a point, and the throttle plate linkage arm rides on that taper. As you adjust the screw clockwise, the linkage plate rides higher on the taper, holding the throttle open further. Counter-clockwise would reduce the idle speed.

Hope this helps.

Can’t help with where the idle screw is, but typically they have a spring under them to keep the screw from vibrating. You may need to rebuild the carb. D-Rock Ice Center has parts.

I did manage to find the owners manual though. The screw you turned is the governor speed adjuster. I’d suggest turning it back to where you think it was and start the auger. You’ll have to adjust the screw to get the auger to run right. I’m thinking it may surge pretty bad if the screw it backed out too far.

Attachments:

1. 2hp_operator_manual.pdf

Here it is.

Attachments:

1.



Thank you so much gonna try this when I get home soon. Thank you all for all the help on getting this old girl running

Allen Huggins wrote:

Thank you so much gonna try this when I get home soon. Thank you all for all the help on getting this old girl running

Good luck and let us know how it goes.
