Portable power supply

I have been searching for a good portable power supply to multi task out on the hard water. I think I may have found it.

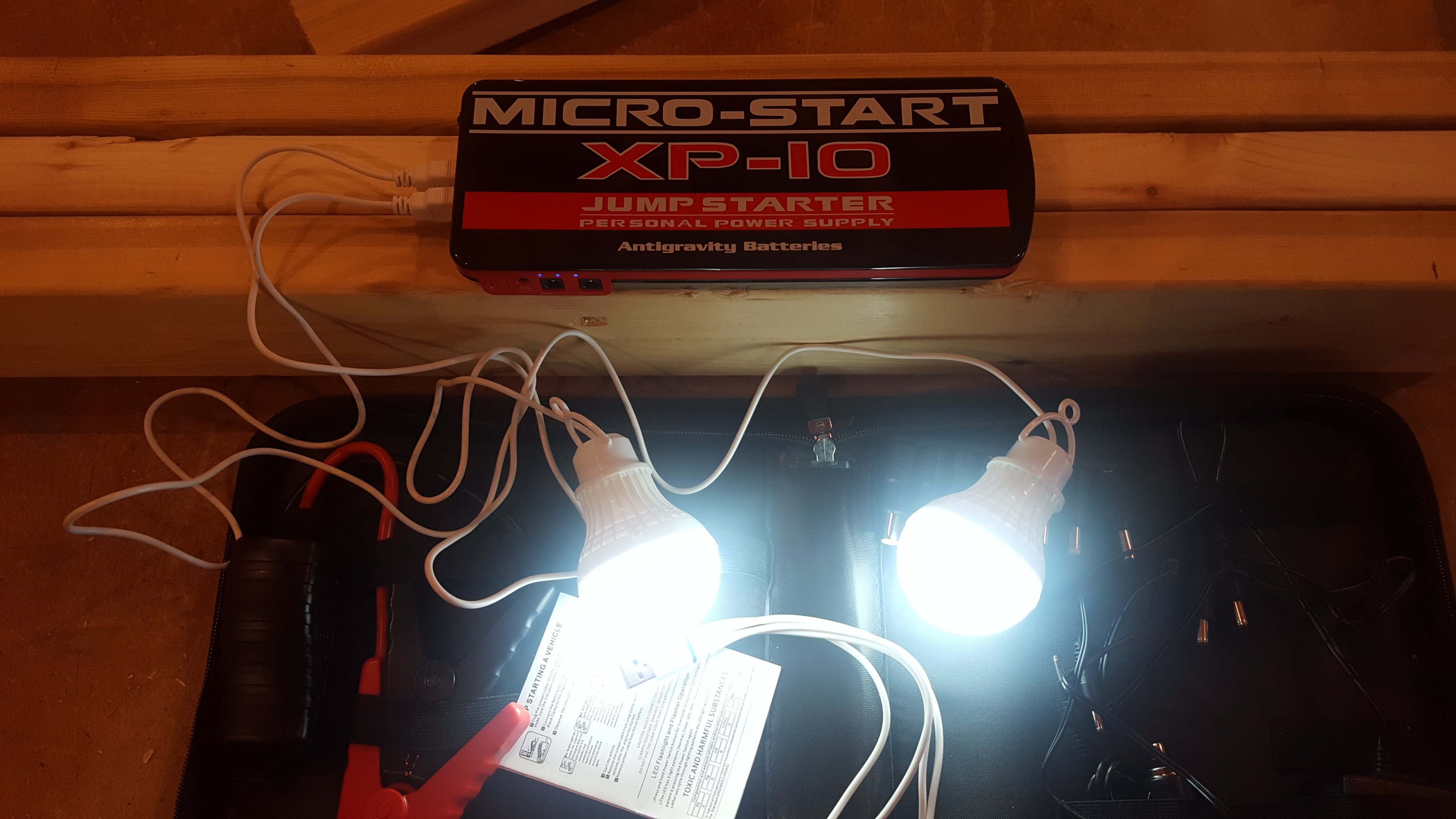

jump starts a vehicle, charges phones, lap tops, cameras, these 2 lights have been running for over 16 hours. I’m going to try and rig it so it runs the fan in a big buddy. Now I just need ice.

Attachments:

1.



OK – I bit the bullet and cut my cell phone USB cord in half, then cut the big buddy charging cord in half and spliced them together using the black and red only from the USB cord. Nothing!
Reversed the wires – BINGO!
Now the power pack runs the Big Buddy blower. I’m going to fully charge the pack and see how long it will run the heater.

That will be interesting to see how long it lasts

Purchased a Suoaki G7 on Amazon, power for my phone or jump start my atv.
https://www.amazon.com/G7-18000mAh-Portable-Starter-Charging/dp/B015O7AIIC/ref=sr_1_2?ie=UTF8&qid=1480279262&sr=8-2&keywords=suaoki+g7

I bought a 6 volt rechargeable battery 4 years ago that powers my fan on my big buddy. Simply extended the wires from the battery housing and ran them into one of the 1# cylinder storage compatments where I keep the battery. The fan runs all day if I need it to on that battery.

am I wrong or is that 18000 mhr equal to two 9am vex batteries?

roger wrote:

am I wrong or is that 18000 mhr equal to two 9am vex batteries?

that is correct from what I believe too.

It ran a light and the fan for over 12 hours and under 21 hours.
(it was dead when I came home from work)
I’ll try to monitor it more closely this weekend as I won’t be hard water fishing.

Try a power pack

Attachments:

1.



deftones311 wrote:

Try a power pack

X2

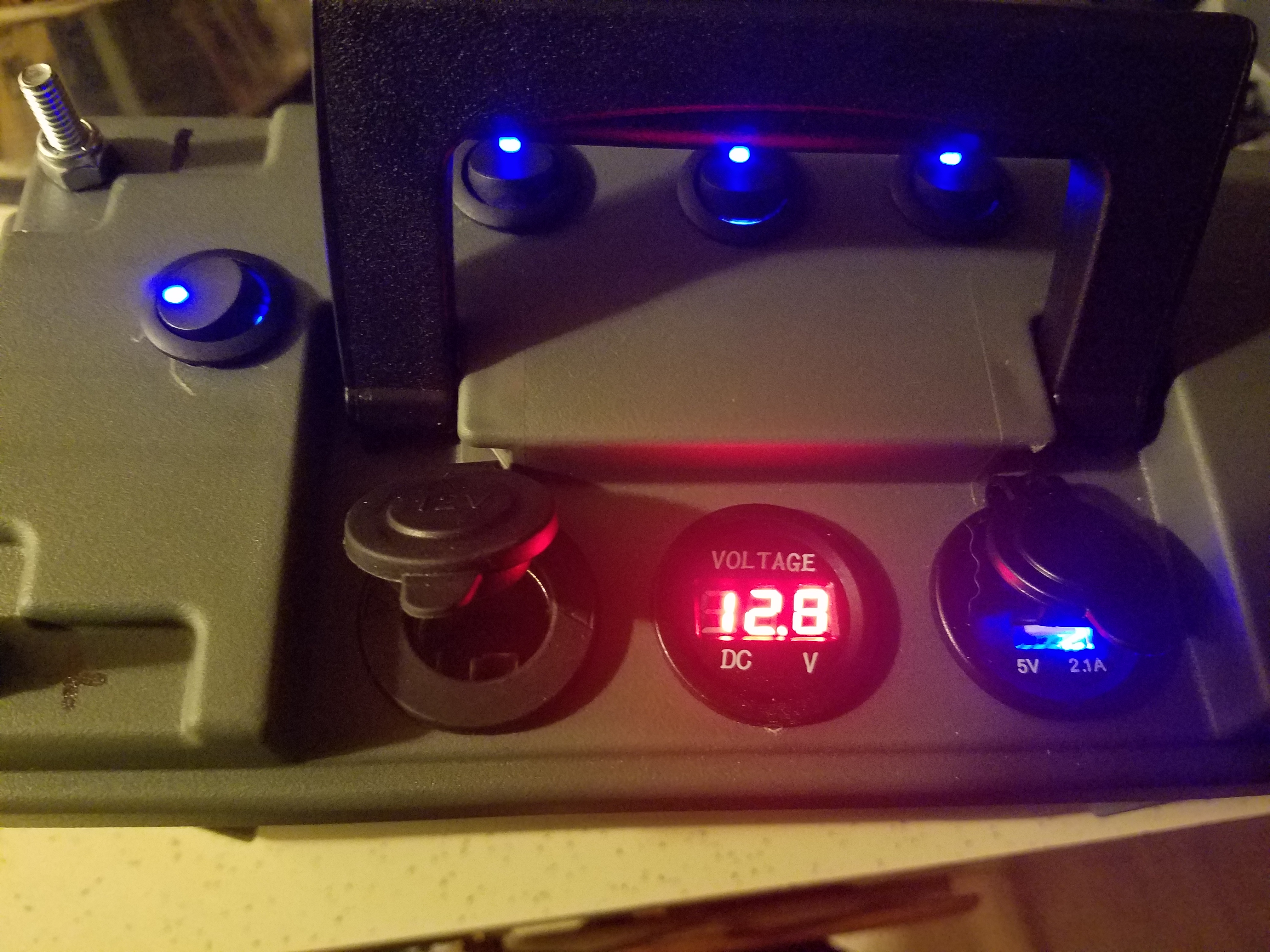

Made mine for less than $80 with a dual USB port, cigarette charger port, a light on the front of the box, digital voltage meter, and posts that my shack lights clip onto and run. One centralized hub for all your power needs. Can’t beat it.

deftones311 wrote:

Try a power pack

any links to directions on how to make these?

crappie55369 wrote:

<div class=”d4p-bbt-quote-title”>deftones311 wrote:</div>
Try a power pack

any links to directions on how to make these?

x2. I don’t even need one, but that just looks too cool to not make one!

Looks like an ammo box with ports, meter and switches installed. Maybe a bunch of non-projectile lead inside?

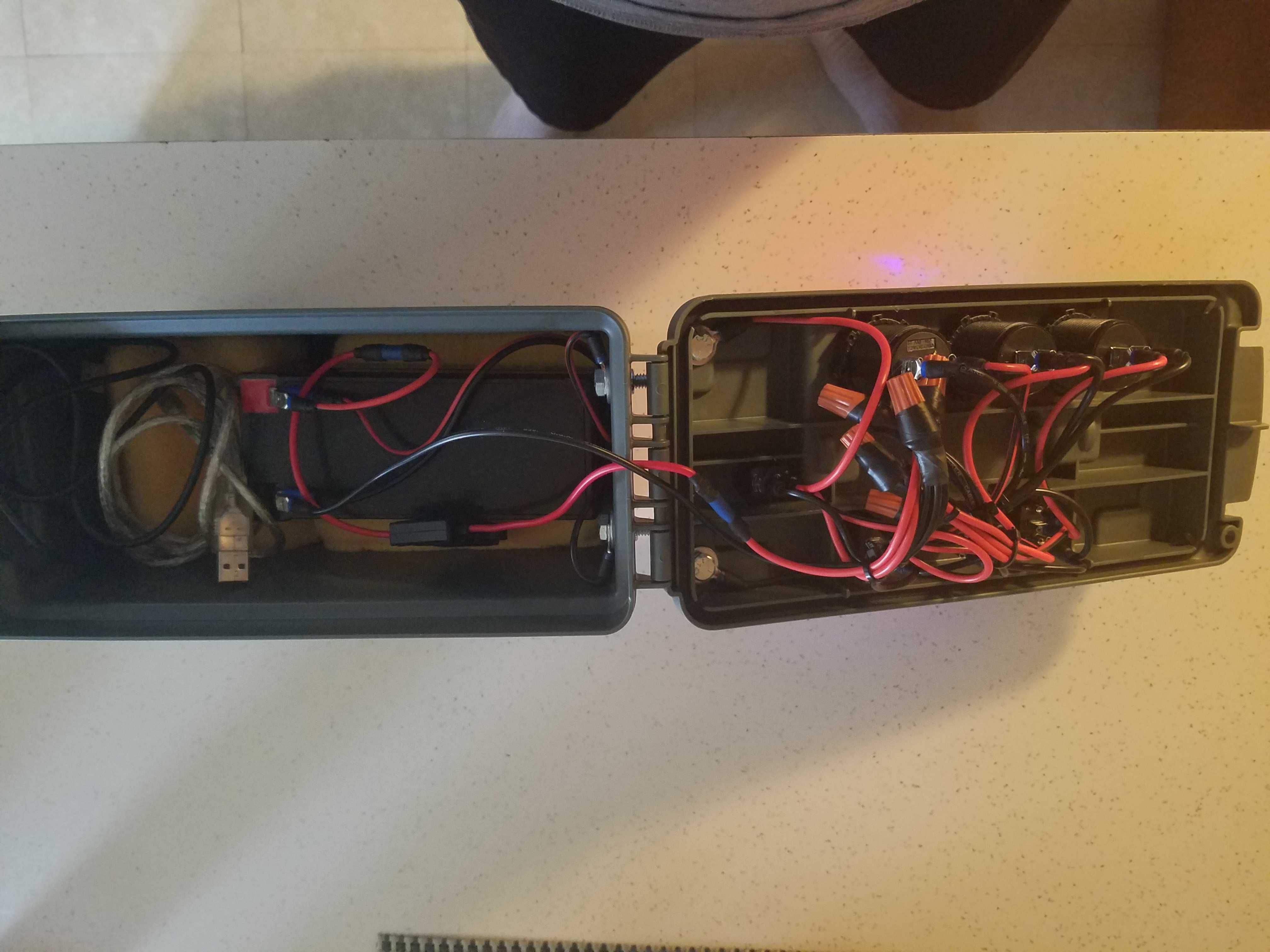

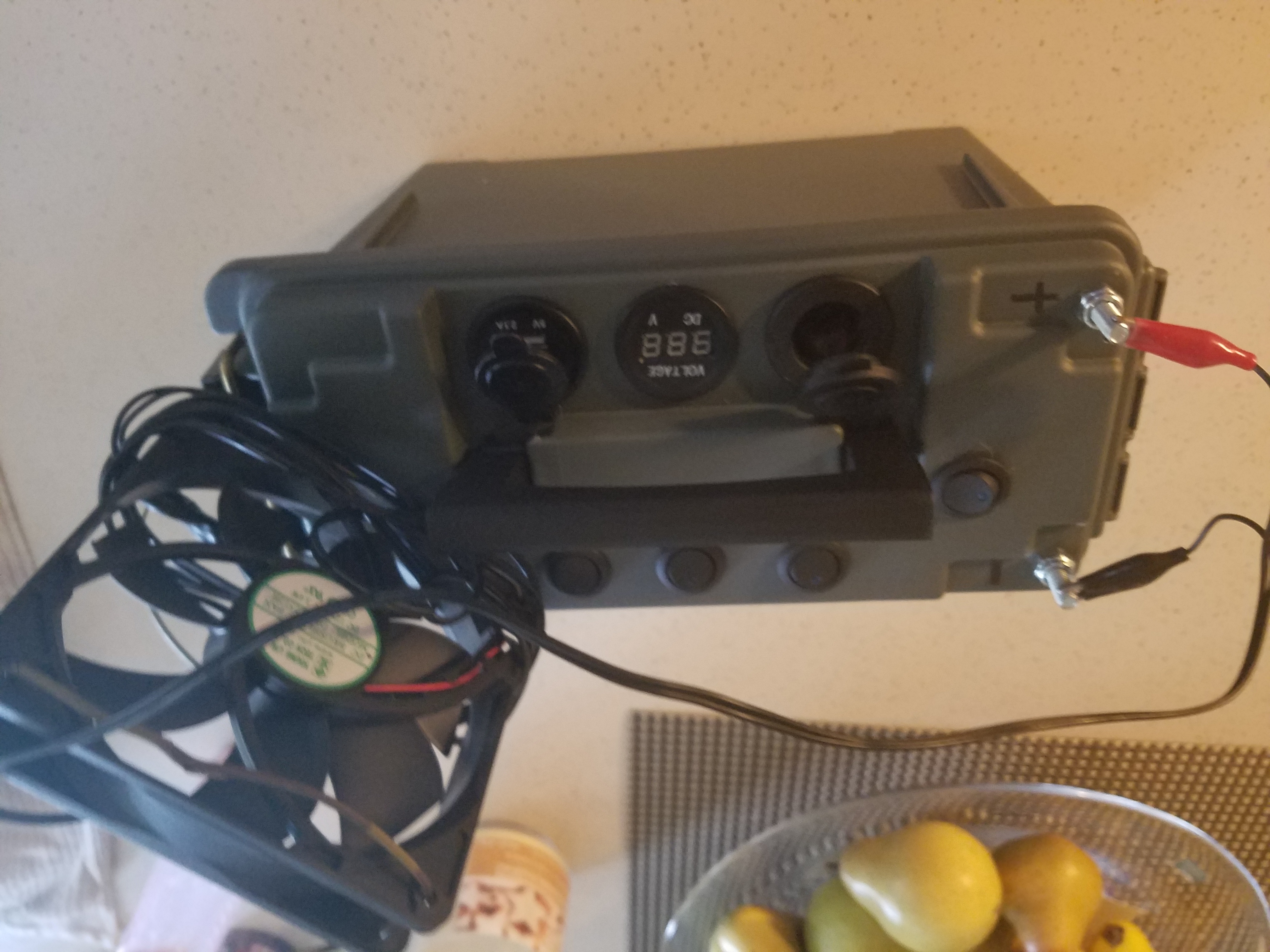

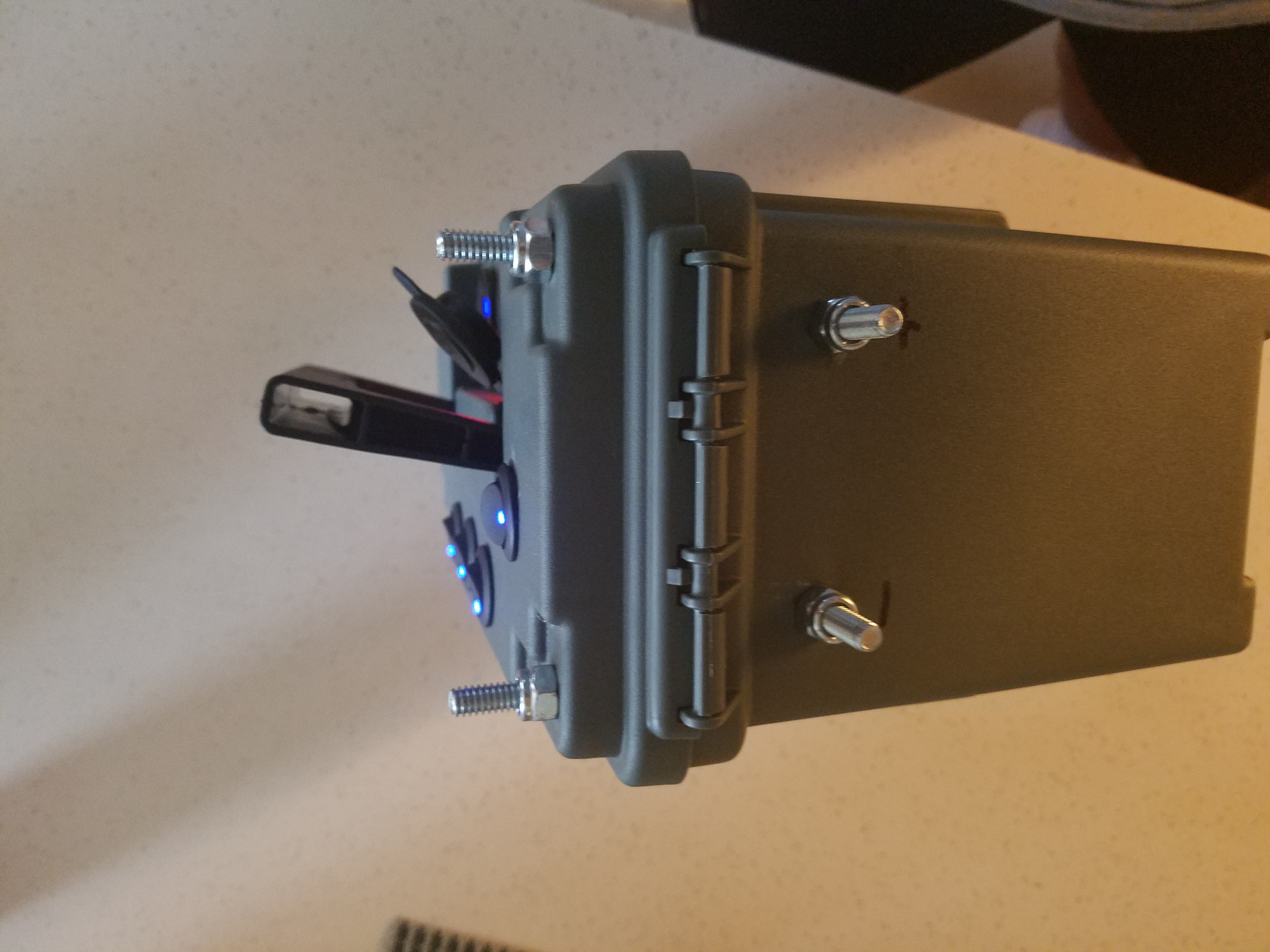

Little direction in making not to indepth just an idea in the pics but I have a guy that made them for me and my friends I got ahold of him and the box u see without battery and shipped to door is 56 he just does them on the side for hobby not trying to sell anything he made for himself i liked it and passed it onto my friends type of deal just wanna spread the Christmas love to all hardwater lovers ha pm me if u would like his number otherwise good luck in putting one together yourself I’m not electrical I run a fan yes its a computer fan with ball bearings not the sheath a power inverter plugged into cig lighter and a radio that I plug into usb runs forever on a 12v 9ah battery or vexilar battery any questions pm me would be happy to answer thanks and pray for ice

Attachments:

1.



2.



3.



This might be the guy you’re looking for….
https://stcloud.craigslist.org/spo/5884140922.html

Another great idea many ways to set them up I just have switches for each function on and off

This year I upgraded to a 12v 18ah battery used in scooters and wheel chairs. About the same weight as 2 vex batteries. Lasts all day and if I’m far from home it has juice enough to run lights and a 12v fillet knife.
