Mounting new MSI+ Ducer on rebel. Would this location be ok?

  • Jared
    Posts: 60
    February 23, 2023 at 11:01 am #2184019

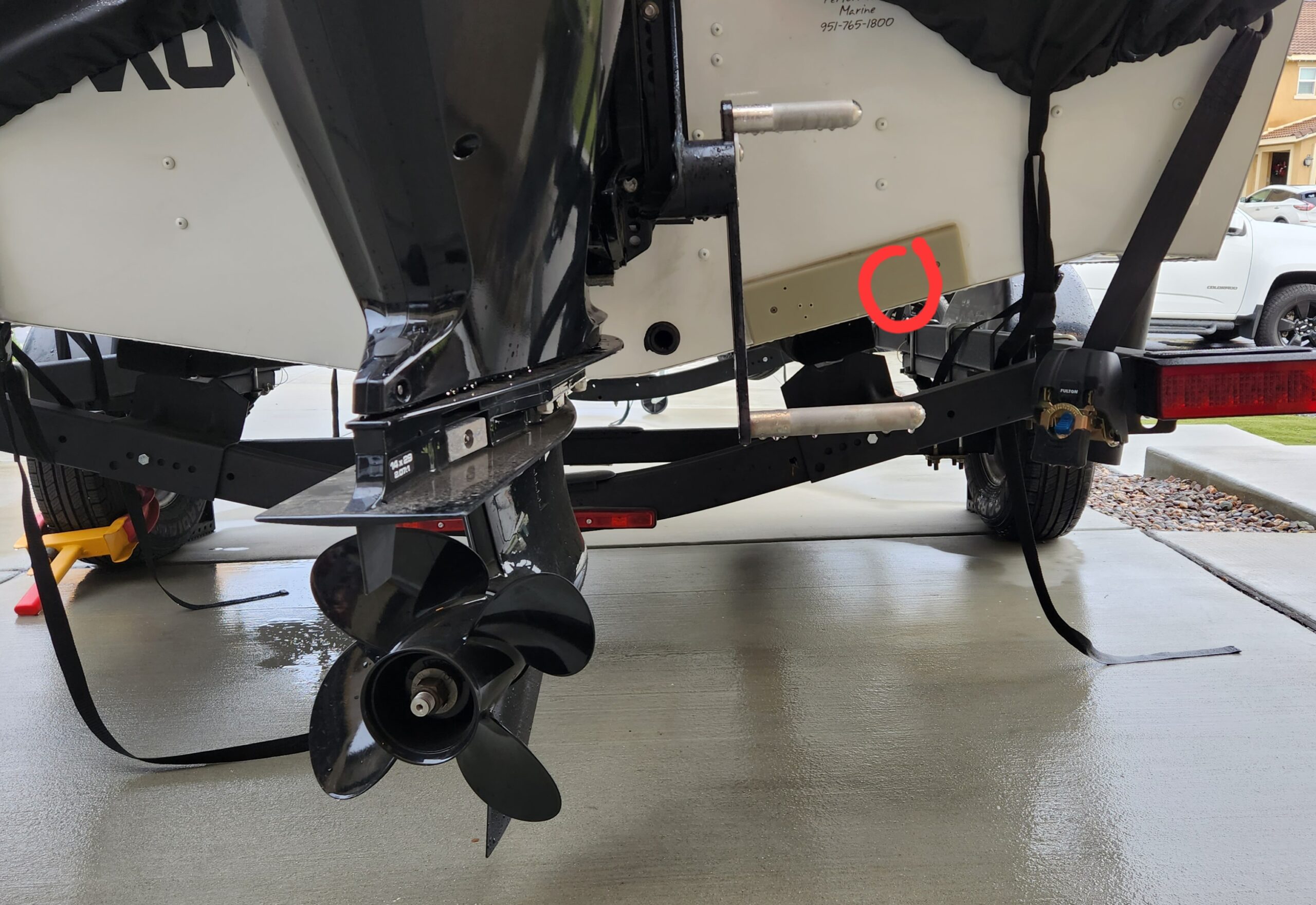

    So I just upgraded from a helix 7 CHIRP G3 to a Helix 8 MSI+ G4N. After pulling out the new transducer and seeing how absolutely massive it is I noticed my safety ladder is now going to be in the way unless I mount the Ducer to the right a bit (circled in red). I’m wondering if this will still be an adequate location for it to be mounted?

    Also next question, should I have left my 2D Ducer from the helix 7 model installed and just gotten a y splitter and ran both? I’m just now learning the MSI+ Ducer doesn’t read bottom well at high speed in 2D mode? I’d love to run only one but I also like to see depth when moving at speeds over 10mph.

    Thanks guys

    Attachments:

    1. 20230223_085055-2-scaled.jpg

    2. 20230223_085055-1-scaled.jpg

    3. 20230223_085055-scaled.jpg

    Denny O
    Central IOWA
    Posts: 5827
    February 23, 2023 at 11:35 am #2184034

    Side to side = yes good place, under side of the boat I’d look out for chine ribs and rivet lines.

    bigcrappie
    Blaine
    Posts: 4376
    February 23, 2023 at 11:56 am #2184045

    Yep good spot, do the quarter level test.

    Jared
    Posts: 60
    February 23, 2023 at 12:02 pm #2184047
    bigcrappie wrote:

    Yep good spot, do the quarter level test.

    Sounds good. And will it be necessary to re install the 2D sonar if I just want to pick up depth while moving at speed or will the MSI ducer be able to do that? I’m getting mixed reports everywhere I look.

    Denny O
    Central IOWA
    Posts: 5827
    February 23, 2023 at 5:17 pm #2184128

    Or even to the right a bit more to get in between the 2 lines of rivets, almost on top of the boards mounting screw. Make sure your mounting screws are stainless and will not penetrate the boats transom.

    slowpoke
    Perham Mn
    Posts: 238
    February 24, 2023 at 7:31 am #2184194
    Jared wrote:

    Sounds good. And will it be necessary to re install the 2D sonar if I just want to pick up depth while moving at speed or will the MSI ducer be able to do that? I’m getting mixed reports everywhere I look.

    You will need the 2d ducer also. Make sure it is mounted HIGHER (to the right) of the SI ducer or it will interfere with side imaging. The bottom of the 2d must be higher than the top of the SI.
