LX7 or LX9 Settings

  • meestro
    Posts: 136
    #1486320

    Finding out there is more I don’t know than do know when it comes to this piece of electronic equipment.

    Would the knowledgeable folks be willing to share the key settings you typically consider default so I can at least get started?

    Thanks a bunch in advance!

    evobassfish
    Posts: 89
    #1486364

    Vertical zoom on the left and flasher on the right, sensitivity @ 4, IR @ 0, target Adj. @ 0, ice mode, dynamic mode, 20 deg. Cone. These are my basic settings and depending on your fishing conditions you will have to adjust accordingly.

    Eelpoutguy
    Farmington, Outing
    Posts: 10430
    #1486386

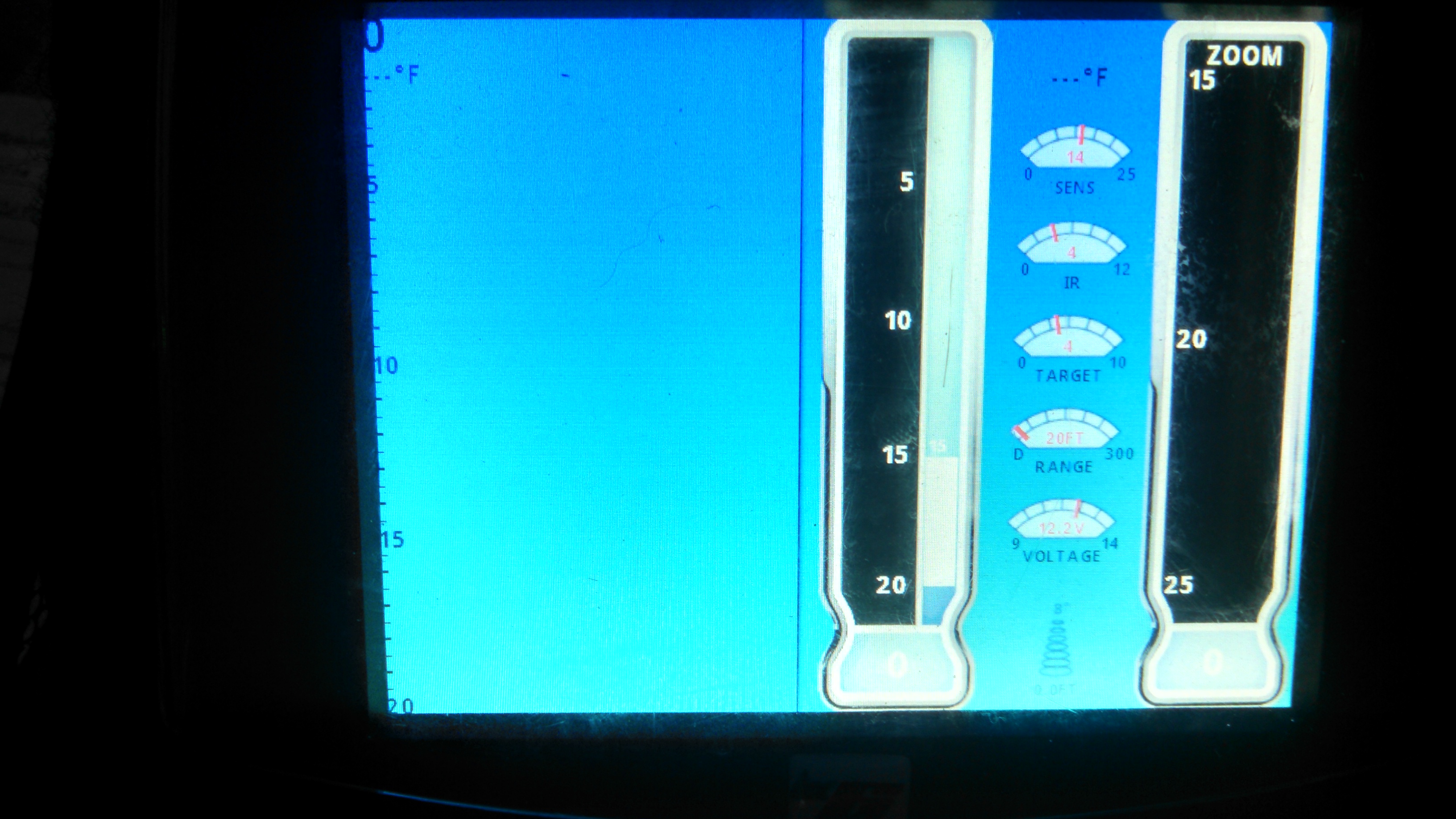

    I have the 6 and don’t know how close it is to the 7 or 9 but I like the graph on the left, vertical water column in the middle, (don’t ever look at it because I watch the graph instead) vertical zoom on right. I love the dynamic mode, and 8 degree cone inside and 20 degree outside (when I use the 20 deg. when fishing in a house, I pick up my dead stick line and don’t like that). I love the back lite feature when switching from day to night fishing. I tweek the IR and Sens when needed.

    Attachments:
    1. marcum-lx6.jpg
