LSS-2 Transducer Mounting Options

  • titanxt
    Posts: 25
    April 7, 2013 at 9:48 pm #1307222

    I was surprised at the size of the LSS-2 transducer when I received my new HDS7 Touch. Can you please post pictures of the different ways you have mounted the transducer?

    Thank you!

    bassn7
    Bruce,WI
    Posts: 776
    April 7, 2013 at 10:04 pm #1160228

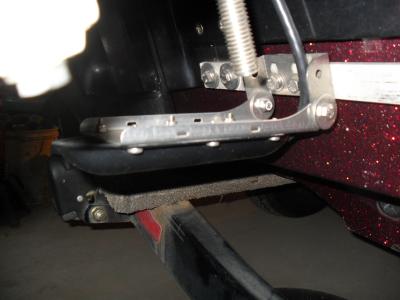

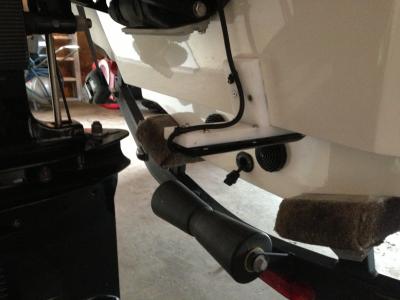

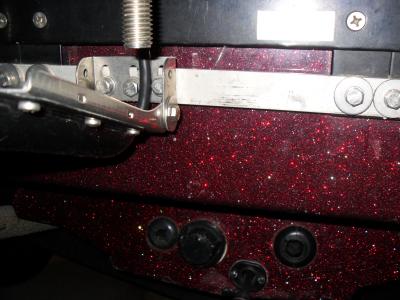

    Here’s a couple of pics on my Champion w merc and jack plate
    Stan

    titanxt
    Posts: 25
    April 7, 2013 at 11:29 pm #1160254

    The transducer I have is a lot longer. It measures 10.5″ long…

    Tony Hanson
    Posts: 97
    April 7, 2013 at 11:59 pm #1160266

    Here’s the HDPE bracket I built to mount mine on my Ranger 1860.

    haulin_bass
    Posts: 12
    May 3, 2013 at 12:36 am #1167861

    I don’t have a pic of mine but I have mine mounted like this.

    Ken Sauret
    Paso Robles, California
    Posts: 164
    May 3, 2013 at 2:13 am #1167886

    All these mounting options are great. If you choose to mount your LSS-2 ducer with the cable facing the stern, you will need to go into the Structure Scan menu and choose “Flip Left and Right”. The default left and right are correct if the end of the ducer with the cable coming out of it is pointing to the bow. If you mount it with the cable facing back then flip left and right so what shows up on the screen on the right side will really be on the right side of the boat.
