Let's see your DIY Helix Shuttle!!!

  • Greg Krull
    South Metro / Pool 4
    Posts: 278
    #2010391

    It’s just attached to the tilting “U-bracket” that came off the boat. The unit in the photo is my buddies Helix 10. Mine is a 9 and have to crawl under my cover to get it this weekend.

    And yes, that is revision A in the photo on the floor. Lol. It’s all aluminum and the latest is powder coated. It’s nice to have an entire metal shop to play with. )

    blank
    Posts: 1776
    #2010393

    So when it’s in the bucket, is it just removed from the bracket with the two knob screws? I was curious if it was on some sort of swiveling mount.

    Greg Krull
    South Metro / Pool 4
    Posts: 278
    #2010398

    It’s on a swivel mount. It has a wing nut lock nut and stops at the 90 degree locations. It has snap buttons to telescope up and down. It telescopes up 9″ taller. You could leave it down if you enjoy getting “shack back” from being hunched over your locator. grin

    gotalunker
    Zimmerman, MN
    Posts: 153
    #2071081

    It’s that time of year again. I think I’m going to modify my shuttle this year to make it smaller and lighter.

    Brad Muckenhirn
    Posts: 19
    #2072303

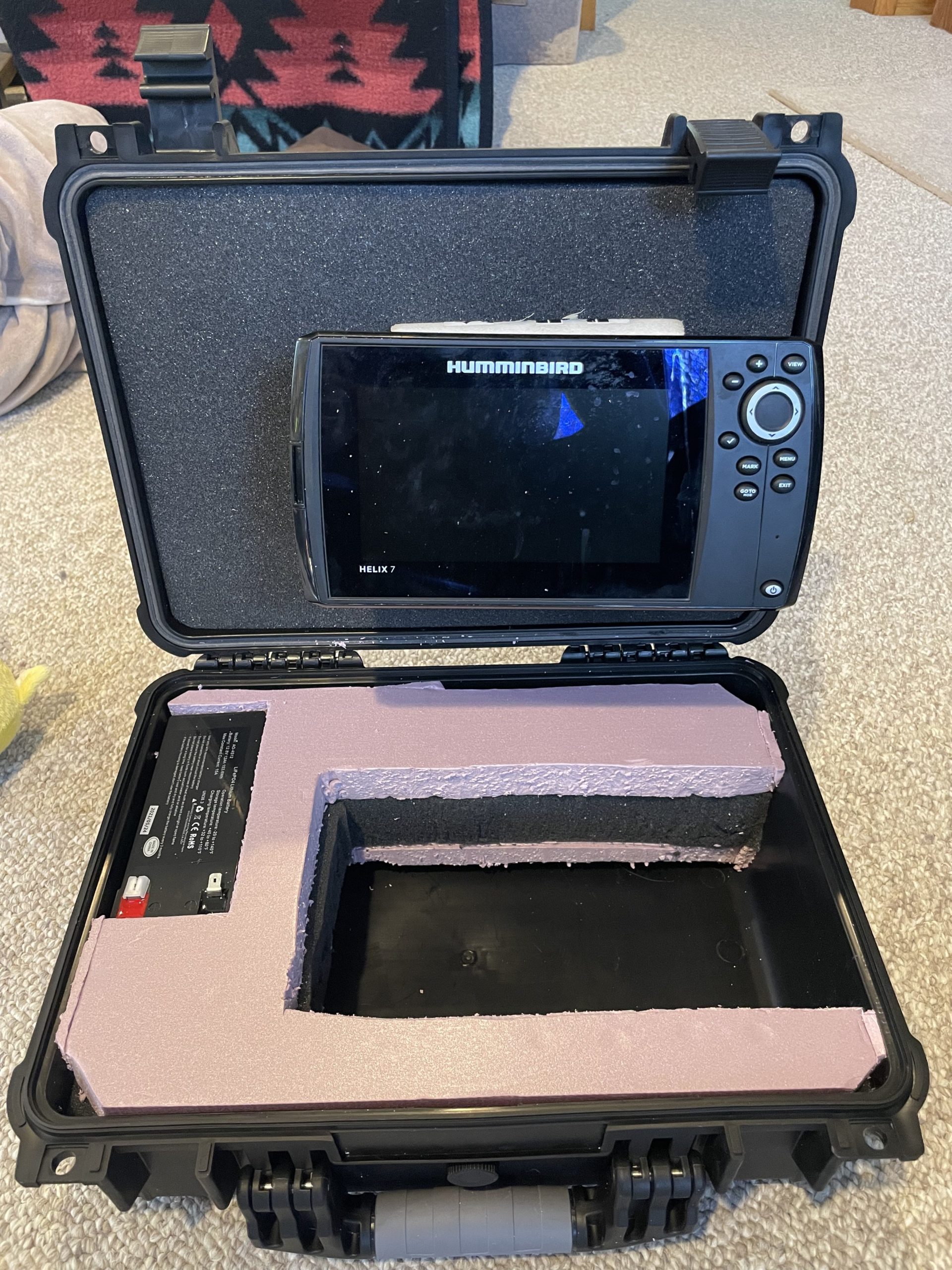

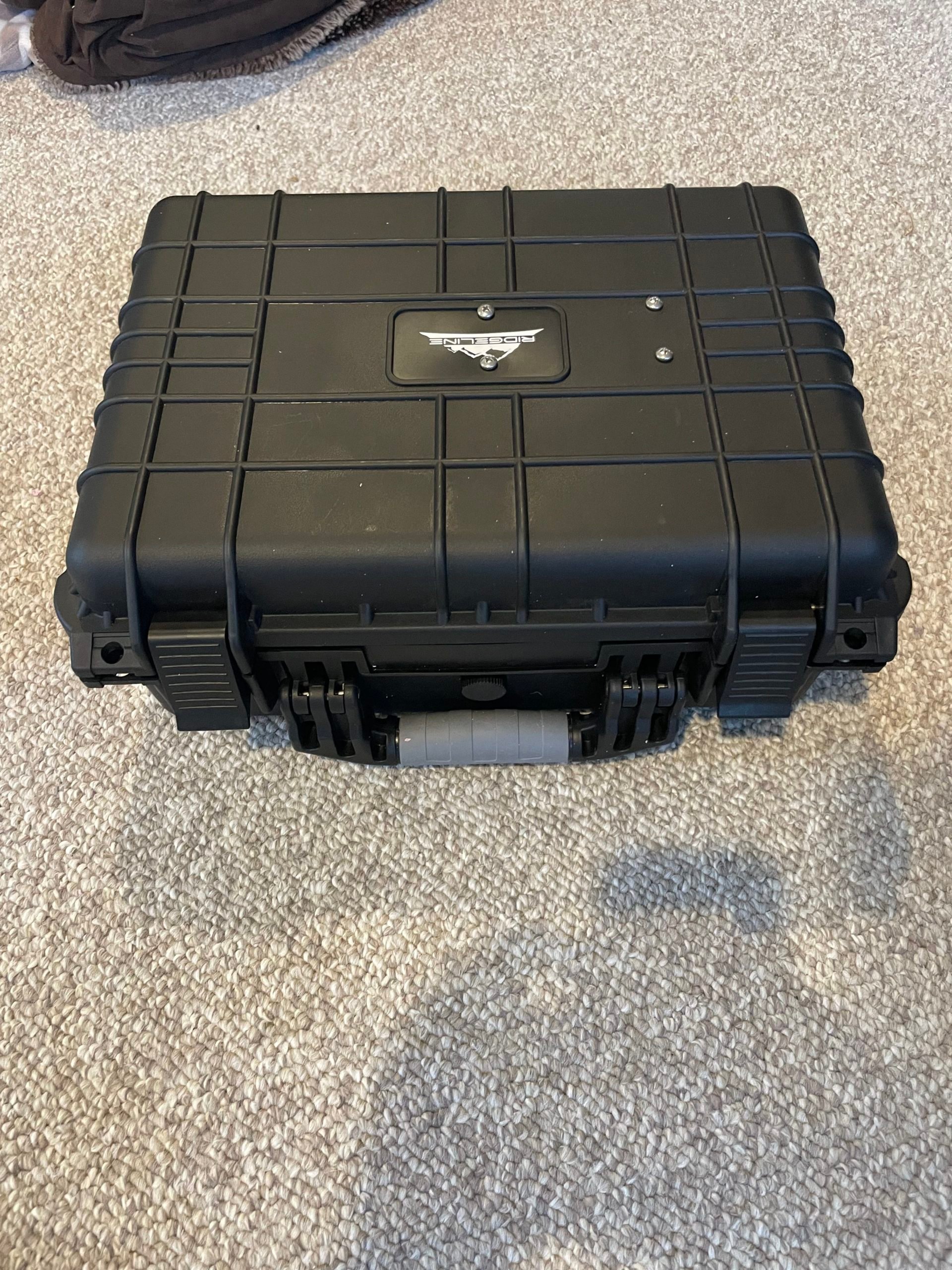

    Starting on my DIY shuttle/power box. I think I’m on the right track.

    Thinking of painting the pink to black. Want to put a ram mount on top for when I’m holed up and not running and gunning. Would put a grommet to run cords to the top side.

    Want to add usb/cig and place to attach led lights. Would hide all wire behind the foam on top.

    Might add a rod holder or 2 on the sides for when hole hopping.

    I BELIEVE I should be able to just close the top and run and gun.

    Open to all suggestions and negative comments. Let me know your thoughts.

    It’s getting colder

    Attachments:
    1. 2184A0C9-5F60-43BE-B126-5F837656A5AB-scaled.jpeg

    2. C79615E2-30D0-4F05-98C2-074C34971D83-scaled.jpeg

    Uncle Al
    Posts: 11
    #2081985

    Brad, I’m waiting on a delivery of a Helix 7 and have thoughts of doing what you did, but putting the head unit in the top.

    Brad Muckenhirn
    Posts: 19
    #2082004

    That was my thought as well. Just adding a ball to the top. But then I’d always have to be carrying an extra piece. I decided to just stick with it inside so it is fully enclosed and protected. The power box/carrying case has turned out nicely

    Uncle Al
    Posts: 11
    #2082009

    Don’t remember where I saw it but someone had a box like yours with a ram mount ball mounted to the side of the box with another ball on the helix head unit, and all of it would swivel into the box and be closed. I thought that was a good idea as you could put the head unit back into your boat just as easy.

    Brad Muckenhirn
    Posts: 19
    #2082012

    I’ll upload some more pictures this weekend when I’m out fishing. I’ve made some changes since posting the original photos.

    Uncle Al
    Posts: 11
    #2082106

    where are you fishing, no ice here mid michigan south shore of saginaw bay temps in the 60’s

    Brad Muckenhirn
    Posts: 19
    #2082110

    West central Minnesota. Warmed up and rained for a few days here but is back to cold and single temps.

    Uncle Al
    Posts: 11
    #2082115

    good luck, and be safe

    Brad Muckenhirn
    Posts: 19
    #2082629

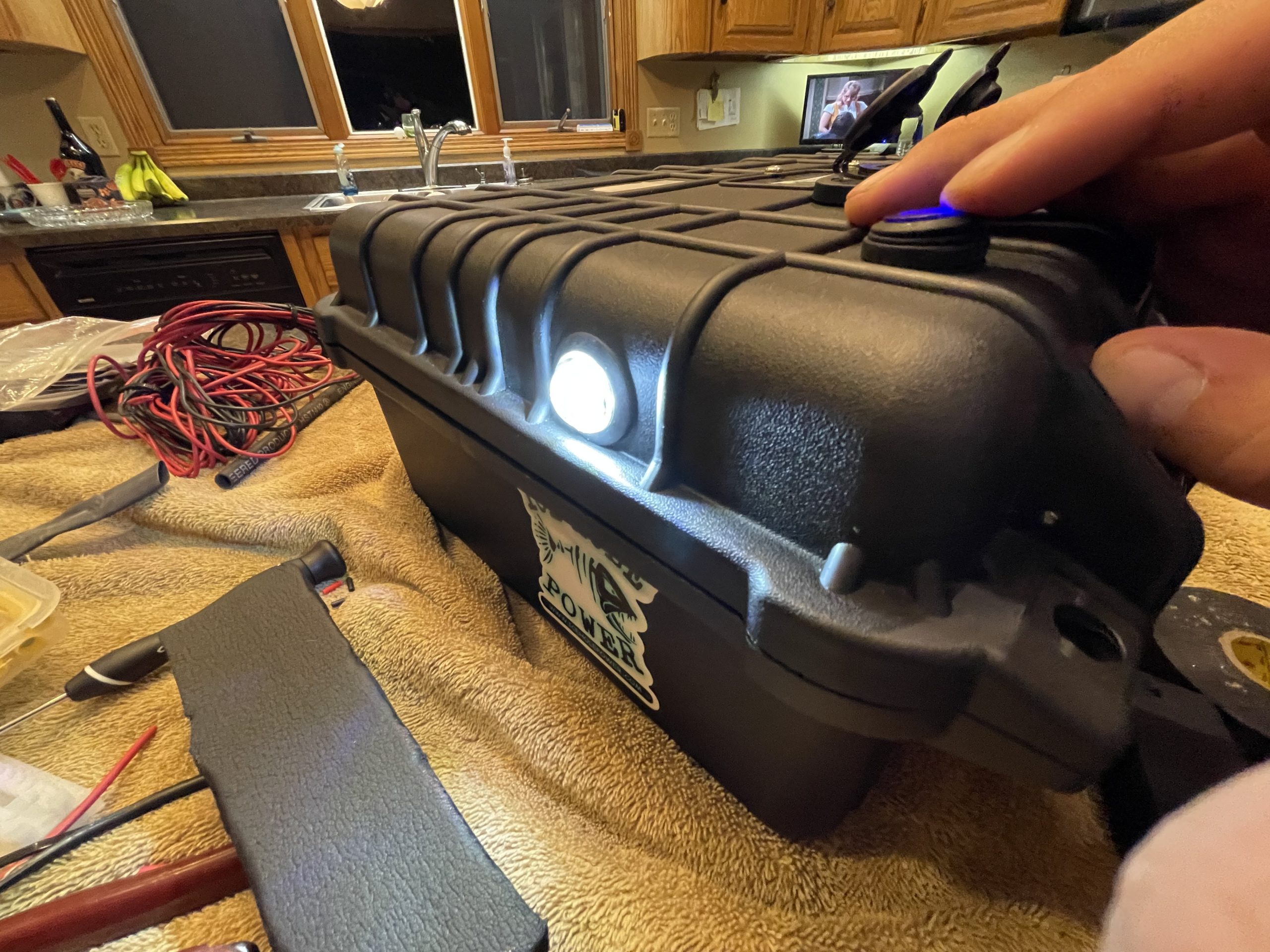

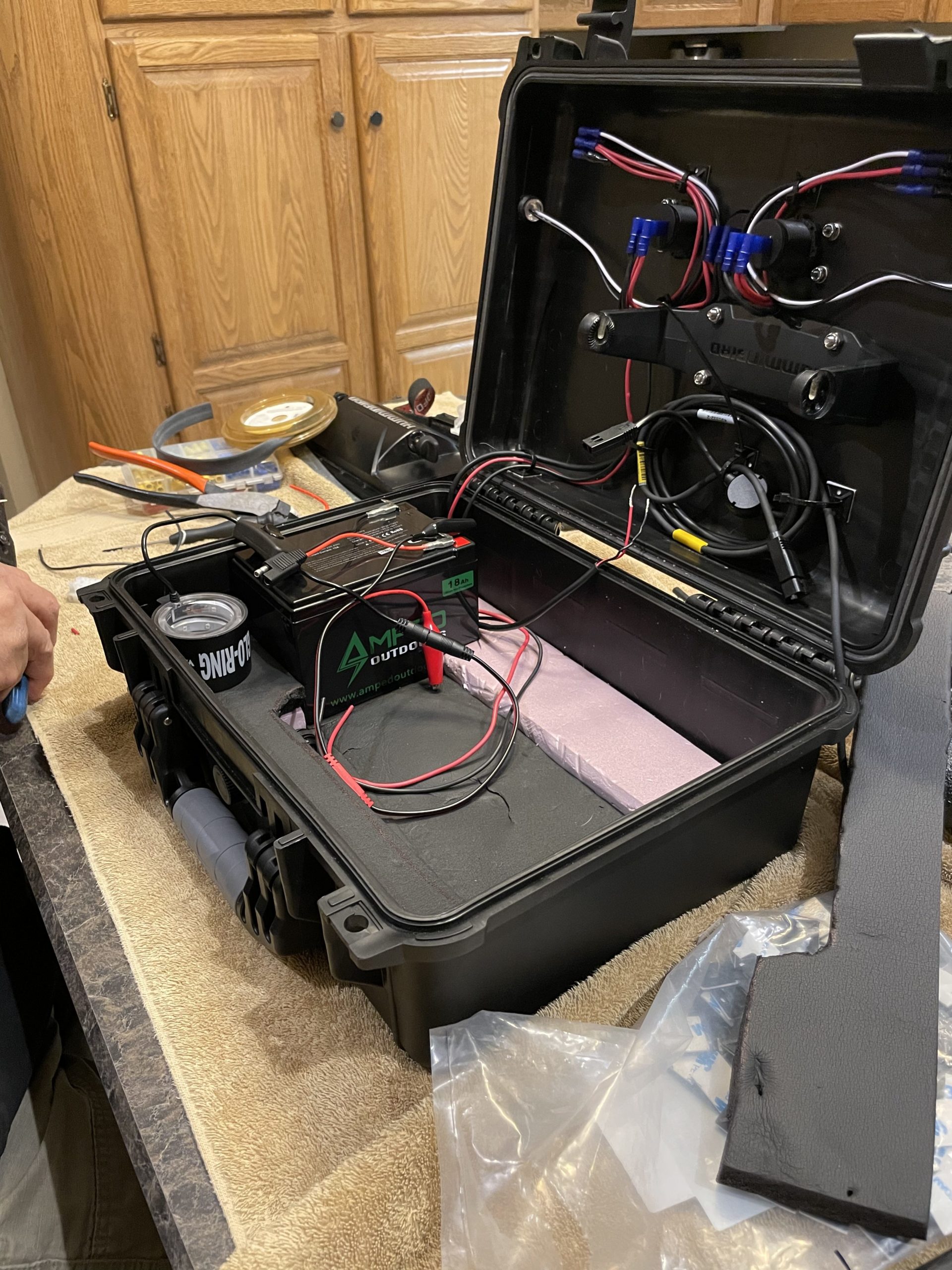

    As promised, here’s a more final version. There will still be some tweaks.

    Attachments:
    1. 498F1C49-2F9A-4D99-B053-EA82DF937D8C-scaled.jpeg

    2. 25B73B3B-DA45-419B-8BC5-F4D43E57BBC4-scaled.jpeg

    3. 500DBEA9-84D5-4720-A60A-BA86674B0FD3-scaled.jpeg

    4. FB77F5DE-36D9-4404-9B5B-7114B144585D-scaled.jpeg

    5. 9A90E2A8-C667-4C62-8B4A-9C31121E200C-scaled.jpeg

    Matthew Sandys
    Posts: 369
    #2082731

    I would love to add to this thread…that is if I can ever find and ice transducer for the chirp models

    Brad Muckenhirn
    Posts: 19
    #2082744

    Start calling small local bait shops. I was on my 30th call when I found one

    Matthew Sandys
    Posts: 369
    #2082771

    Start calling small local bait shops. I was on my 30th call when I found one

    I have been doing that. Unfortunately there are not that many up here in the sticks. But I will keep looking.

    Uncle Al
    Posts: 11
    #2083795

    Brad Muckenhirn, I was just looking at your box, again, and noticed that your head unit is attached to the top, and sits in the foam when it’s closed.

    Uncle Al
    Posts: 11
    #2083797

    I should look at the pic better before I open my mouth. You used the mount for the boat to hold it into the top of your box.

    Brad Muckenhirn
    Posts: 19
    #2083800

    Haha all good!! Let me know if you have any questions.

    Uncle Al
    Posts: 11
    #2083809

    Brad Muckenhirn, PM sent

    Attachments:
    1. buckshot-lure.jpg

    Matthew Sandys
    Posts: 369
    #2087230

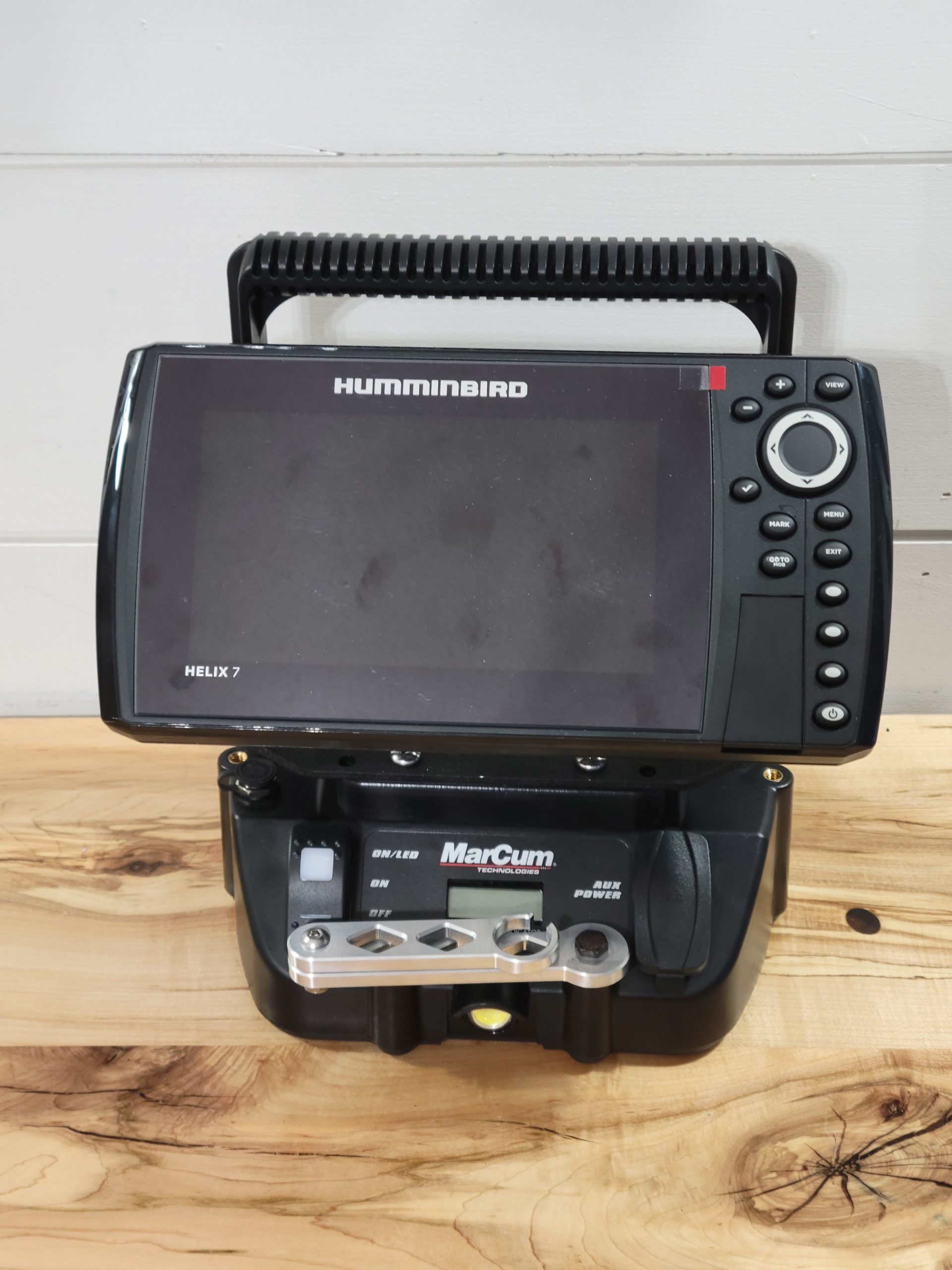

    I finally got my Helix 7 and shuttle. Had to make a little adapter plate to get gimble bracket up so could charge the shuttle.

    Still no transducer hoping they will be in next week.

    Attachments:
    1. 20220106_102845-scaled.jpg

    2. 20220105_163018-scaled.jpg

    GlennRengo
    Maple Grove, MN
    Posts: 73
    #2093723

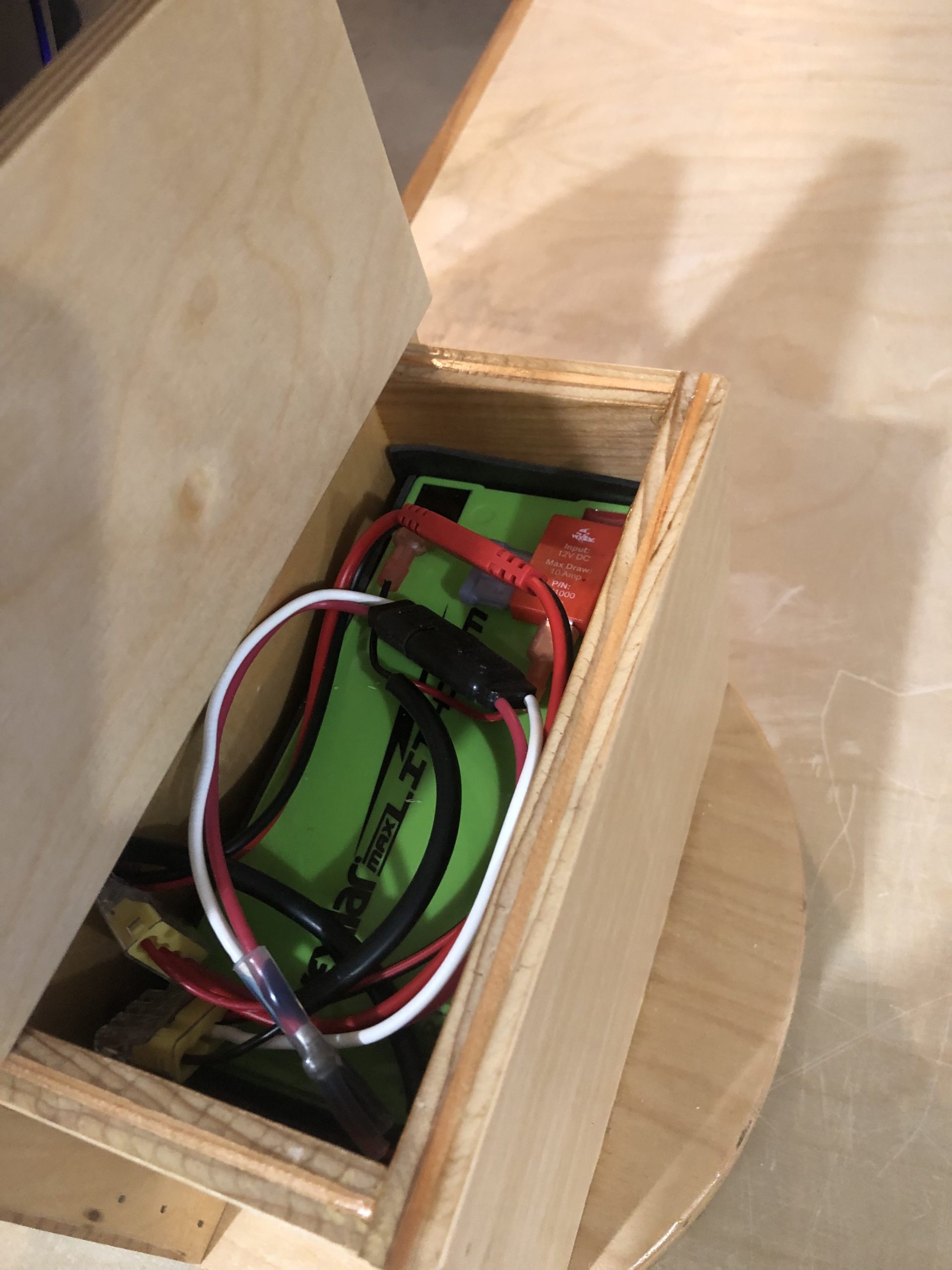

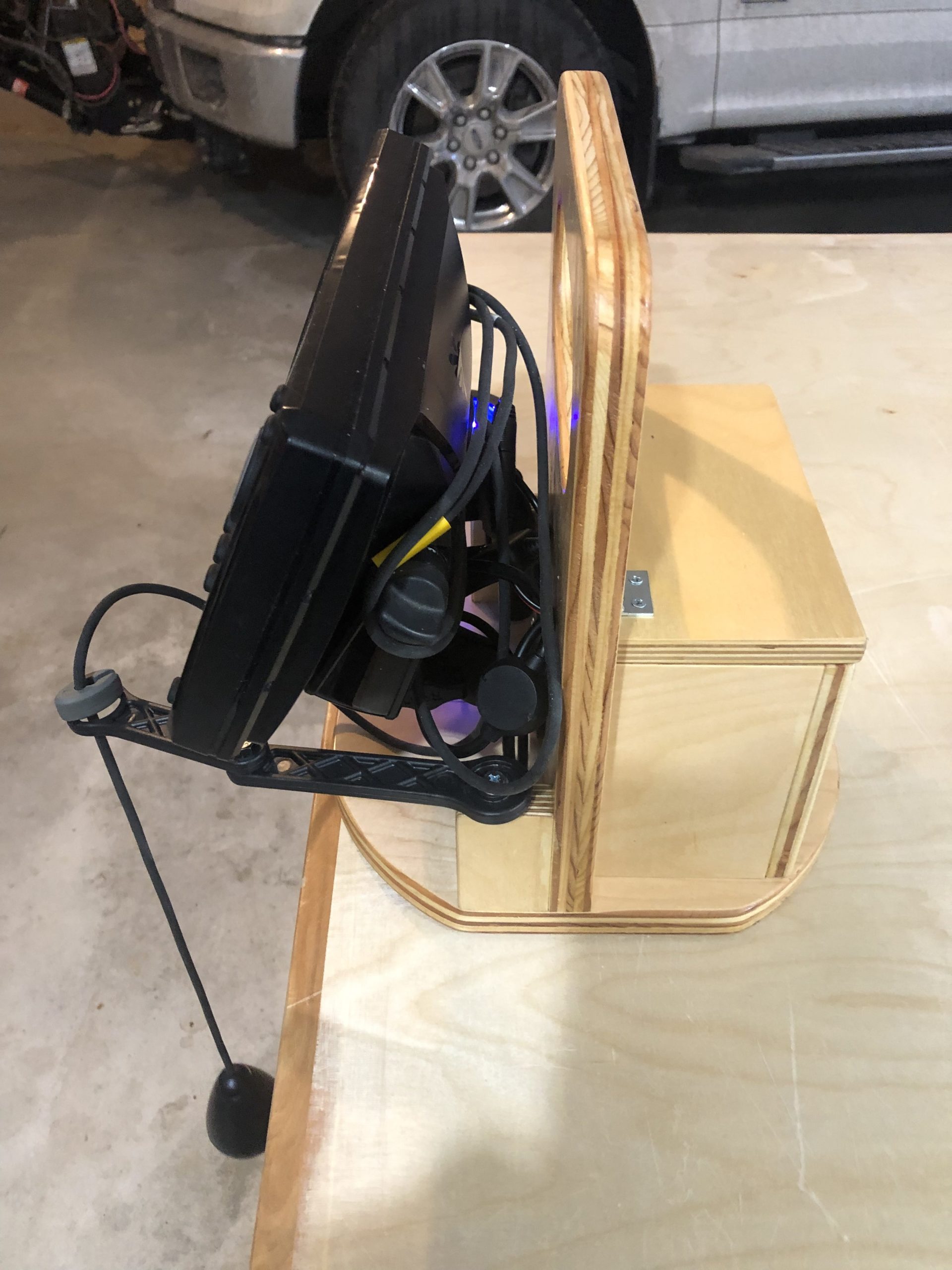

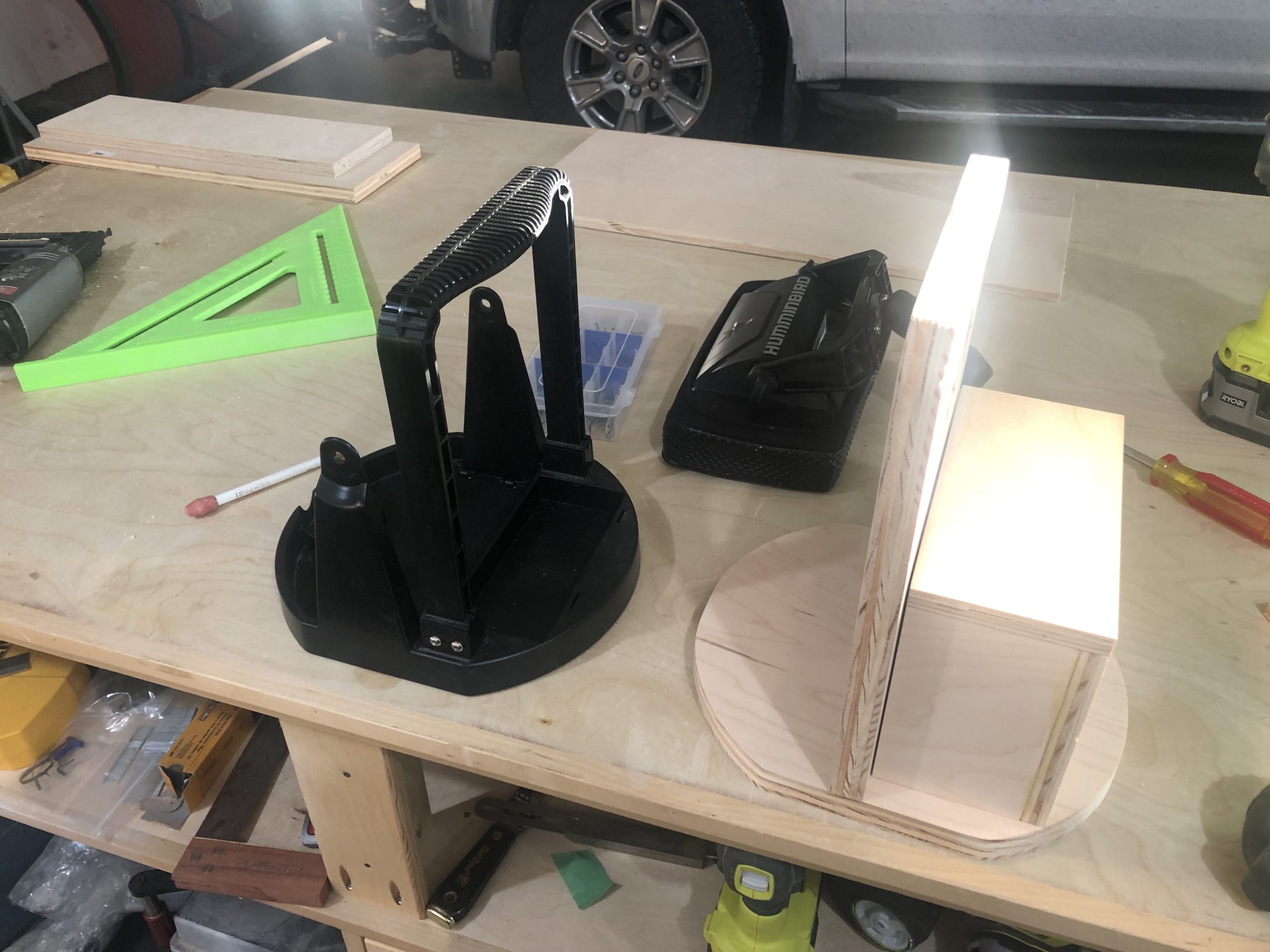

    My shuttle for a Helix 7. Made from shop scraps and finished with three coats of spar polyethylene.

    Attachments:
    1. 4871E167-D858-41C0-8E7C-58119708E550-scaled.jpeg

    2. 401E6F5D-A28F-4442-A678-5AA5E011E896-scaled.jpeg

    3. C4B114B7-291C-43B2-8B73-59BF9C3A674C-scaled.jpeg

    4. 52814311-0EB5-4EFC-B372-D1F421950095-scaled.jpeg

    5. 5795448A-BBB7-48A3-8347-C113E9A70166-scaled.jpeg

    6. 4C7D7675-C414-431B-821E-98224F647275-scaled.jpeg

    gotalunker
    Zimmerman, MN
    Posts: 153
    #2205250

    Pretty close to mine. I’m planning to re-do mine this year and will do something similar to what you did here. Thanks for the post!
