Let's see your DIY Helix Shuttle!!!

  • Lewis Mills
    Posts: 5
    #1907618

    Another shuttle. This is my third time trying to post. If it works, I’ll reply with more text and more pics.

    Attachments:
    1. IMG_20200119_155652.jpg

    2. IMG_20200119_155808.jpg

    3. IMG_20200119_155816.jpg

    Lewis Mills
    Posts: 5
    #1907622

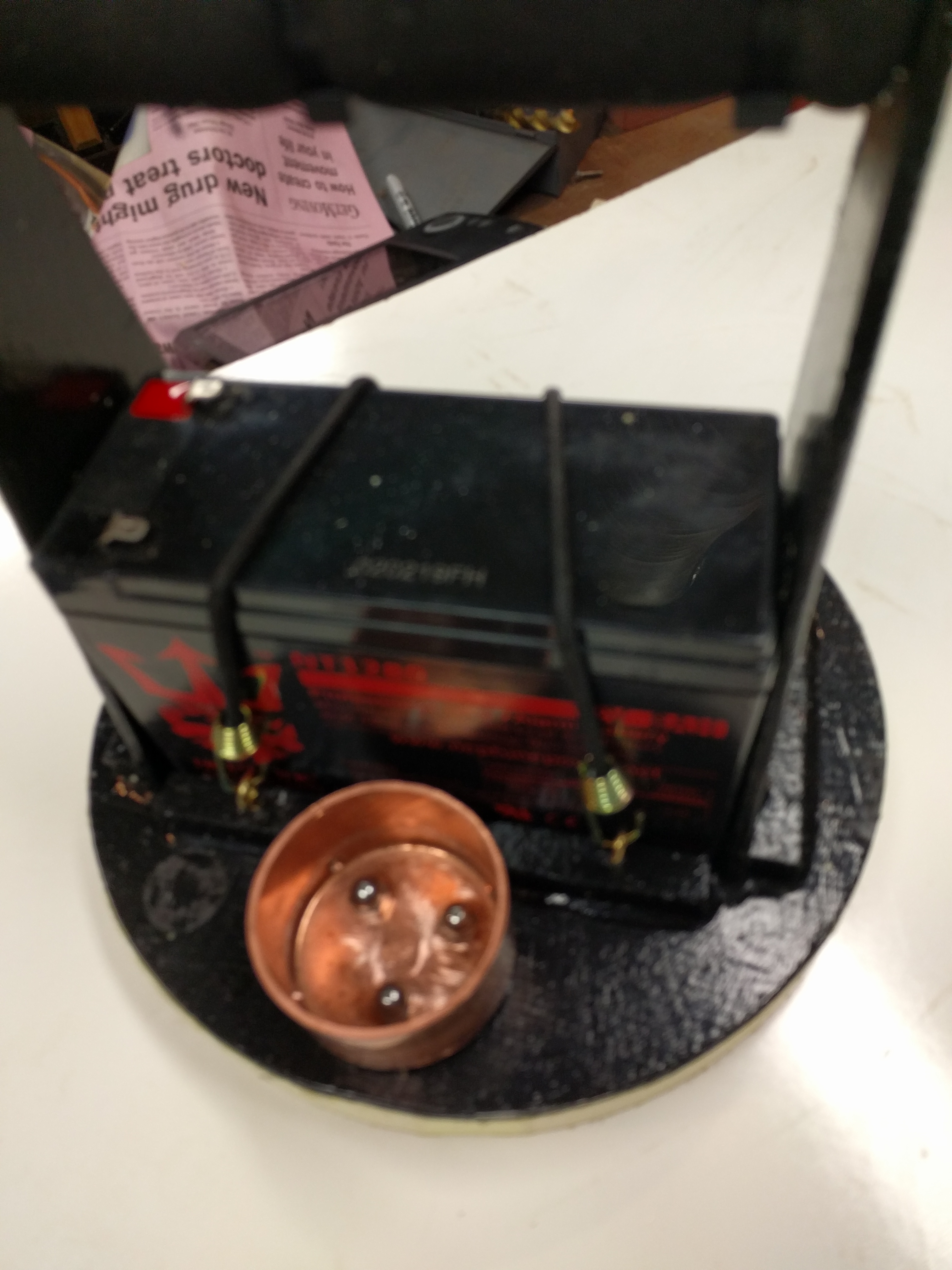

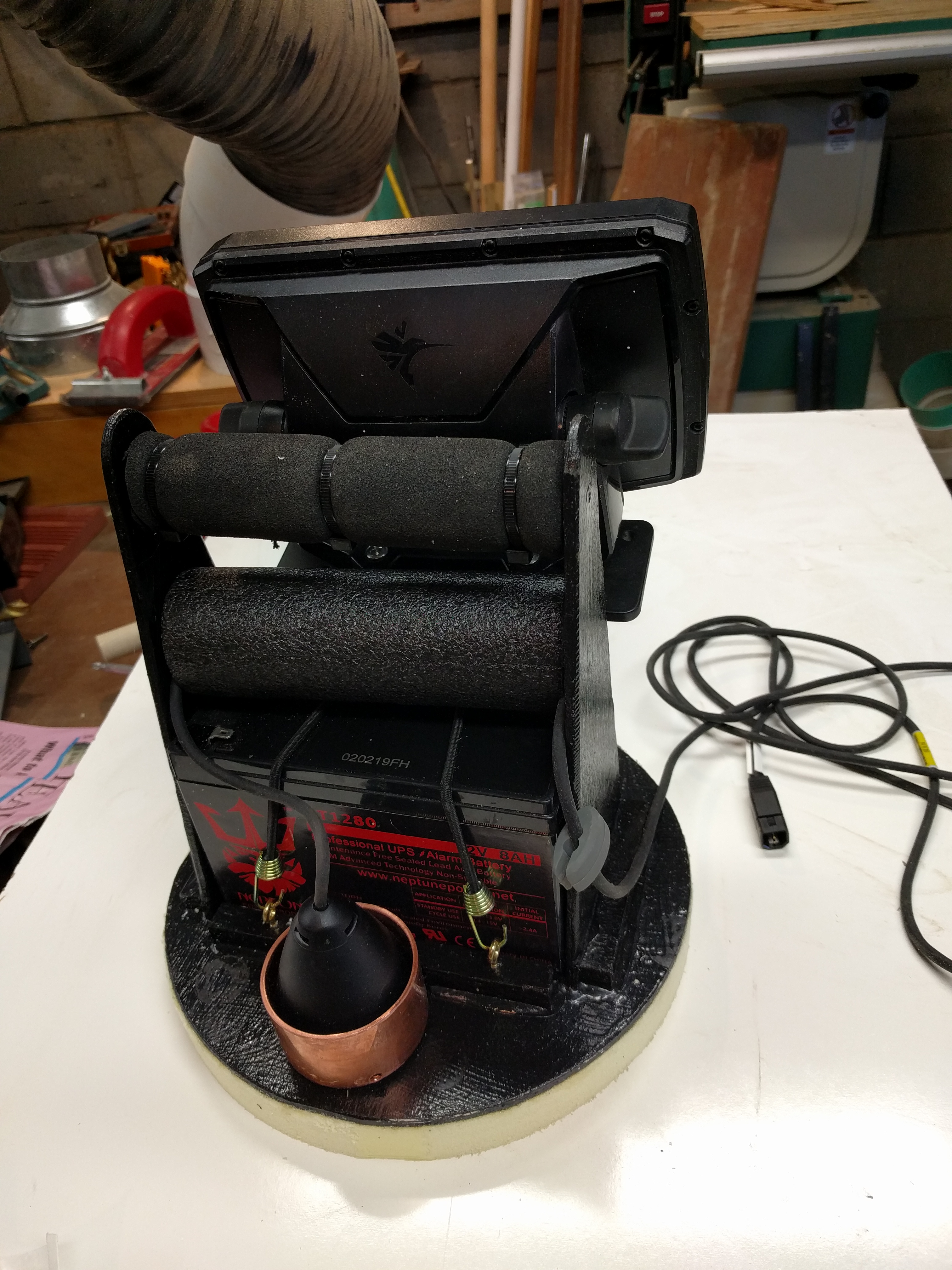

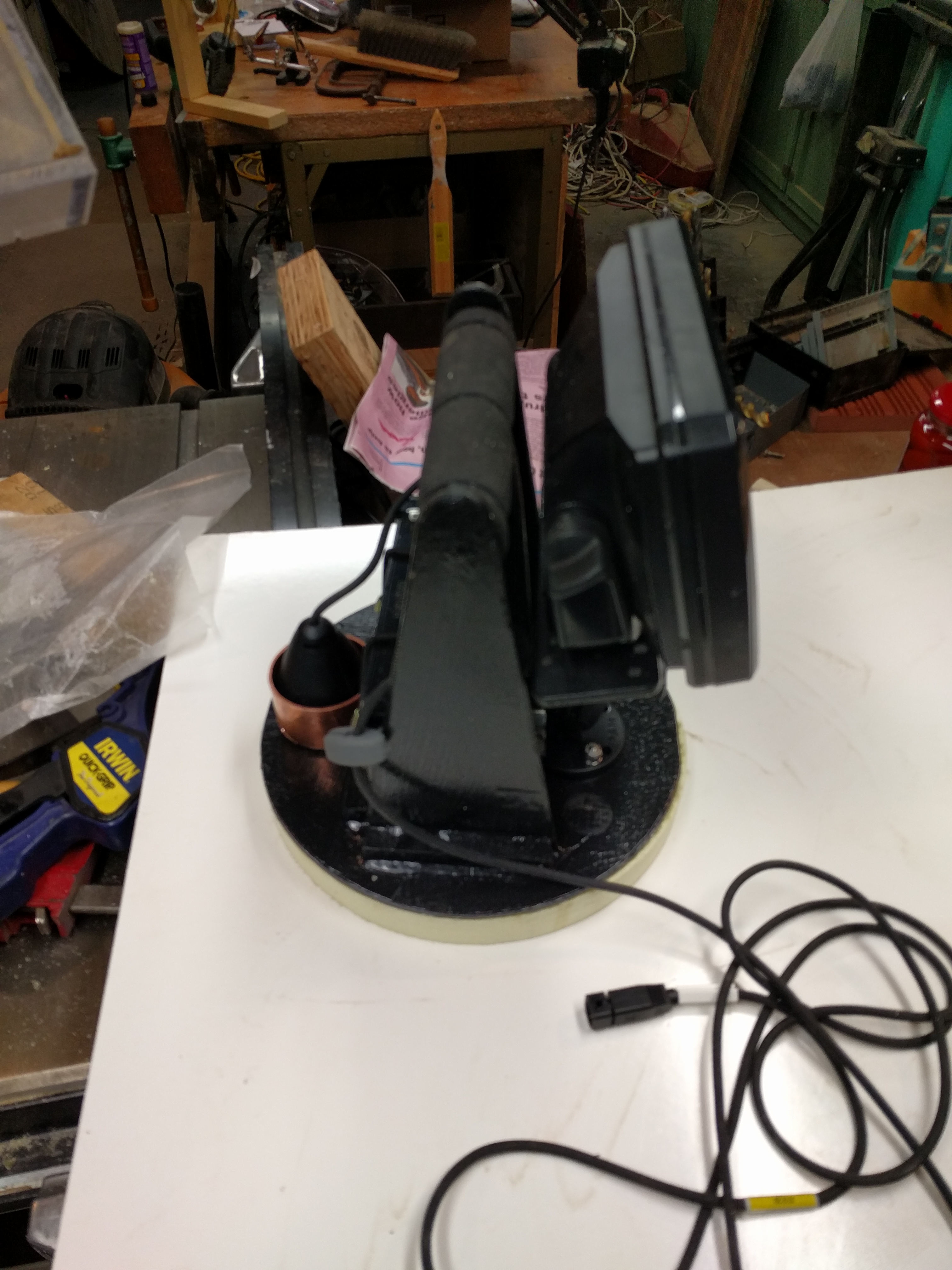

    Seems like there is still some interest in Helix shuttles. I’ve been inspired by all of the posts on this thread, and I’ve got a few tweaks that others might find helpful. The transducer cup shown in the last post is a 2″ copper sweat-on end cap – perfect fit for a XI-9-20 transducer. I drilled drain holes and mounted it with acorn nuts so the ducer won’t freeze in the cup.

    Lewis Mills
    Posts: 5
    #1907627

    Still having trouble posting. If it works, attached is one picture of a DIY power cord.

    Attachments:
    1. IMG_20200119_155251.jpg

    Lewis Mills
    Posts: 5
    #1907630

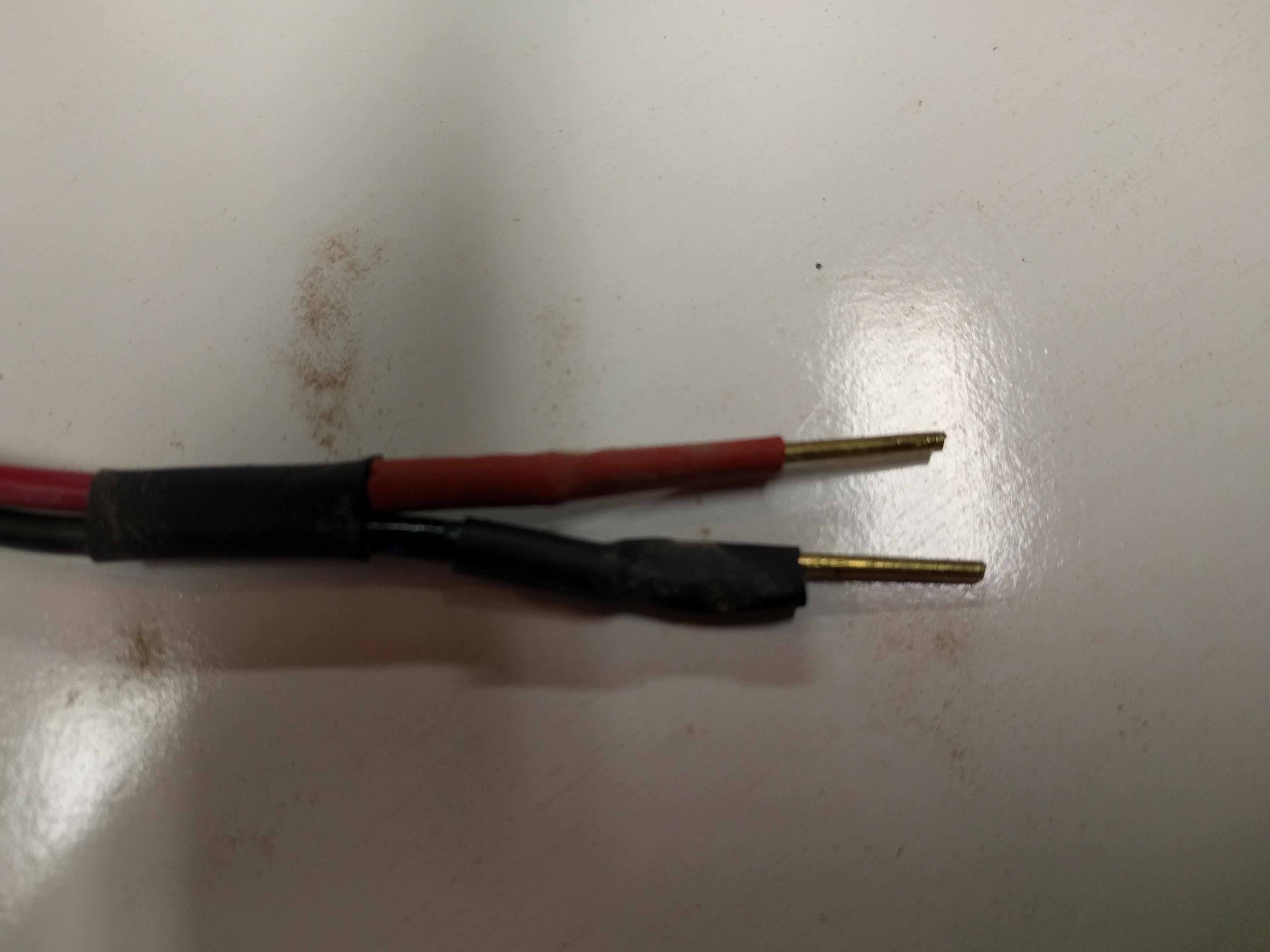

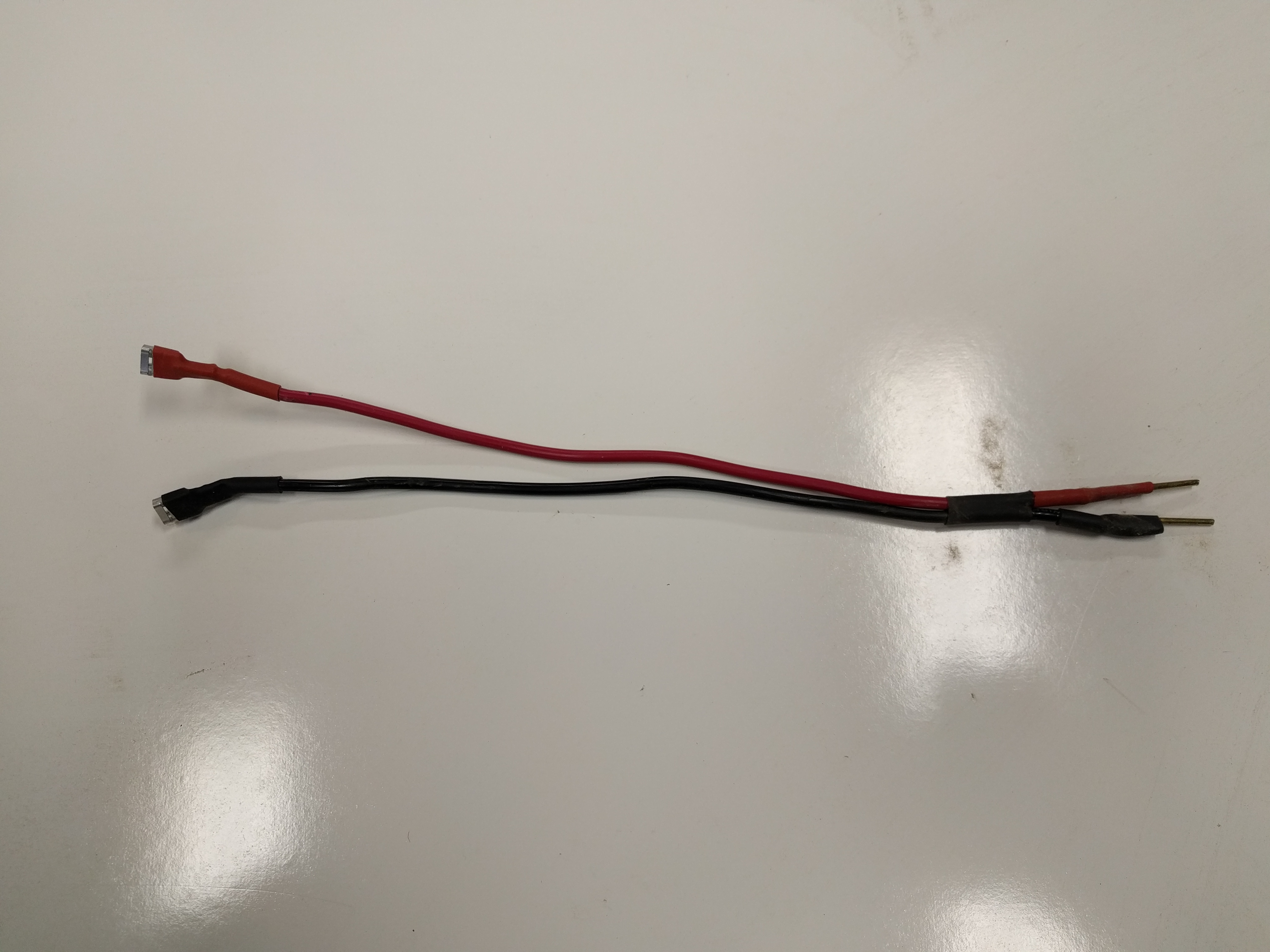

    Here’s another pic of the cord. Just a couple of short pieces of 1/16 brass rod, spade fittings, soldered and shrink wrapped.

    Attachments:
    1. IMG_20200119_155244.jpg

    Lewis Mills
    Posts: 5
    #1907633

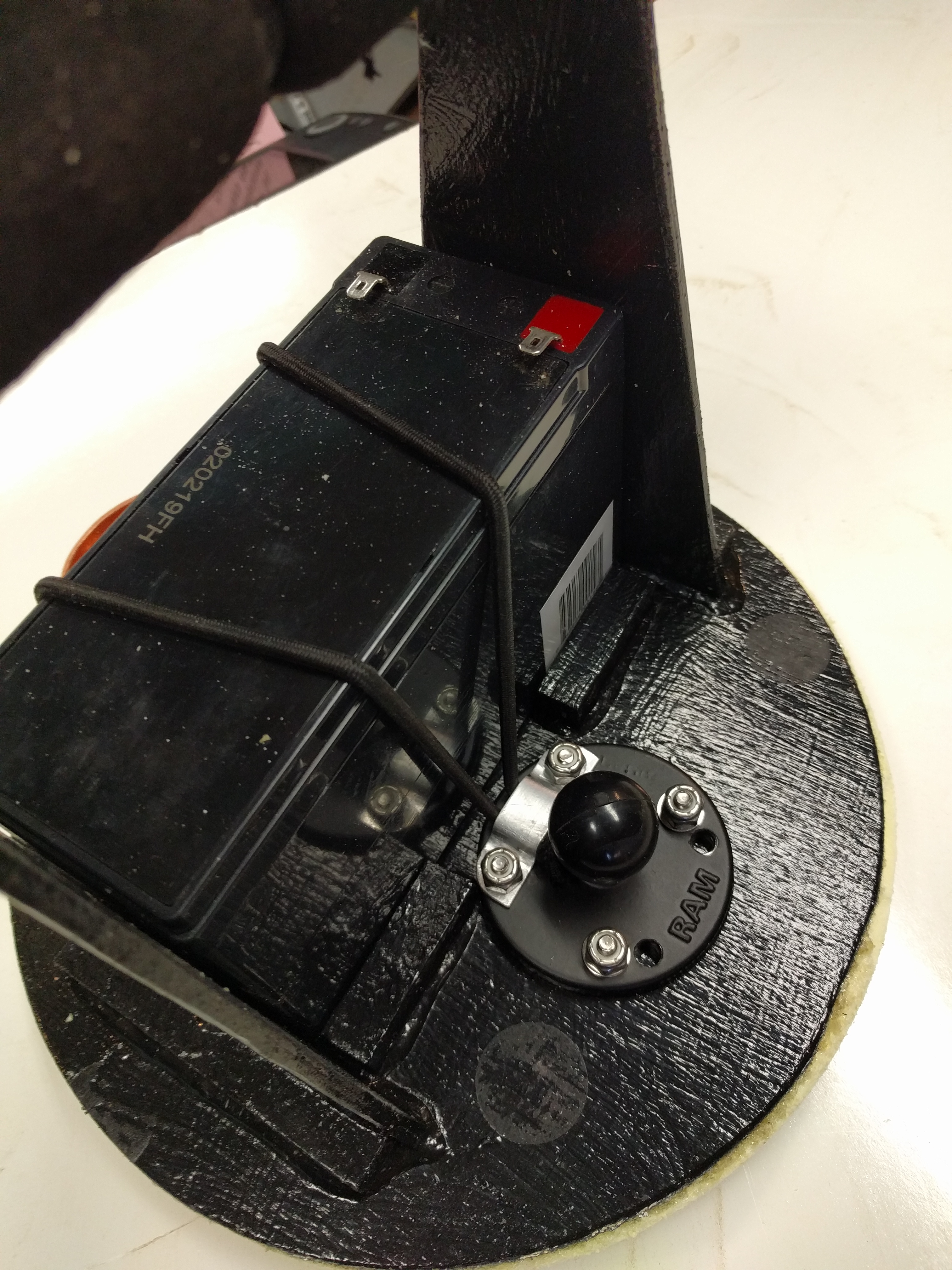

    Sorry for the drawn-out description! I guess I tried to attach too many pictures to my original post. The only other thing I wanted to note was that the whole thing is built on 1/4 inch plywood to save weight, glued to a circle of extruded EPS foam to keep it off the ice. I used a little bracket (shown in the pic attached to this post) to fasten one end of the mini-shock cords that hold down the battery at the base of the ball mount. I hope I’ve shown a couple of tweaks to the good designs in this thread!

    Attachments:
    1. IMG_20200119_155647.jpg

    lazermule
    North Metro of TC
    Posts: 56
    #1916135

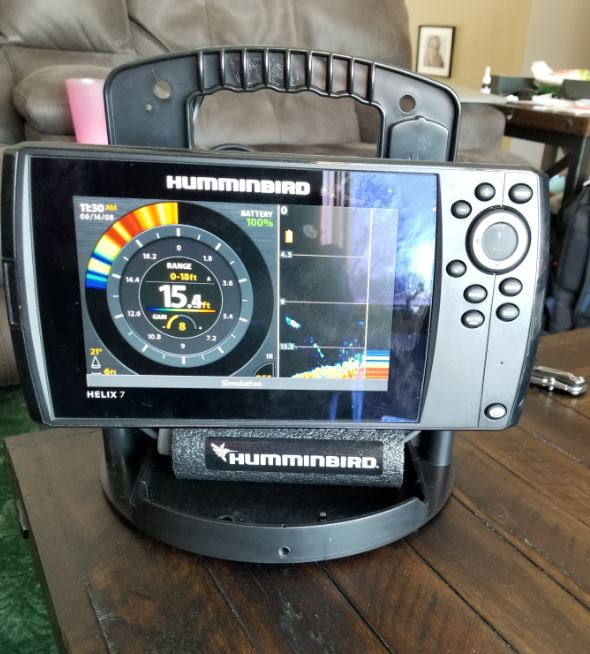

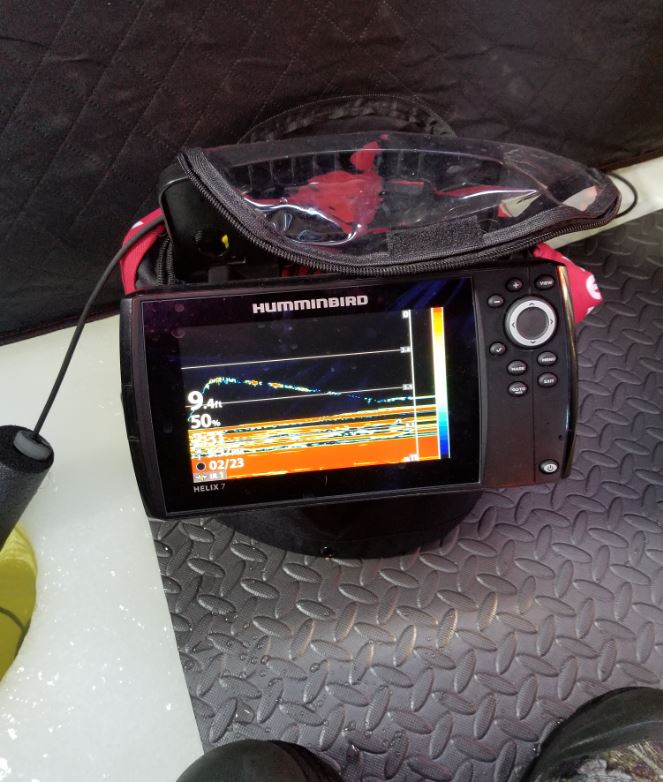

    Scored a Vexilar shuttle from a buddy that didn’t need it. The Helix 7 is a little big for it but works (doesn’t zip fully in front). This is a DI G2 GPS unit with the Ice transducer. Any idea if this same transducer will work with my Helix 7 G1 SI GPS unit? This past weekend was the first time I tried the Helix on the ice, and I was amazed! I used/tried a Vexilar FLx-28 (same buddy above) a week or so ago and I’ll take the Helix over it based on my experience. I’d still like to develop a shuttle that protects the Helix a bit better, whether it’s in a pail, bag or an ammo can with the battery but for now, I have ordered a “foam hat” screen protector for it for use during transport. I may convert the Gen1 to Ice to have another unit, I also have an older 3 color SiTex FL-5 set up for the ice (Using a Vexilar Transducer) that works well too.

    Attachments:
    1. Helix-7-G2-ICE-2.jpg

    2. Helix-7-G2-ICE-1.jpg

    SnakeShaker
    Posts: 36
    #1916524

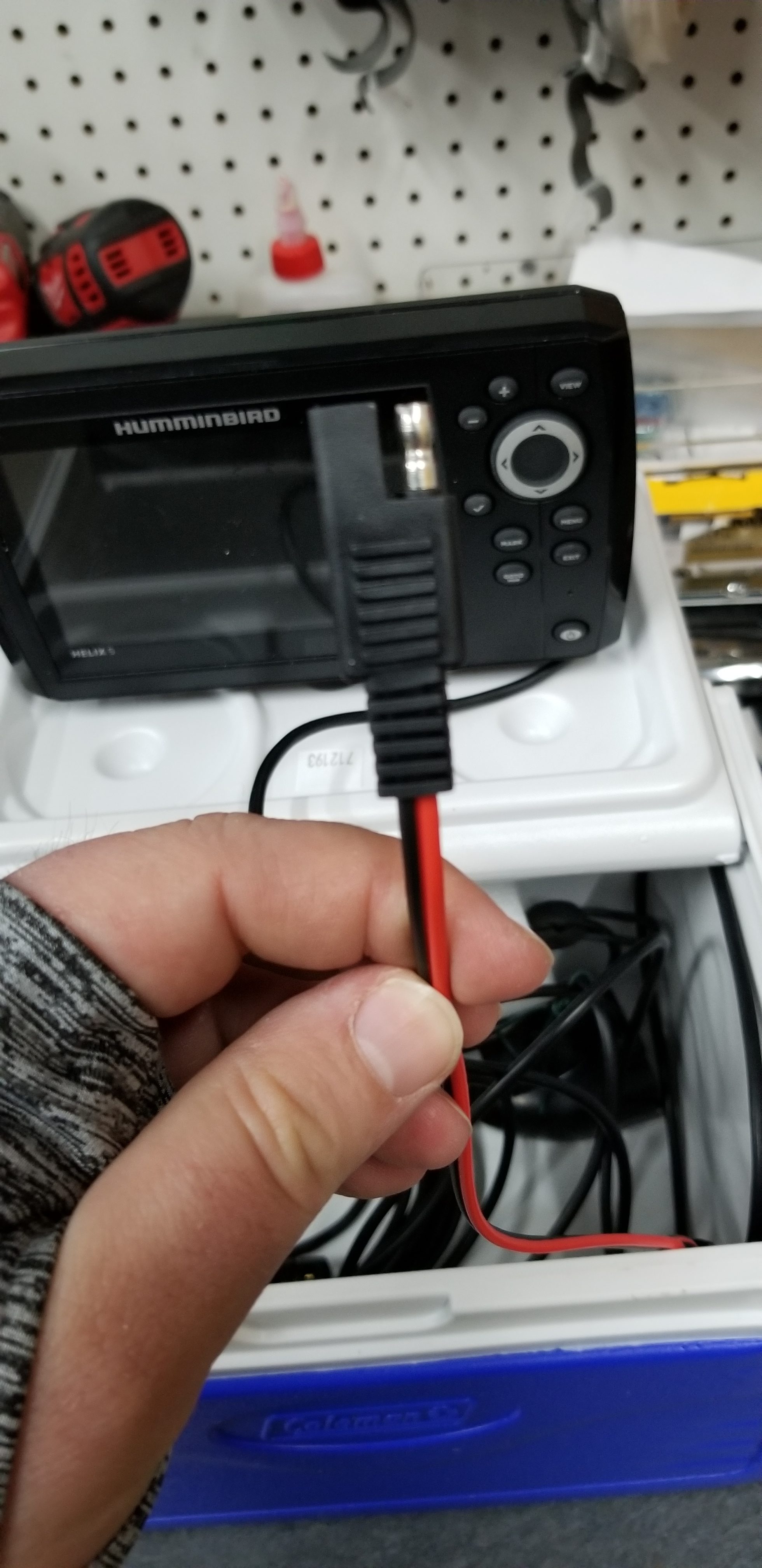

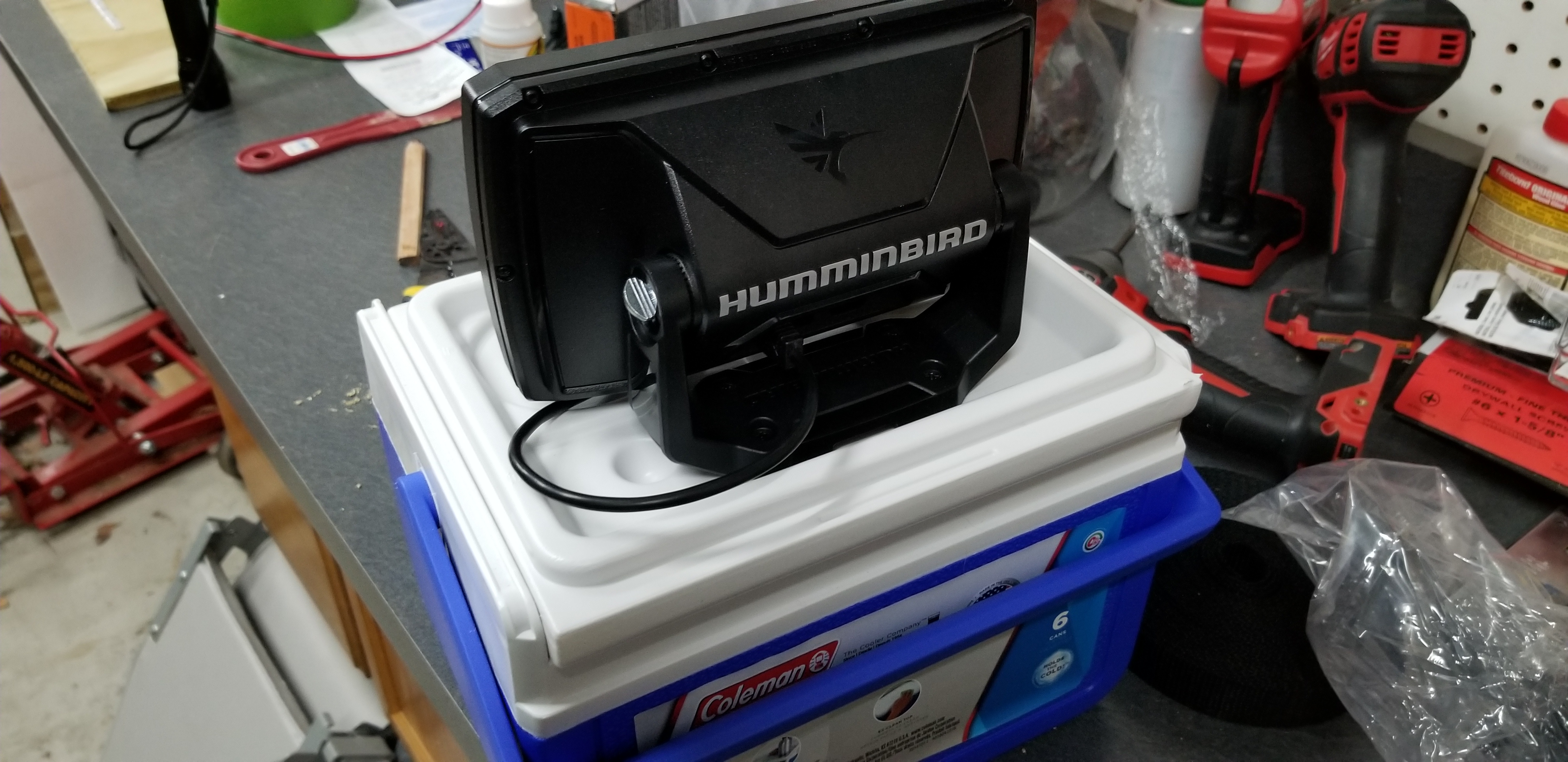

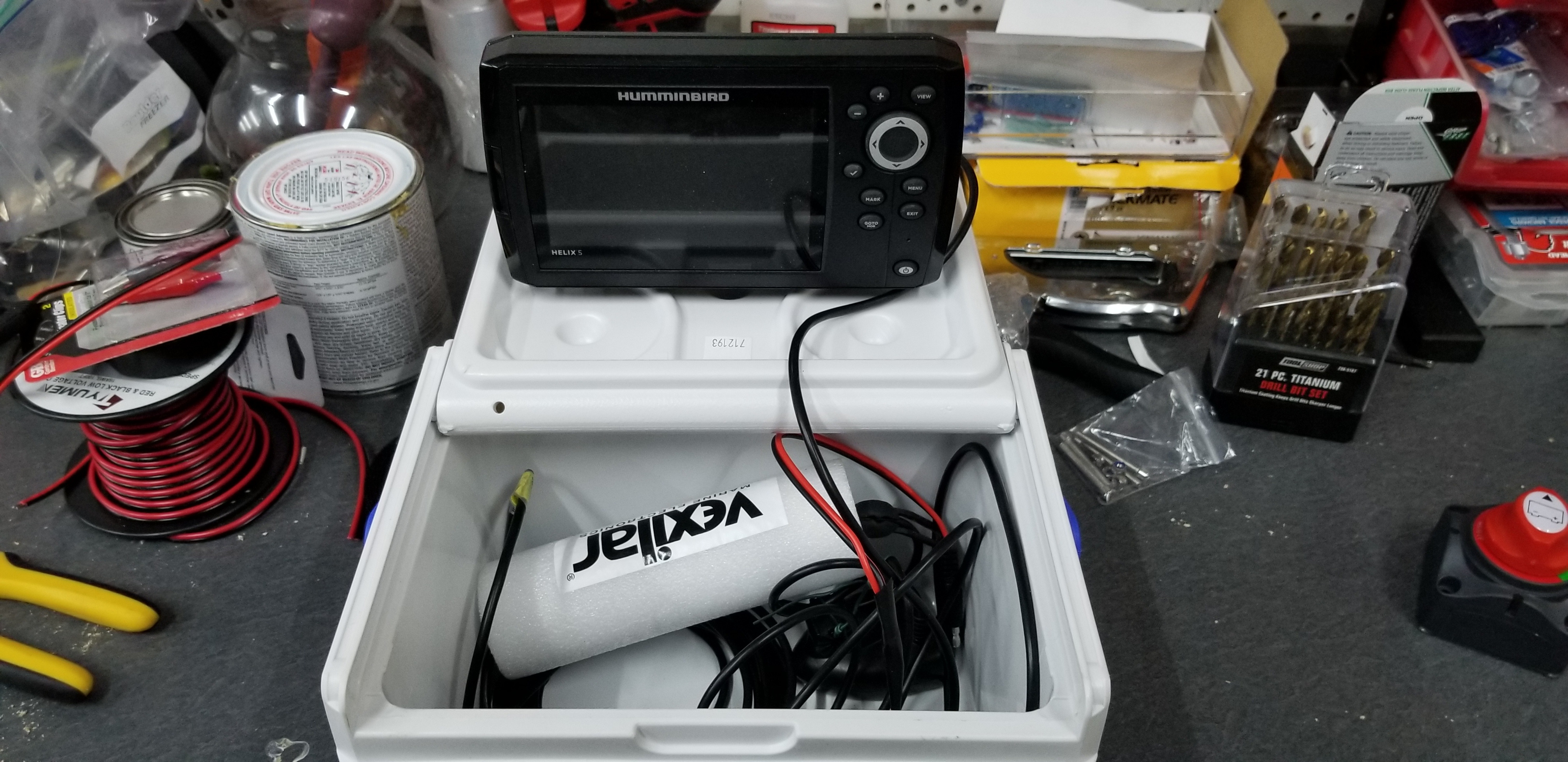

    I did the simple lunch cooler. Small, light, and easy. No battery, but my sled has connections to hook up to 12v, and this is my backup for the wife and/or kid.

    Attachments:
    1. 20200219_190909.jpg

    2. 20200219_190746.jpg

    3. 20200219_190732.jpg

    lazermule
    North Metro of TC
    Posts: 56
    #1916545

    That is a great idea! Looks good and probably pretty reasonably priced and well protected.

    LM

    Rodwork
    Farmington, MN
    Posts: 3975
    #1916580

    What a great idea SnakeShaker.

    B-man
    Posts: 5797
    #1916619

    I did one kind of similar with a Pelican case, it was super protected, but it sucked for hole hopping.

    gotalunker
    Zimmerman, MN
    Posts: 153
    #1991576

    It’s that time of year again! Let’s see those DIY Helix Shuttles! I see this question a lot on Facebook and other places, so share the knowledge and share the link to this thread. Your buddies will appreciate it!

    Dave Schmidt
    Posts: 1
    #2001726

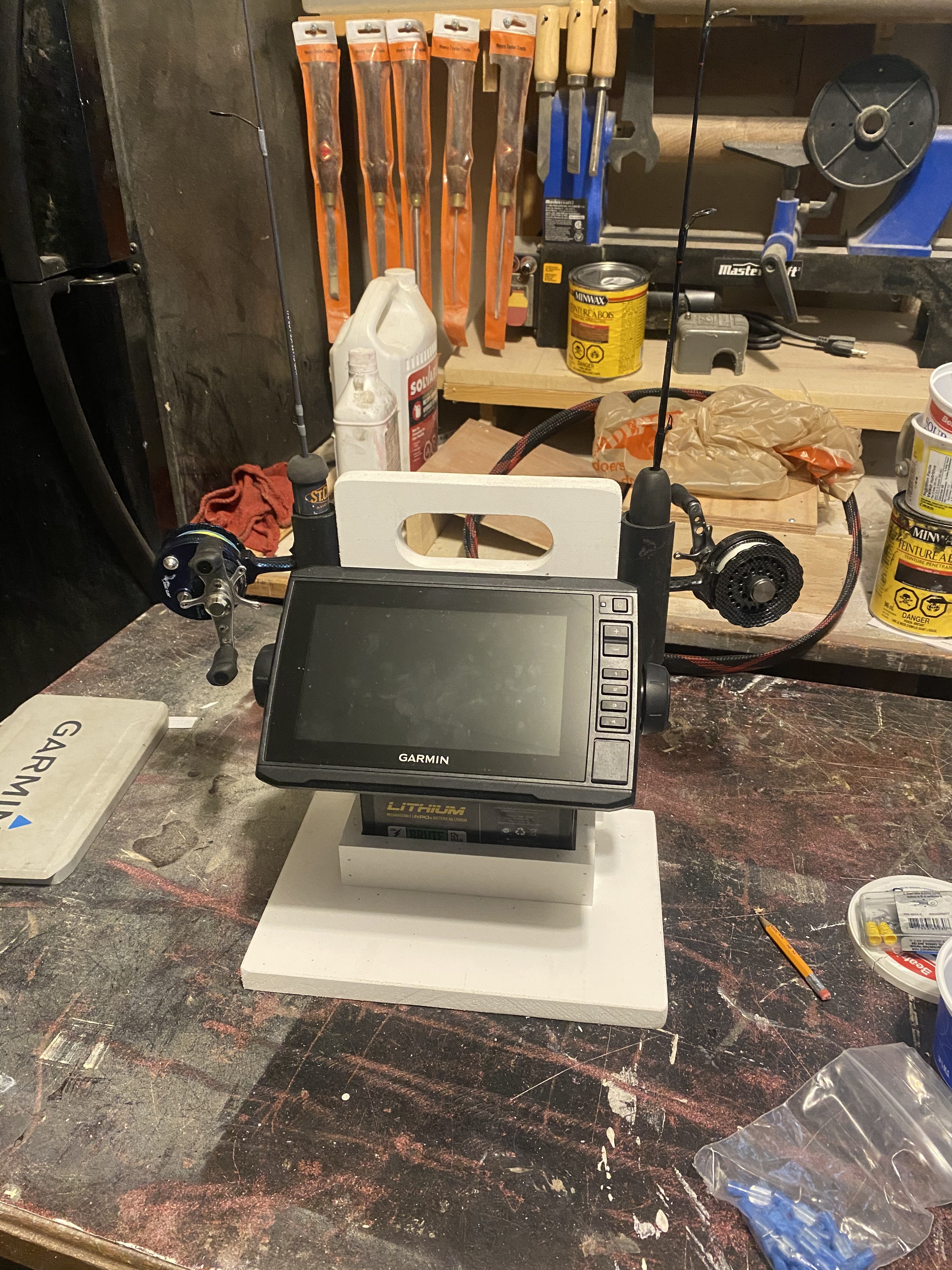

    Here’s my shuttle I just made for a helix 7 and a garmin echomap 73sv. Made with PVC to avoid cracking and warping.

    Attachments:
    1. EE630479-48C0-43F7-9A95-8A2495FF2C9C.jpeg

    2. FE1B04A9-0323-4712-976C-80C5D68BADB2.jpeg

    3. 3AF8B05D-24C1-4FA6-838E-F102714B8A49.jpeg

    4. FC22A088-5C5B-48F3-87CC-D510E58D30EE.jpeg

    1. trim.5EA342A2-62AA-404F-BDED-6DF5B288DA9B.mov
    luttes
    Maplewood/WBL
    Posts: 542
    #2001752

    Wow, Dave! That looks incredible!! Good work!

    kjholman
    Posts: 2
    #2002375

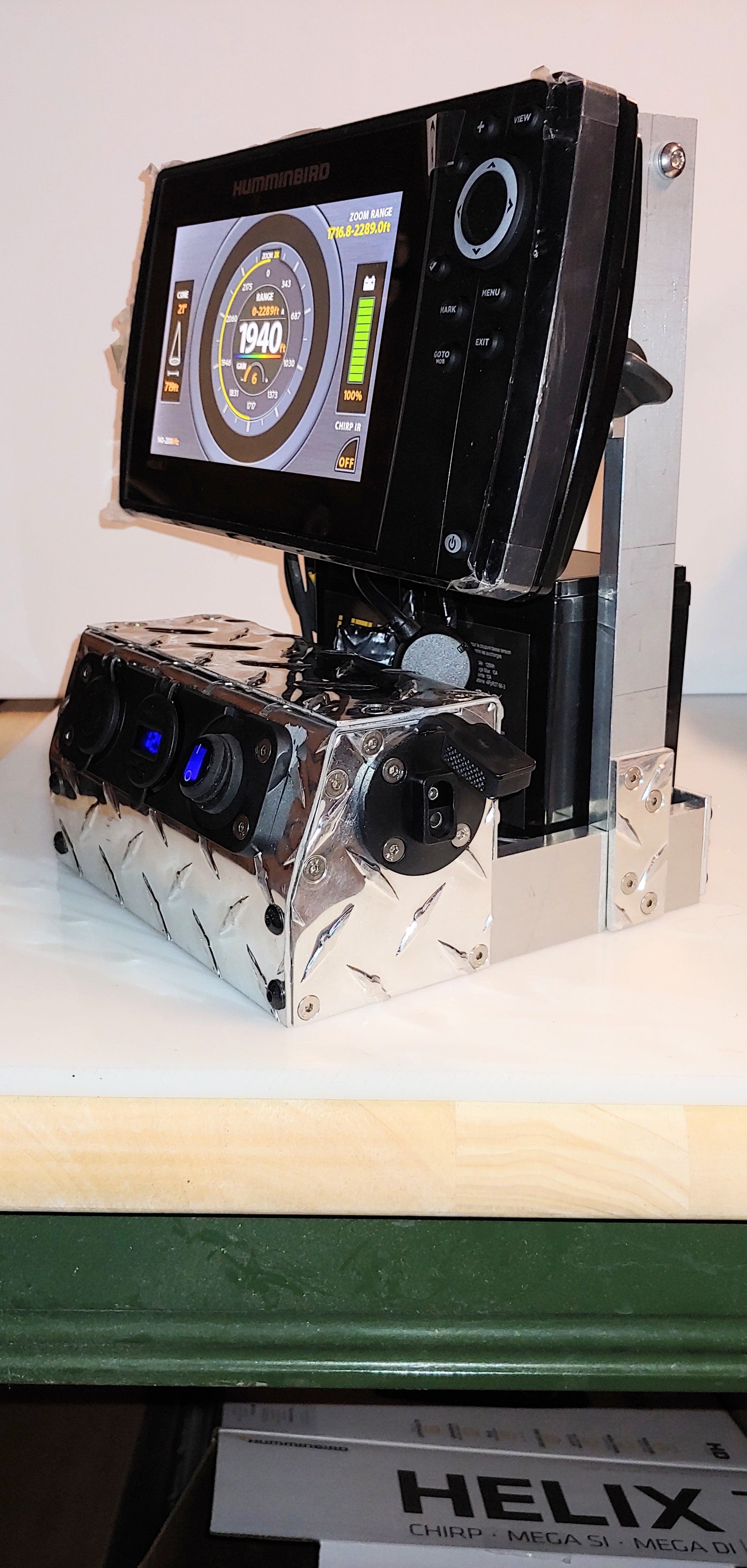

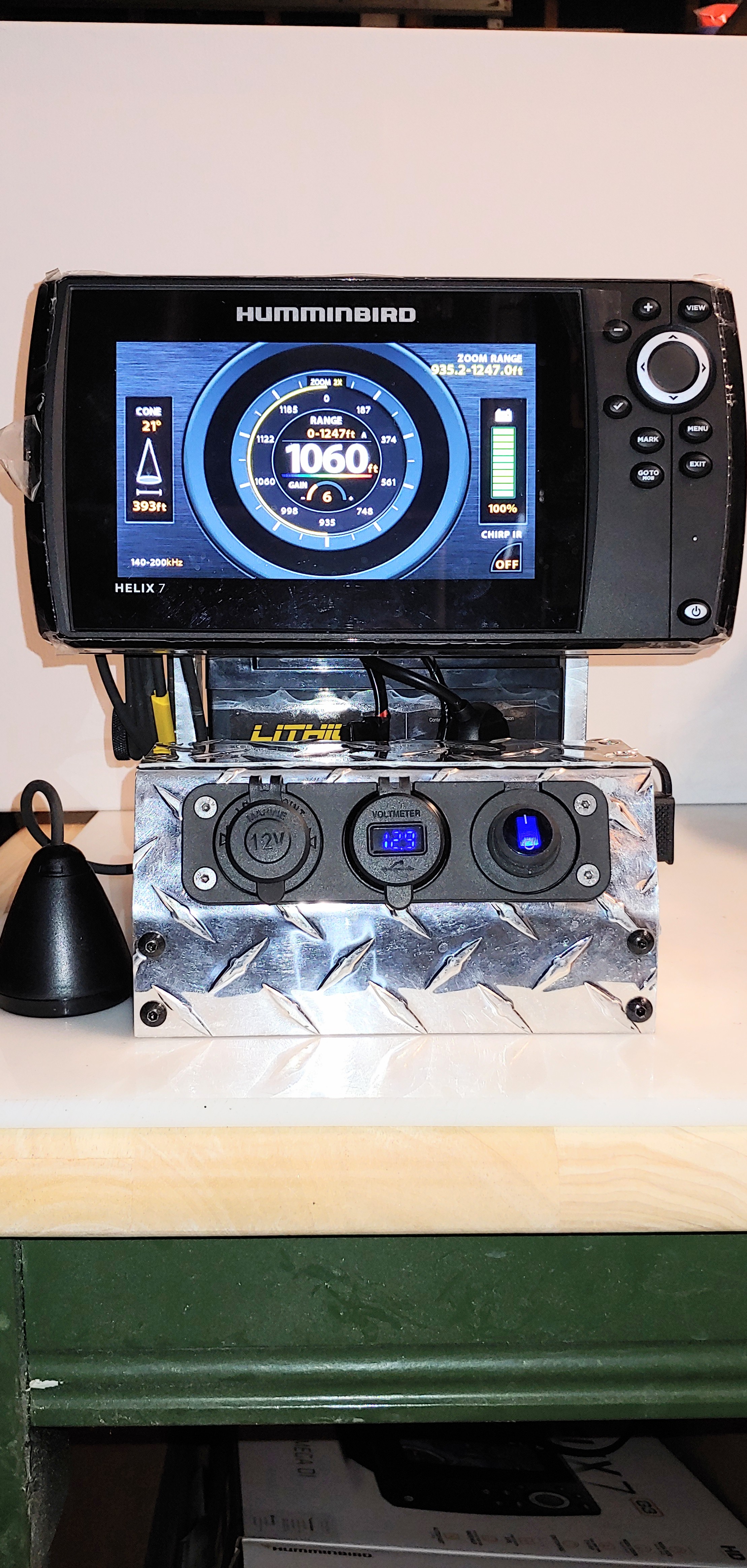

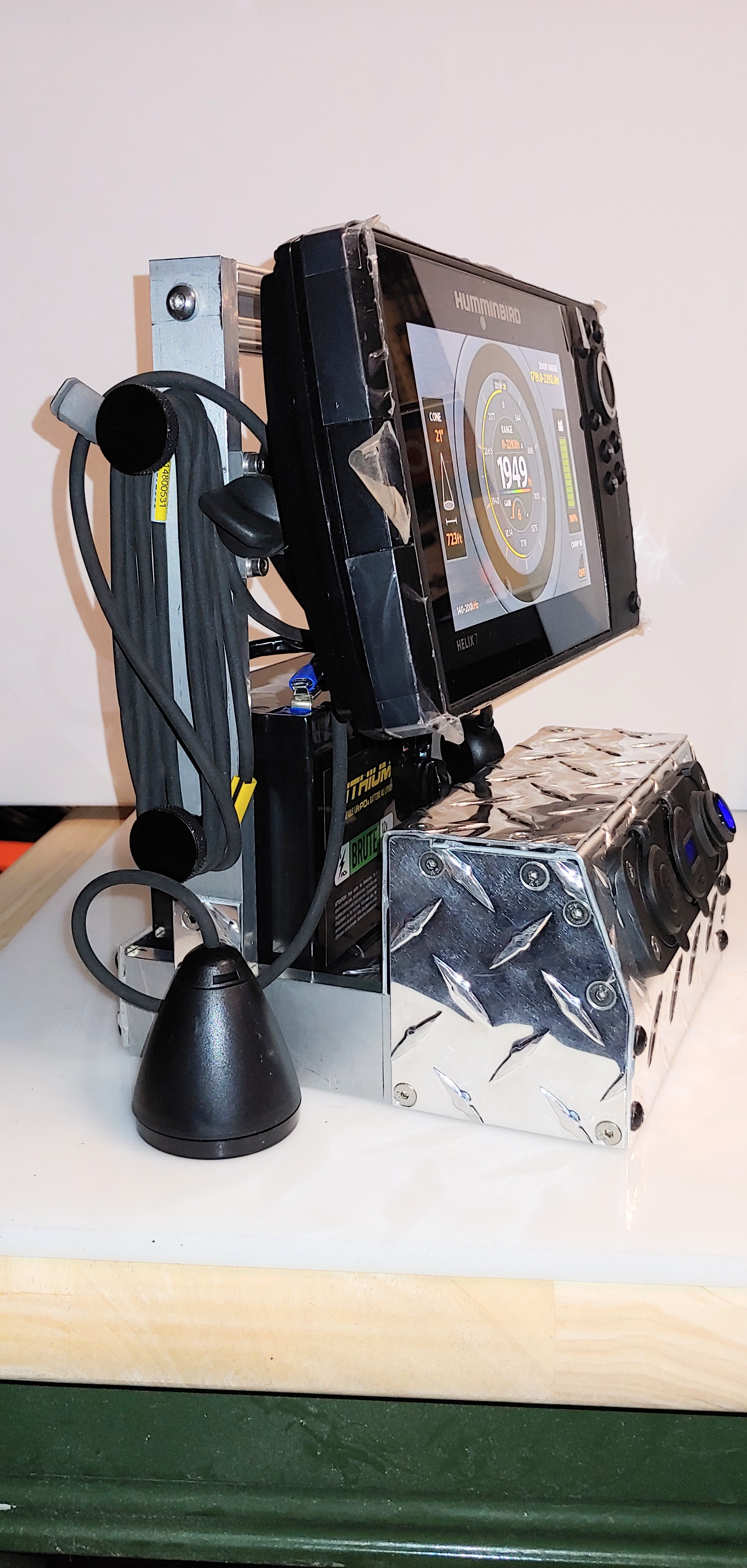

    Well here is my go at an ice fishing shuttle for my newly purchased helix 7. I spent way to much time making it as I designed, machined all of the parts and built an electrical box with usb ports, cigarette outlet, and voltage readout to monitor the battery. I couldn’t help but man toy it up using diamond plate for the electrical box, base and brackets. I finished it up with a charge port on the side of the box. I still need to figure out the transponder holder but I think it’s coming together and should be about bullet proof and it fits nicely in a 5 gallon bucket.

    Attachments:
    1. 20210101_2024032.jpg

    2. 20210101_2022422.jpg

    3. 20210101_2023252.jpg

    gotalunker
    Zimmerman, MN
    Posts: 153
    #2002381

    Very cool! You will love it! Nice work!

    gotalunker
    Zimmerman, MN
    Posts: 153
    #2002382

    Dave this is great! Whats the total weight?

    eyeguy507
    SE MN
    Posts: 5215
    #2002519

    @kjholman

    We have a winner! That thing looks awesome. Might want to silicone the seams so ya don’t get water inside. You must be a metal fabricator. That looks way to clean for a random guy. Nice work!

    kjholman
    Posts: 2
    #2002562

    Eyeguy,

    Thanks for the feedback. I’m planning on sealing the seams, I was just making sure I had finished up the electrical work first. I’m not a fabricator by trade but I know my way around the shop. The toughest part was that I didn’t have a break to bend the diamond plate but I got it done. Used it for the first time on Wednesday worked great, and with the lithium battery it weights about the same as my old hummingbird 35 ice flasher.

    John Zuleger
    Posts: 8
    #2003593

    One more time…

    Attachments:
    1. 20210105_130641.jpg

    2. 20210105_130409.jpg

    3. 20210105_130613.jpg

    John Zuleger
    Posts: 8

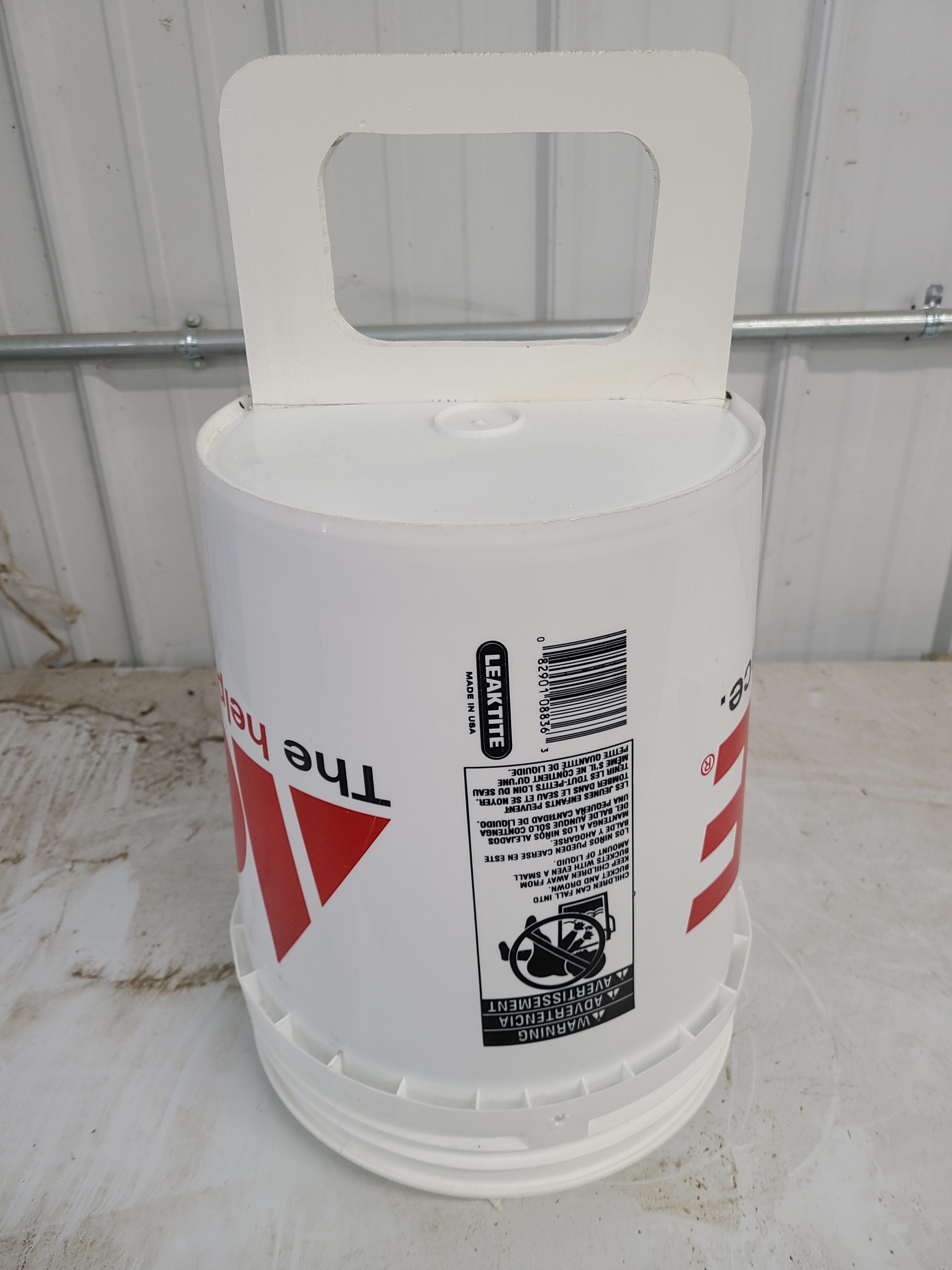

    #2003604

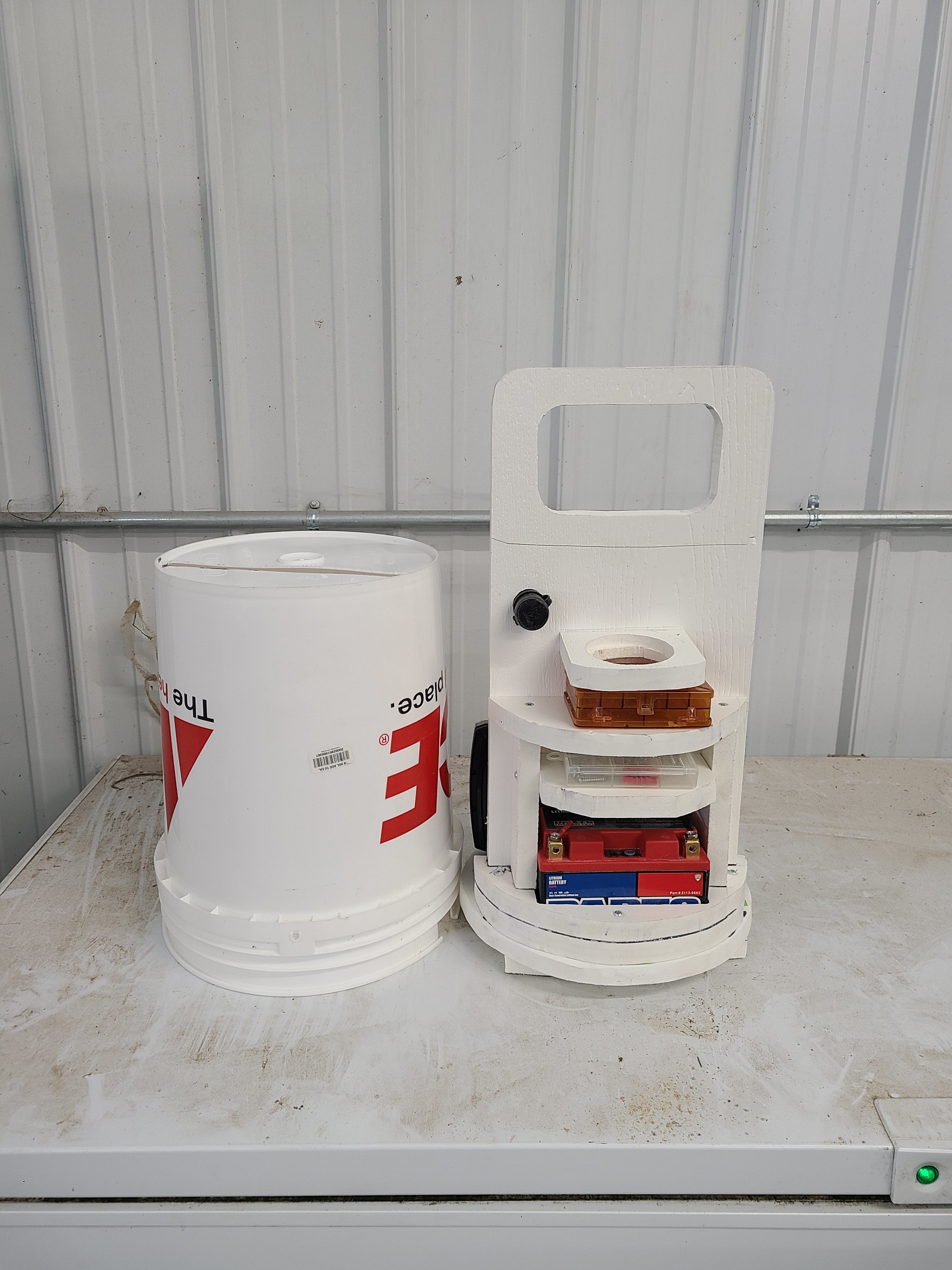

    Material is 3/4″ palight plastic board.

    Base is 11″ in diameter.

    Handle is 18″ tall.

    Battery nests under the handle and is ‘pocketed’ by two layers of cresent shaped cut outs.

    Standard two prong battery tender plug in powers the head and 12v phone charger. Unplug and plug battery to charger.

    Spare phone holder

    Multiple shelves on the back for small tackle boxes and transducer

    The 5 gallon pail has since been painted red to cover the ace logo. When it is slid down all the way around the base it forms a very tight seal. The sides JUST press the sides of the head.

    John Zuleger
    Posts: 8
    #2003606

    Thanks! Lots of out of the box thinking. I wanted a hard case and a pail was what I had. I knew it fit going in the top of the pail so I decided to make the top of the pail the bottom. I haven’t used it yet, heading to Ashland tomorrow to chase trout for it’s maiden voyage. I had a friend suggest mounting the head higher up on something you can pivot 90° so during stow and go it is vertical and not pressing against the sides.

    Rodwork
    Farmington, MN
    Posts: 3975
    #2003607

    Very nice work Kjholman.

    luttes
    Maplewood/WBL
    Posts: 542
    #2003634

    Love the creativity guys! These are some really cool builds!

    Greg Krull
    South Metro / Pool 4
    Posts: 278
    #2010366

    I may have gone a little overboard…

    Attachments:
    1. In-bucket.jpg

    2. Set-up.jpg

    muskie-tim
    Rush City MN
    Posts: 838
    #2010371

    You have got to love the ingenuity of ice fisherman.

    Good work everyone. toast

    gotalunker
    Zimmerman, MN
    Posts: 153
    #2010373

    I may have gone a little overboard…

    I laughed my butt off when I read this!! LOL
    Looks great. Really nice work. And I love that it fits in a bucket. So easy and convenient, keeps it protected. Atta boy!

    Greg Krull
    South Metro / Pool 4
    Posts: 278
    #2010378

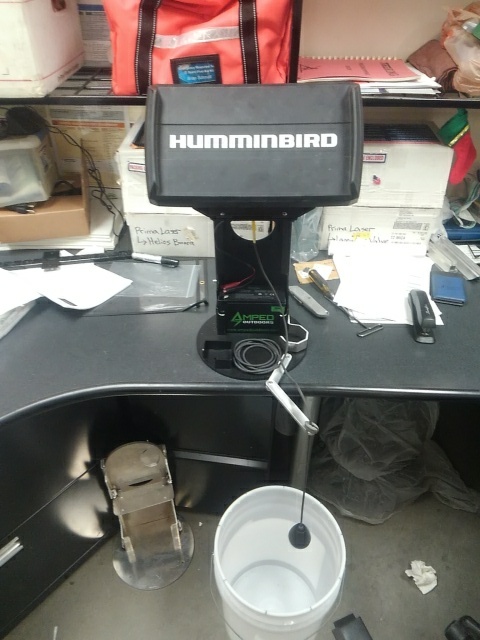

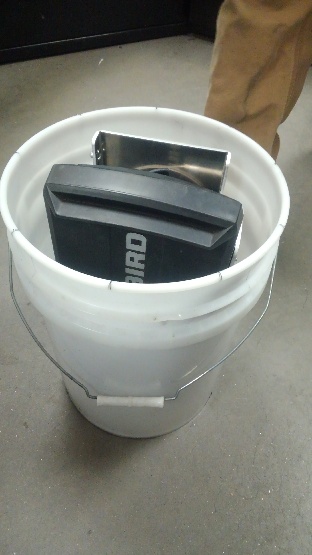

    And they say you can’t get a 8,9, or 10 in a bucket… Just tell an ice fisherman it couldn’t be done. Rotates, telescopes, and tilts. Ready for a field test this weekend. Happy Friday everyone! toast

    blank
    Posts: 1776
    #2010381

    And they say you can’t get a 8,9, or 10 in a bucket… Just tell an ice fisherman it couldn’t be done. Rotates, telescopes, and tilts. Ready for a field test this weekend. Happy Friday everyone! toast

    Very cool. How is the HB attached to the shuttle?
