Let's see your DIY Helix Shuttle!!!

  • gotalunker
    Zimmerman, MN
    Posts: 153
    #1726522

    Lots of you guys must be doing this, so let’s see them! Helix 5 and Helix 7 open water units converted to ice units.
    Also, maybe tell use why you chose the route you took.

    tbro16
    Inactive
    St Paul
    Posts: 1170
    #1726525

    Havent done it yet, but I hear a Vexilar Pro Pack carrying case fits a Humminbird Helix 7 perfectly. Probably just roll with that and a 5 gallon pail.

    gotalunker
    Zimmerman, MN
    Posts: 153
    #1726527

    Havent done it yet, but I hear a Vexilar Pro Pack carrying case fits a Humminbird Helix 7 perfectly. Probably just roll with that and a 5 gallon pail.

    The propack will work but have fun getting it into a pail! )

    Craig Kilber
    Posts: 40
    #1726588

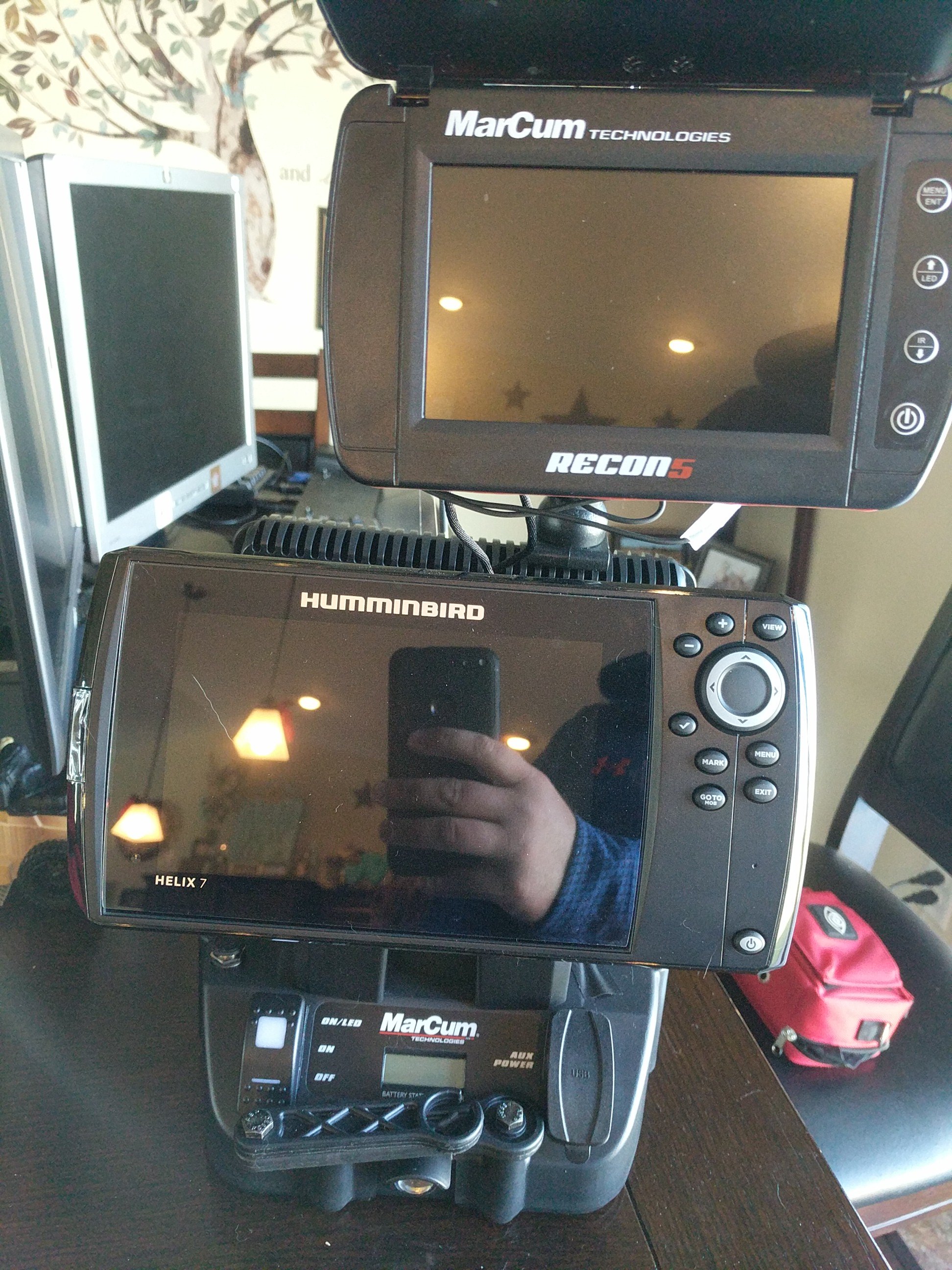

    Here’s mine

    Attachments:
    1. marcum-4.jpg

    traxler19
    Posts: 17
    #1726619

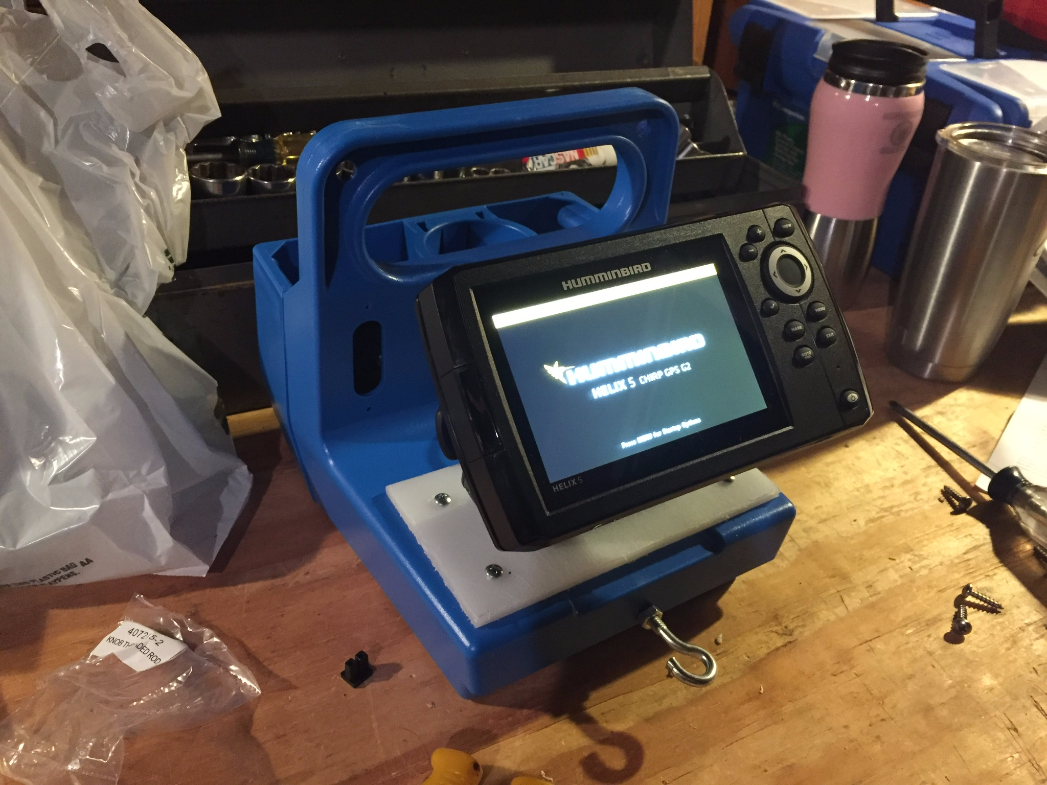

    Needed a way to mount unit on old pontoon at remote cabin and keep portable for ice fishing. Used old cutting board as base plate to mount on Genz box

    Attachments:
    1. Helix-5-Mount-2.png

    Tuma
    Inactive
    Farmington, MN
    Posts: 1403
    #1726621

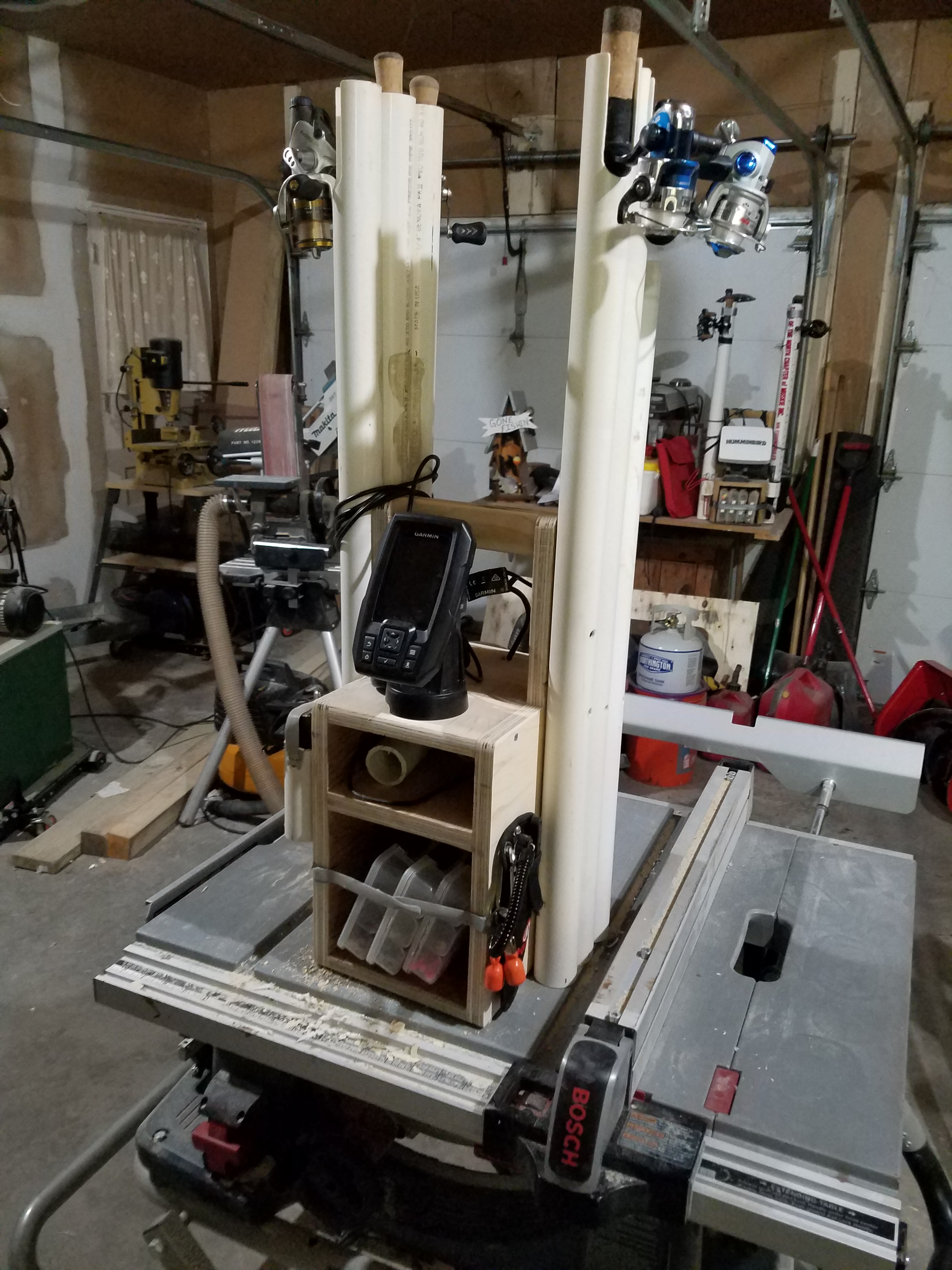

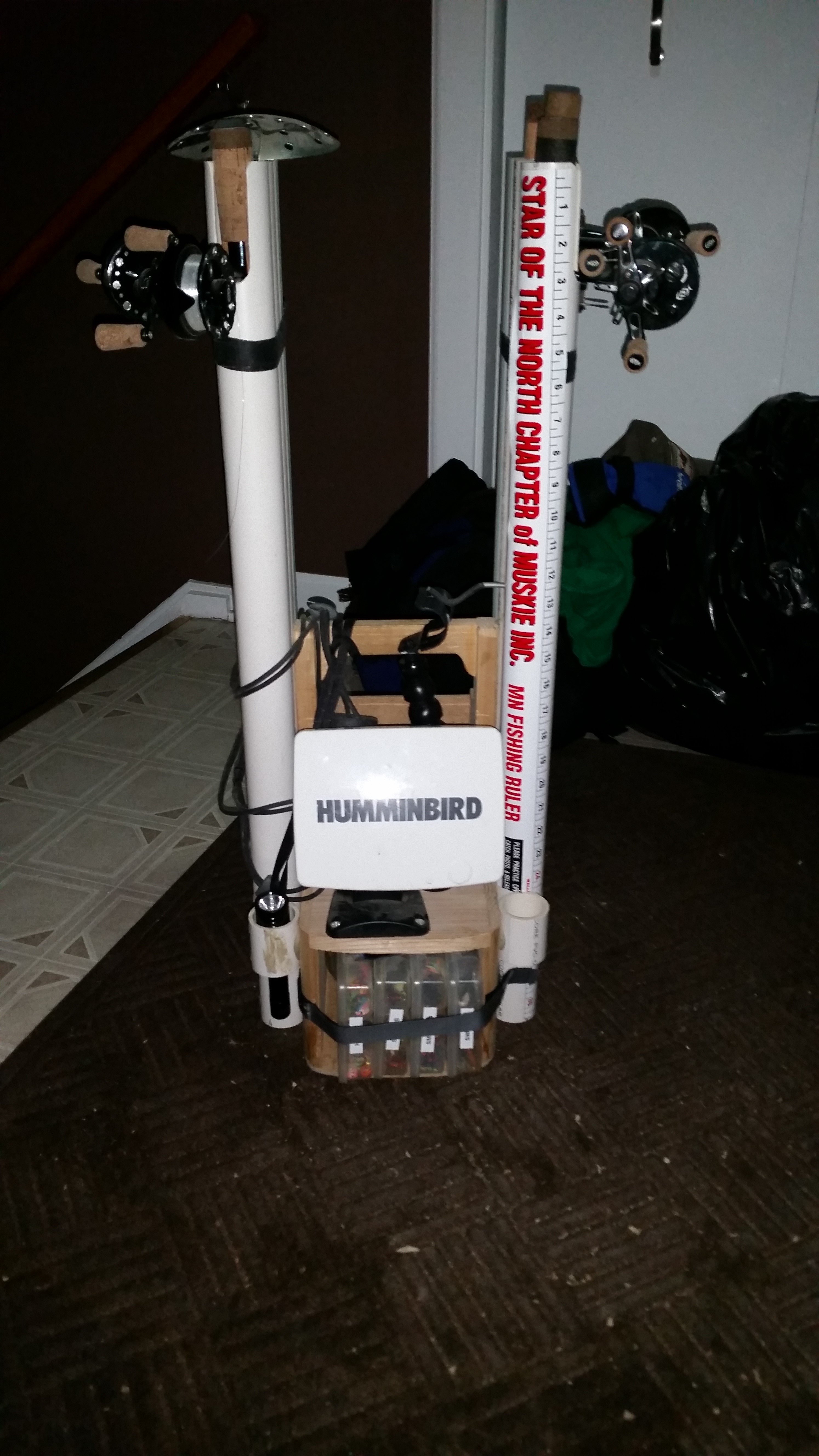

    This is my old one and the one I made for my buddy. I am making improvements and building a new one soon.

    Attachments:
    1. 20170101_011228.jpg

    2. 20150108_173619.jpg

    404 ERROR
    MN
    Posts: 3918
    #1726630

    Mine is done almost exactly like Traxlers above. After making a mount similar to get the gimbal bracket to fit, I realized i could have screwed the gimbal to the back side of the box without an additional bracket…I also have it in a Genz soft pack. I use the Helix in this pack in the summer also in my canoe and duck boat with the open water suction cup ducer. The soft pack keeps all the cords neat since the open water ducer cable is LONG. I also added a Marcum swing arm to the genz pack. I have a Vexilar pack, Marcum arm and Humminbird unit…

    Greg Perz
    Posts: 242
    #1726644

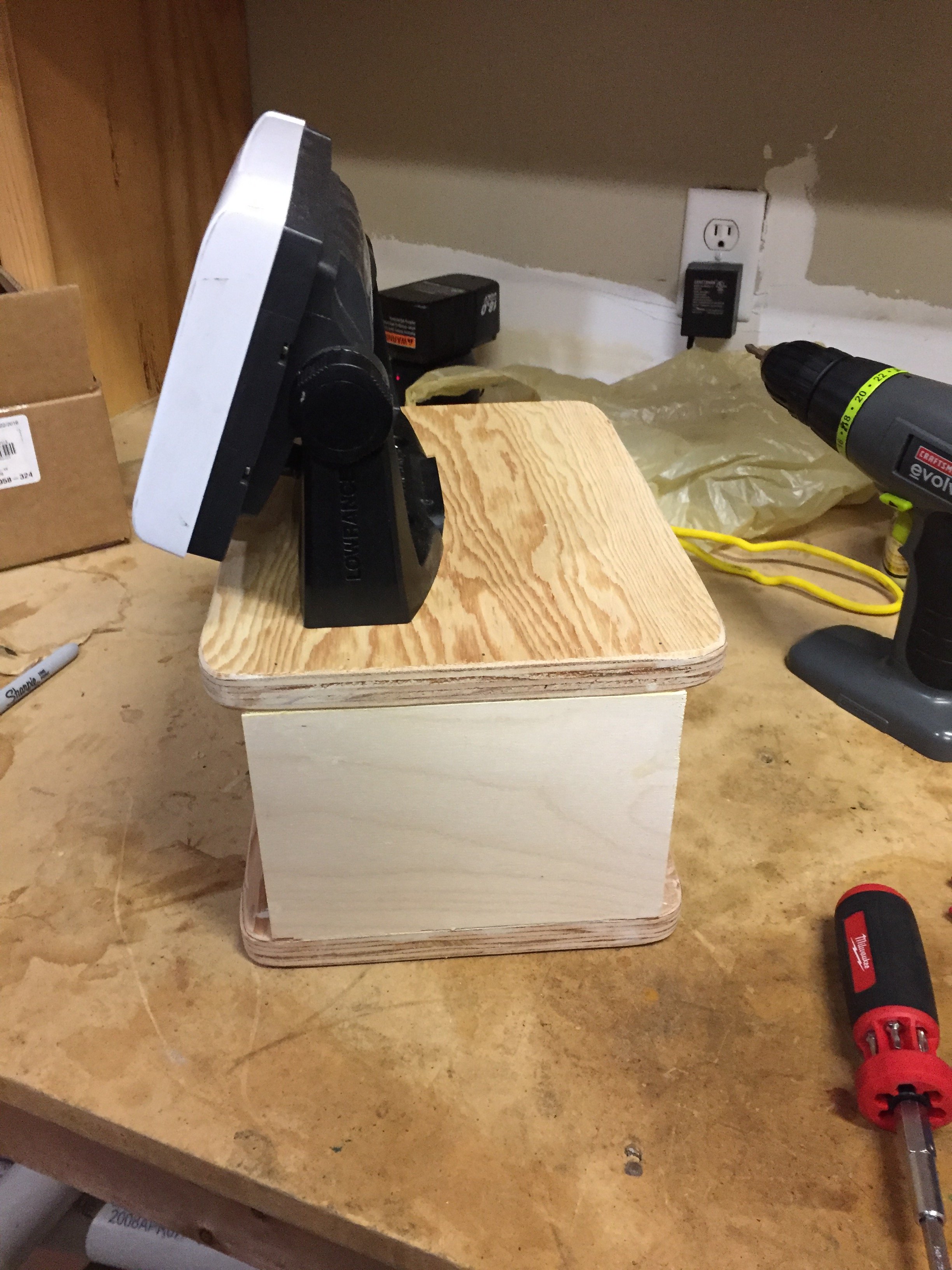

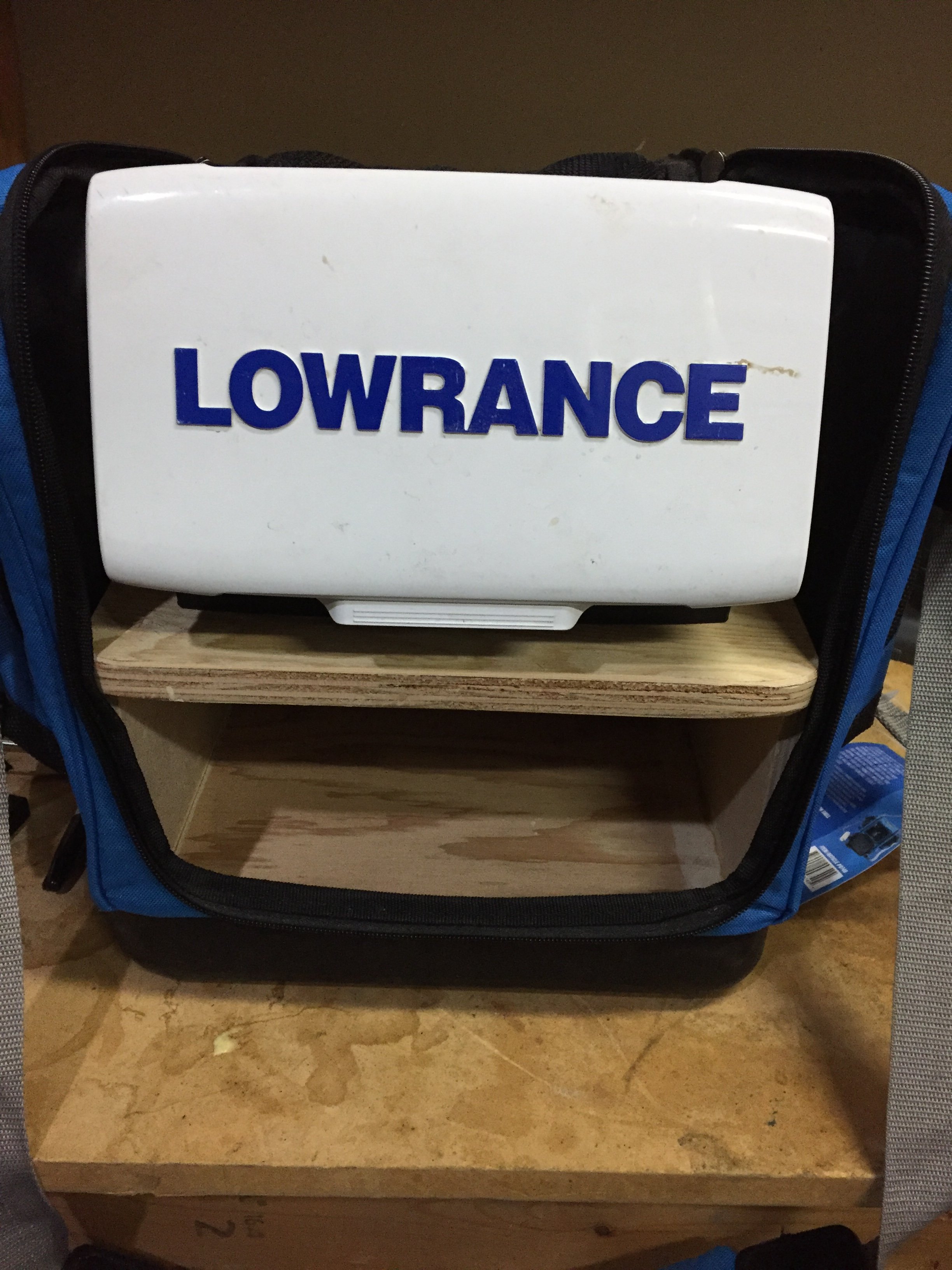

    I used the clam flasher bag and it fits my Elite 7 perfectly. It also fits a 1/2 3700 Plano box perfectly.

    Attachments:
    1. IMG_4382.jpg

    2. IMG_4380.jpg

    arcticm1000
    New Richmond, WI
    Posts: 740
    #1726745

    Nice work guys.

    Tuma, That is a sweet setup. Do you have any interest in making an extra one to sell?

    Tuma
    Inactive
    Farmington, MN
    Posts: 1403
    #1726766

    Tuma, That is a sweet setup. Do you have any interest in making an extra one to sell?

    Thank you. I love it. Put that in one hand and an auger in the other and you have everything you need to hole hop.
    You can have my old one after I make my new one. Hopefully it will be sometime this month.

    arcticm1000
    New Richmond, WI
    Posts: 740
    #1726812

    <div class=”d4p-bbt-quote-title”>arcticm1000 wrote:</div>
    Tuma, That is a sweet setup. Do you have any interest in making an extra one to sell?

    Thank you. I love it. Put that in one hand and an auger in the other and you have everything you need to hole hop.
    You can have my old one after I make my new one. Hopefully it will be sometime this month.

    Yeah, everything you need in one hand and the auger in the other. I bet it makes hole hopping easier. Thanks for the offer. Let me know if you want to get rid of the old one when you get your new one done.

    panfishnut
    Posts: 9
    #1726820

    Message to Craig Kilber
    I see you are using a new marcum shuttle. How did you mount the recon to the shuttle?
    Thanks

    bee
    Maine
    Posts: 357
    #1726971

    Cat Litter reuse

    Attachments:
    1. IMG_20161203_084901_316-1.jpg

    2. IMG_20161203_084901_316.jpg

    luttes
    Maplewood/WBL
    Posts: 542
    #1727005

    HAHA Bee wins.

    bee
    Maine
    Posts: 357
    #1727039

    Fish on

    Attachments:
    1. IMG_20161220_103952_309.jpg

    munchy
    NULL
    Posts: 4931
    #1727047

    Cat Litter reuse

    But does it fit in a 5 gallon bucket??? devil jester

    BigWerm
    SW Metro
    Posts: 11624
    #1727078

    So I’ve been following these Helix threads, and just want to confirm what may be a stupid question. If I have a new Helix 5 G2 and want to use it on ice, I will just need a power cable, battery and shuttle to use the GPS? And if I want to use it as a fish finder also, I will need the XI 9 20 transducer? Is that right, or am I missing something?

    munchy
    NULL
    Posts: 4931
    #1727115

    So I’ve been following these Helix threads, and just want to confirm what may be a stupid question. If I have a new Helix 5 G2 and want to use it on ice, I will just need a power cable, battery and shuttle to use the GPS? And if I want to use it as a fish finder also, I will need the XI 9 20 transducer? Is that right, or am I missing something?

    Yes that transducer will work, however it will not have the chirp capabilities that the unit has. XI 9 1521 will give you chirp. Like I said in a previous thread Hodgesmarine.com has the best price I have found at about $70.

    gotalunker
    Zimmerman, MN
    Posts: 153
    #1727140

    So I’ve been following these Helix threads, and just want to confirm what may be a stupid question. If I have a new Helix 5 G2 and want to use it on ice, I will just need a power cable, battery and shuttle to use the GPS? And if I want to use it as a fish finder also, I will need the XI 9 20 transducer? Is that right, or am I missing something?

    Pretty much exactly right. But if you want to use as a fishfinder, you will also need to download and install the latest software version, which i think is 1.540

    bee
    Maine
    Posts: 357
    #1727200

    <div class=”d4p-bbt-quote-title”>bee wrote:</div>
    Cat Litter reuse

    But does it fit in a 5 gallon bucket??? devil jester

    Sorry it does not. But my slabs do.

    gotalunker
    Zimmerman, MN
    Posts: 153
    #1727241

    But does it fit in a 5 gallon bucket??? devil jester

    Sorry it does not. But my slabs do.
    [/quote]

    Part of the reason i asked this question is because I made a shuttle for my helix 7 and it does fit into a bucket. Im’ putting the final pre-finishing touches on it today and will send out some pics. )

    gotalunker
    Zimmerman, MN
    Posts: 153
    #1729180

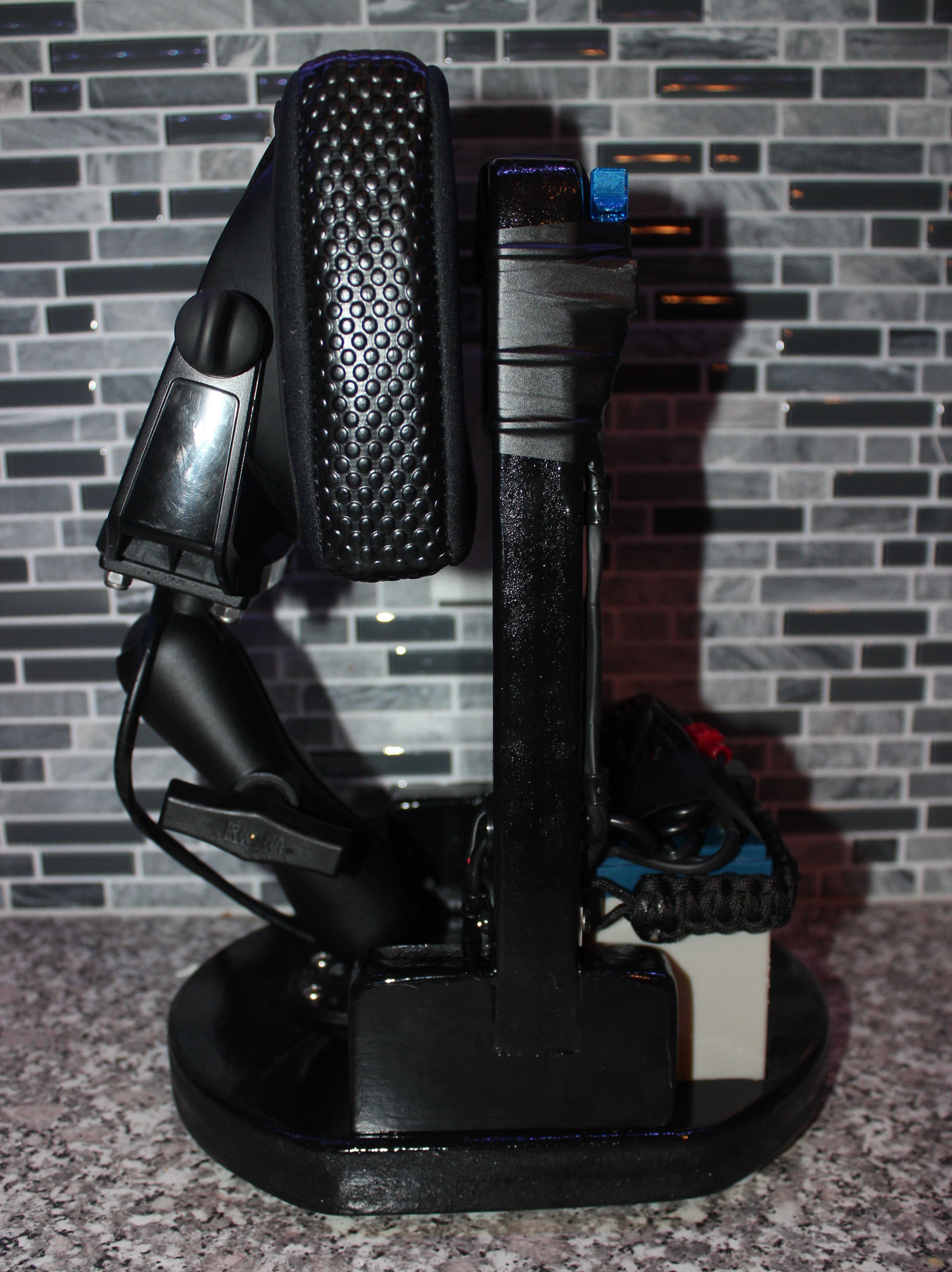

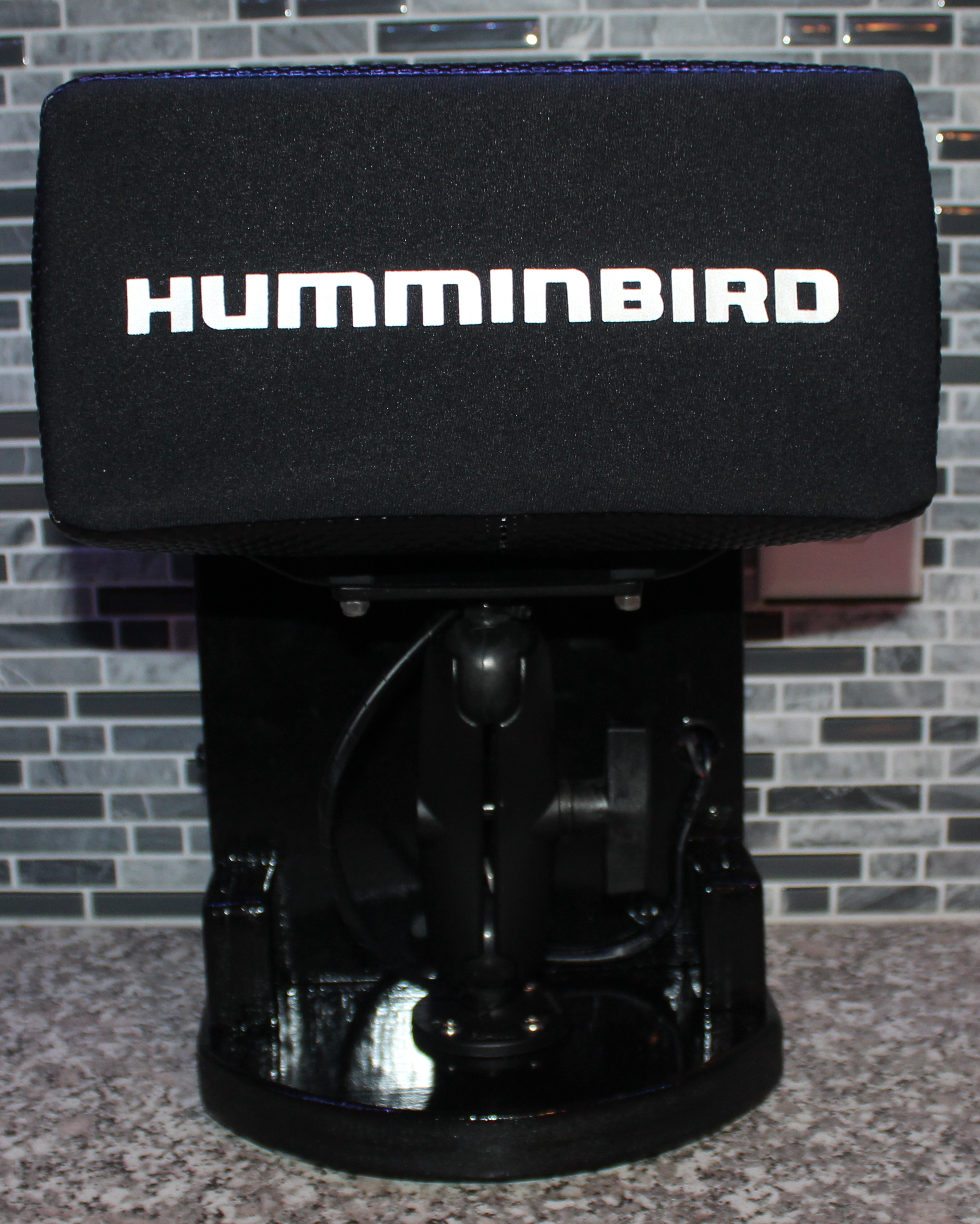

    I finally got my Helix 7 shuttle complete.

    I really like that I can still have the infinite adjustability with the RAM mount and it can just go back and forth from ice shuttle to boat with ease.

    About $25 to build just the shuttle which sure beats $100-150+ for the Humminbird branded shuttle, and I built it myself.

    I can already think of things I probably would have done differently, but for this year, it will work and maybe next year, I’ll work up the energy for take #2.

    I’d be happy to hear your thoughts.

    Attachments:
    1. IMG_6541_edit.jpg

    2. IMG_6556_edit.jpg

    3. IMG_6559_edit.jpg

    Tuma
    Inactive
    Farmington, MN
    Posts: 1403
    #1729275

    Nice job gotalunker. That looks great. I started to build my new one this weekend. Adding spots for more rods and more tackle. For some reason that stuff keeps piling up.

    luttes
    Maplewood/WBL
    Posts: 542
    #1731215

    Nice work Gotalunker! Did you cut out the grips on the handle or did you just tape it up with hockey tape? Also, if you wanted to post more pictures, I would like to see more of how that’s assembled.

    gotalunker
    Zimmerman, MN
    Posts: 153
    #1731234

    Nice work Gotalunker! Did you cut out the grips on the handle or did you just tape it up with hockey tape? Also, if you wanted to post more pictures, I would like to see more of how that’s assembled.

    Luttes, I don’t really have an pics of the assembly. But if you want, we can take that discussion offline to a private message and I’d be happy to explain my approach and give you the details of what I’d do differently.

    The handle has wrapped with paracord and then over that is electrical tape.

    Jake
    Western WI
    Posts: 67
    #1731247

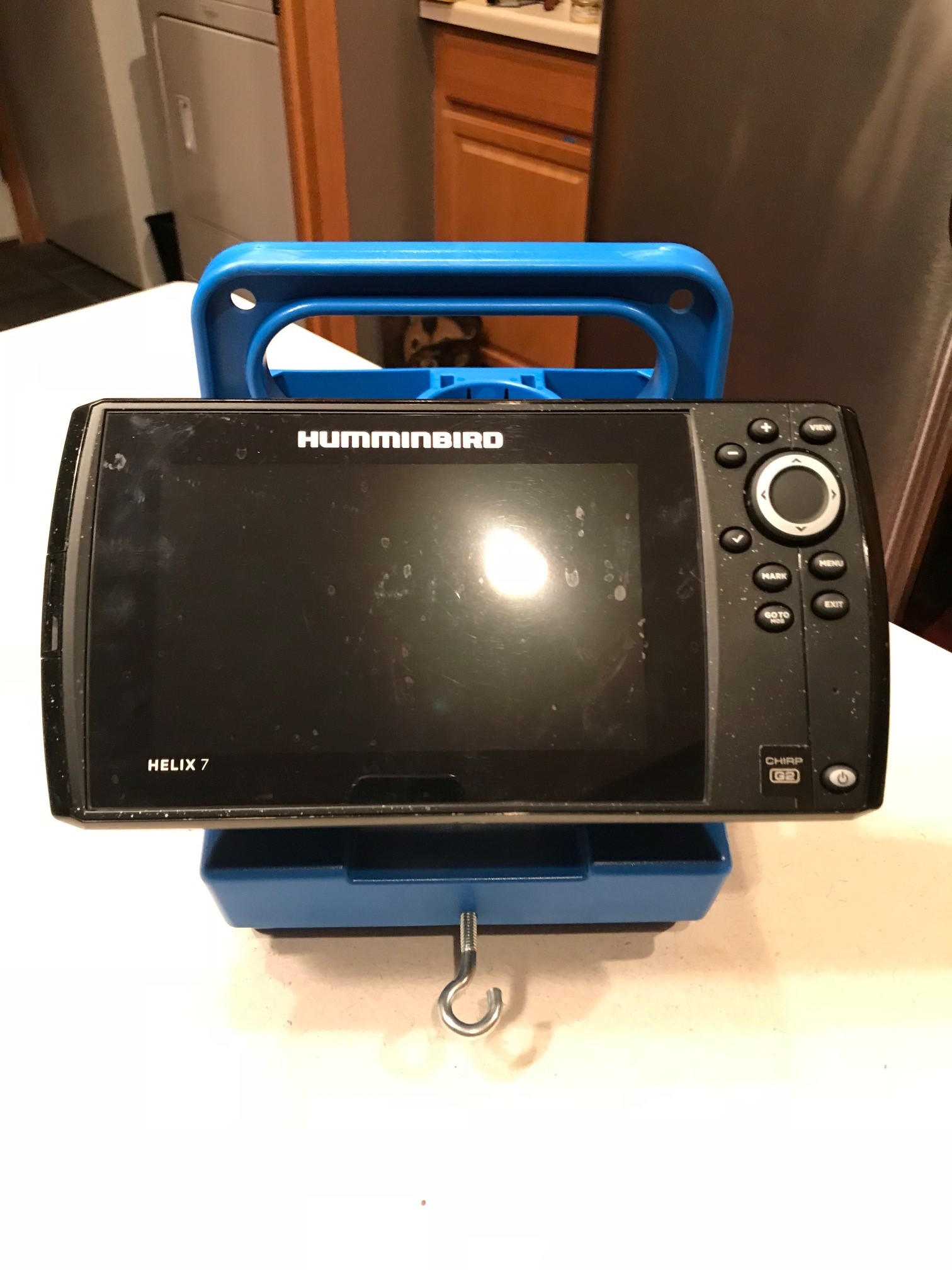

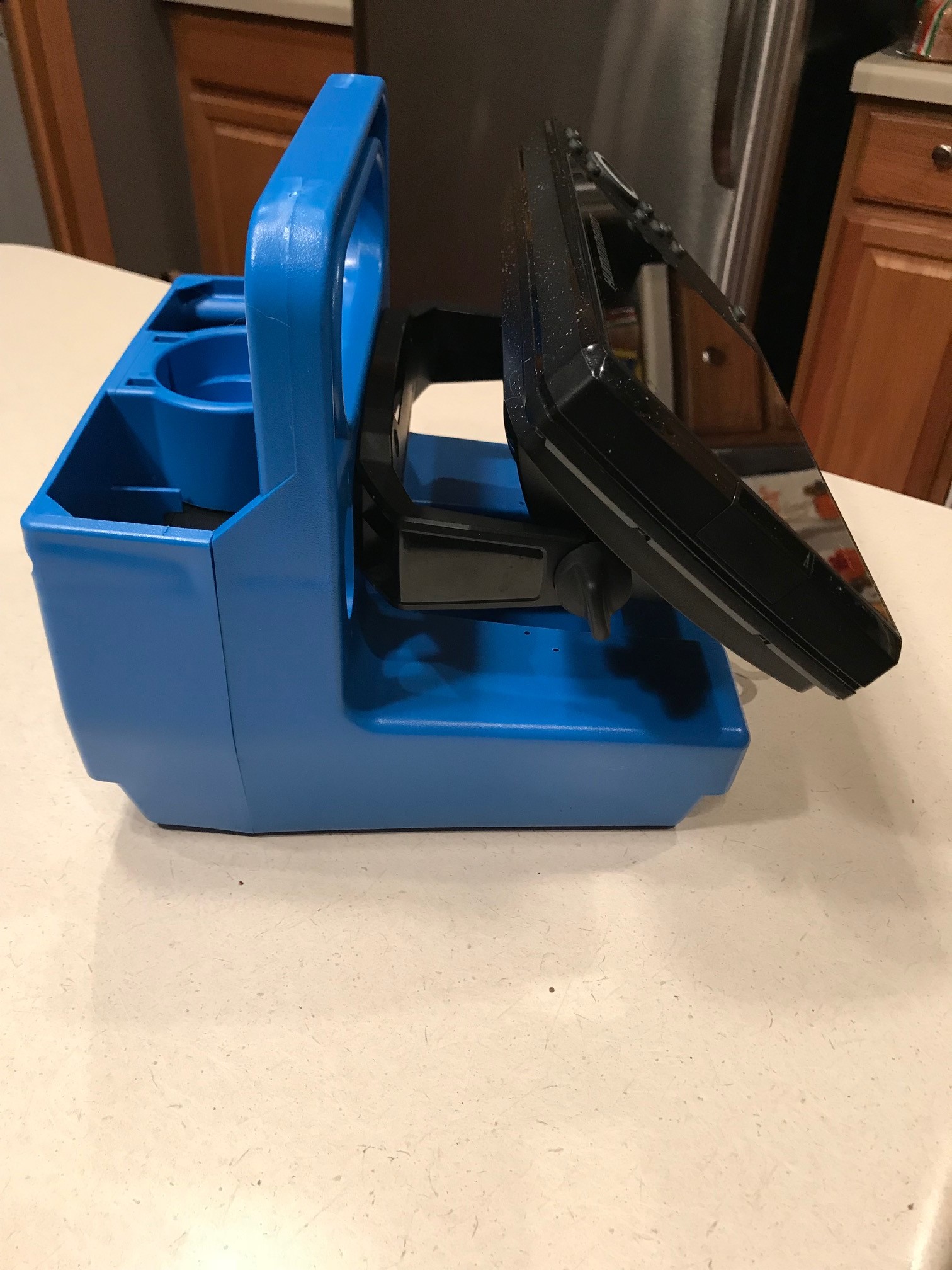

    Mounted my H7 G2 to the handle of the GenzBox and it balances well. Still waiting on the XI 9 1521 transducer to arrive.

    Attachments:
    1. IMG_3319.jpg

    2. IMG_3318.jpg

    wormdunker
    Posts: 582
    #1731315

    where did you find the xi 9 1521 duper?

    luttes
    Maplewood/WBL
    Posts: 542
    #1731402

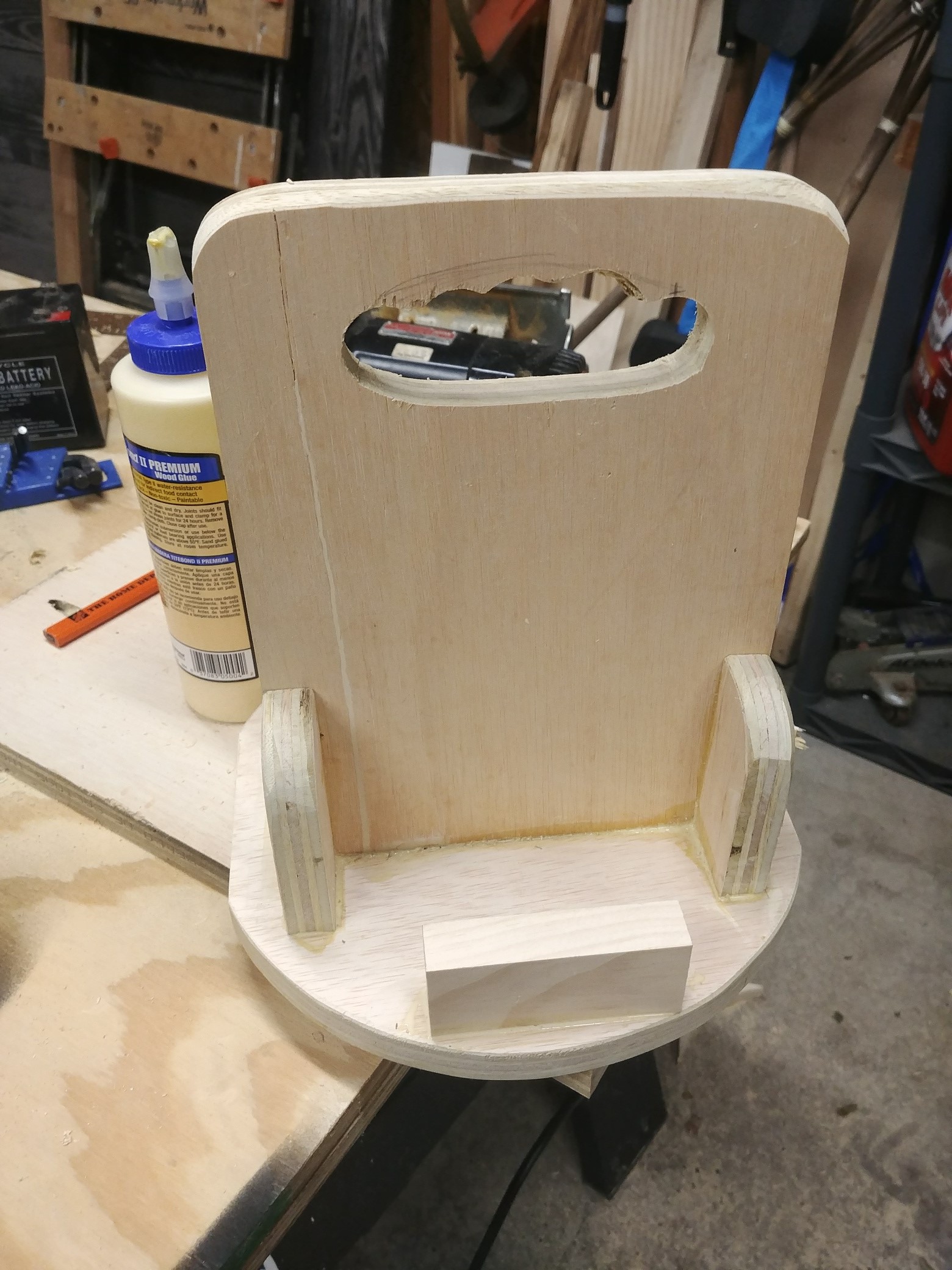

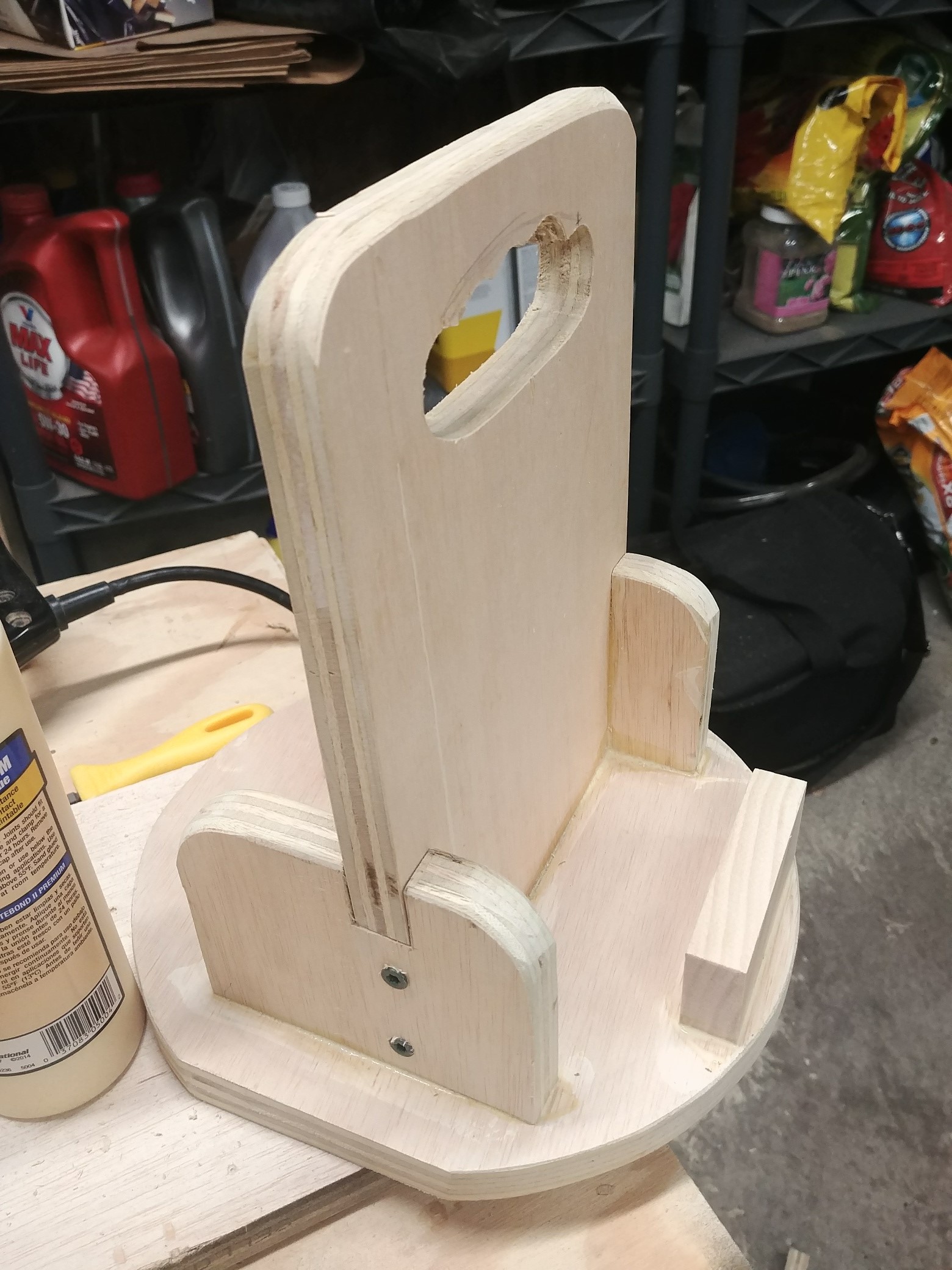

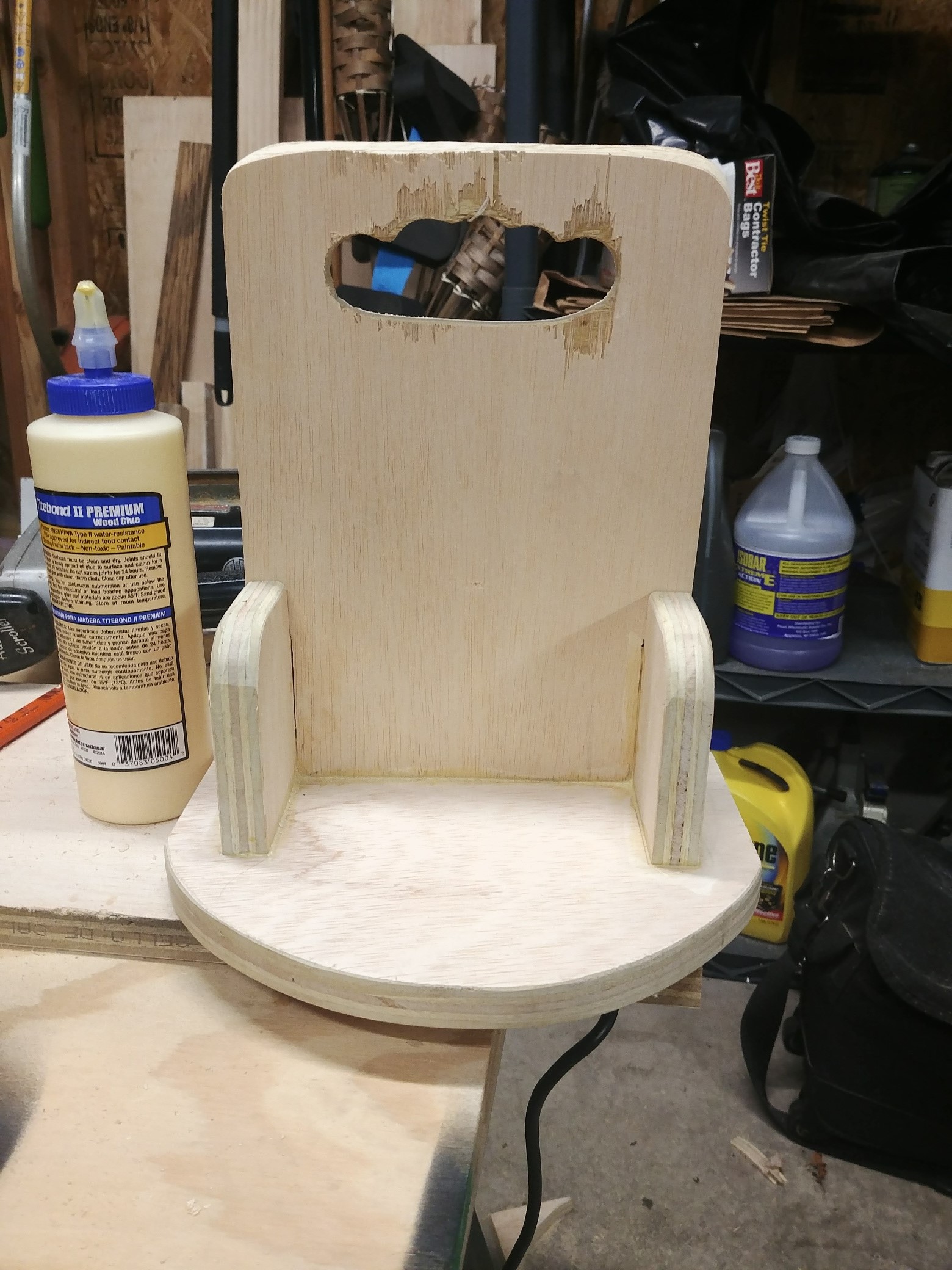

    After seeing Gotalunker’s build, I whipped this up last night in a few hours. It’ll get a strap for the battery, some holes for cables, and a coat of truck bed liner spray paint, and will be all set for ice! Wormdunker, you can find the xi 9 1521 at hodgesmarine dot com for $72 free shipping. Can’t really beat the price. Let me know if you have any questions!

    Attachments:
    1. 20171129_220355_resized.jpg

    2. 20171129_220348_resized.jpg

    3. 20171129_220343_resized.jpg

    Jake
    Western WI
    Posts: 67
    #1731456

    I ordered my xi 9 1521 from hodgesmarine two Saturdays ago. I called in and they said it was on back order, they’d hopefully have stock to ship out today or tomorrow.
