Leaking Lazer

  • Ralph Wiggum
    Maple Grove, MN
    Posts: 11764
    #1912247

    I’ve got a SM Lazer (the Tecumseh vintage). It runs well, but I’ve noticed that is slowly leaking gas when stored (upright) in the garage. It appears to be dripping from the carb, but I guess it could be from a fitting, too. Any ideas? I’m hesitant to mess with the carb since it’s running well.

    Anyone that mentions that I should upgrade to a battery auger or some drill/auger combo will be beaten with a yard stick.

    andys
    kasson
    Posts: 120
    #1912258

    Probably needs a carb kit, super easy to do

    Ralph Wiggum
    Maple Grove, MN
    Posts: 11764
    #1912274

    Probably needs a carb kit, super easy to do

    Wouldn’t it run like crap if it needed a carb kit?

    SuperDave1959
    Harrisville, UT
    Posts: 2816
    #1912277

    Does the carb have a drain off screw or port? Loose? Gasket? Hose clamp on a fuel line?

    Gino
    Grand rapids mn
    Posts: 1212
    #1912280

    Check for loose screws but not adjuster screws. Gas line probably getting old.

    suzuki
    Woodbury, Mn
    Posts: 18623
    #1912289

    Likely this. I have replaced twice. It cracks where It presses on carb and leaks fuel. I just did it. Very cheap online. I lucked out and found at Gerlach in Cottage Grove the day I needed it. The first time I took it in for repair but it’s not difficult.
    Google me-Tecumseh 640363 Fuel Fitting

    John Timm
    Posts: 364
    #1912290

    Gas line, or gas tank grommet

    Bill Sackenreuter
    Devils Lake ND
    Posts: 228
    #1912296

    Sounds like you need to replace the needle and seat,sticking open allowing fuel to drip through carb.
    Just realized could be tc2 engine.The needle and seat were a common problem for the 3 hp,just drop the diaphram and replace needle and seat.I still believe its the needle sticking allowing fuel to slowly drip thru the carb,this is part of the carb kit and they are pretty easy to do,but if you have trouble lots of good videos on you tube.Did alot of them when I owned my baitshop.

    Ralph Wiggum
    Maple Grove, MN
    Posts: 11764
    #1912344

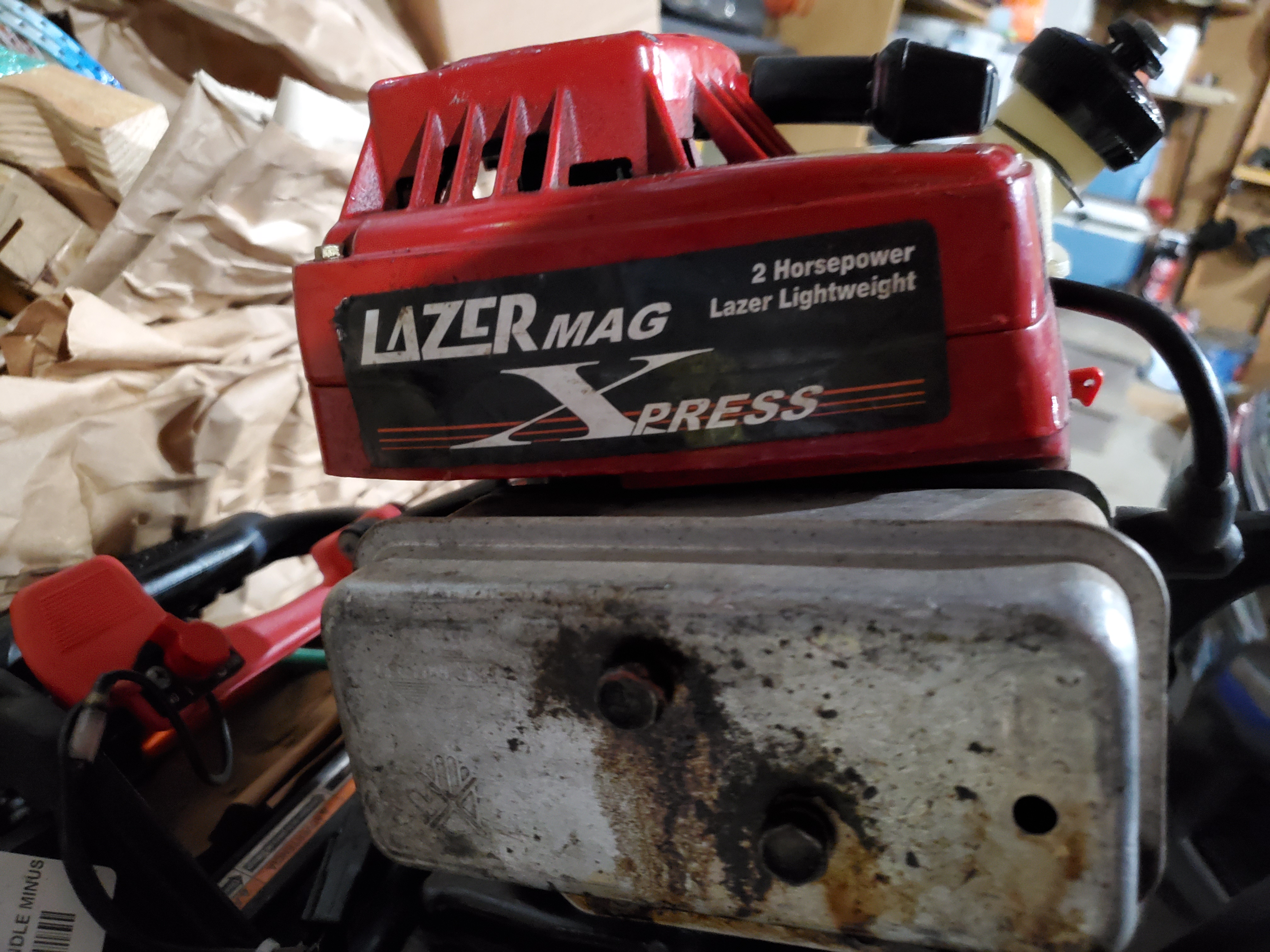

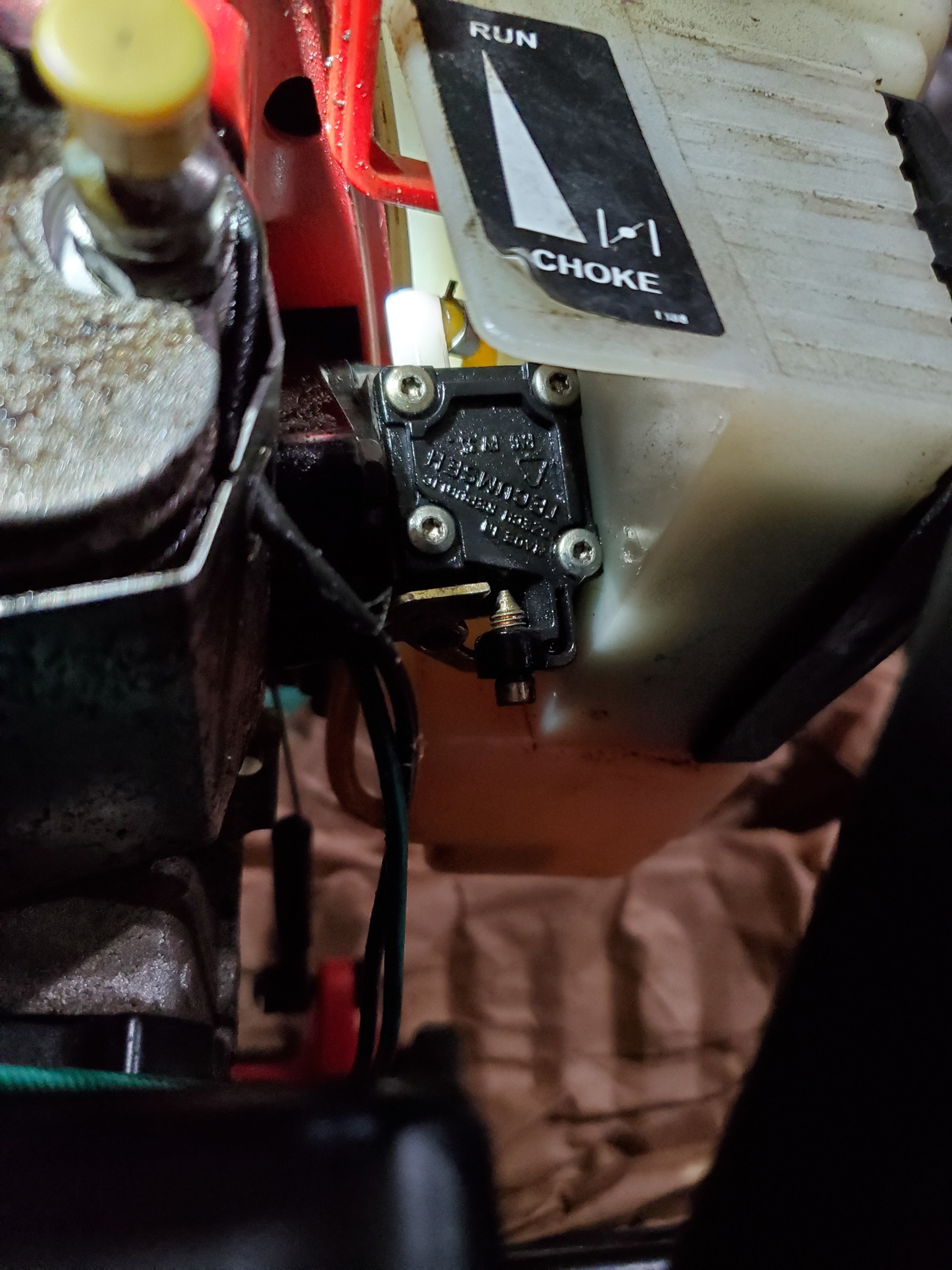

    It’s a 2 HP. I wiped it down and will see if I can pinpoint the heal a little better.

    Attachments:
    1. 20200203_211634.jpg

    2. 20200203_211705.jpg

    B-man
    Posts: 5813
    #1912359

    I had one that leaked, it was a hairline crack in the fuel tank.

    djshannon
    Crosslake
    Posts: 534
    #1912389

    Ralph,

    You need to replace the fuel line and fuel filter.

    The outside of the fuel line is used to create the seal between the tank and the line and the fuel filter is used to add a slight increase in line diameter to add some pressure to the seal.

    Tecumseh has used this system for years. As the line ages it looses elasticity and the seal fails.

    Good Luck

    Ralph Wiggum
    Maple Grove, MN
    Posts: 11764
    #1912394

    You need to replace the fuel line and fuel filter.

    Is this what you mean by filter?
    null

    mark-bruzek
    Two Harbors, MN
    Posts: 3867
    #1912404

    <div class=”d4p-bbt-quote-title”>djshannon wrote:</div>
    You need to replace the fuel line and fuel filter.

    Is this what you mean by filter?
    null

    Thats not a filter, its the fitting that goes into the carb. That can be a leak point though. If there is a filter it would be inn the tank on the end of the fuel pick up tube.

    Your best bet is to wipe everything off well and watch/wait for the fuel to show up. There are multiple spots where fuel can leak from on that setup, most if not all have been mentioned in prior posts.

    I know this is not going to sound good but…one way to track a leak is to dust the area with flour.

    Ralph Wiggum
    Maple Grove, MN
    Posts: 11764
    #1912411

    If there is a filter it would be in the tank on the end of the fuel pick up tube.

    That’s what I thought.

    Your best bet is to wipe everything off well and watch/wait for the fuel to show up. There are multiple spots where fuel can leak from on that setup, most if not all have been mentioned in prior posts.

    That’s the plan. Unfortunately, I forgot to look before work today. ) Oh well, ice fishing is not a passion for me so it only gets sparing use, and it runs well, so the only urgency is to save $$$ on that expensive TruFuel and keep my garage from stinking too much. )

    mustangsally
    Posts: 35
    #1913055

    Maybe a hand crank auger…it would keep u in shape for those beatings
