Inside a Marcum LX-5 Ice Transducer

  • Sandman
    Posts: 13
    April 11, 2020 at 10:04 am #1932910

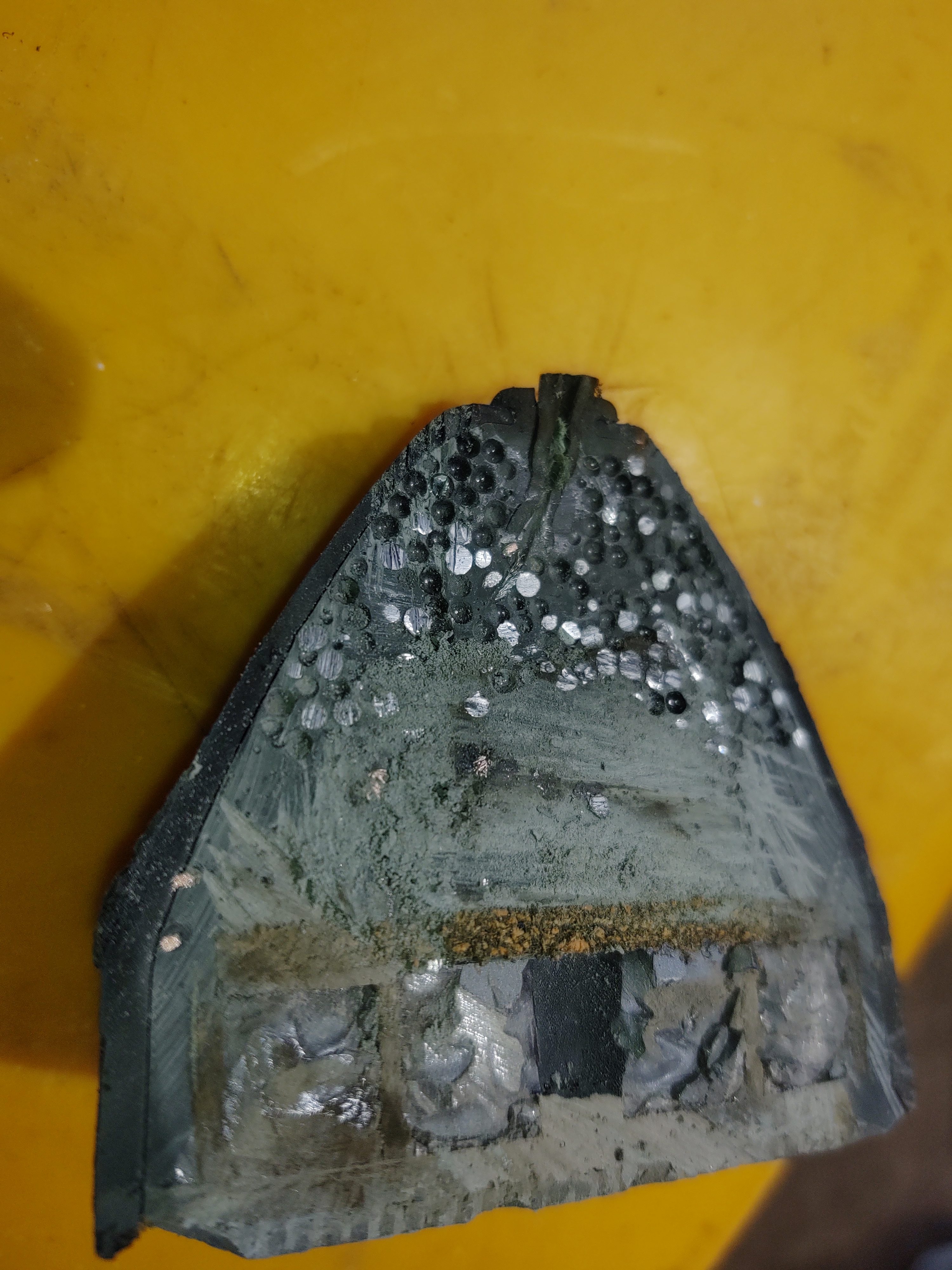

    Got bored so I cut open my roached LX-5 iceducer (served me well for at least 6 yrs. of hole hopping died this year). I was in search of the magic crystal people talk about. This is what it looked like. You can see some metal balls at the top that look like lead shot and then a rectangular metal item a bit above the bottom. This is a double cone transducer so there may be two crystals in there? Anybody able to elaborate?

    Attachments:

    1. IMG_20200410_133951221.jpg

    Sandman
    Posts: 13
    April 11, 2020 at 10:06 am #1932912

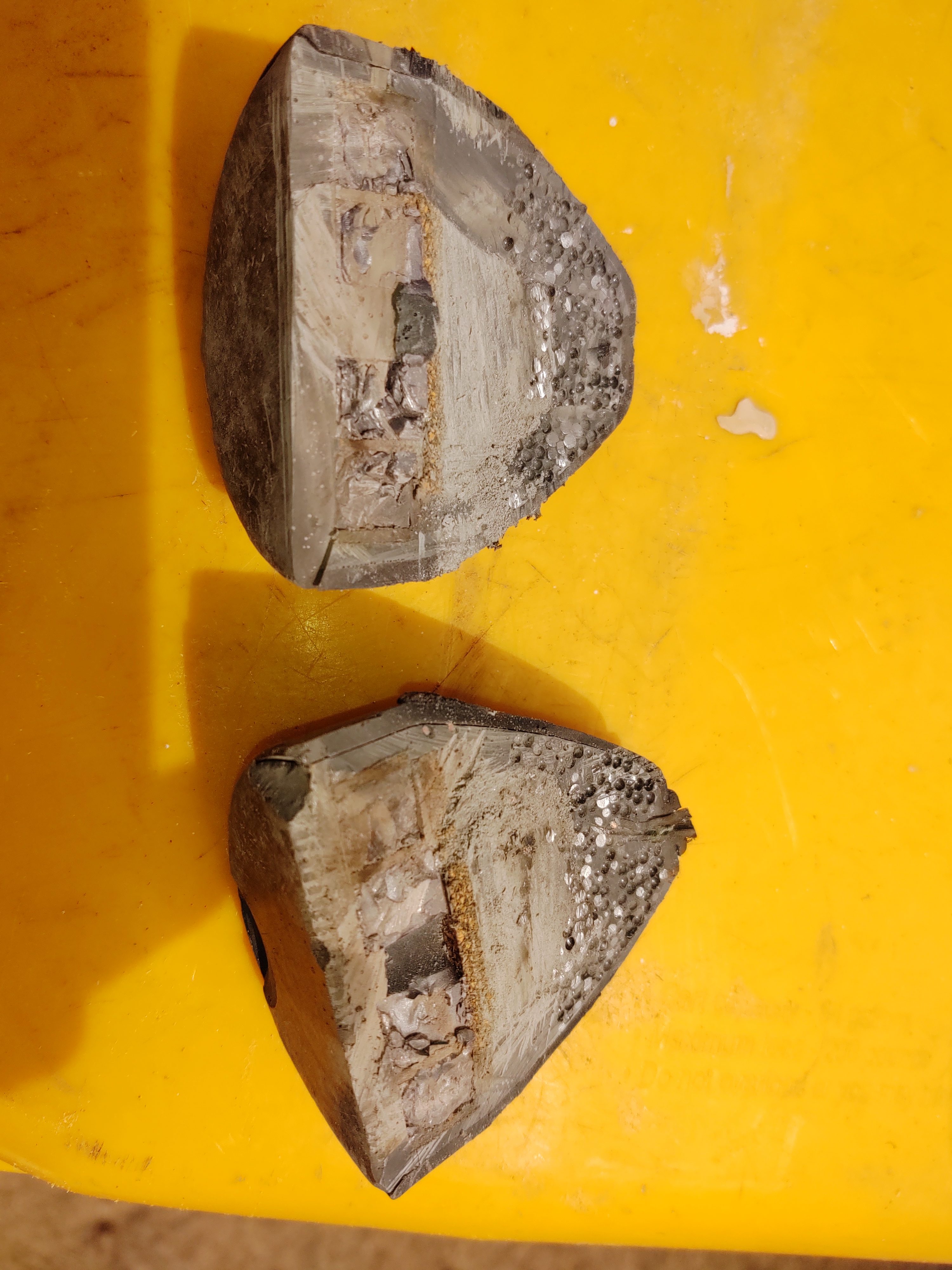

    Another pic of both halves.

    Attachments:

    1. IMG_20200410_133944732.jpg

    Pailofperch
    Central Mn North of the smiley water tower
    Posts: 2954
    April 11, 2020 at 10:47 am #1932922

    That’s cool. Never thought of cutting one up before. I know nothing of the crystal.
