Hyfax installation on my Otter sled

  • arklite881south
    Posts: 5660
    #1303029

    For some reason “So easy a fishing guide can do it” came to my mind as I installed my Hyfax runners on my Otter sled today. Here is a quick run through on the installation process. Please keep in mind that this was on my Large Otter sled. All you need is a few tools to get the job done; 5/32 or 1/8 inch drill bit, Allen wrench, hammer, 3/8 inch socket and driver, duct tape and socket extension.

    I have added both the socket extension and duct tape to the installation list for further efficiency.

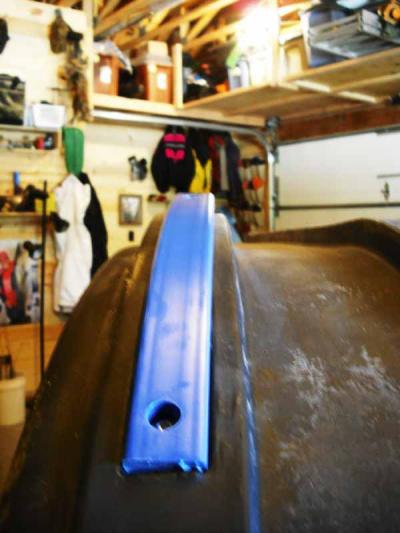

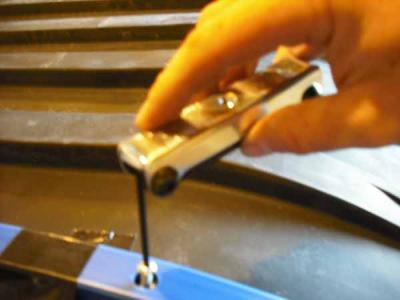

    Per the directions included with the Otter Hyfax. Simply tap in the front end of the Hyfax in the slot located in the underside of your Otter Sled with your hammer. I pre-formed my Hyfax by bending the end slightly by hand. Drill a 5/32 inch hole through the inside of your sled. Take your Allen wrench and drive the screw with washer into the plastic of the sled. By proper sizing on your pre-drilled hole the screw will hold the hyfax in position as it grips the plastic of the sled. Now take the lock nut and washer and fasten this from the inside. This will tighten down the Hyfax in your first position.

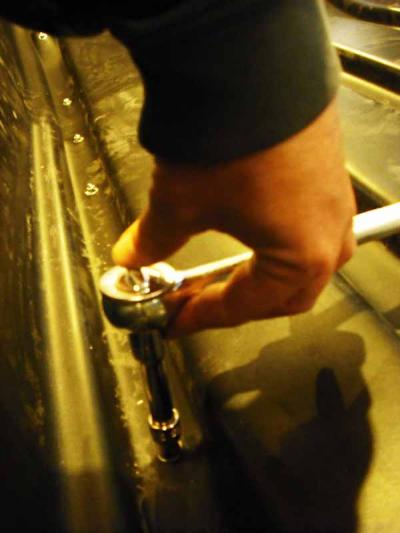

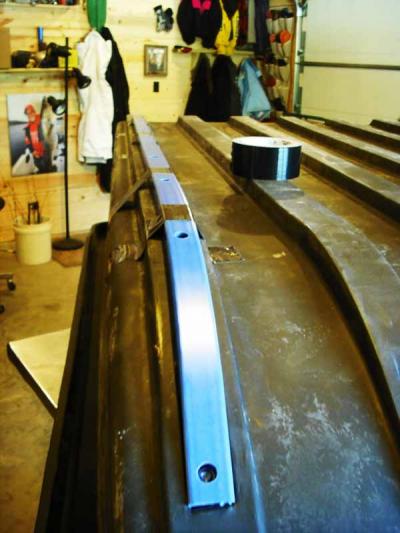

    Now here is where I used the duct tape. Doesn’t every project require duct tape? Take the Hyfax and position it straight down the middle of your runner and fasten it in position with a piece of duct tape. Repeat this process the entire length of the Hyfax runner. Now drill all the holes through the pre-drilled holes in your Hyfax, and through the interior of your sled. With your Allen wrench drive the screws and washers through the plastic. Now flip the sled over and ratchet your lock nut and washer on each screw. I found using an extension on my ratchet driver made it easier due to the concave design of the interior Otter sled.

    Flip the sled back over, and remove the duct tape!! You’ve just installed your first Hyfax runner!! It took me about 20 minutes for the first runner. In theory with 6 Hyfax runners to install this will be a 2 hour job for me. Again…..I’m a fishing guide, so you might be faster. When you get to the middle runners you might need to have a helper on the otherside of the Otter Sled keeping the screw head from turning as you tighten from the inside. I’ve got short arms!!

    My theory on whether you should consider adding Hyfax runners is like this; IF you run your sleds across the black top or down concrete or simply want added protection this is a nice add. I don’t really notice any enhanced pulling efficiency, but will say there isn’t so much as a scratch on the bottom of our sleds with Hyfax. You truly can pass on your ice sleds to your grandkids this way!!





    Chris Raymond
    Keweenaw Peninsula, MI
    Posts: 514
    #1015469

    I picked up a large last year for cargo and hyfaxed it. It was a two person, four beer per person effort for me. ‘Course the latter may have impacted the former though. ;-)

    arklite881south
    Posts: 5660
    #1015471

    Quote:


    I picked up a large last year for cargo and hyfaxed it. It was a two person, four beer per person effort for me. ‘Course the latter may have impacted the former though. ;-)


    A couple cold beverages might slow the process.

    mark-bruzek
    Two Harbors, MN
    Posts: 3867
    #1015434

    I altered mine a bit and used nylock nuts to prevent any backing out. It was difficult with one person to hold both wrenches while trying to bear hug the otter, works much better with a helper though.

    Also you dont want to over tighten the bolts otherwise they sink too deep into the hyfax and pull through, just snug them up.

    I would never tow without them, espicially on “thinner” tubs. They are a GREAT investment.

    out_fishing
    Moorhead, MN
    Posts: 1151
    #1015561

    I installed mine about a month ago on my frabill and i had the frabill hyfax. took me all of two hours to do by myself. It would have been about a 20 minute job with another set of hands. The frabill hyfax appears thicker than the otter brand and it was a huge pain in the butt to get it curved around the front of the sled since it would not bend. Glad they are on and ready to roll.

    arklite881south
    Posts: 5660
    #1015581

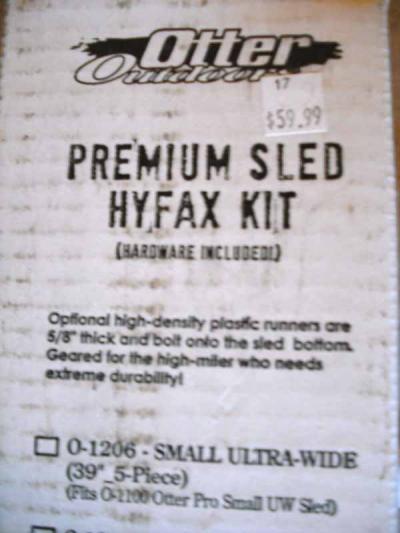

    The Otter Hyfax kit comes with Nylock nuts. Good advice on not over tightening!!

    matt-p
    White Bear Lake, MN
    Posts: 643
    #1015586

    I have a Fish Trap Scout from Clam and I put the Runner’s that they make for this house on it at the beginning of last year. The thing I noticed when pulling through thick snow it did seem a tad easier. They have a little different design than the Otter ones but the same concept. With the sled of the Clam being thinner I think its a must to have some sort of runner on them!! So no matter what kind of flip shelter you have I think there a good investment just to protect the sled.

    arklite881south
    Posts: 5660
    #1015604

    Quote:


    I installed mine about a month ago on my frabill and i had the frabill hyfax. took me all of two hours to do by myself. It would have been about a 20 minute job with another set of hands. The frabill hyfax appears thicker than the otter brand and it was a huge pain in the butt to get it curved around the front of the sled since it would not bend. Glad they are on and ready to roll.


    They must be a bit of a different design than the Hyfax in the Otter Kit. These bent into shape pretty easy. They are 5/8 of an inch thick, so pretty heavy duty. All of the Hyfax runners came predrilled.

    out_fishing
    Moorhead, MN
    Posts: 1151
    #1015615

    Actually after looking at your pics again they seem to look almost identical. Must have been installer error. Either way im ready to put some miles on them!

    Sam I am
    NULL
    Posts: 1
    #1373373

    I just bought an Otter XT650 Cabin and put everything together only to realize I probably should have put the hyfax on first… But, it was still possible and maybe a little easier since I could stand the sled upright on it’s back. The duct tape trick is great. AND if you’re looking for something to make inserting the screws easy, use a T20 Torx bit in your cordless and you can screw the allen bolts right in and use them to suck the hyfax tight. I still needed an allen wrench to hold the bolt while I used a socket to get the nylon nuts to suck down tight too. But all in all, it’s pretty easy to install hyfax after the fact to your fish house if you decide too.

    shaley
    Milford IA
    Posts: 2178
    #1373379

    I used my cordless impact… For those with other brands having issues bending them around the curve of the tub heat the hyfax with the wifes hairdryer….

    glenn-d
    N C Illinois
    Posts: 760
    #1373385

    I did the wife’s hair drier trick on mine when I installed them !! Worked great….but Chris’s garage is so warm he doesn’t need a hair drier !!

    castle-rock-clown
    Posts: 2596
    #1373602

    instead of overpriced HI fax I use a kids snowboard modified slightly and it runs a lot better and is more resilient
