Home built otter mods

  • Brian Shipka
    Posts: 13
    #1822330

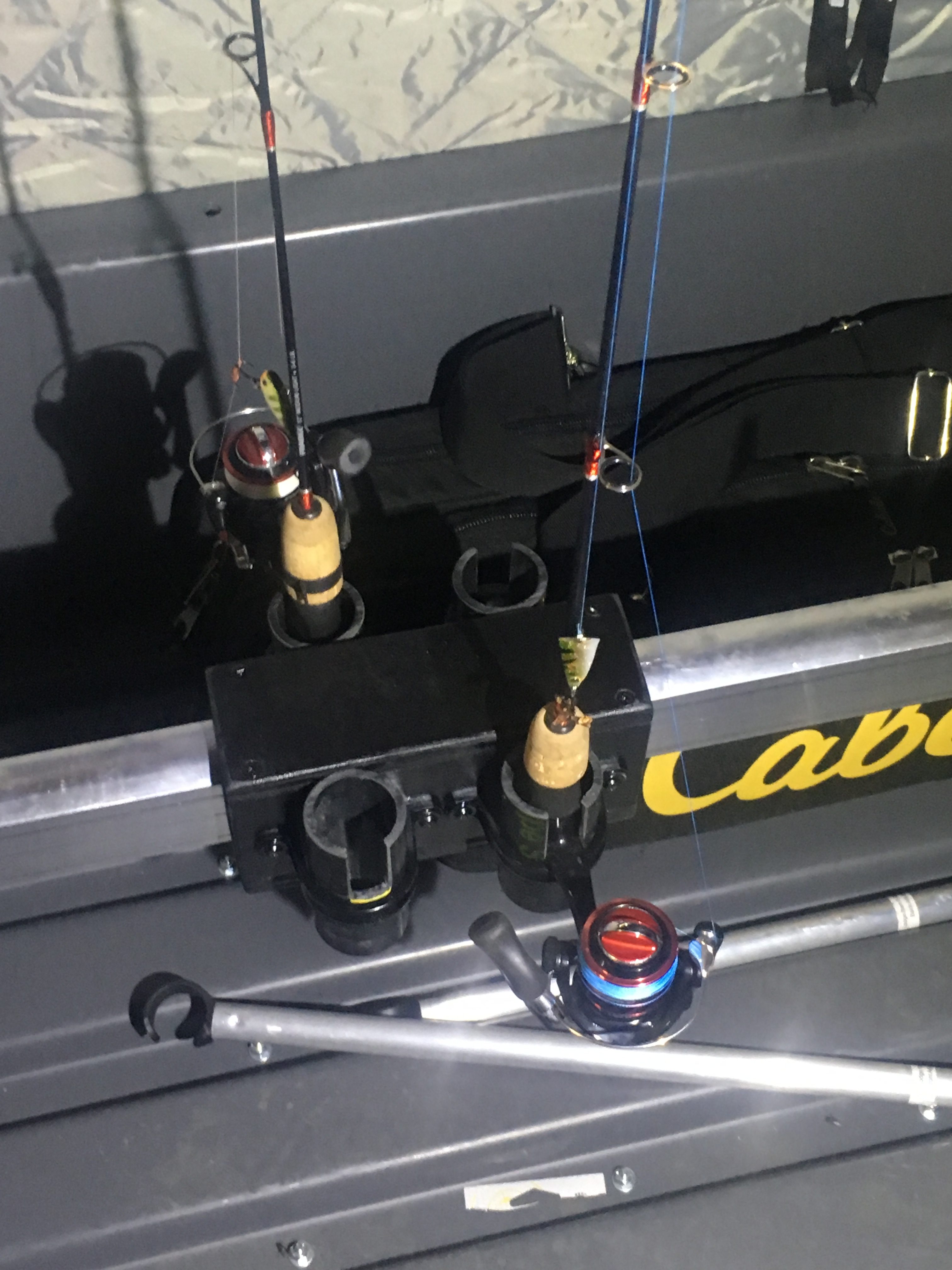

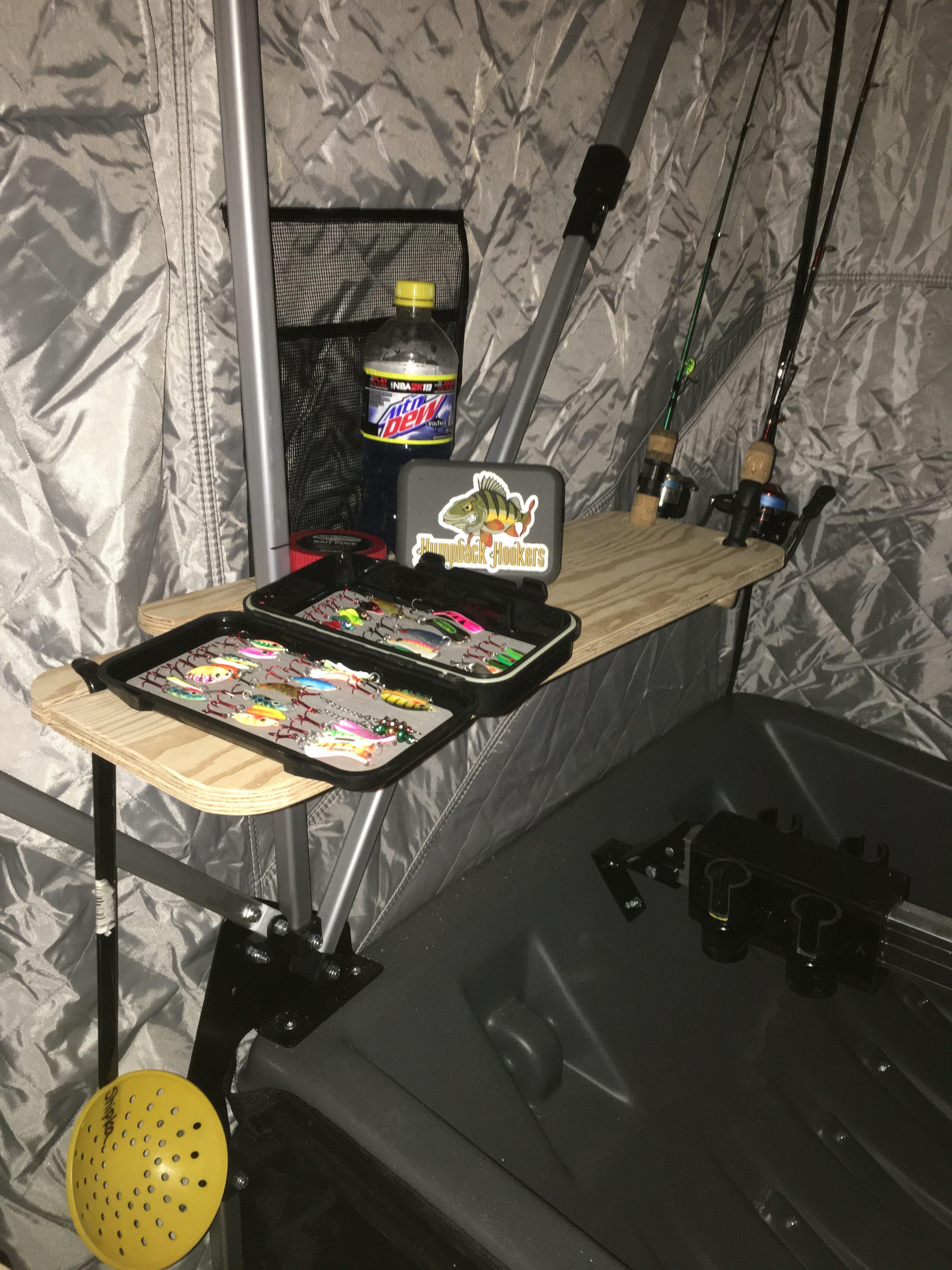

    Sliding rod holder and shelf. Can flipover with the rods still in the rod holders

    Attachments:
    1. IMG_3659.jpg

    2. IMG_3680.jpg

    al-wichman
    SE Wisconsin
    Posts: 448
    #1822367

    I just made a shelf like that myself on the 3D printer. I made mine with a holder for my battery that runs my lights. I may have to cut the slot for the skimmer in mine, I like that idea.

    Rick Sonnenburg
    Posts: 6
    #1822452

    Wow !! Sure like the shelf idea . Nice job !! Do you have a pic to show how to cut the notch’s to fit around poles???

    Thanks

    Bearcat89
    North branch, mn
    Posts: 20356
    #1822613

    Yes show a few pics if pollible. I also really like that table design

    Brian Shipka
    Posts: 13
    #1822644

    The slot for the poles to slide into is 3/4″. The total length is 26″. The total width is 10″. I’ll take some more pics of the shelf tomorrow.

    Brian Shipka
    Posts: 13
    #1822849

    Top view

    Attachments:
    1. B1075429-851B-43CB-8987-AA2B227E2136.jpeg

    Brian Shipka
    Posts: 13
    #1822852

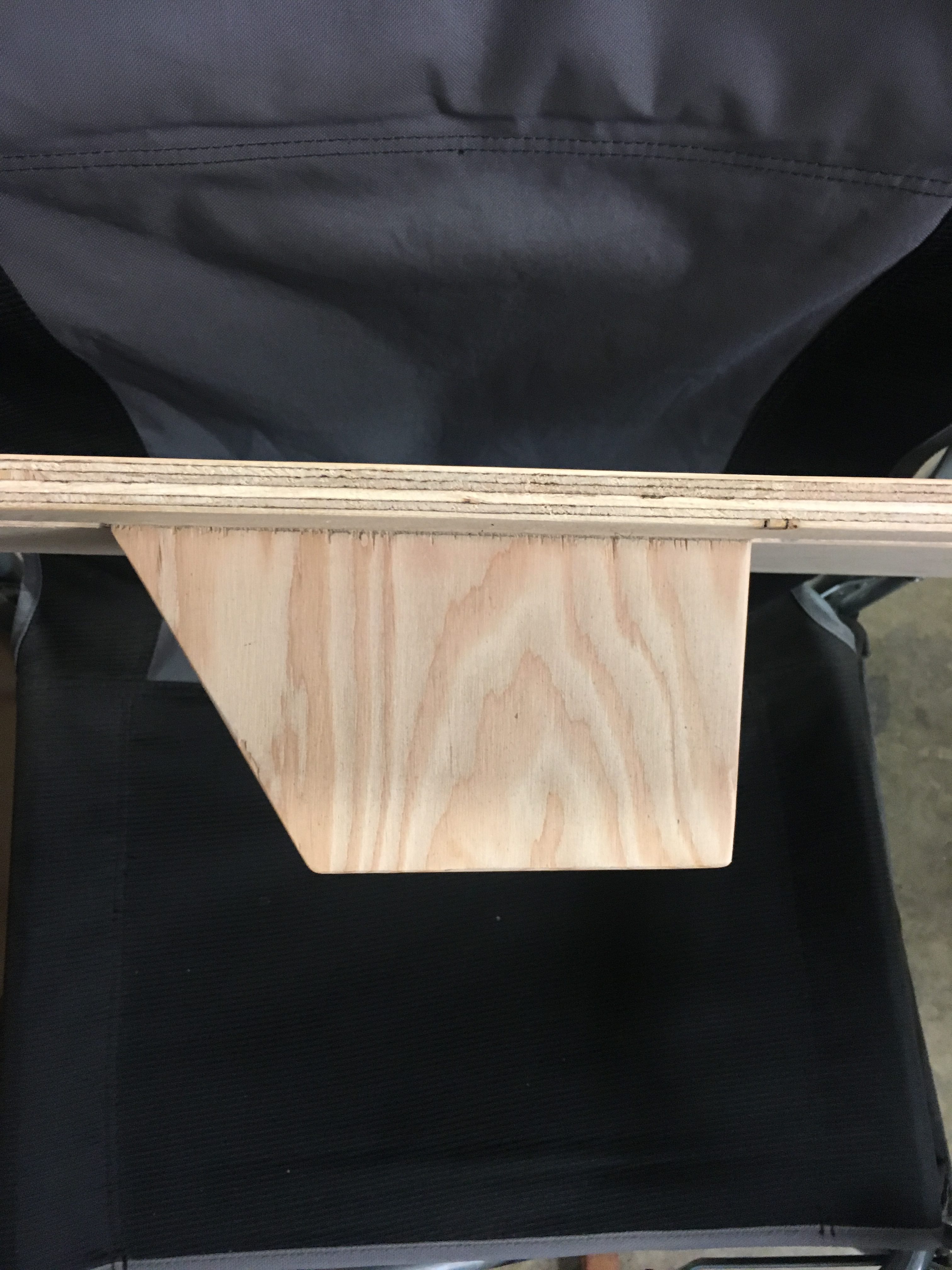

    Lower side. Need this to keep it forward and back because it’s not using three poles. It fits tight between the poles when lowered down

    Attachments:
    1. 374AB6E3-B875-468D-B976-E2B7DA34A7BA.jpeg

    Denny O
    Central IOWA
    Posts: 5821
    #1822874

    Brian, I see taking it one step farther by adding an extending piece to each end of your tapered bottom part to help the tray setting level across its width. Let the tray as it sets down on the 2 poles also rest against the laterialy. Clear as black mud? ???

    Great idea!

    Brian Shipka
    Posts: 13
    #1822914

    I get what your saying. I tried it by just clamping the piece your mentioning on to what I’ve got when I built it. But with how tight the tolerance is where the poles are it didn’t seem to add much more support. That’s why the plywood is thicker so it doesn’t tilt down.

    Brian Shipka
    Posts: 13
    #1822915

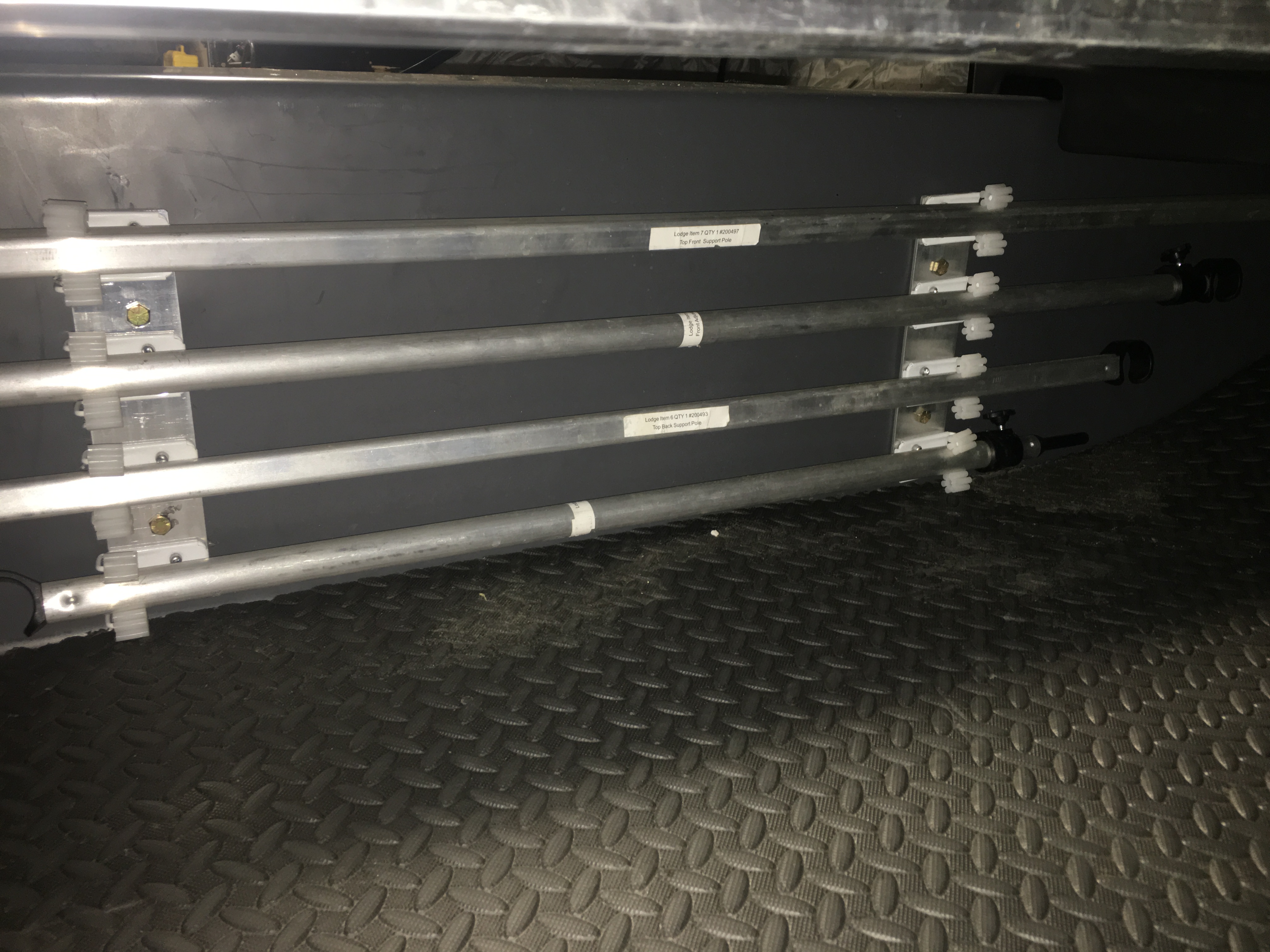

    Also did this. Seen it on another site. Not my idea. But it’s awesome way to keep the wind poles organized and out-of-the-way

    Attachments:
    1. BECA8653-3F2E-4F7B-BC14-036F77E88950.jpeg
