A Side Imaging look at submerged navigation “cans”

  • jhalfen
    Posts: 4179
    #1295038

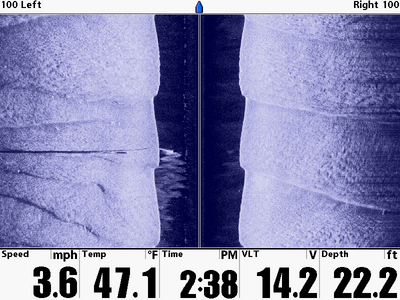

    On a recent trip to Pool 4, which is currently crawling back into its banks, I identified a number of submerged navigation buoys (cans) that had been overtaken by the rising river waters. These cans (particularly the ones that don’t occasionally bob above the surface) pose significant hazards to navigation. I came close enough to several to capture some nice Side Images with my Humminbird 1197. As you look at these images, note that the can, its chain, and the sonar shadows from both are generally clearly visible. For a few of the cans, the turbulent, bubbly water downstream of the cans, caused by the can bouncing around in fast water near the surface, is also apparent.

    Take it easy out there, and don’t wreck your day by glancing off one of these submerged cans.

    jhalfen
    Posts: 4179
    #859981

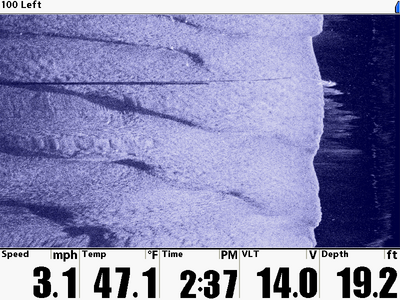

    Here’s another, with a prominent bubble trail on its downstream side.

    jhalfen
    Posts: 4179
    #859982

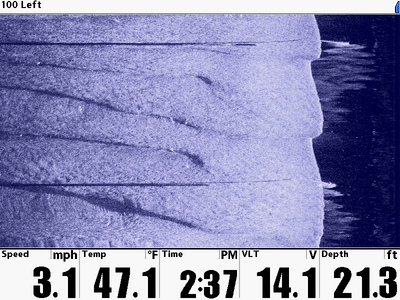

    A little upstream of that previous can was another. Here’s a look at two cans in a row.

    jhalfen
    Posts: 4179
    #859983

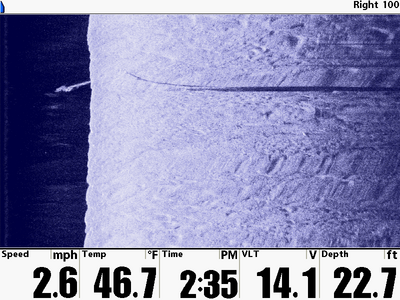

    One last pic of a single can on the port side.

    Brian Robinson
    central Neb
    Posts: 3914
    #859997

    Real nice, Jason. These images never cease to amaze me.

    fireman731
    Miles, Iowa
    Posts: 574
    #860008

    So…are these red or green bouys ! Sorry…just had to see if a pointed bouy has a different bubble trail than a flat top bouy.

    jhalfen
    Posts: 4179
    #860019

    Quote:


    So…are these red or green bouys ! Sorry…just had to see if a pointed bouy has a different bubble trail than a flat top bouy.


    Very perceptive!

    The first one is red. The rest are green.

    KirtH
    Lakeville
    Posts: 4063
    #860084

    They hurt when you hit one underwater, not me, seen the results though
