what do weeds look like

  • basscatmark
    Posts: 3
    #1294870

    I have a 141c and I wondering if anyone had any screen shots of what sparce weeds and grass would show up like in water less than 20ft.

    thnx mark

    jhalfen
    Posts: 4179
    #802488

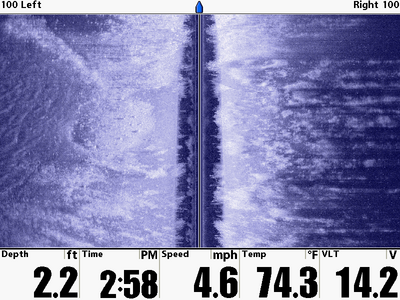

    How about a weedy bay, with an open spot in the middle, that is 3-4 feet deep?

    jhalfen
    Posts: 4179
    #802914

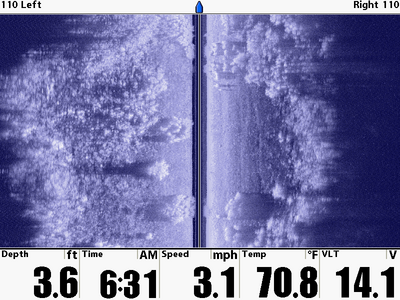

    Here’s a bay with scattered cabbage and coontail (and an isolated patch of gravel). Most of the bay is 6-7 feet deep….shallower at the time that I snapped the screen capture.

    basscatmark
    Posts: 3
    #802917

    thnx for the reply, my bad I know this is a SI forum but I was wondering what they would look like on 2d sonar like on my 141c

    thnx mark

    jhalfen
    Posts: 4179
    #802926

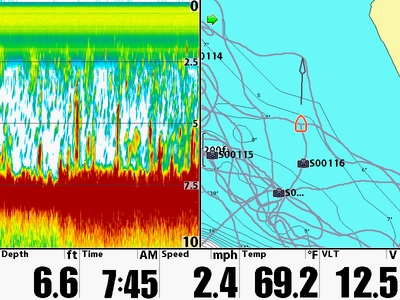

    Here’s some short stuff…cabbage mostly

    jhalfen
    Posts: 4179
    #802927

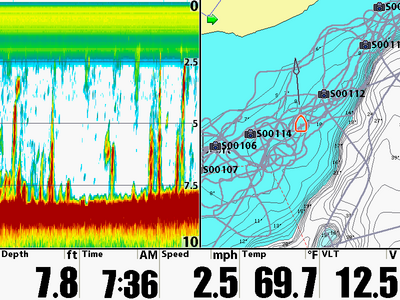

    Taller stuff….cabbage again, but a month later than the last pic.

    I wonder if anyone can guess the lake

    jhalfen
    Posts: 4179
    #802928

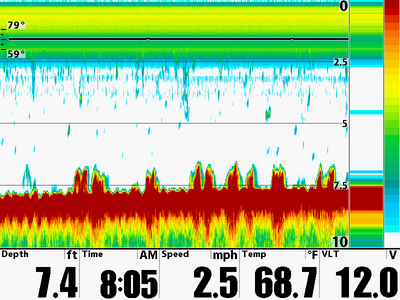

    More of the same.

    Does this help??

    basscatmark
    Posts: 3
    #802932

    thnx jason, But why do the weeds look red I thought red was for denser returns like rock and wood! also in that 3rd pic what are the long green returns

    mark

    absolute2ks
    Chippewa Falls, WI
    Posts: 674
    #802951

    I beleve that yellow is the hardest return on the HB’s
