HB Network Hub

21 WX 2060 should be shipping next week. Will have 3 12″ birds and the Ulterra, wondering if anyone knows where Skeeter installs the Network Hub so I can get the right lengths of Eternet cable coming now. Also wondering if anyone has fit 5 batteries in the floor or if everyone is putting the 5th in a back compartment?

I have a 20 WX2060, my hub is mounted under the dash on the drivers side.

5 batteries will not fit in the floor.

Thanks guys, I got the ethernet’s ordered. Too bad on the in floor not fitting a 5th battery.

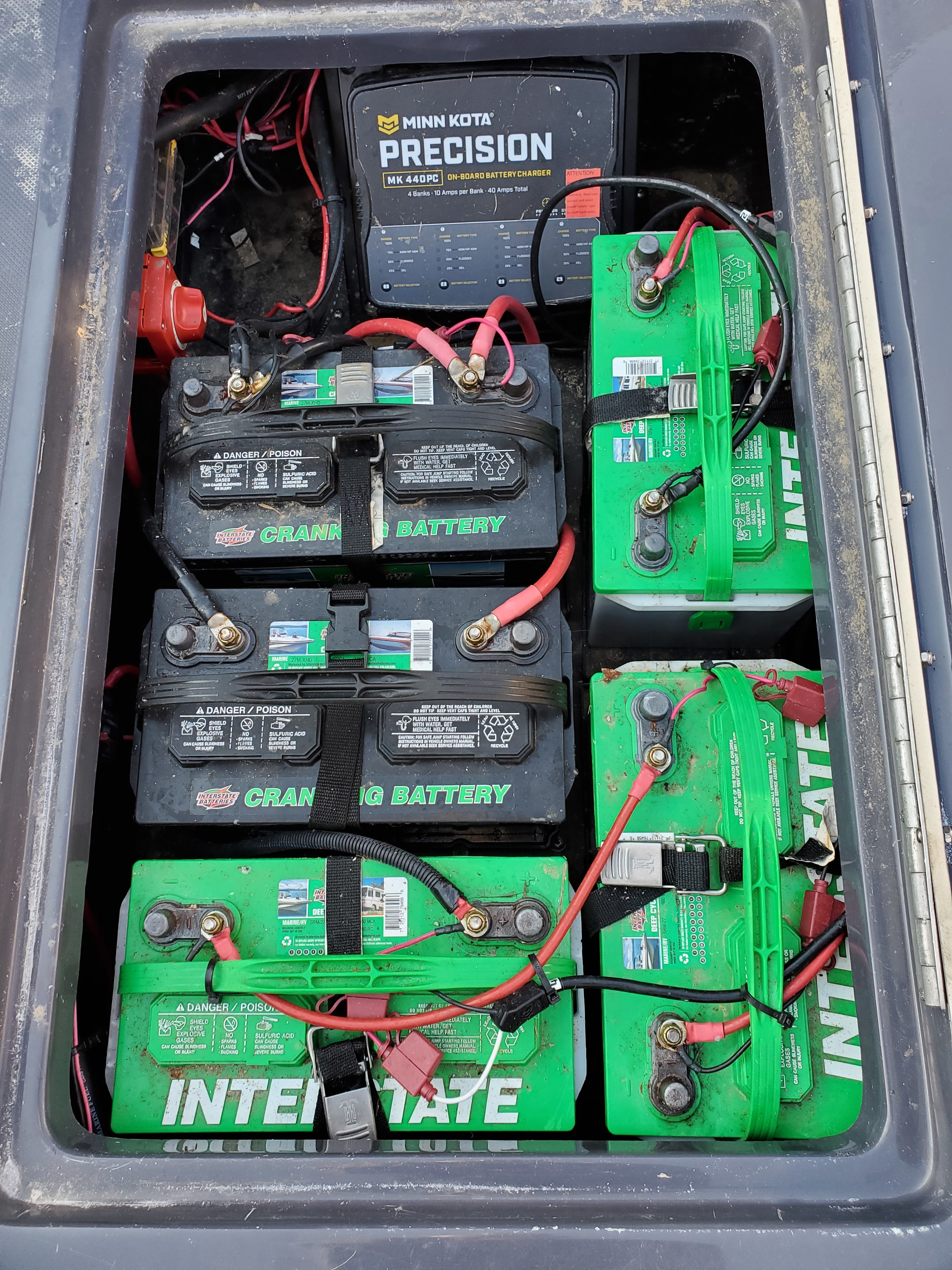

I have 5 batteries in the floor of my 2020 WX2060.

Attachments:

1.



Ryan, that’s a very interesting picture. What size are your batteries? All 31’s, or 27’s? In my 4 battery stock setup on my 2200, my charger is totally hidden by the starting battery.

When I zoom in I can see they are all group 27’s. I don’t know if I’ll fit 31’s it looks pretty tight. But I wouldn’t mind doing 2 27’s like that if the 31’s would fit around the outside like his green top ones.

Does anyone have power issues running 3-12’s on the one house AGM 31?

They all are 27’s. Just looked with a magnifier.

I have 5 in mine, not sure what size, I’ll check

4 – 31’s and one 27. But it looks like 5 31’s would easily fit.

Attachments:

1.
