Garmin side imaging

Can someone post some real time pictures you took of fish , fish only on garmin side imaging ? From the Mississippi better. Also post GT 54 vs 56 transducer . See example below of humminbird . Thanks

Attachments:

1.



2.



there are tons of youtube videos on this topic

I’ve watched video above – seen a few YouTube videos . Looking for real life examples Mississippi River . Doesn’t look the gt54 transducer is very impressive.

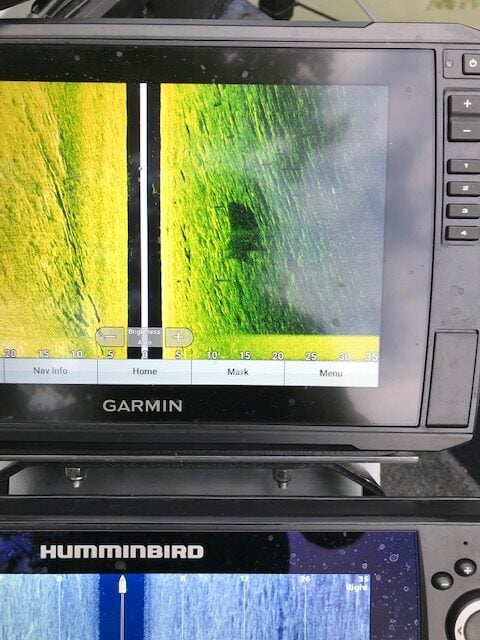

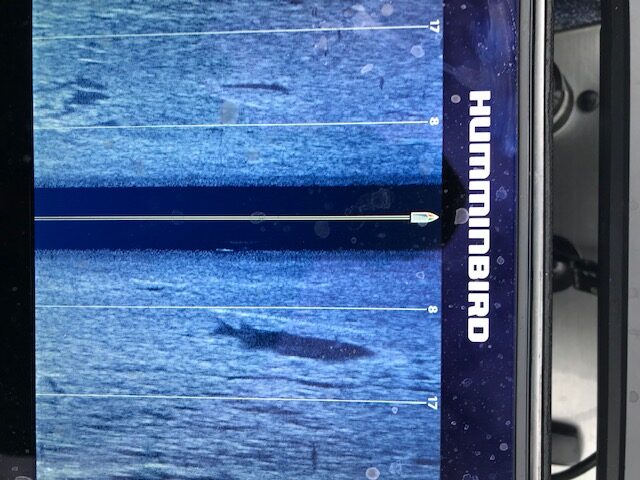

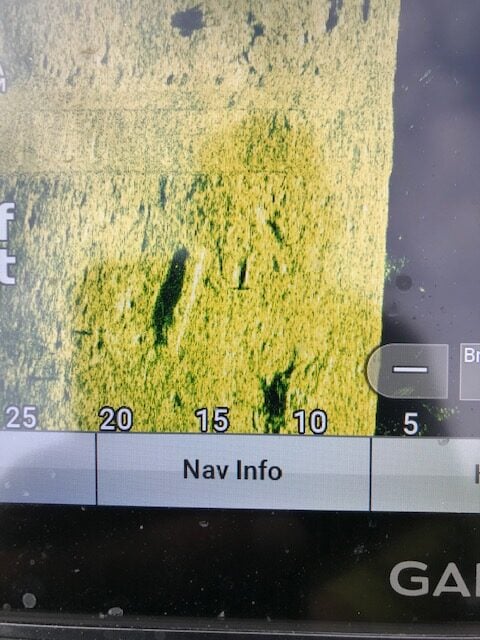

Not the Mississippi but our muddy lake. Using a GT54. Those are Musky. Two Garmin 106SV pics and one HB Helix 10. The Garmin transducer is on my trolling motor and the Helix is linked to a 9 Mega on the transom.

Attachments:

1.



2.



3.

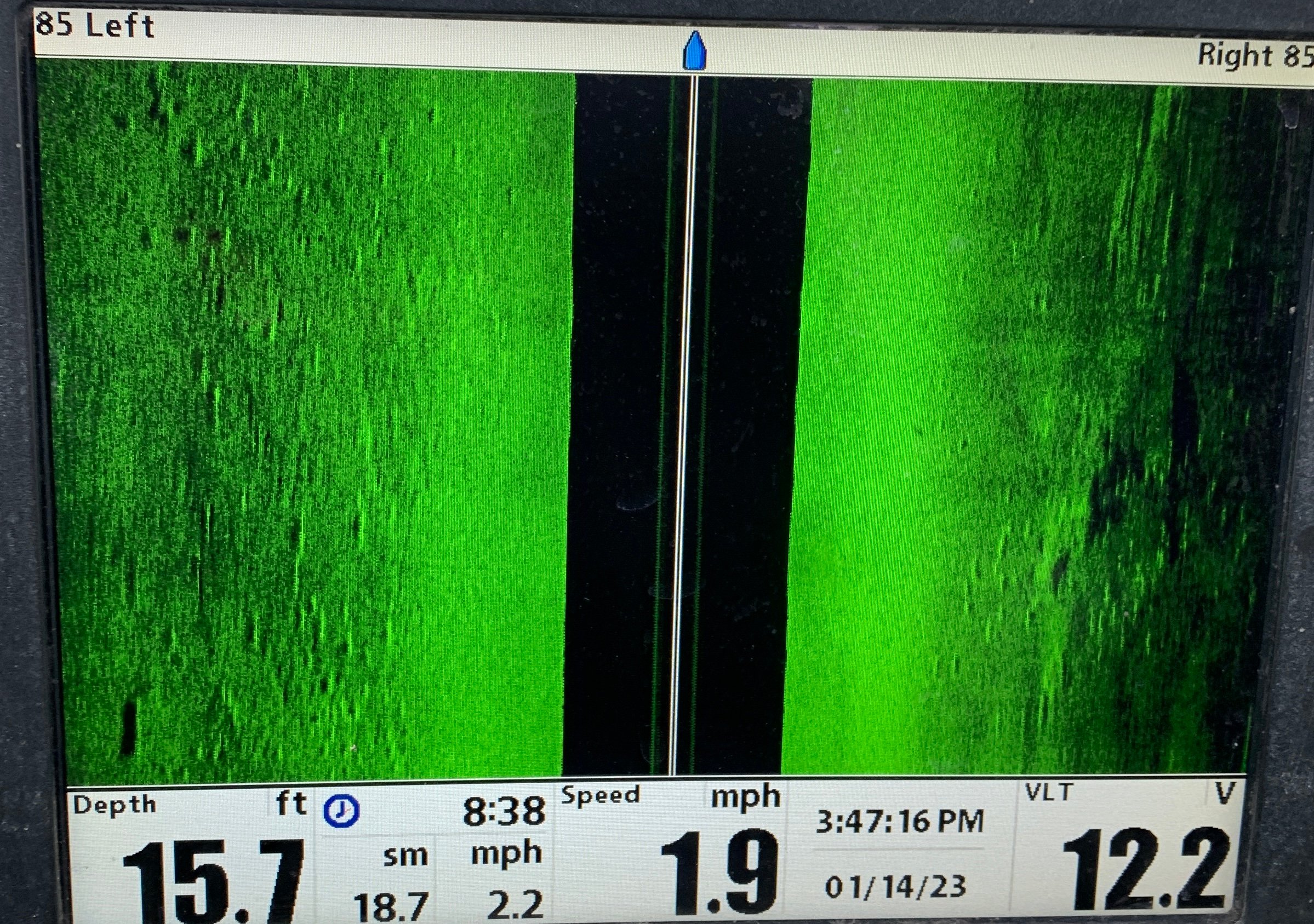

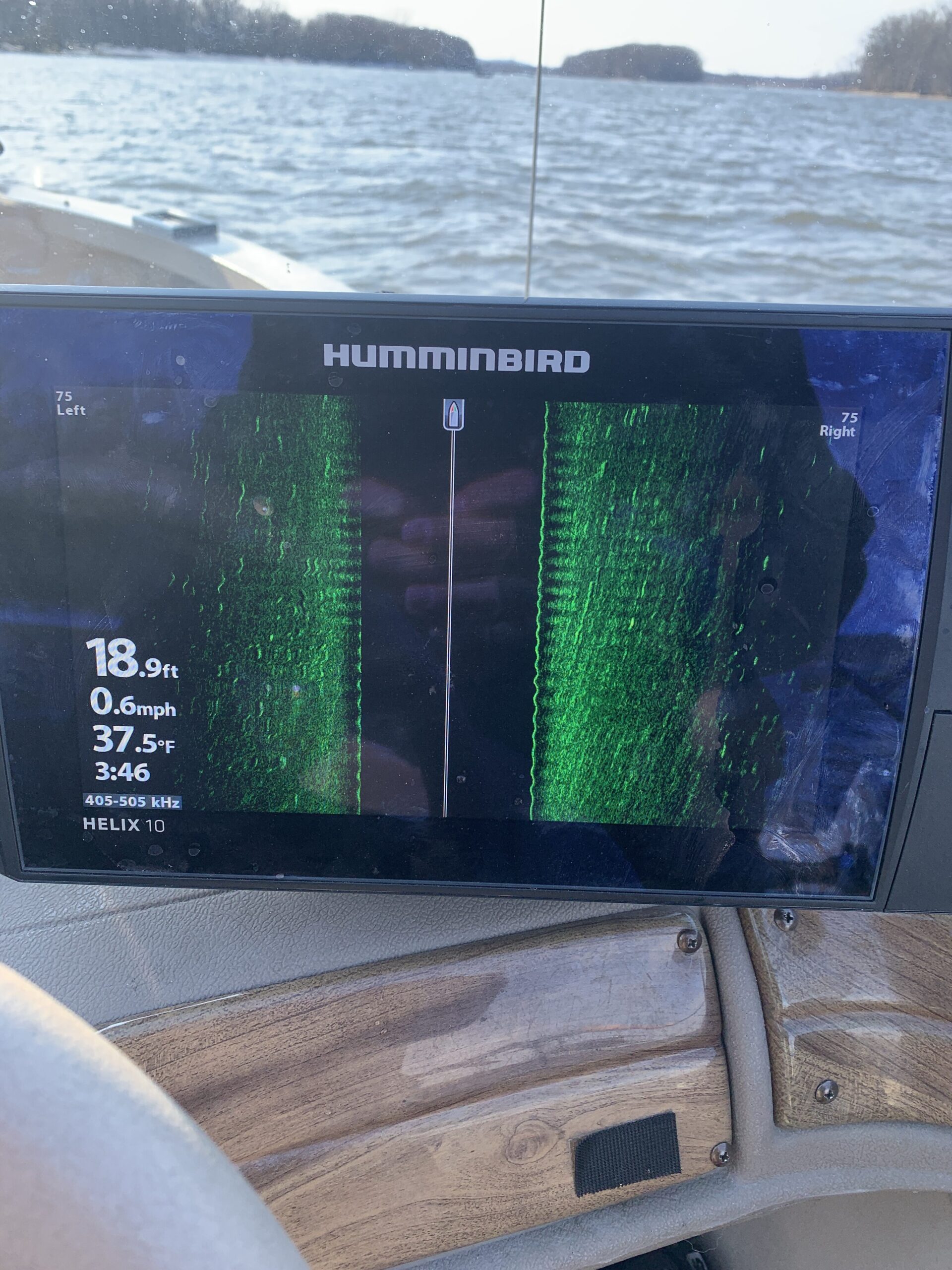

Appreciate the response . From last fall .

Attachments:

1.



isu22andy wrote:

I’ve watched video above – seen a few YouTube videos . Looking for real life examples Mississippi River . Doesn’t look the gt54 transducer is very impressive.

It’s not…..no pictures but I have a helix mega si and gt54 Garmin on my dash…The gt54 si picture is probably even worse than my gen 1 hummingbird was and not even close to mega si

Andy, it appears your on the 455 kHz frequency, change it to mega if you have atleast a Gen 2, if a Gen 1 then bump it to the 800khz.

Justin Laack wrote:

Andy, it appears your on the 455 kHz frequency, change it to mega if you have atleast a Gen 2, if a Gen 1 then bump it to the 800khz.

Actually I have a G4 . Seems like I can’t get the fish to pop in mega . Do you have any screen shots or settings maybe I should try it again ?

Andy

I run 455 almost all the time also. Pretty pictures of the bottom does not put fish in the boat. Seeing fish easier and farther from the boat, in my opinion does. Flip it over to mega to see structure in more detail and that’s about it.

This screen shot is from this video.

Attachments:

1.



Yup, there’s a fairly significant difference between the GT34/54 and 36/56 transducer. I don’t have any screenshots but my GT36 is a huge improvement over what I used to see on the 54.
