Fly In Fishfinder/GPS

  • cal74
    Posts: 68
    #1858054

    Looking at doing my first fly in this summer.

    Without breaking the bank, I’d like a graph of some sort with GPS.

    Thoughts on something that is conservative on batteries and how are you mounting the trandsducer?

    Thank you

    Matt Moen
    South Minneapolis
    Posts: 4257
    #1858121

    Get the garmin striker 4 portable. I use that for fly in trips. Comes with a transducer suction cup to mount on a transom and the battery lasts along time. You can buy a spare battery if you can’t charge or bring a small solar charger.

    Ron
    Victoria, mn
    Posts: 810
    #1858123

    Screw the transducer to a vertical 1×4 board and use a C-clamp to clamp the board to the transom. Most fly-in cabins now have solar power for the lights and water pump. Take along a few feet of red and black wire with alligator clips and recharge your battery off the cabin’s battery overnight.

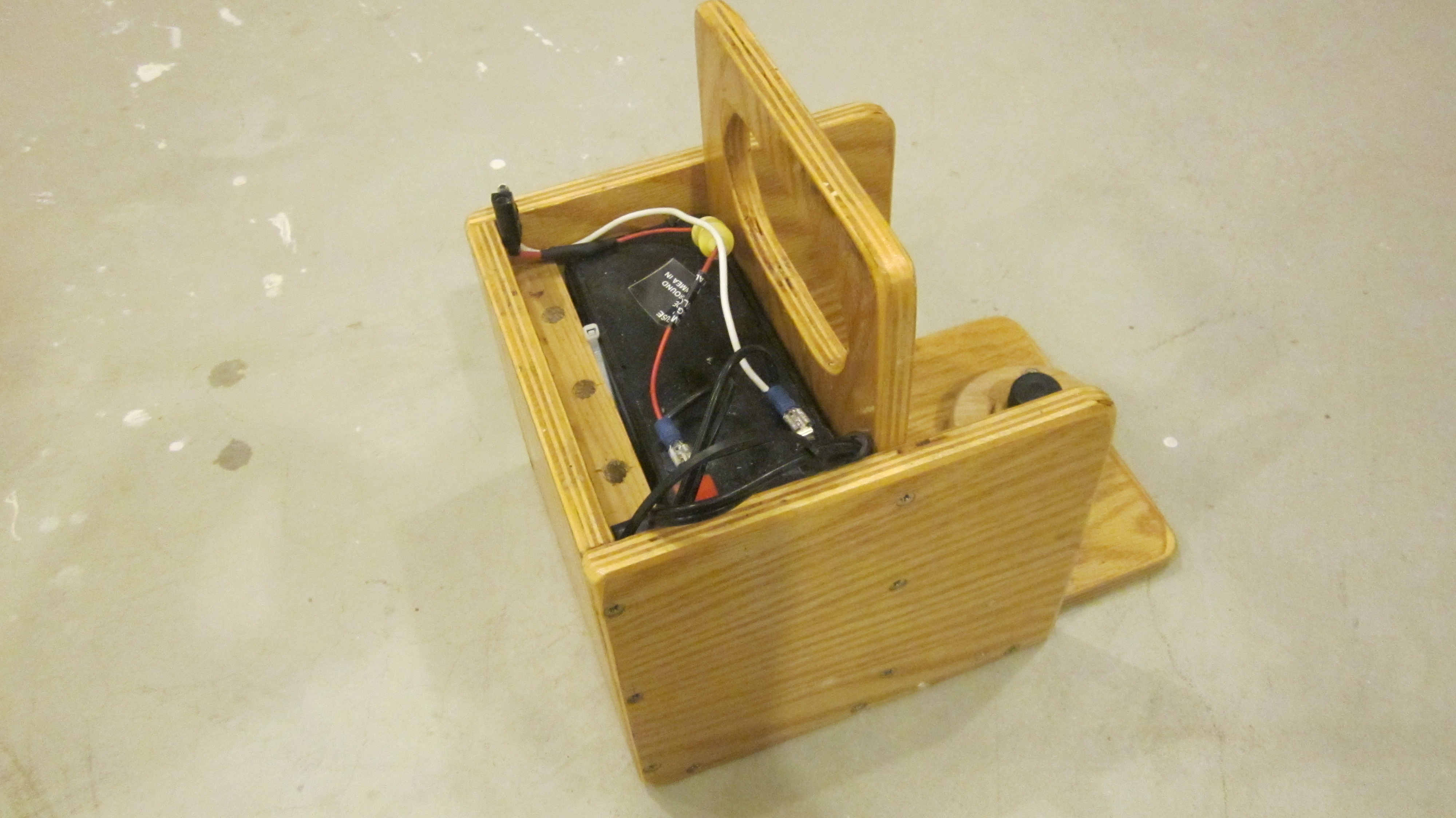

    Below is the box I made for my sonar and battery. Make your own to fit whatever unit you use.

    Attachments:
    1. IMG_0949-Sonar-box-03.jpg

    Matt Moen
    South Minneapolis
    Posts: 4257
    #1858130

    Ron, that’s nice engineering but seems like overkill when you can buy a complete portable unit with suction cup transducer for $150.

    Would make sense if you were using the graph from your boat?

    Ron
    Victoria, mn
    Posts: 810
    #1858142

    Would make sense if you were using the graph from your boat?

    Of course that’s what I did. All it cost me was some scraps of plywood. Why buy a whole new unit if you have one you can adapt?

    Brian Klawitter
    Keymaster
    Minnesota/Wisconsin Mississippi River
    Posts: 59992
    #1858150

    So did anyone address the fly in your fish finder?

    Huntindave
    Shell Rock Iowa
    Posts: 3088
    #1858152

    So did anyone address the fly in your fish finder?

    Brian,

    It’s called a “bug” in your fish finders computer. But I heard that it was a moth not a fly. toast

    Matt Moen
    South Minneapolis
    Posts: 4257
    #1859037

    Screw the transducer to a vertical 1×4 board and use a C-clamp to clamp the board to the transom. Most fly-in cabins now have solar power for the lights and water pump. Take along a few feet of red and black wire with alligator clips and recharge your battery off the cabin’s battery overnight.

    Below is the box I made for my sonar and battery. Make your own to fit whatever unit you use.

    Ron, how did you run power to the graph? I didn’t realize I have an extra transducer for my garmin 73sv. I have the transducer mounted to a suction cup for the transom. I just need to figure out power? I assume you are running a fuse in-line?

    I have a few portable batteries so this seems like and easy deal to get together.

    Ron
    Victoria, mn
    Posts: 810
    #1859124

    Because I had an older sonar that went belly up, and I bought a new one of the same brand, I had an extra power cord. Otherwise, check Fleet Farm, I know they stock some power cords, don’t know if they have Garmin. Or there’s always Amazon. Fuse at the battery, red to red, black to black.
