Ethernet question

  • rjthehunter
    Brainerd
    Posts: 1253
    May 1, 2020 at 1:17 pm #1939178

    So I have a hds at the bow with the trolling motor and one in the back at the tiller. I have them networked via ethernet and nmea. I can run either sonar on either unit and am able to share everything as I should be. Question now is can I run separate transducers? I have a terrova with the US2 and I would like to run the front unit off of that and the rear unit off the other transducer. I can switch between transducers to either the front or rear but I can’t run them separate. If I switch to the front transducer, it changes both units to front. Is there something I’m missing?

    Cody Meyers
    Posts: 430
    May 1, 2020 at 3:30 pm #1939203

    Yes, there is a setting if you go into your network options. On the front graph change your option for transducers to local instead of global.

    I’ll try to snag some photos shortly.

    Cody Meyers
    Posts: 430
    May 1, 2020 at 3:38 pm #1939204

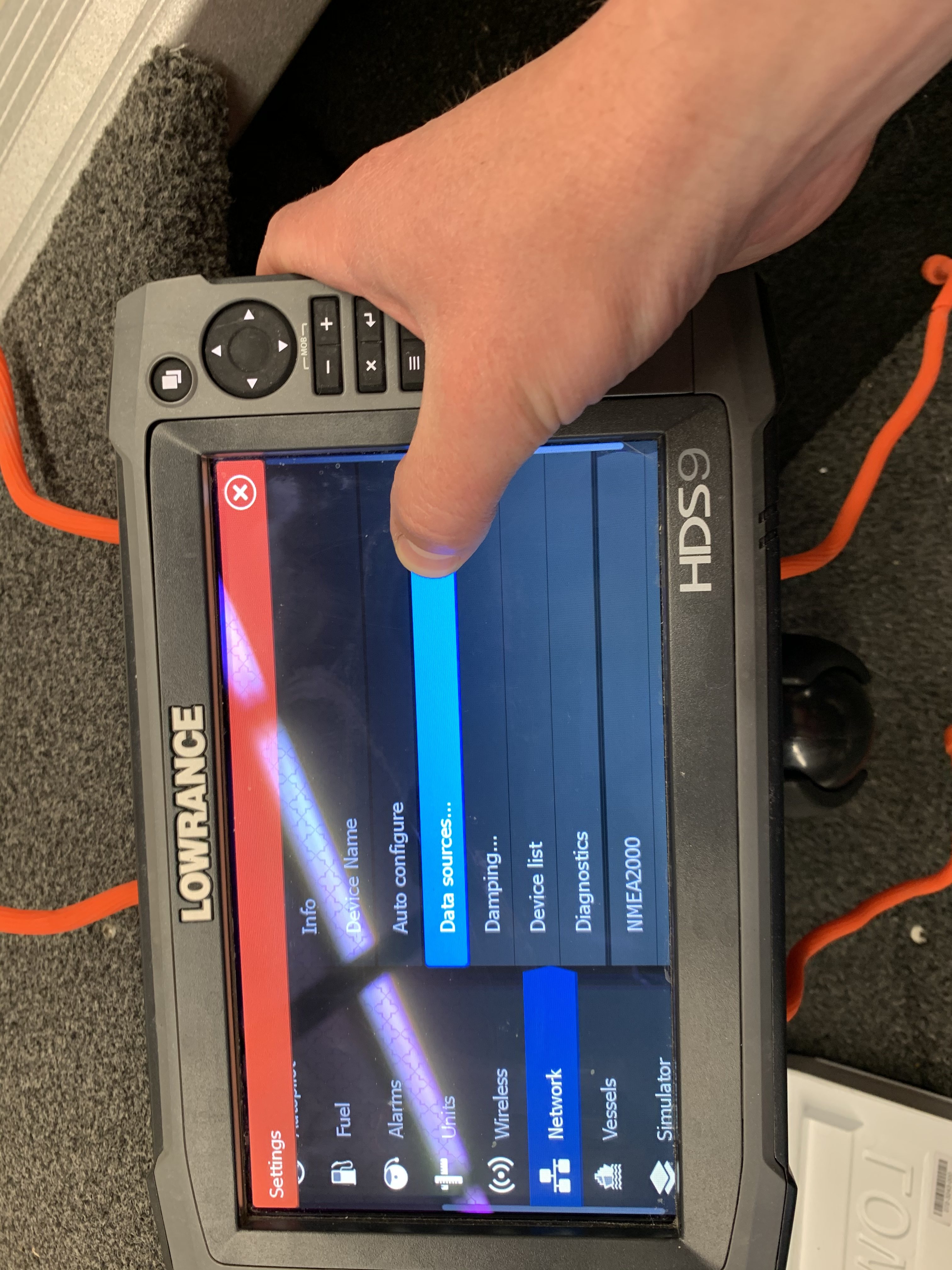

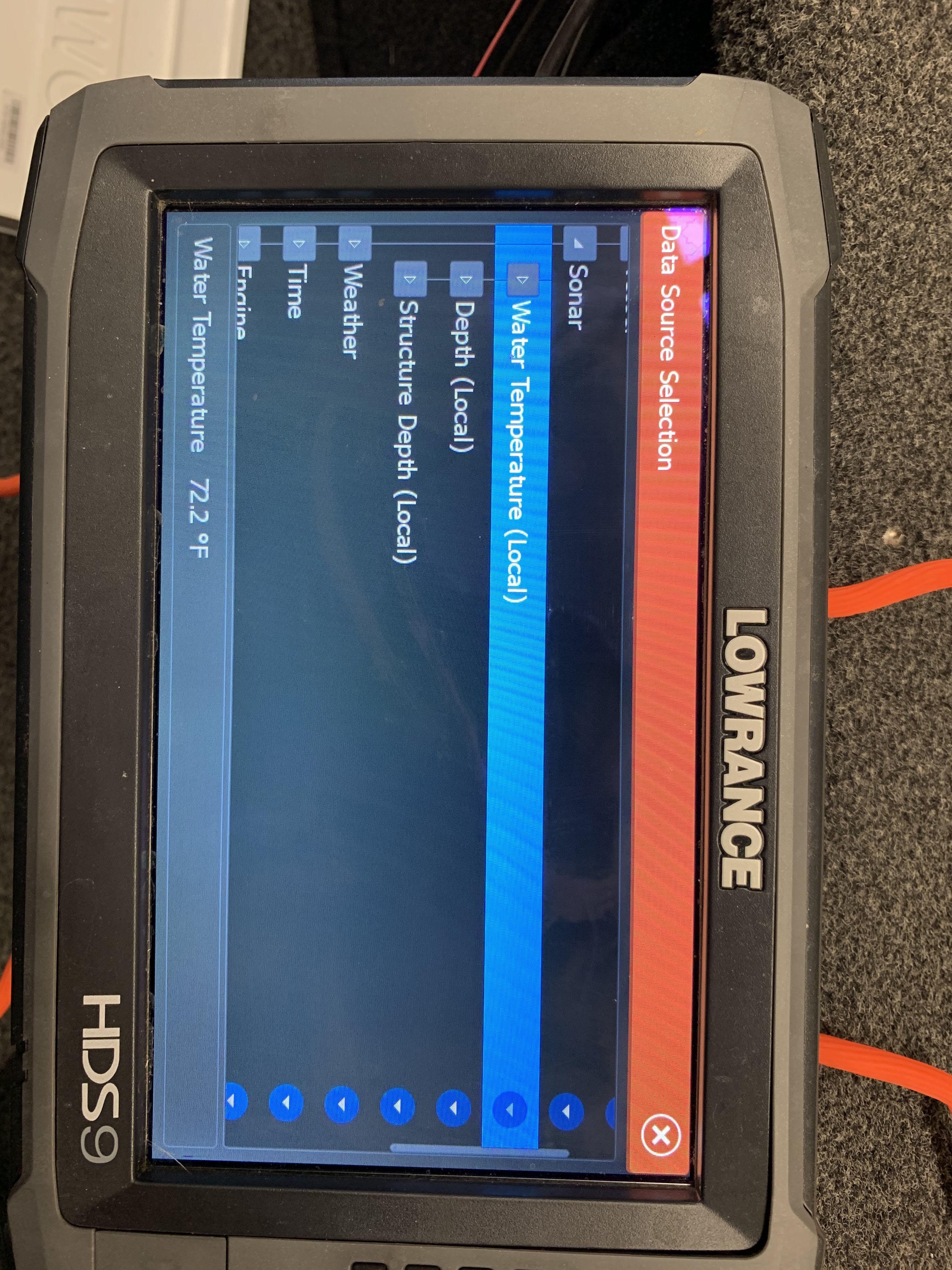

    Photos for reference

    Attachments:

    1. A5CB998F-7DF7-4875-B043-95568538B9BE.jpeg

    2. BD2AEDD1-D9E8-4B0D-B334-56EF33652DB7.jpeg

    rjthehunter
    Brainerd
    Posts: 1253
    May 1, 2020 at 6:13 pm #1939246
    Cody Meyers wrote:

    Photos for reference

    I’m try that, thanks! My hope is to use it to help trolling on steep breaks so I can see what’s coming up and adjust accordingly
