Depth Finder Mounting

I am in the process of buying a WX2060 and I was wondering if any body would pictures dual depth finders mounted on the dash. The boat comes with a HDS12 and want to add a Humminbird Helix

Here is 2 9’s on my WX2190. My dad has this same setup on his WX2060.

Attachments:

1.



Thanks for the picture. Did you use Cisco mounts on both units? Do you know what height you used? Thanks again.

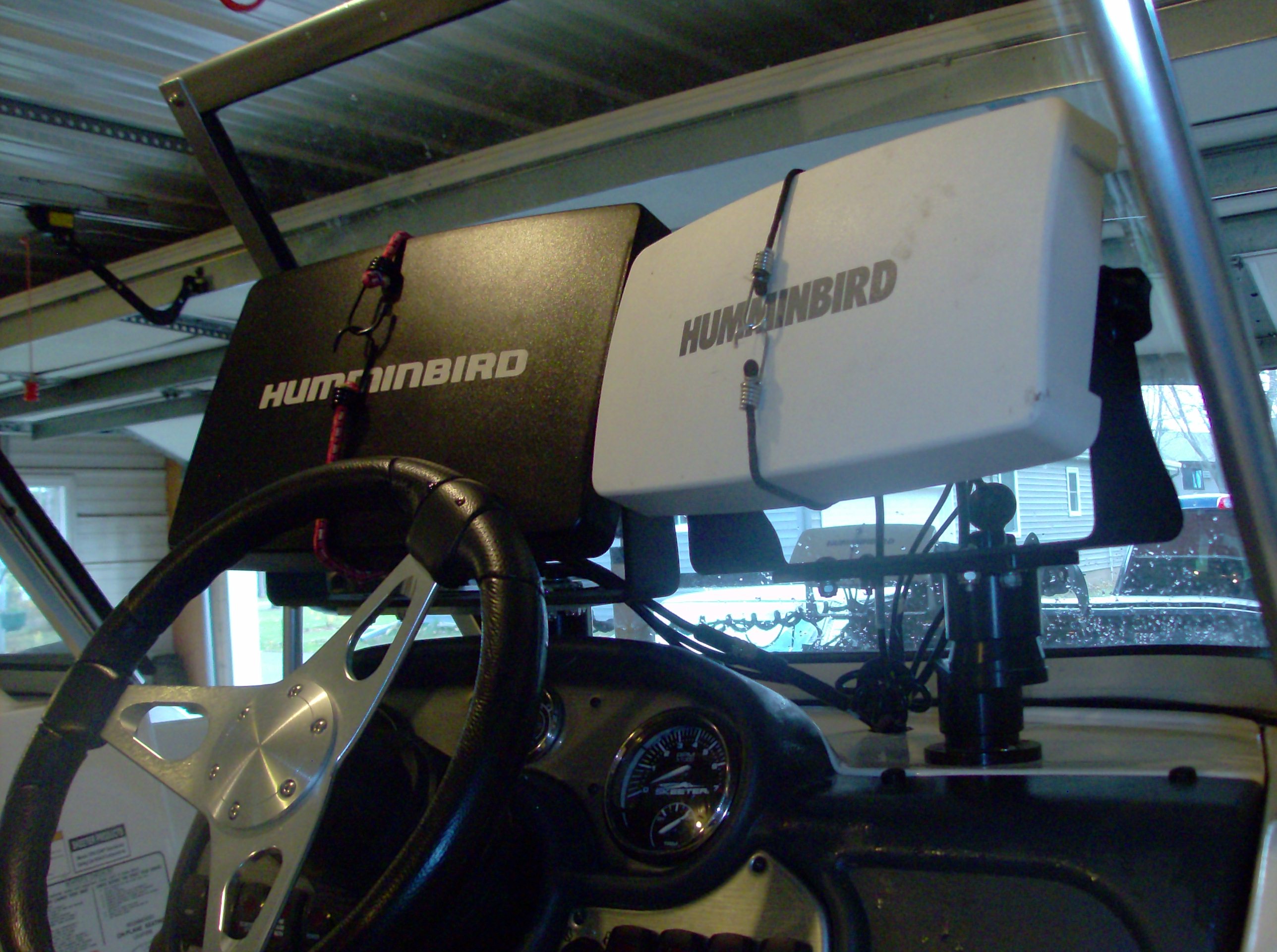

An 1159 and 898 on my MX 1825.

Attachments:

1.



Yes this year I went with 2 Ciscos. Years past I had a Cisco on the right and a Ram on the left. I used the standard height. I see now they have a short and tall available.

Here is a Helix 12 and onix 10 on a WX 1910, Cisco and Ram Swing Mount.

Attachments:

1.

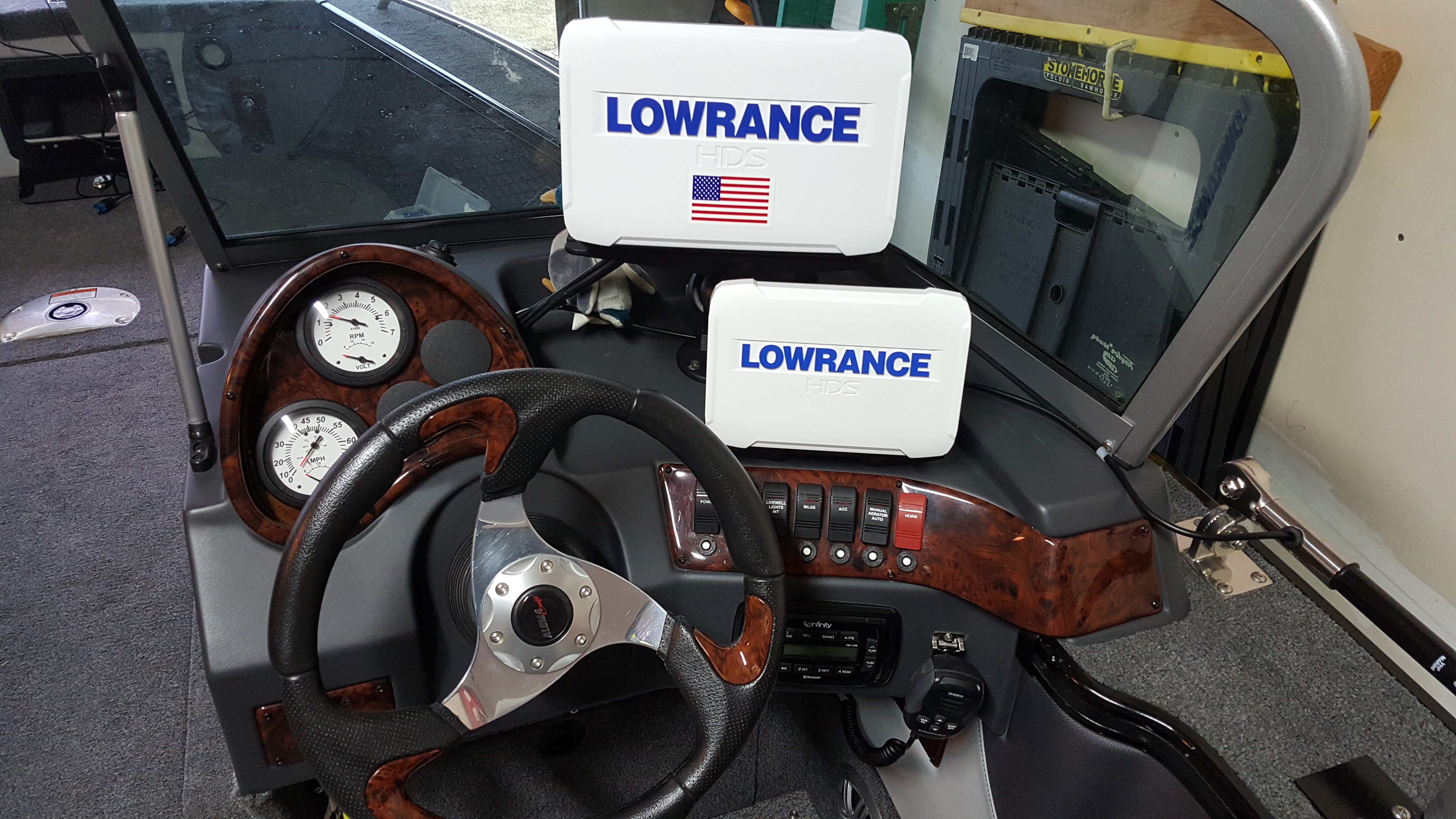

I mounted hds touch 9 and 7 on the counsel and the 7 can be moved to the bow on a long arm ram.

Attachments:

1.



Great picture; Did you use the short or standard Cisco mount? When I looked at RAM’s website there where various models of swing arms do you which one you used? While on the subject how about transducer mounting did you use anything like a Stern Mate or Stern Saver or did you just drill into the transom? I am going try and not drill any holes if possible. Thanks

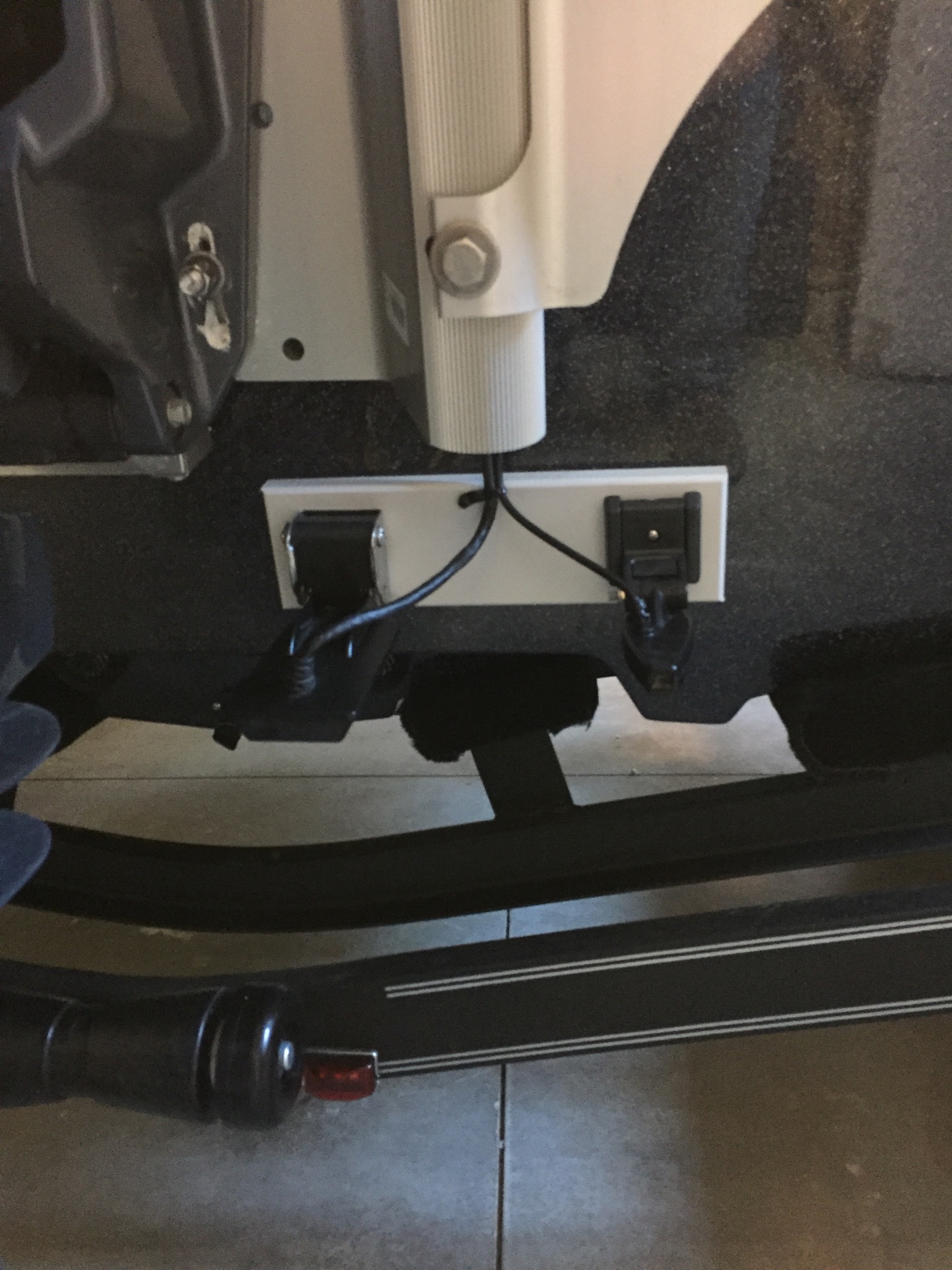

I used the standard Cisco Sure-Lok and the Ram-109-HU swing arm. I have the high speed transducer on the hull and the Down and side imaging transducers on a board.I have an Helix 10 upfront and linked to the Helix12, 360 and ILink Ulterra. the Onix is a stand alone unit. Skeeter Boat Center set it all up, so give them the credit. Eric and his team always do quality work!!!

Attachments:

1.
