John Paul Parker Posts: 4 June 14, 2020 at 11:53 am #1949893 Can you connect an 1198c with a helix 7 unit, if so then how?

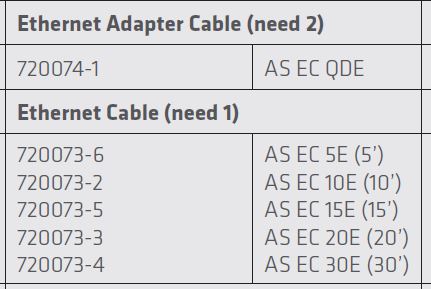

Hot Runr Guy West Chicago, ILPosts: 1933 June 14, 2020 at 12:24 pm #1949906 You need (1) AS EC QDE adapter cable, that plugs into the Helix, and (1) of the AS EC 5/10/15/etc E cables, that will go directly into the 1198. https://www.humminbird.com/support/installation-diagrams HRG Attachments:Hbird-cables.jpg
Tom P. Whitehall Wi.Posts: 3532 June 14, 2020 at 1:52 pm #1949924 There were Helix 7`s made that were not net workable is there an N on your Helix 7 as that designates net workable.
djshannon CrosslakePosts: 534 June 15, 2020 at 7:45 am #1950060 There were also 1198’s that don’t support Ethernet. You need a HD version
John Paul Parker Posts: 4 June 15, 2020 at 4:29 pm #1950210 No there’s not but it has a spot where some kind of accessory cord can be plugged in, do you have any idea what that would be for?
Wingman99 Elk River, MNPosts: 40 June 16, 2020 at 12:25 pm #1950466 The extra port on non networkable units is for an external gps puck.
Wingman99 Elk River, MNPosts: 40 June 16, 2020 at 12:26 pm #1950467 Yes, if its not a G2N or G3N it is non networking.
