Clean up your battery compartment

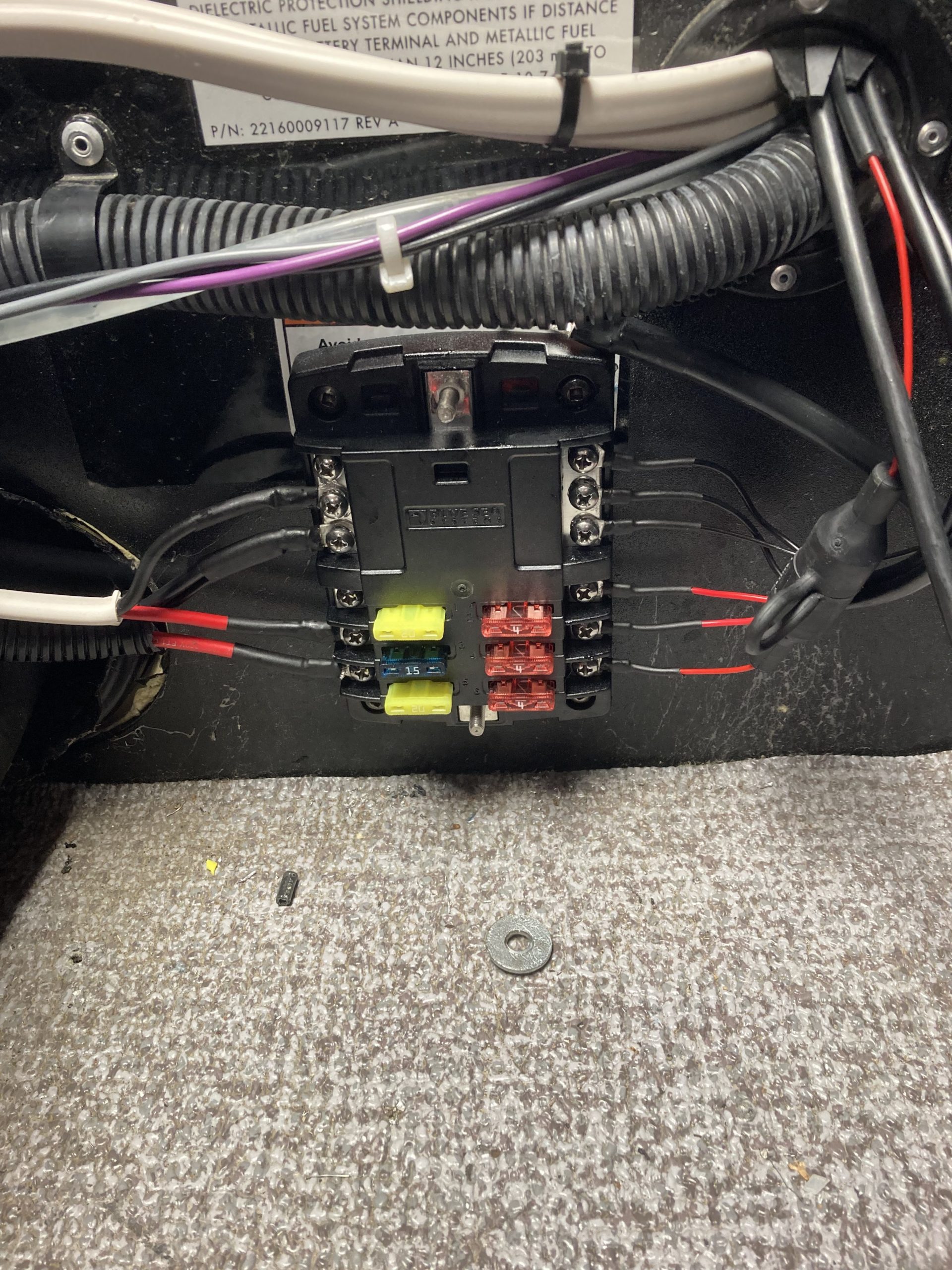

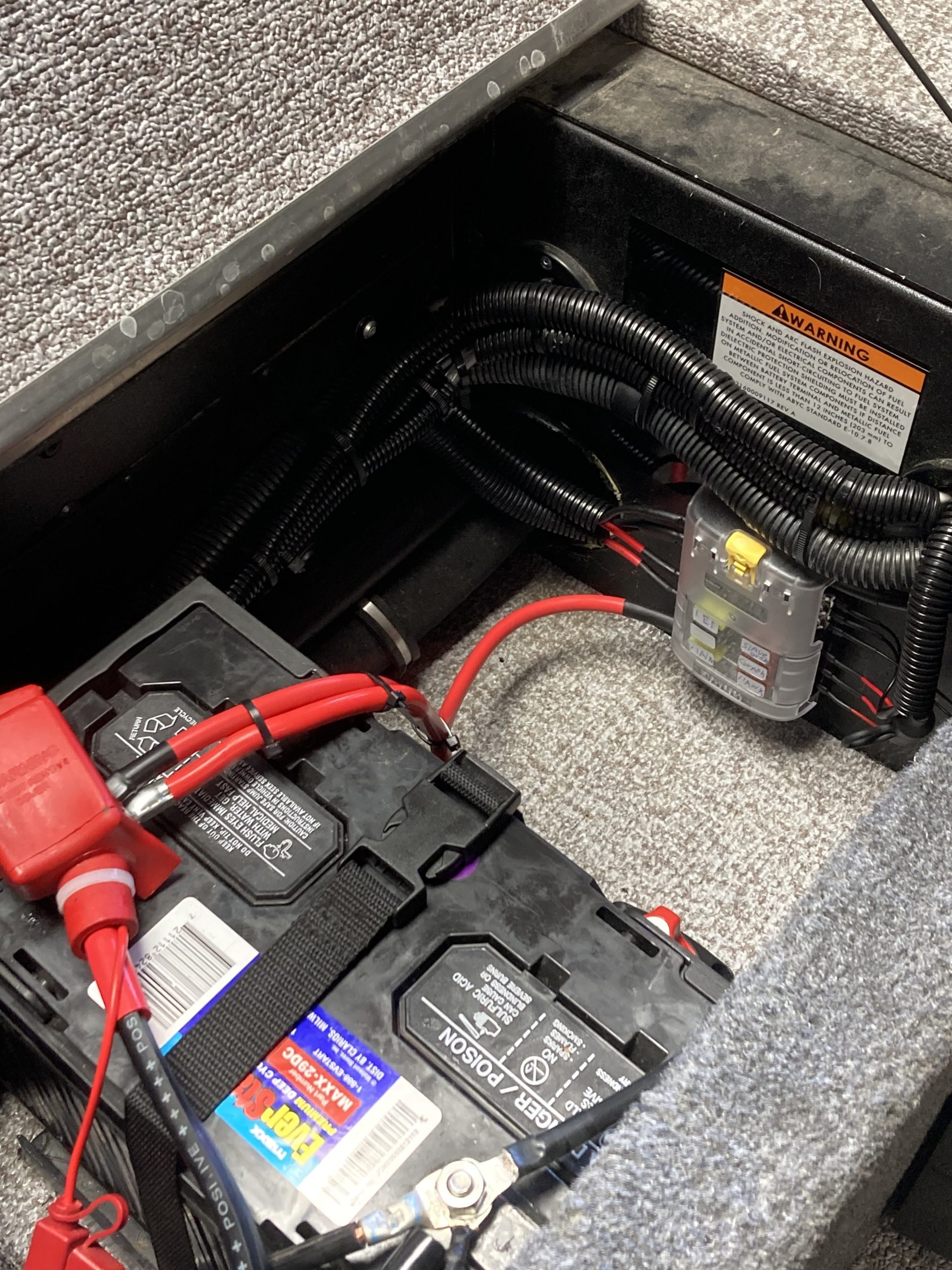

I installed a Blue Sea six circuit fuse bank. The bank is very nice, felt strong , and I was able to really tighten down on all screws. I was running out of threads on The battery and it was starting to get out of hand!

Attachments:

1.



2.



3.



Double post

Attachments:

1.



Yes! 2 wires per post.

HRG

Attachments:

1.

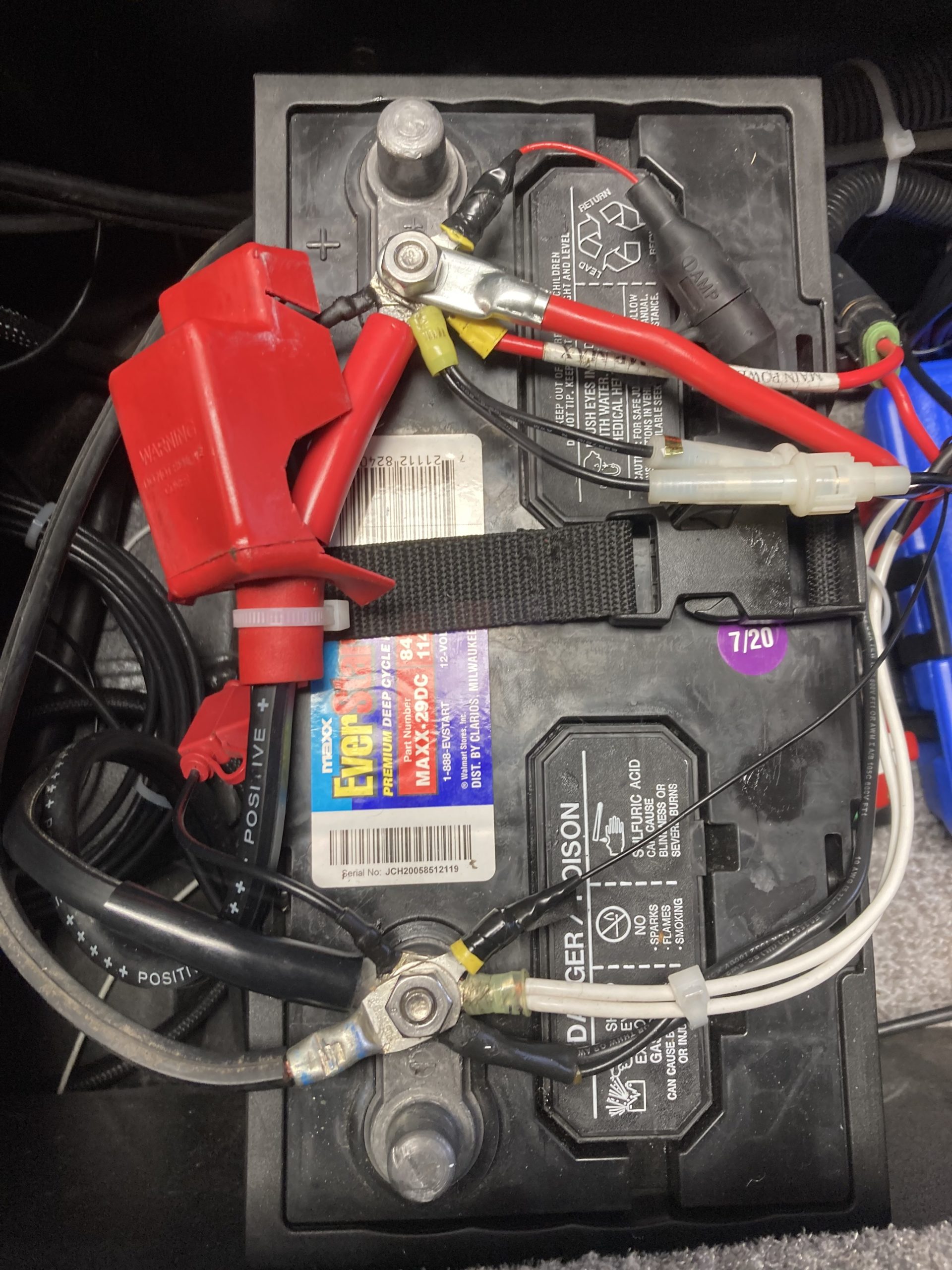

I just meant that I posted the picture twice! Lol. I don’t think I could get away with two wires per post. I have two outboard motors, the onboard charger, and the wires to the fuse block.

In your picture it looks like your onboard charger is connected to your fuse block ? I thought about that but didn’t know if that would be ok.

Gino wrote:

In your picture it looks like your onboard charger is connected to your fuse block ? I thought about that but didn’t know if that would be ok.

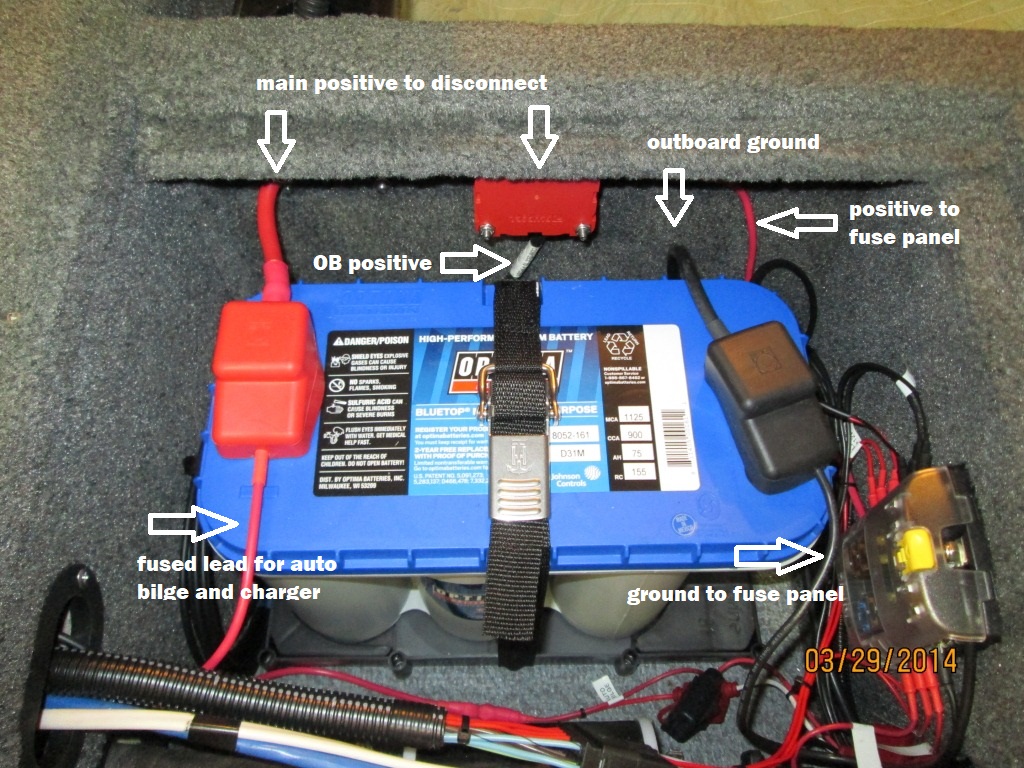

The negative charger lead was connected to the fuse block. The positive lead, as well as the positive feed for the auto-bilge pump, are connected together and run to the positive battery terminal. What I also had was a main battery disconnect switch, which the outboard positive & fuse panel were connected to.

HRG

Ahh! That makes sense, thanks.
