Looking to build a clamp style mount for the stock livescope pole.
If there are examples on the Garmin Thread I must have missed it. I did see one built from a C Clamp and I have some ideas of my own that I would try but was hoping I could get pics from people with more experience.
I would be using this on an older Alumacraft Boat that does not have any type of track system.
Thanks in advance.

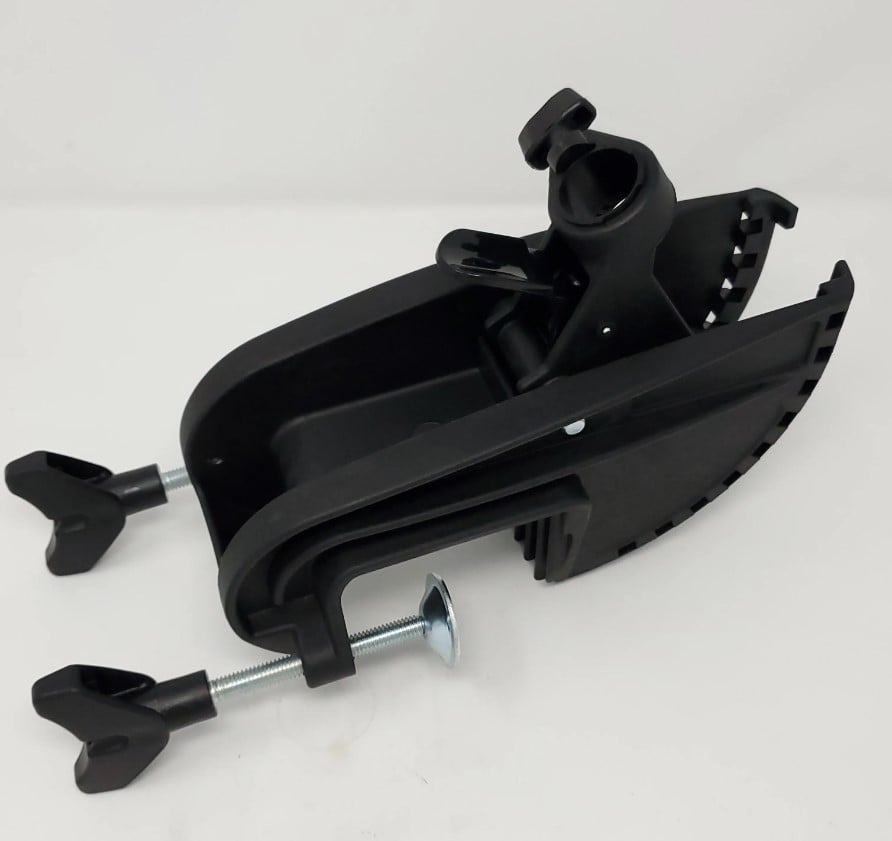

MK Transom mount trolling motor bracket p/n 2991815A
It’s solid to about 4 MPH and starts to wobble faster than that.

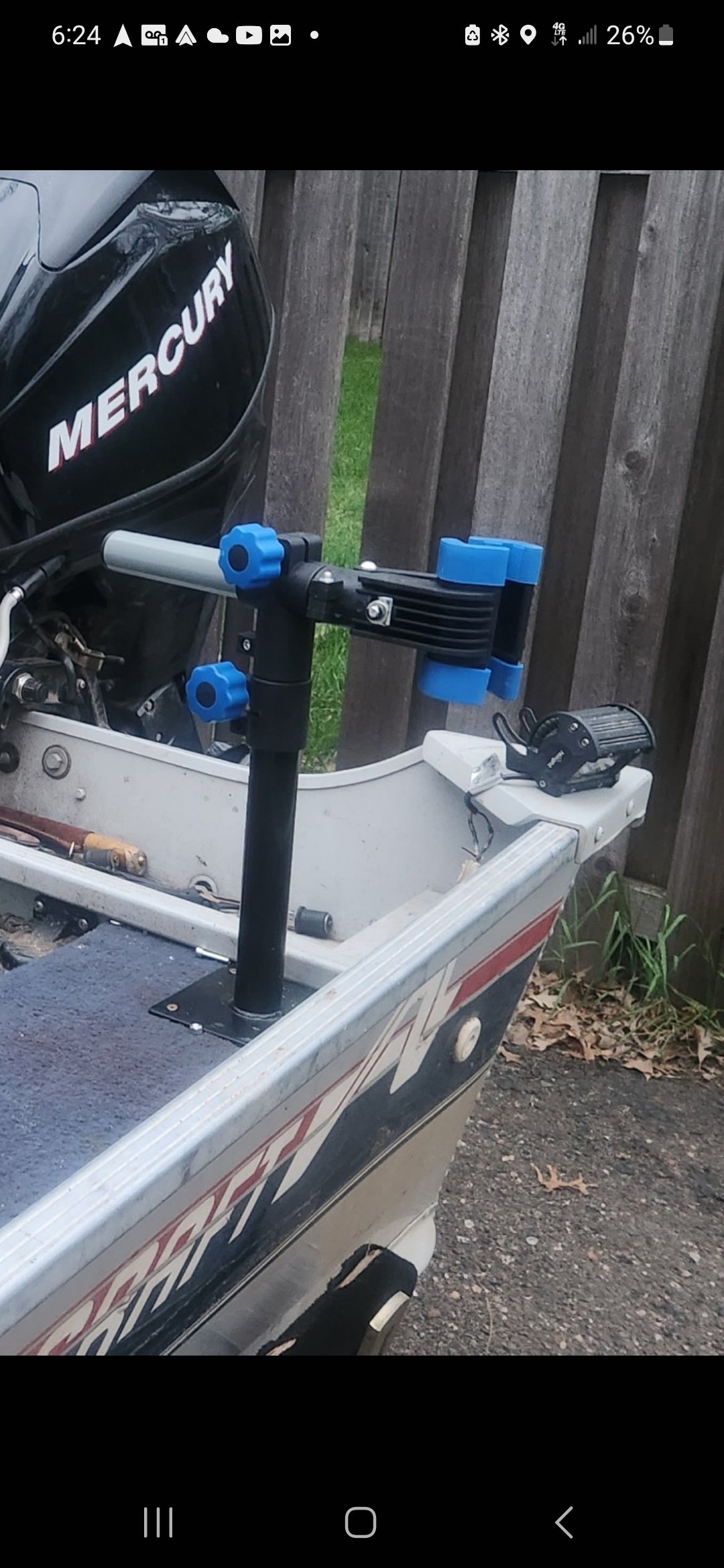

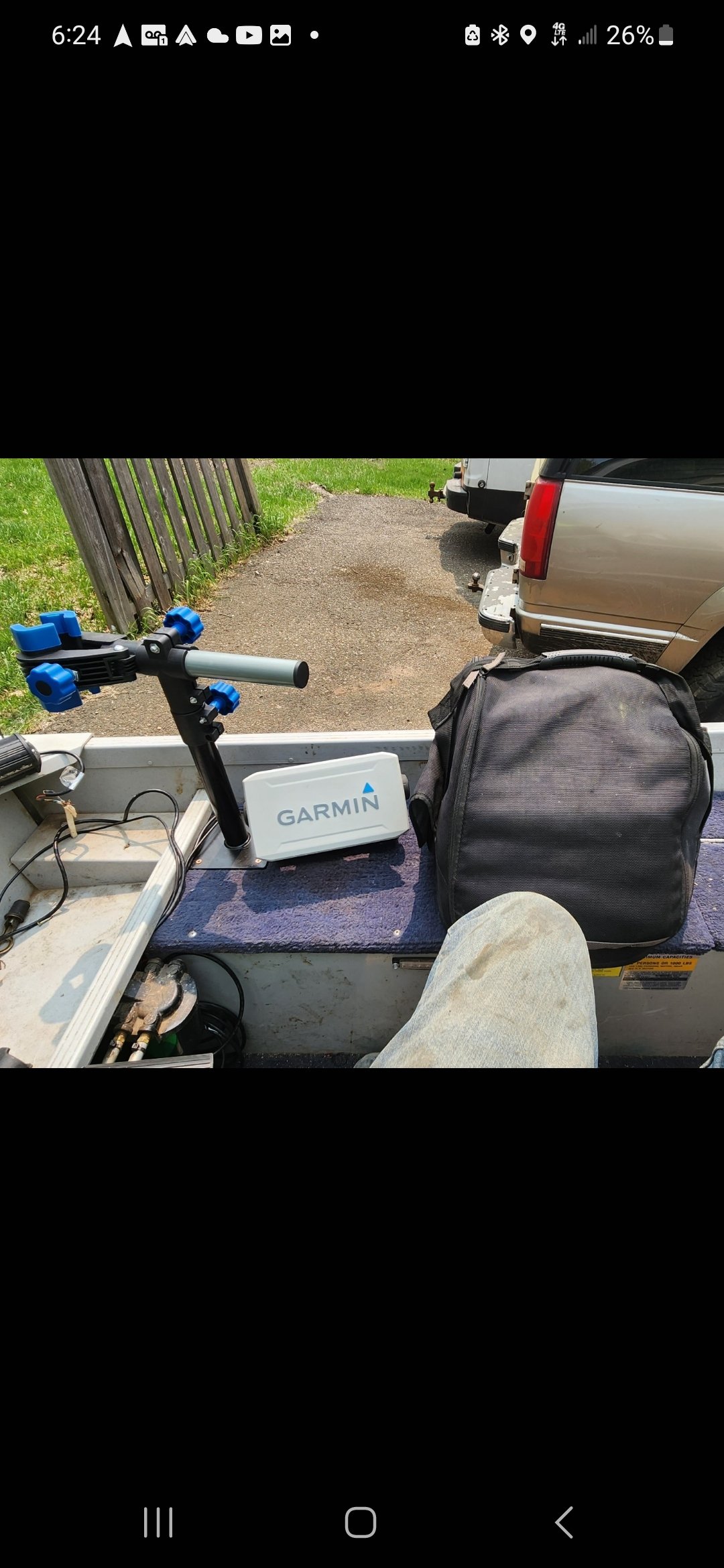

Bmx frame holder. 39 bucks on Amazon. Holds as sturdy as any. And more sturdy then the 390 dollar units
Bmx frame holder. 39 bucks on Amazon. Holds as sturdy as any. And more sturdy then the 390 dollar units
I think he’s looking for something clamp-on, not bolt or screw on. At least that’s how I took it. No doubt the permanent mount will be more sturdy, though.
I think he’s looking for something clamp-on, not bolt or screw on. At least that’s how I took it. No doubt the permanent mount will be more sturdy, though.
[/quote]
Yup, that’s my bad. I though he was asking for ideas due to no rail or track system
Hard to help without seeing a pic of where you want to clamp to. Do you have a wide gunnel or is it narrow like on BC’s boat above?
If it’s wider, I’d buy a 12” section of track and then you have a wide variety of options. Ram Mounts makes all the parts you need for a clamp system. If you have a narrow gunnel Ram makes a clamp that might fit onto it. I use the Ram clamp to connect to my rail and it’s amazing how much clamping force they have.

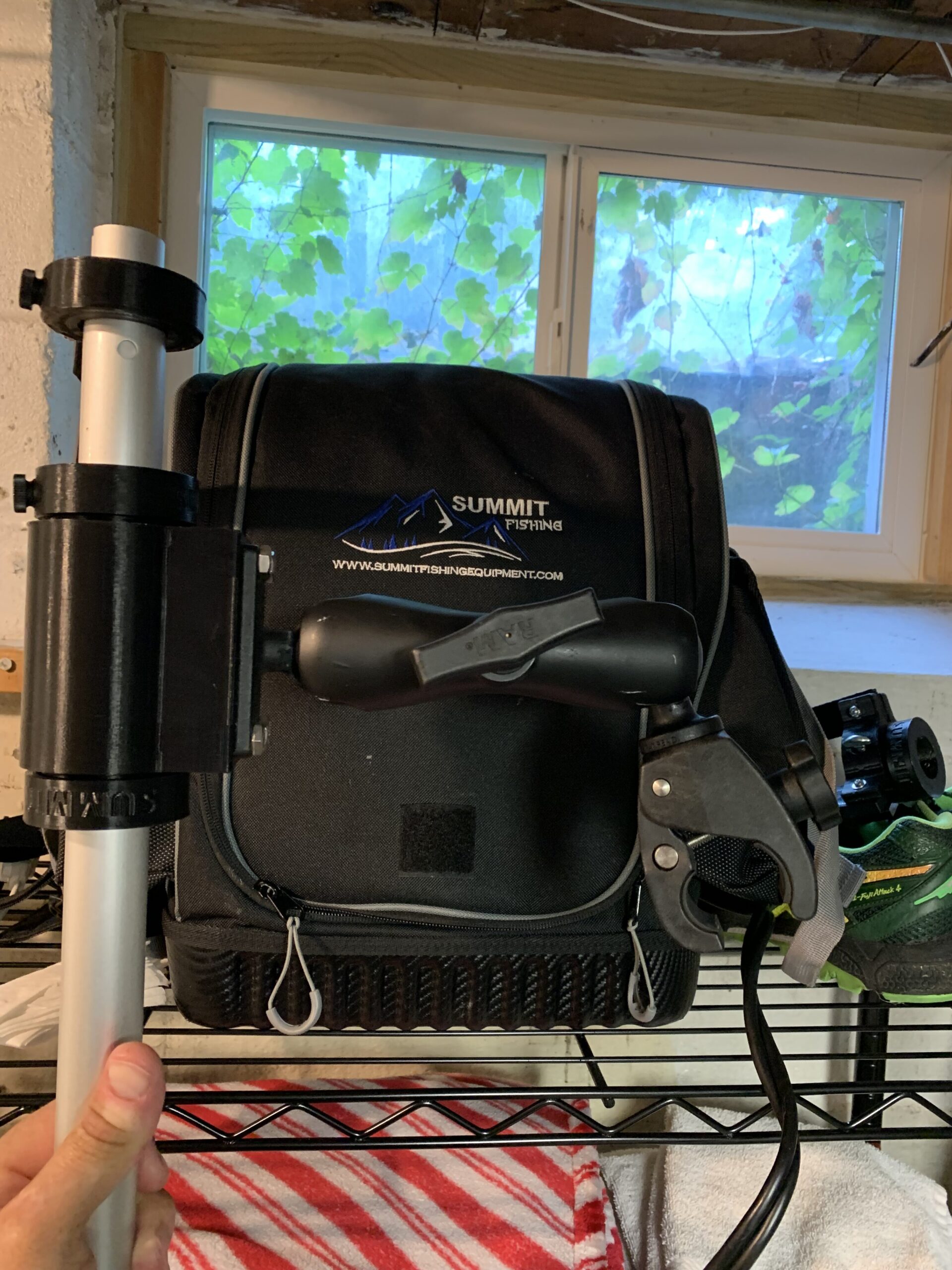

Here’s a pic on my summit pole to give you some idea.
^^^that looks real nice, do you have the Ram p/n’s you used to put that together?
^^^that looks real nice, do you have the Ram p/n’s you used to put that together?
I’ll see if they have part numbers but it’s C size clamps and balls. The double sided clamp is 6”.

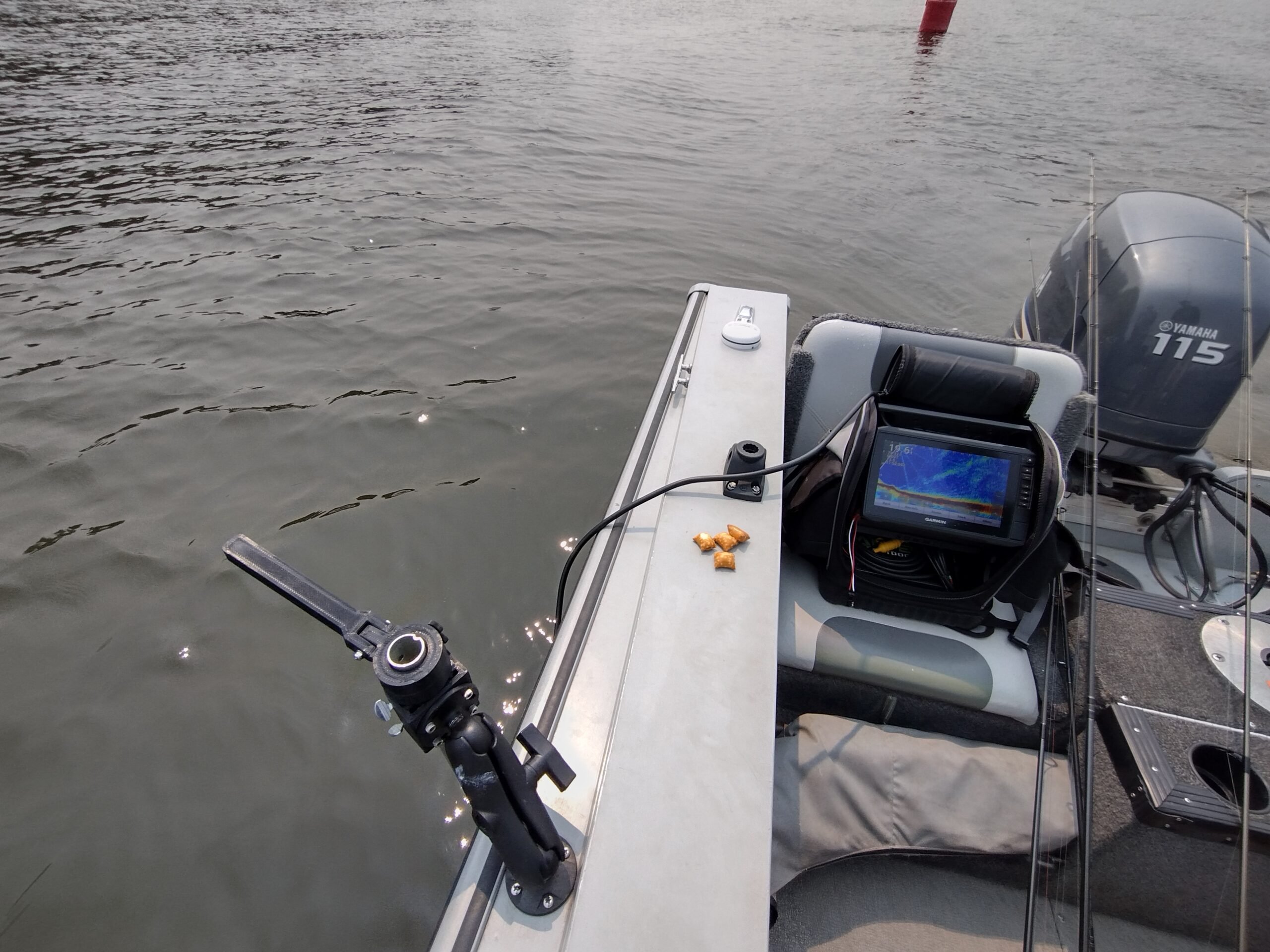

You can buy the claw style ram mount from fleet farm. I have it and use it on the front of my boat on the rail that is attached to my gunnel. In the back I purchased a bolt on ram ball and fastened it to the gunnel. This is all attached to the summit pole. Its not the most sturdy setup if I am being honest, but it works. I purchased the double socket ram arm off ebay and it looks like it was the following: Ram Mounts RAM-201U Short Double Socket Arm for 1.5-Inch Ball Bases
MK Transom mount trolling motor bracket p/n 2991815A
It’s solid to about 4 MPH and starts to wobble faster than that.
This looks perfect. You can use any pole with this then I am guessing?
MK Transom mount trolling motor bracket p/n 2991815A
It’s solid to about 4 MPH and starts to wobble faster than that.
Do you think this would work on the side of the boat as well or just off the back?
<div class=”d4p-bbt-quote-title”>tswoboda wrote:</div>
MK Transom mount trolling motor bracket p/n 2991815AIt’s solid to about 4 MPH and starts to wobble faster than that.
This looks perfect. You can use any pole with this then I am guessing?
I used a stick of 3/4″ schedule 40 for the pole.
Yeah I use it on the side mostly but like that I can easily move it anywhere in the boat, including the transom for trolling.
