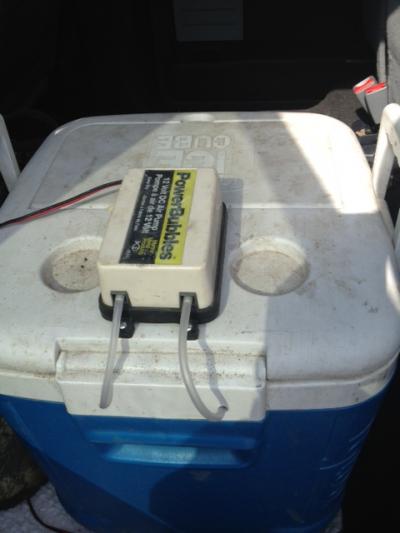

I’m in the process of setting up my aireator in a removeable cooler for my livewell in my jonboat. I had it set up with a bilgepump and pvc pipe with holes drilled in it. It worked good but in the warmer summer months the water heated up because of the heat coming off the bilge pump when it ran and it stressed or killed the bait if I didn’t catch them during that time.
I’m in the process of putting in a diaprahm pump that has positive pull and not haveing to be primed, to put water in the cooler. I mounted the pump onto the the gunnel of the side of the boat and then drilled a hole twards the bottom under the waterline right below the pump. For a fitting I used a 3/8ths continueous threaded galvanized pipe about an inch long for the through the hull installation. I used a couple threaded nuts normally used for 3/8ths electrical pipe for double nutting on both sides of the boat hull, with o-rings for gaskets. I then hooked the intake hose of the diaphram pump to that fitting and it mounted tight and secure. When drilling the hole through the hull I used a wood cutting drillbit because thier alot cheaper and thought it might be good enough for an aluminum hull and it was and worked great.
I bought a new cooler and am planning to cut a drainhole in the end or side for the water to exit. Because the water coming in, is under pressure and is coming into the cooler faster then a same size hole going out as the drain, im going to drill a hole for the outside diameter of a 1 1/4″ drain pipe.
I want to be able to remove the cooler and put it beside me when fishing for bait so I’m going to use a 1 1/4″ pvc pipe about 5″ long and silicone that inside the hole and around the exit pipe for a fairly secure mount to the cooler. To be able to just pick the cooler up out of the boat I’m going to mount a 1 1/2″ radiator hose to the side of the boathull so I can just slide the cooler, water, exit pipe into the hose, so the water can exit out of the cooler back into the river throuigh the hull.
I will now have a baitwell that circulates river or lake water instead of recirculating and aireating the baitwell water itself. This is the only way I could figure out how to keep my bait in the best shape during the warmer months of July and August to keep my bait in good shape. When I get done I’ll post some pictures of how it came out,,,and no more loosing bait during the hot months out on the water.
