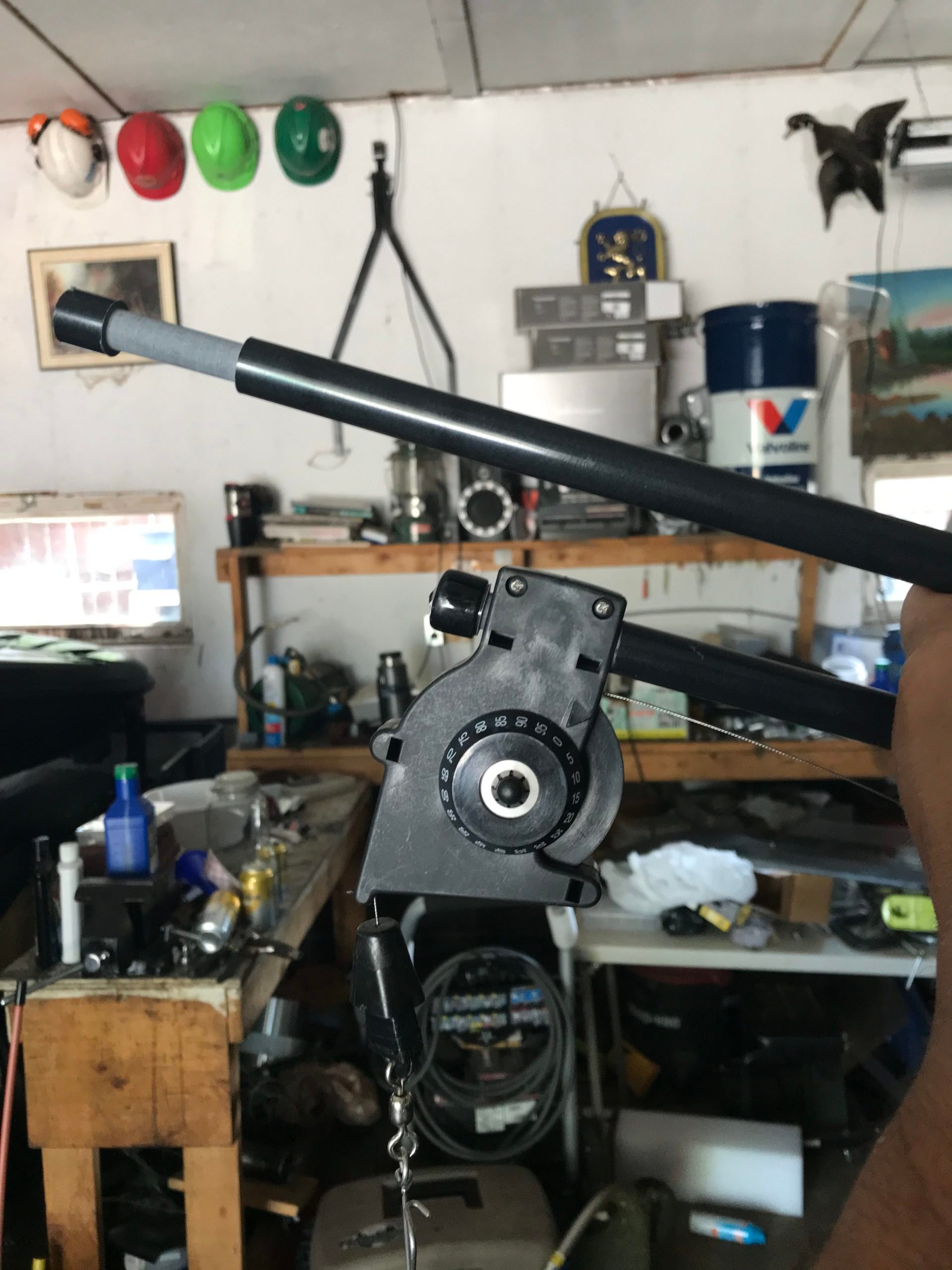

Anyone know how to remove these without breaking them? I’ve got longer booms to install but can’t get them off. I’ve removed the two screws but they don’t want to open up! I’d rather not break them. Thanks for any help!
From the manual. Reverse for disassembly.
Manual available at Cannon for download
“Assemble Swivel Head To Boom
Insert the telescopic boom-end into the boomalign holes and fasten in place with a #8 x 5/8
screw. Spread the swivel head side plates and
slip the assembly over the boom end axle. Snap
the assembly together and install two #4 x 1/2″
screws into the swivel head.”
