Bennett Trim Tabs

  • dewarsh2o
    Northfield, MN
    Posts: 46
    May 17, 2016 at 6:38 am #1619952

    Apologize if this topic has been discussed, couldn’t find it in the forum. Has anyone installed those 10″ self leveling Bennett Trim Tabs on their Skeeter? If so, results? Thanks!

    Ed Lashyro
    NULL
    Posts: 100
    June 13, 2016 at 8:22 am #1624167

    I put tabs on my 2190, it acts like a boat that is 2′ longer in chop when bow is down. I camp out in the bush on Nipigon and carry large loads. i can send some pics if you interested.

    I cannot get pics to go into this site as I am not to savy with the computer.

    Dutchboy
    Central Mn.
    Posts: 16660
    June 13, 2016 at 11:35 am #1624194

    Down below this box there is a tab under “attachments” that says choose file. Click there and grab your photo and upload it.

    skeeter20
    Winnie/Grand Rapids,MN
    Posts: 902
    June 13, 2016 at 11:50 am #1624202

    Whats the width? With a kicker you got to be careful. I am going to install a pair of lenco limited space trim tabs. They are 4″x12″. Have heard great things about them and they wont interfere with my kicker.

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 12:50 pm #1673992

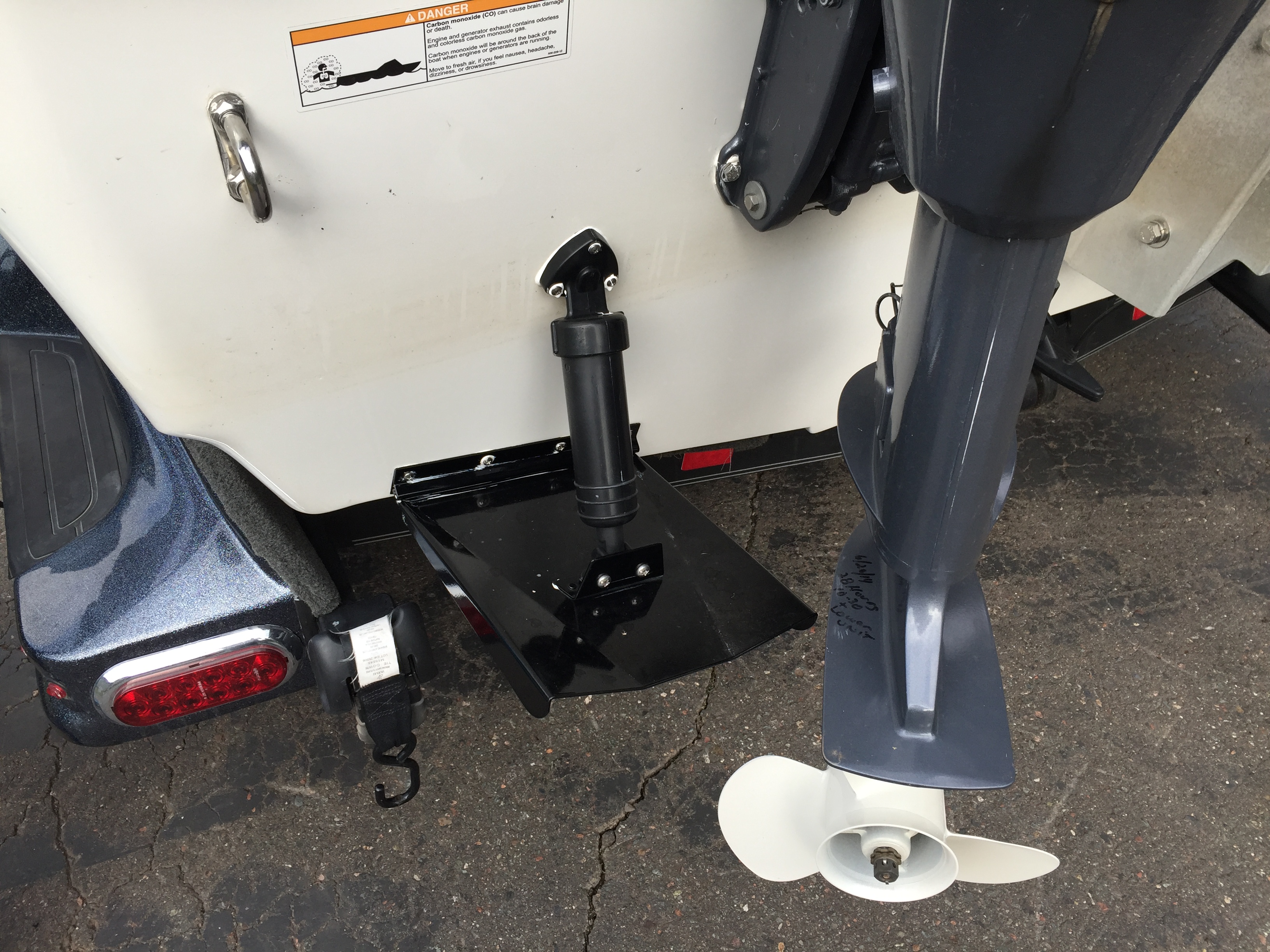

    I will drop a few pics of dimension and location for clearances.

    Attachments:

    1. IMG_1845.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 12:58 pm #1673997

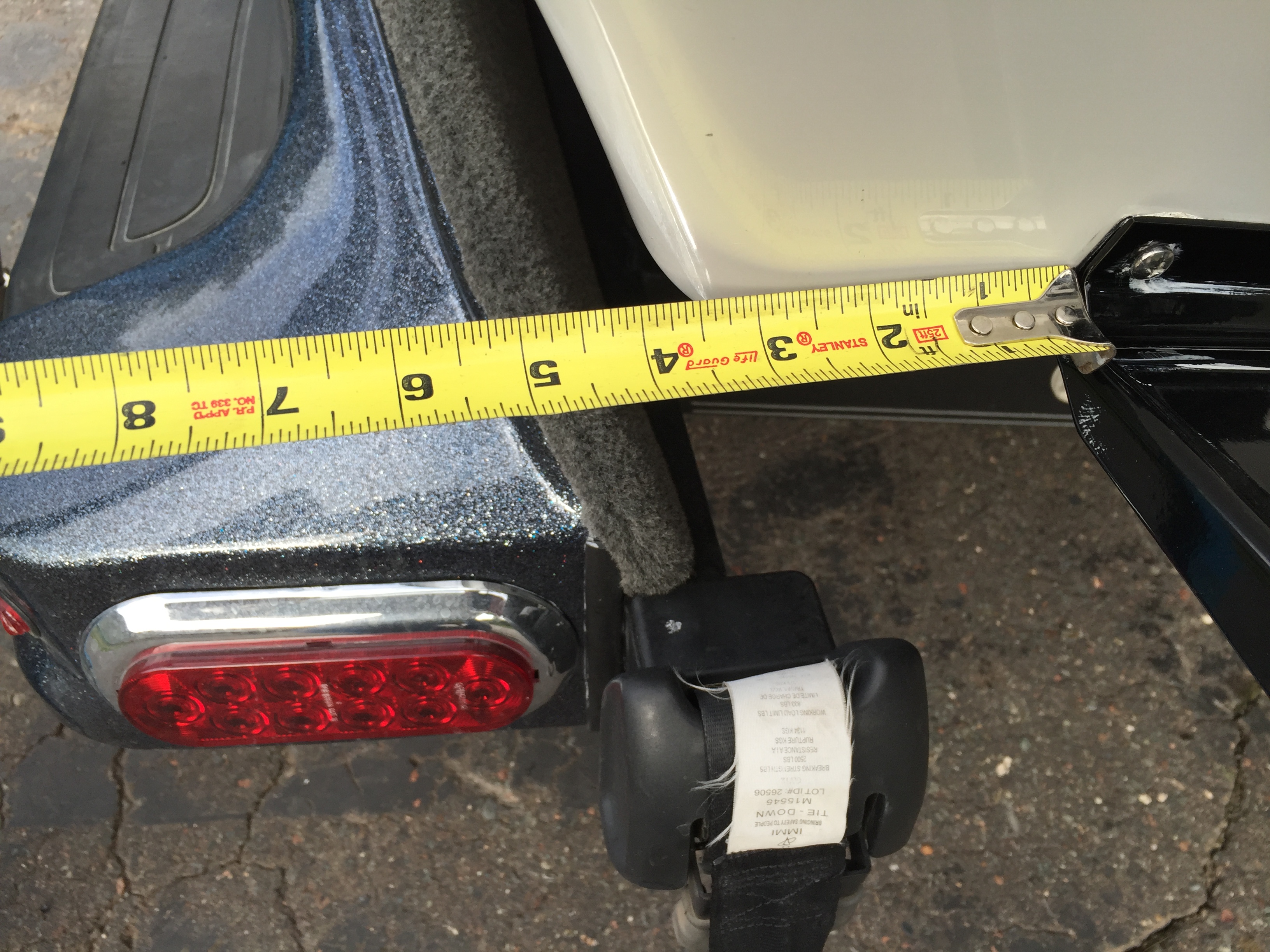

    Port side dimension for clearance on my kicker. Keep in mind I installed my own with tabs in mind. I can get the kicker location off the boat if needed.

    Attachments:

    1. IMG_1843.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:01 pm #1673999

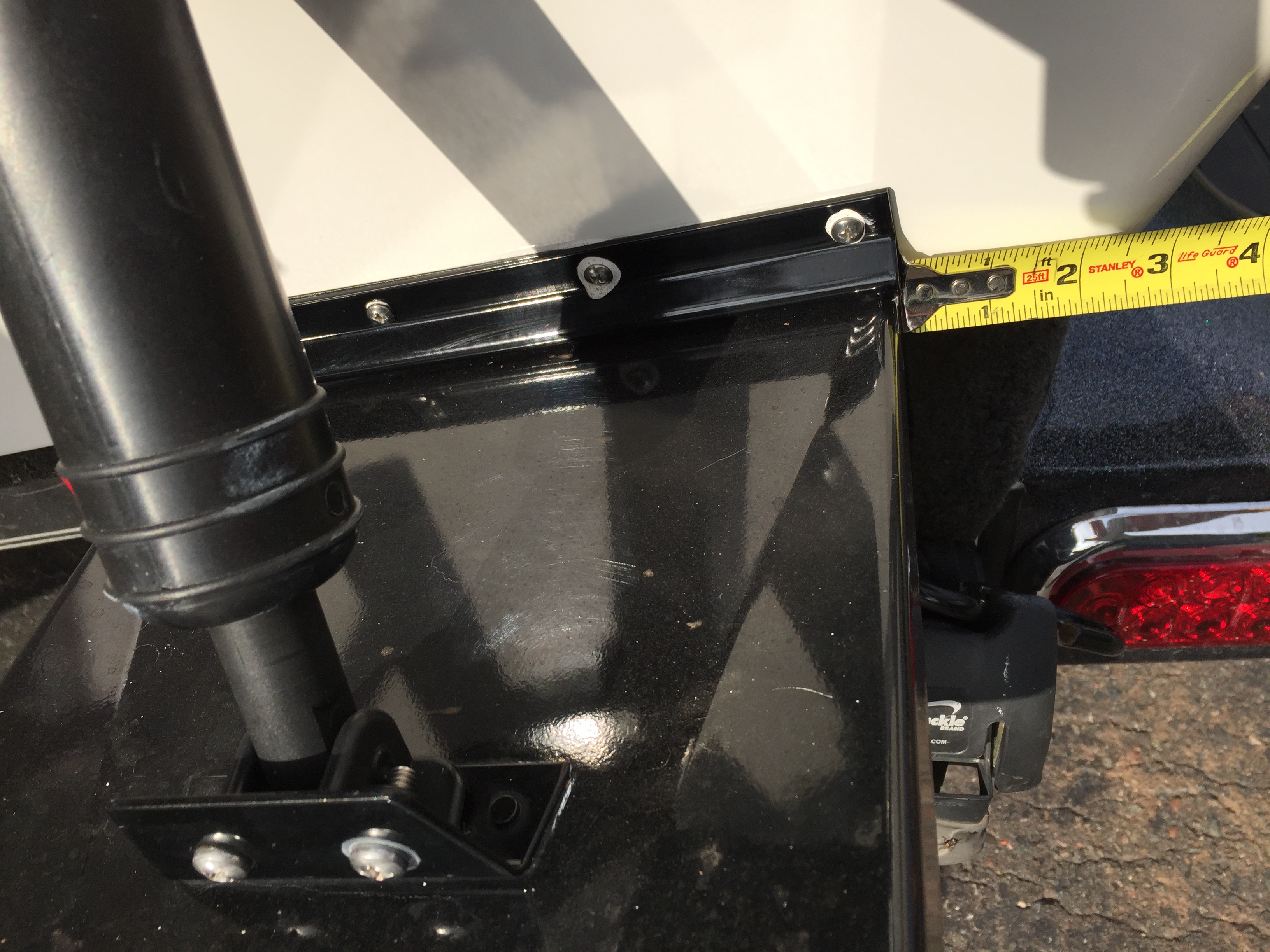

    Stb side.

    Attachments:

    1. IMG_1840.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:02 pm #1674001

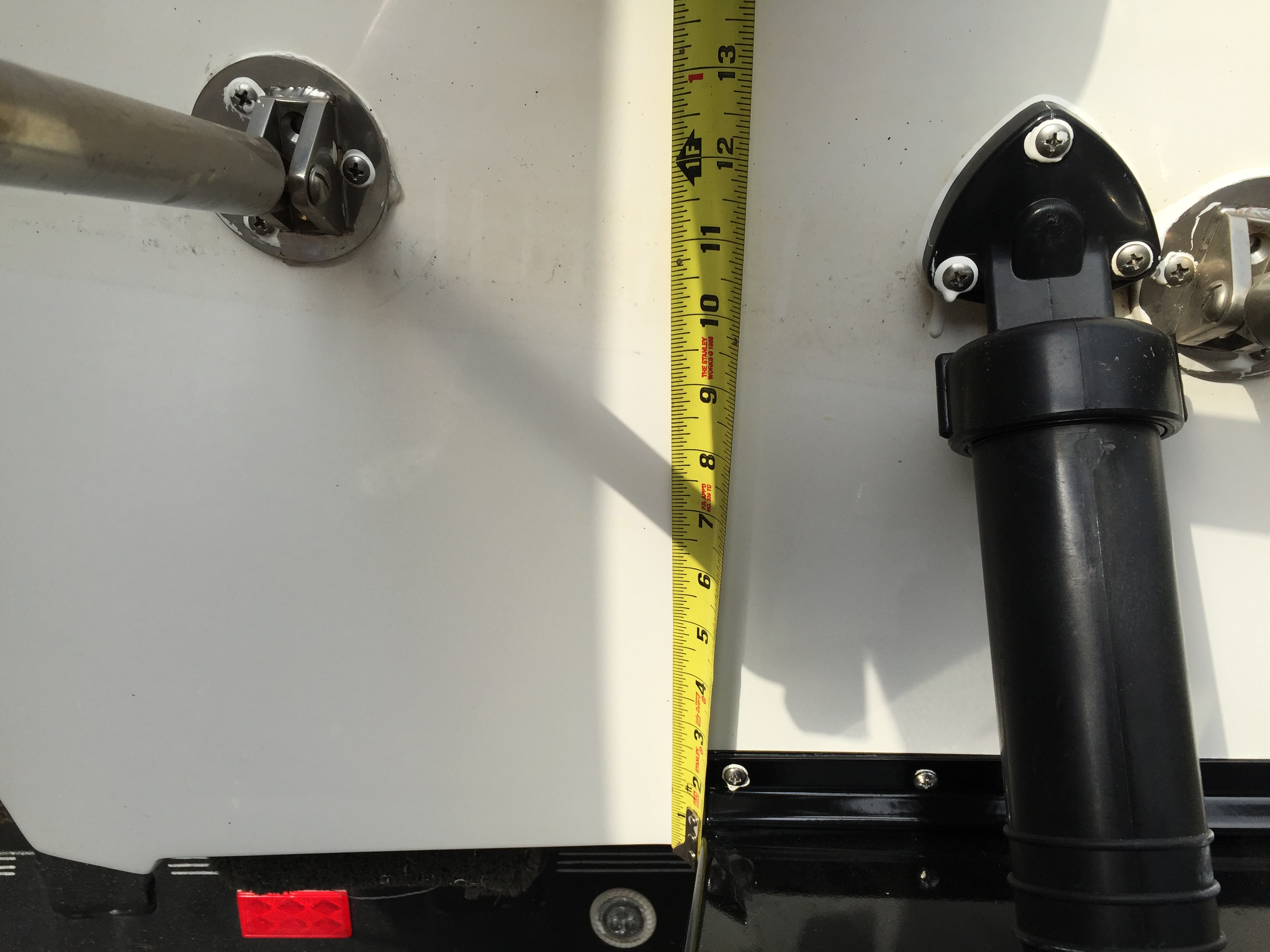

    Elevation location, care of location is critical for the ladder and kicker clearance.

    Attachments:

    1. IMG_1847.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:04 pm #1674003

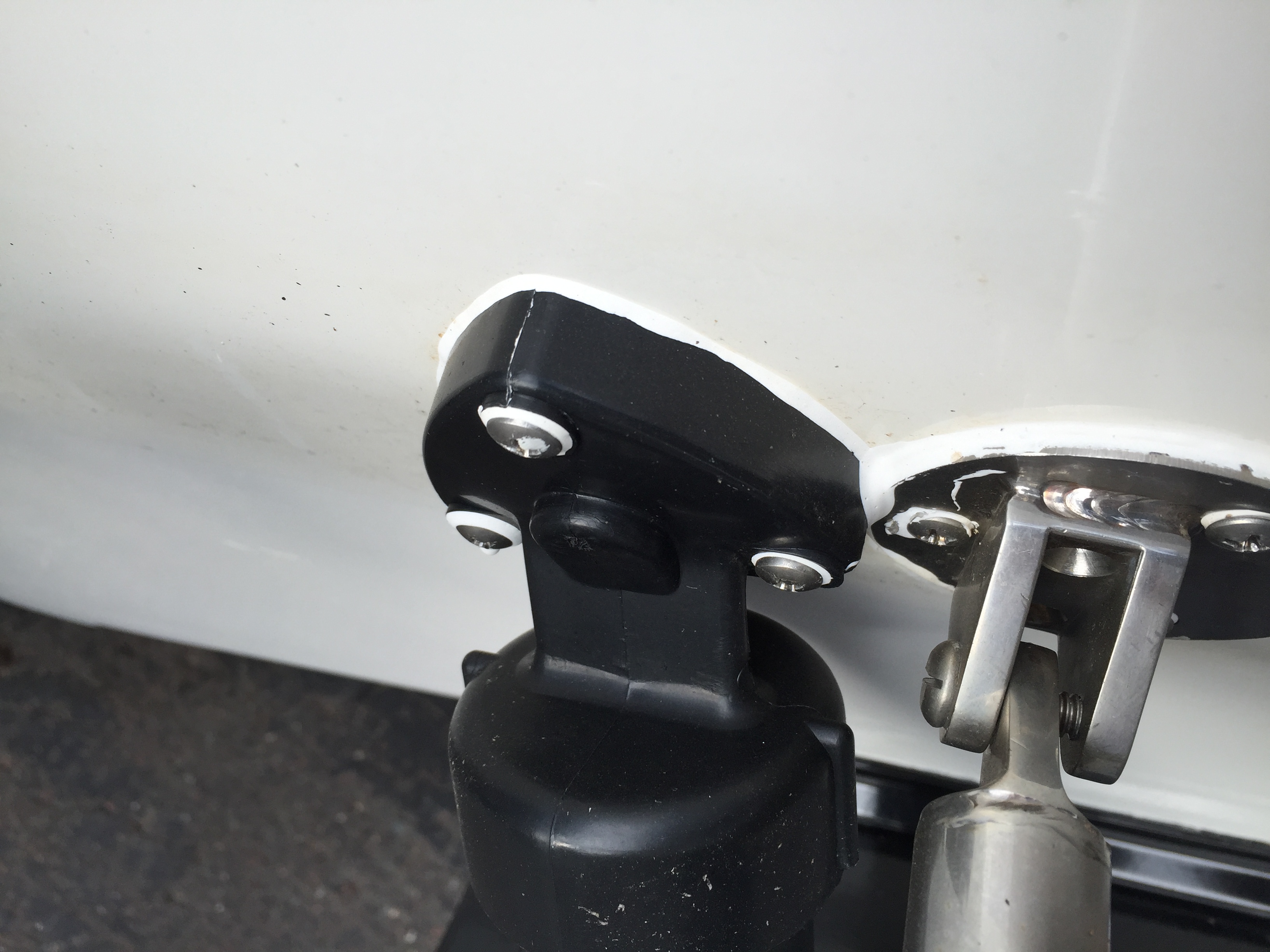

    Ladder.

    Attachments:

    1. IMG_1849.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:05 pm #1674006

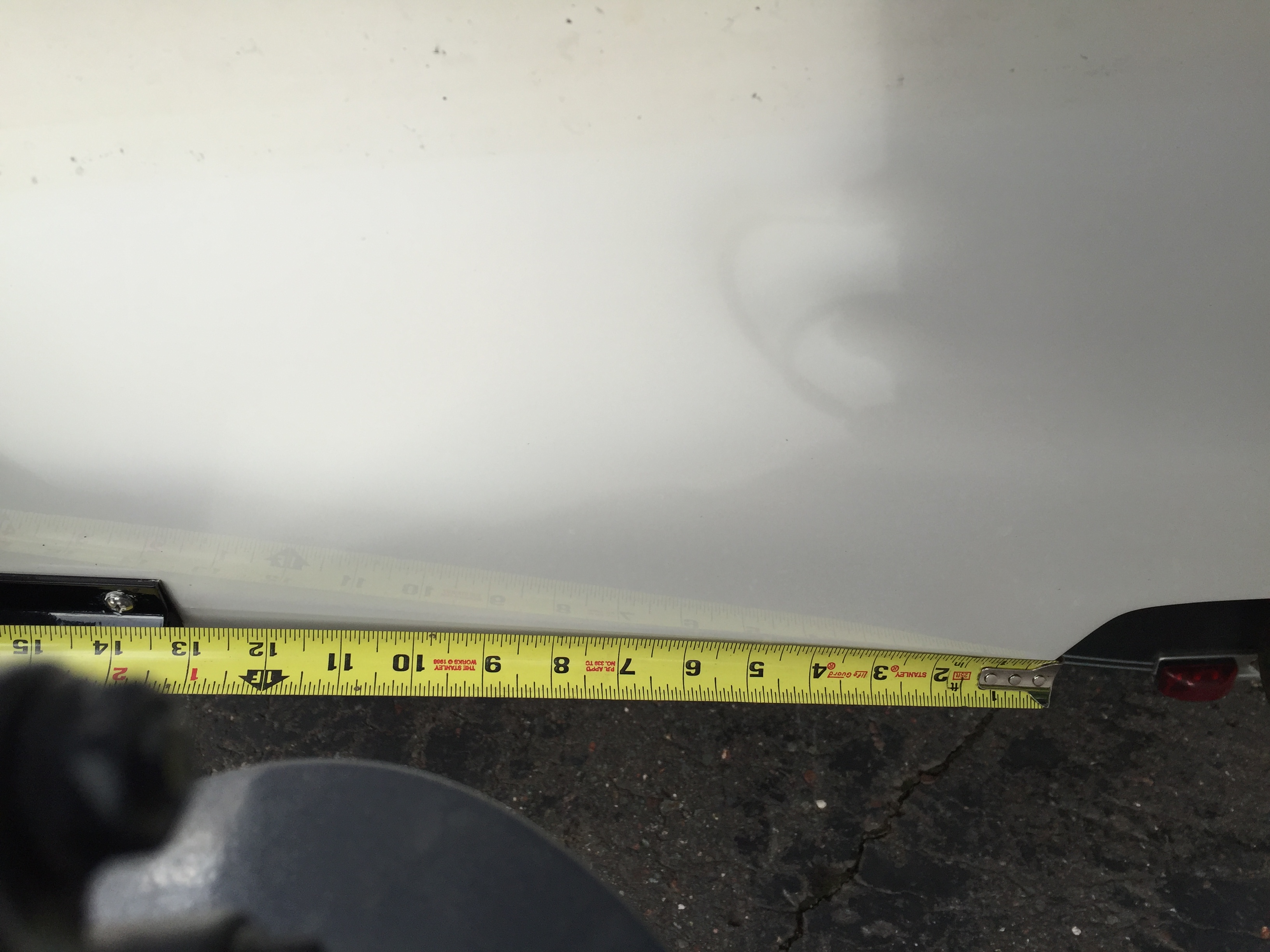

    Another.

    Attachments:

    1. IMG_1848-1.jpg

    2. IMG_1848.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:08 pm #1674009

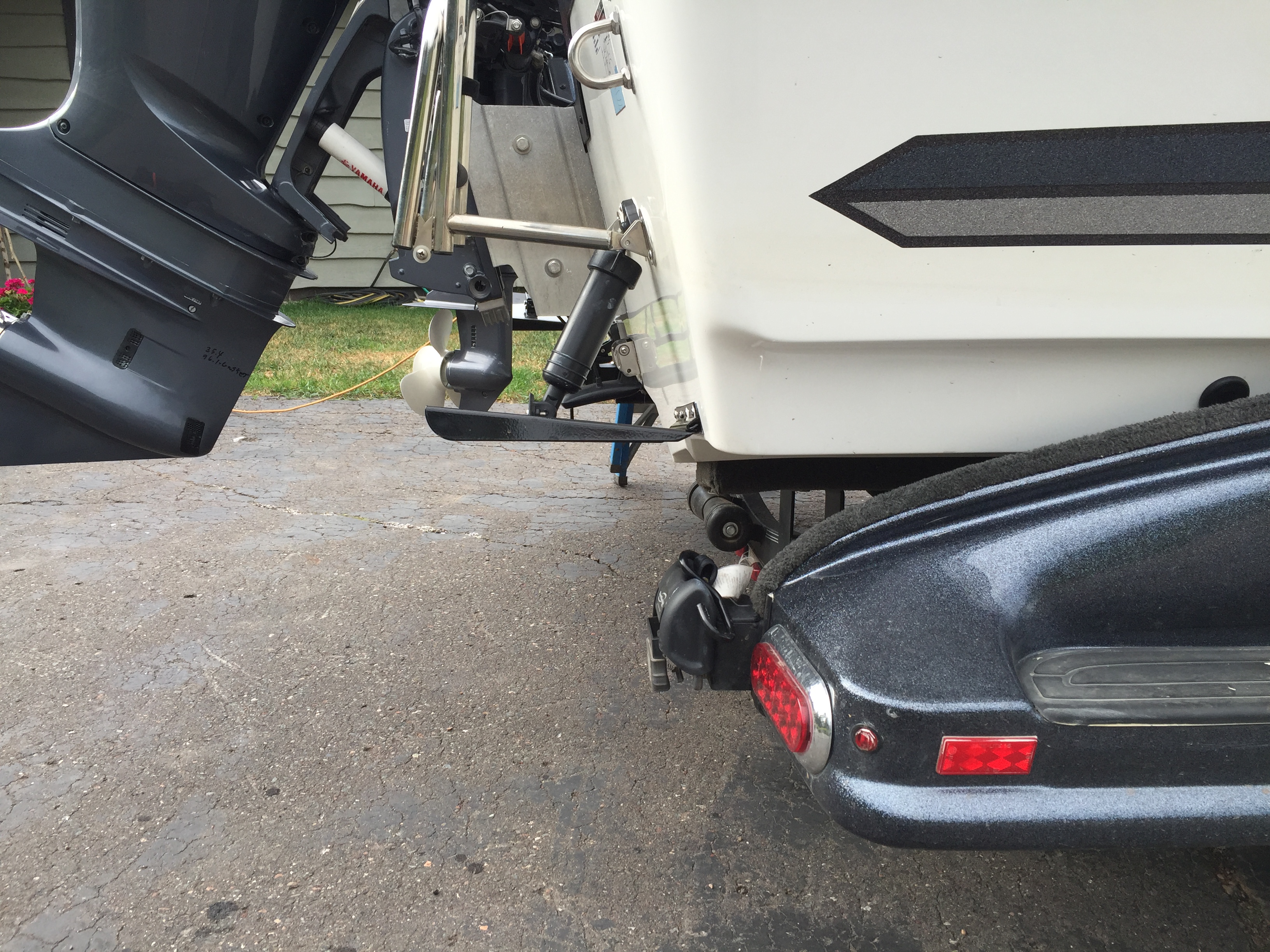

    Full up with a 1/4″ clearance above the bottom of the boat for trimming purposes.

    Attachments:

    1. IMG_1846.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:11 pm #1674011

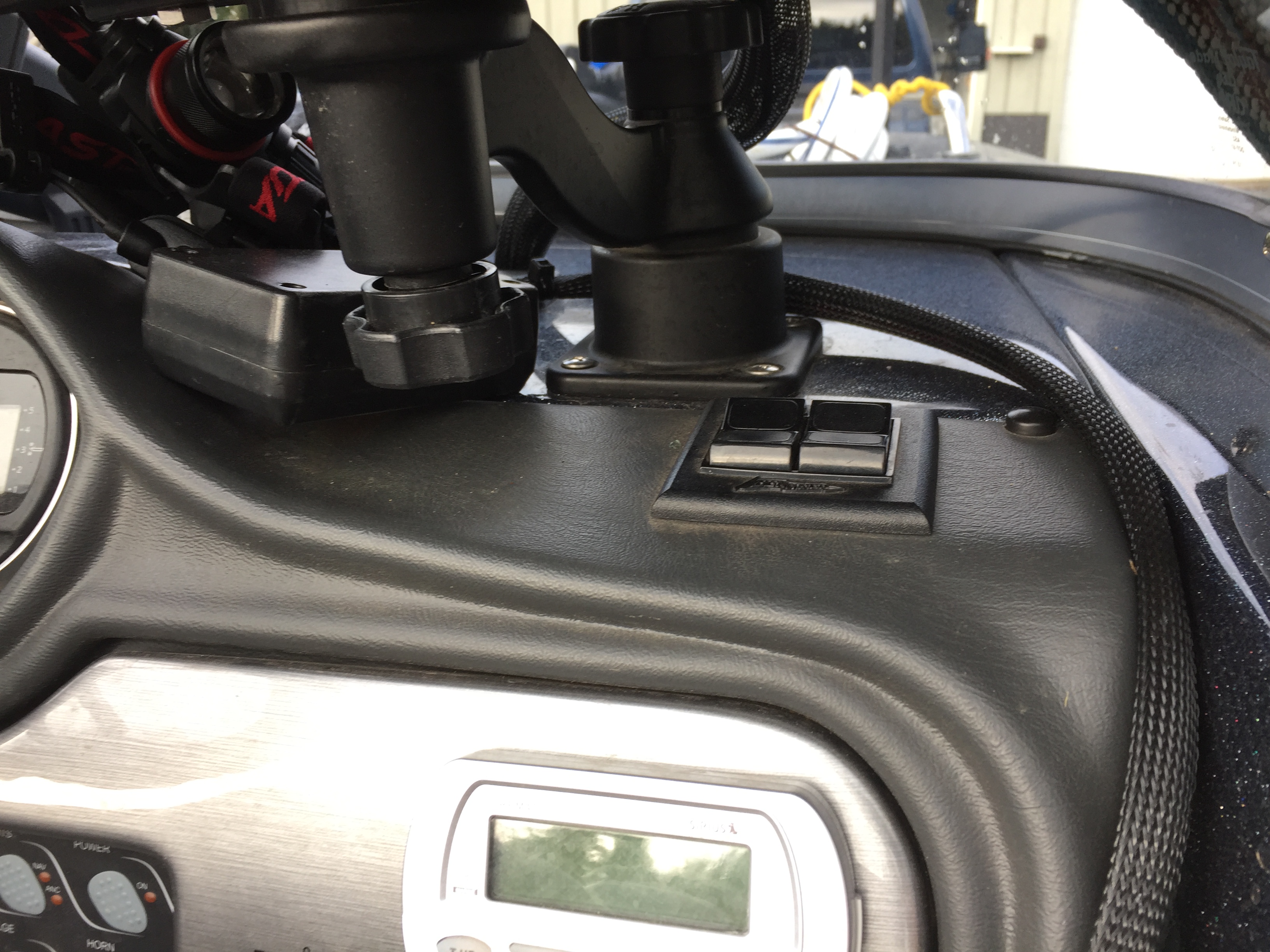

    The switch is located on the dash and the pump/hydraulic reservoir is located under the port rear jump seat behind the tackle box storage once removed.

    Attachments:

    1. IMG_1850.jpg

    Ed Lashyro
    NULL
    Posts: 100
    February 14, 2017 at 1:14 pm #1674014

    The tabs are 10″ wide and 12″ deep.

    Pauleye
    Onamia
    Posts: 276
    January 21, 2018 at 11:05 am #1746063
    skeeter20 wrote:

    Whats the width? With a kicker you got to be careful. I am going to install a pair of lenco limited space trim tabs. They are 4″x12″. Have heard great things about them and they wont interfere with my kicker.

    Did you intall these on your boat?
    If so how do you like them?

    Chris Messerschmidt
    Minnesota
    Posts: 615
    January 22, 2018 at 9:14 am #1746335

    Check out PowrTran’s new Trim Tabs as well. They’re very nice!

    Dean Marshall
    Chippewa Falls WI /Ramsey MN
    Posts: 5854
    January 22, 2018 at 12:42 pm #1746418

    I have not used thee self leveling version, but have used myself for several years now and installed for many customers. I am sold and have yet to have a customer that hasnt been thrilled and very happy with trim tabs.
