4 Batteries in a MX1825 pics.

  • pale ryder
    NULL
    Posts: 161
    March 22, 2015 at 6:38 pm #1525990

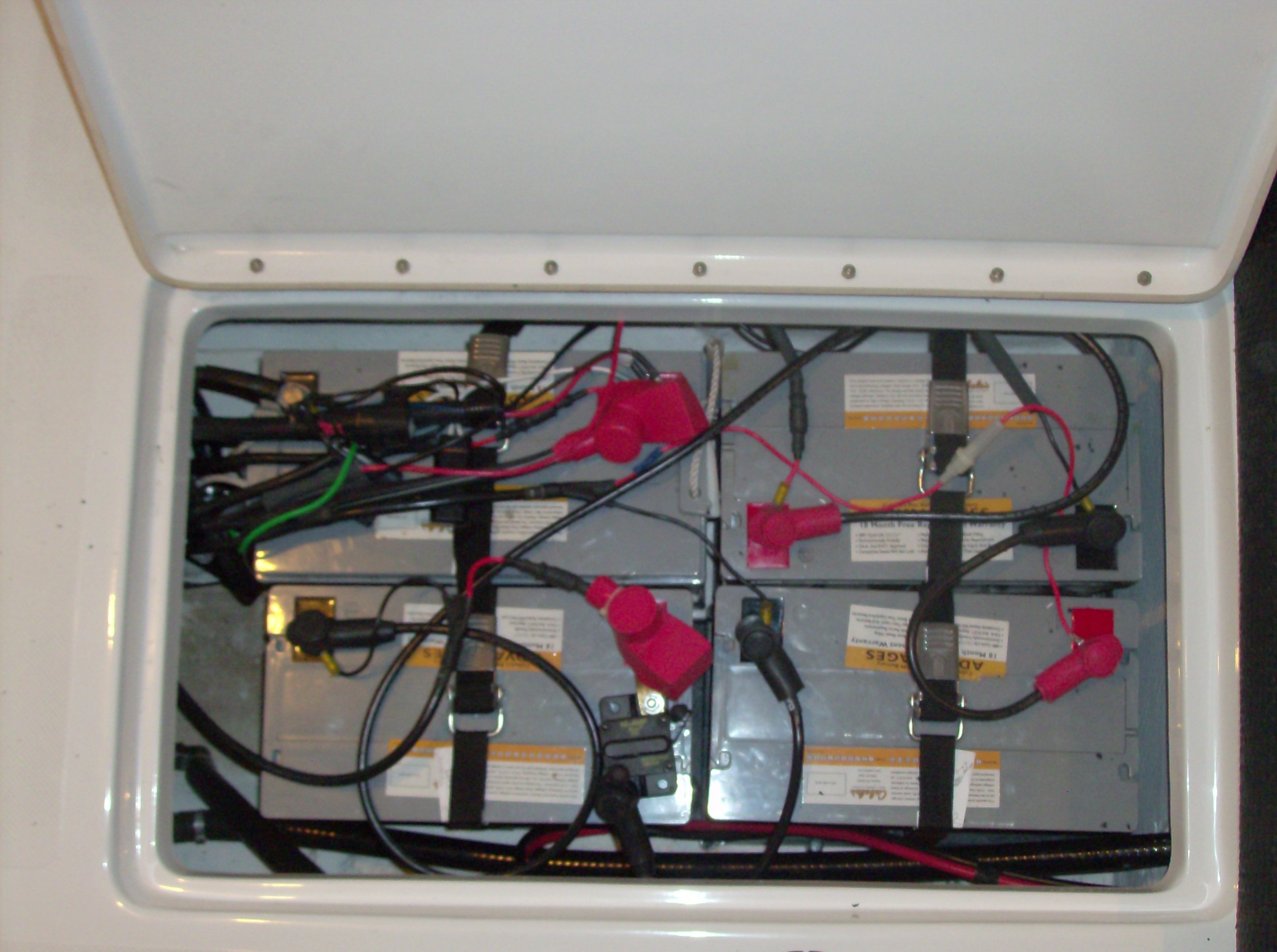

    I had to add a forth battery so I could use the 36 volt Terrova I had.
    I moved the charger to the port side shelf behind the removable rear storage bin.

    Attachments:

    1. HPIM0647.jpg

    mh454
    ND
    Posts: 77
    March 24, 2015 at 9:19 am #1526576

    Nice work! What size battery’s are those?

    pale ryder
    NULL
    Posts: 161
    March 24, 2015 at 9:09 pm #1526832

    3 group 27s for the trolling motor and a 31 for everything else.
    The trays will hold 31s, so I could fit 4 size 31 batteries if I wanted.

    clawman
    Spokane Wa
    Posts: 118
    March 29, 2015 at 10:15 pm #1528731

    Slick! I like the idea of the charger where you can see it. I never know the status of batteries without opening the lid.

    Gregk9
    Far Northern IL
    Posts: 33
    May 21, 2017 at 12:42 pm #1695211
    pale ryder wrote:

    I moved the charger to the port side shelf behind the removable rear storage bin.

    You got a pic of this?

    pale ryder
    NULL
    Posts: 161
    May 21, 2017 at 9:11 pm #1695247

    No pic of the charger on hand. I’ll try to get one soon.

    Gregk9
    Far Northern IL
    Posts: 33
    May 22, 2017 at 12:22 am #1695266

    Thanks!

    pale ryder
    NULL
    Posts: 161
    June 13, 2017 at 9:17 pm #1698937
    Gregk9 wrote:

    Thanks!

    Sorry it took so long.

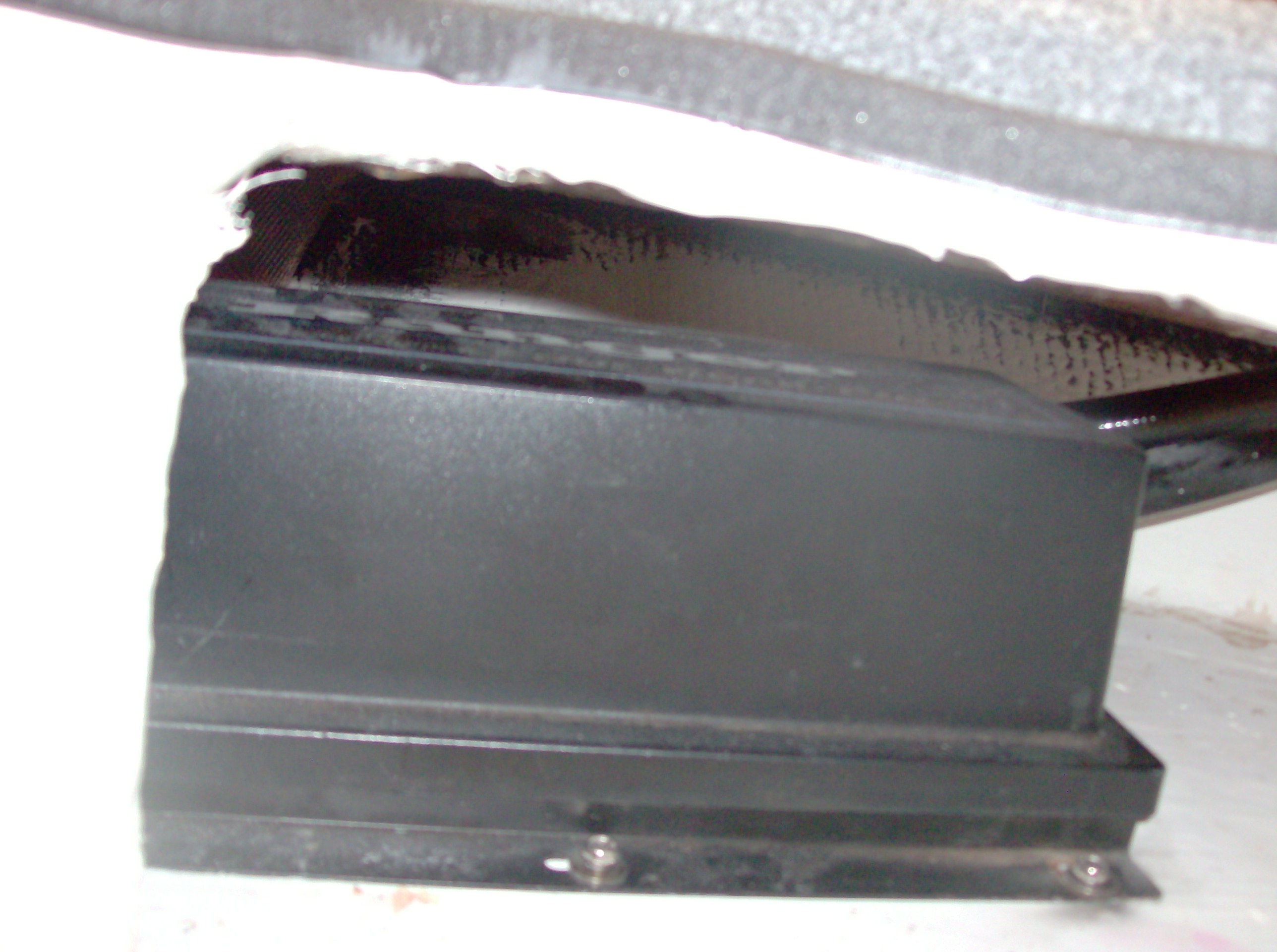

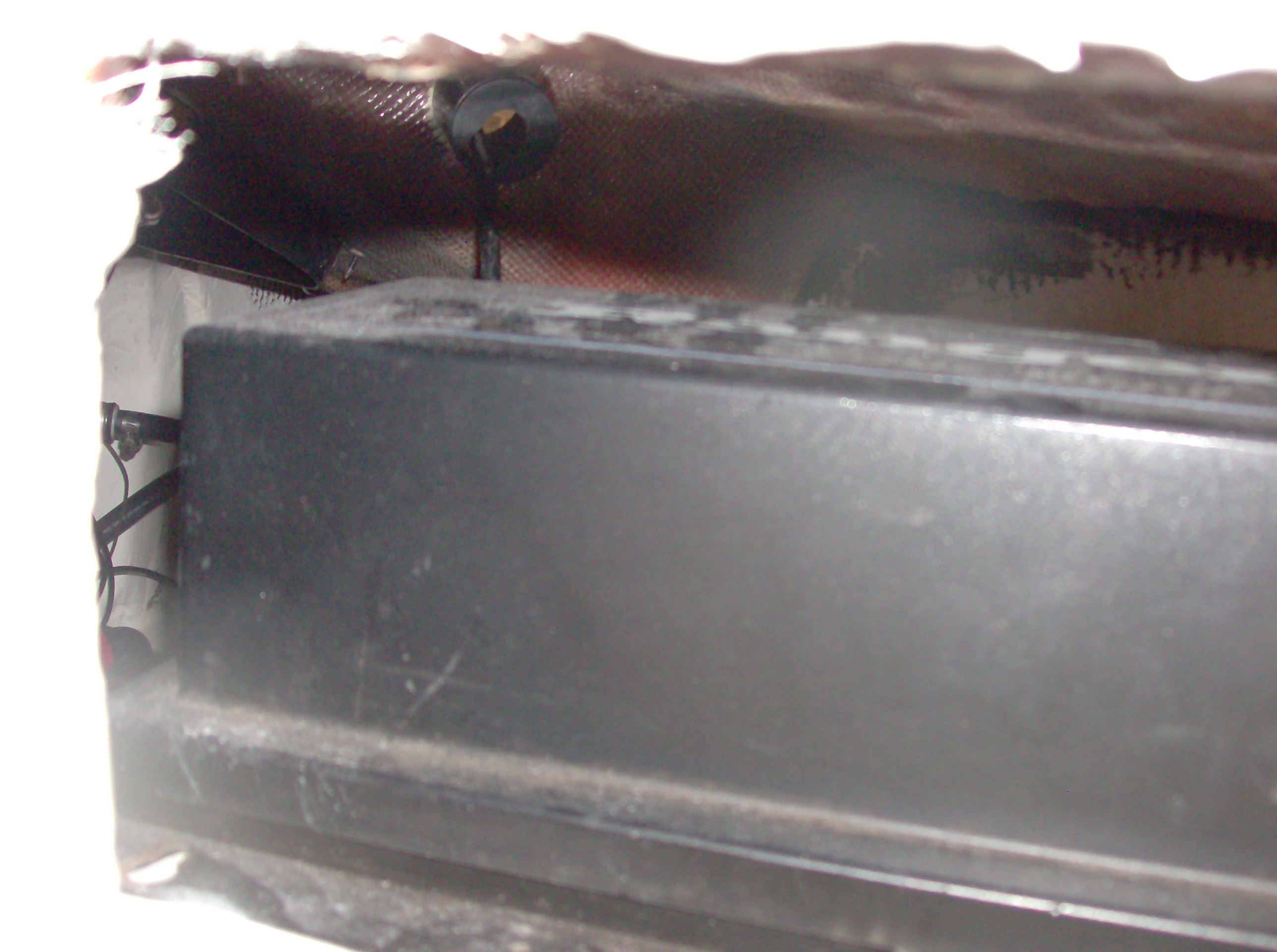

    These were taken from inside the rear port storage looking back.

    Attachments:

    1. HPIM0794.jpg

    2. HPIM0795.jpg

    Gregk9
    Far Northern IL
    Posts: 33
    July 6, 2017 at 10:34 am #1702654

    Cool. Thanks! How hard was that to install? Not a heck of a lotta room under there!

    pale ryder
    NULL
    Posts: 161
    July 6, 2017 at 8:15 pm #1702785
    Gregk9 wrote:

    Cool. Thanks! How hard was that to install? Not a heck of a lotta room under there!

    Not too bad just drilled 4 holes and screwed it down.

    Gregk9
    Far Northern IL
    Posts: 33
    July 20, 2017 at 8:27 pm #1705780
    pale ryder wrote:

    Not too bad just drilled 4 holes and screwed it down.

    How about as far as getting your hands under there?

    pale ryder
    NULL
    Posts: 161
    July 21, 2017 at 10:10 pm #1705968
    Gregk9 wrote:

    <div class=”d4p-bbt-quote-title”>pale ryder wrote:</div>
    Not too bad just drilled 4 holes and screwed it down.

    How about as far as getting your hands under there?

    I used an angle drill to drill the holes.
    other than that there was enough room.
    It is a little tight but I’ve dealt with worse.
    In my opinion it is worth the effort to have a 36 volt TM.
    I have not yet needed more power or drained down the batteries.
